Southbend Platinum Series Installation & Operation Manual

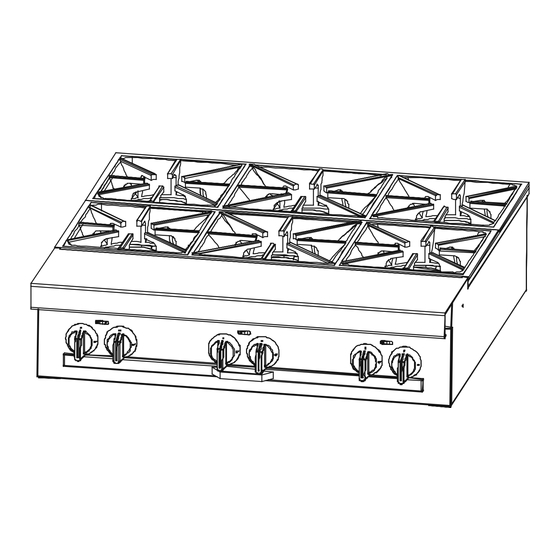

Platinum series sectional range
Hide thumbs Also See for Platinum Series:
Table of Contents

Advertisement

Quick Links

Installation & Operation Manual
Platinum Series Sectional Range
Charbroiler Models: P16C-C, P16N-C, P24C-CC, P24N-CC, P32A-CC, P32C-CC, P32D-CC, P32N-CC, P36A-CCC, P36C-CCC, P36D-CCC,
Standard Griddle Models: P16C-G, P16N-G, P32A-GG, P32C-GG, P32D-GG, P32N-GG, P48A-GGG, P48C-GGG, P48D-GGG, & P48N-GGG
Graduated Hot-Top Models: P32A-GRAD, P32C-GRAD, P32D-GRAD, & P32N-GRAD
Uniform Hot-Top Models: P16C-H, P16N-H, P32A-HH, P32C-HH, P32D-HH, & P32N-HH
Thermostatic Griddle Models: P16C-T, P16N-T, P32A-TT, P32C-TT, P32D-TT, P32N-TT, P48A-TTT, P48C-TTT, P48D-TTT, & P48N-TTT
Flush Open-Burner Models: P12C-B, P12N-B, P16C-X, P16N-X, P32A-BBB, P32A-XX, P32C-BBB, P32C-XX, P32D-BBB, P32D-XX,
Step-Up Open-Burner Models: P32A-BBB-SU, P32C-BBB-SU, P32D-BBB-SU, P32N-BBB-SU
Combination Open-Burner Hot-Top Models: P32A-XH, P32C-XH, P32D-XH, P32N-XH, P32A-XH-RE, P32C-XH-RE, P32D-XH-RE, & P32N-XH-RE
Combination Open-Burner Griddle Models: P32A-XG, P32C-XG, P32D-XG, P32N-XG, P32A-XT, P32C-XT, P32D-XT, & P32N-XT
Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death.
Read installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
1100 Old Honeycutt Road, Fuquay-Varina, NC 27526 USA • www.southbendnc.com
M
1185836 R
3 (07/06)
ANUAL
EV
$18.00
P36N-CCC, P48A-CCCC, P48C-CCCC, P48D-CCCC, & P48N-CCCC
P32N-BBB, P32N-XX, P48A-BBBB, P48D-BBBB, & P48N-BBBB
Wood Smoker: P36W-CCC, P48W-CCCC, P60W-CCCCC, P72W-CCCCCC
WARNING
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain
this manual for the life of the equipment:
Model #: __________________________
Serial #: __________________________
Date Purchased: ___________________
P
S
S
LATINUM
ERIES
ECTIONAL
M
S
ANUAL
ECTION
R
ANGE
SR

Advertisement

Table of Contents
loading

Related Manuals for Southbend Platinum Series

Summary of Contents for Southbend Platinum Series

  • Page 1 Serial #: __________________________ Installation & Operation Manual Date Purchased: ___________________ Platinum Series Sectional Range Charbroiler Models: P16C-C, P16N-C, P24C-CC, P24N-CC, P32A-CC, P32C-CC, P32D-CC, P32N-CC, P36A-CCC, P36C-CCC, P36D-CCC, P36N-CCC, P48A-CCCC, P48C-CCCC, P48D-CCCC, & P48N-CCCC Standard Griddle Models: P16C-G, P16N-G, P32A-GG, P32C-GG, P32D-GG, P32N-GG, P48A-GGG, P48C-GGG, P48D-GGG, & P48N-GGG Graduated Hot-Top Models: P32A-GRAD, P32C-GRAD, P32D-GRAD, &...

  • Page 2: Safety Precautions

    Southbend replacement parts are installed. Give this Owner’s Manual and important papers to the proper authority to retain for future reference. Copyright © 2003 by Southbend. All rights reserved. Published in the United States of America. & O 1185836 R...

  • Page 3: Retain This Manual For Future Reference

    Congratulations! You have purchased one of the finest pieces of heavy-duty commercial cooking equipment on the market. You will find that your new equipment, like all Southbend equipment, has been designed and manufactured to meet the toughest standards in the industry. Each piece of Southbend equipment is carefully engineered and designs are verified through laboratory tests and field installations.

  • Page 4: Specifications

    Therefore, installations should comply with all local codes. Southbend reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, additions, or replacements for previously purchased equipment.
  • Page 5 LATINUM ERIES ECTIONAL ANGE PECIFICATIONS ENTILATION WARNING Improper ventilation can result in personal injury or death. Ventilation which fails to properly remove flue products can cause headaches, drowsiness, nausea, or could result in death. All gas appliances must be installed in such a manner that the flow of combustion and ventilation air is not obstructed.
  • Page 6 PECIFICATIONS LATINUM ERIES ECTIONAL ANGE Figure 2 Dimensions 43-1/2" (1105) Flue riser for “deep” depth-option extends rearward 6" (cooking surface area is same as for “standard” depth). 40" (1016) 37-1/2" (953) 34" (864) 20-1/2" (521) 11-3/4" (298) Front Gas 9-1/4" (235) Manifold 8-1/2"...
  • Page 7 LATINUM ERIES ECTIONAL ANGE PECIFICATIONS Figure 3 Dimensions (continued) 43-1/2" (1105) Flue riser for “deep” depth-option extends rearward 6" 40" (1016) (cooking surface area is same as for “standard” depth). 37-1/2" (953) 34" (864) 4" (102) 4-1/2" (114) Front Gas Manifold 8-1/2"...
  • Page 8 PECIFICATIONS LATINUM ERIES ECTIONAL ANGE TILITY EQUIREMENTS AND RATED EIGHT ELECTRICITY Crated Weight Model Width Base Type Top Type Natural Gas Propane 120V 208/240V pounds (kg) (BTU/hour) (BTU/hour) (amps) (amps) P12C-B 12" cabinet 2 flush open-burners 66,000 60,000 200 (91) P12N-B 12"...
  • Page 9 LATINUM ERIES ECTIONAL ANGE PECIFICATIONS ELECTRICITY Crated Weight Model Width Base Type Top Type Natural Gas Propane 120V 208/240V pounds (kg) (BTU/hour) (BTU/hour) (amps) (amps) 2 PyroMax open-burners (left side), P32D-XT 32" standard oven 175,000 168,000 665 (302) thermostatic griddle (right side) P32D-XX 32"...

  • Page 10: Operation

    PERATION LATINUM ERIES ECTIONAL ANGE PERATION DANGER EXPLOSION HAZARD In the event a gas odor is detected, shut down equipment at the main shut off valve. Immediately call the emergency phone number of your gas supplier. CAUTION If a pilot flame pilot should go out, the flow of gas to the corresponding burner is NOT interrupted. Consequently, it is the responsibility of the operator to check the ignition of each burner immediately EVERY TIME a burner is turned on.
  • Page 11 LATINUM ERIES ECTIONAL ANGE PERATION Figure 4 Operation of Open-Burner Sections Each 12"-wide or 16"-wide section has two control knobs. When done cooking, turn the appropriate control knob to The left knob controls the rear burner, while the right knob OFF.
  • Page 12 PERATION LATINUM ERIES ECTIONAL ANGE Figure 5 Operation of Uniform Hot-Top Section Each 16"-wide section has one control knob, which can be When done cooking, turn the appropriate control knob to turned to OFF or to any position in the range from LOW to OFF.
  • Page 13 LATINUM ERIES ECTIONAL ANGE PERATION Figure 6 Operation of Graduated Hot-Top Section Each 32"-wide section has one control knob, which can be When done cooking, turn the control knob to OFF. (The pilot turned to OFF or to any position in the range from LOW to should remain lit).
  • Page 14 PERATION LATINUM ERIES ECTIONAL ANGE Figure 7 Operation of Charbroiler Section Each 12"-wide or 16"-wide section has one control knob, When done cooking, turn the appropriate control knob to which can be turned to OFF, HIGH, or LOW. Each 6"-wide OFF.
  • Page 15 Wood Chunks: e.) It is not recommended to soak wood overnight. Wood Hickory Chunks, 10 lb bag, Southbend P/N 1188495 will become too saturated and delay ignition. Mesquite Chunks, 10 lb bag Southbend P/N 1188496 Smoker box door should remain closed during normal operation.
  • Page 16 PERATION LATINUM ERIES ECTIONAL ANGE Figure 9 Operation of Standard (Non-Thermostatic) Griddle Sections Each 16"-wide section has one control knob, which can be When necessary while cooking, pull out and empty the turned to OFF, HIGH, or LOW. grease drawer. To start cooking, turn the appropriate control knob to HIGH.
  • Page 17 LATINUM ERIES ECTIONAL ANGE PERATION Figure 10 Operation of Thermostatic Griddle Sections Each 16"-wide section has one control knob that can be Each 16" or 32" griddle section has a single pilot that is lit turned to OFF, or to any temperature in the range 150°F to using a long match inserted thorough a hole in the front 400°F (66°C to 204°C).
  • Page 18 PERATION LATINUM ERIES ECTIONAL ANGE Figure 11 Operation of Oven Each oven has a thermostatic control that can be set in the 4. Select the cooking temperature appropriate for the food range 150°F to 500°F (66°C to 260°C). Convection ovens to be cooked.
  • Page 19 LATINUM ERIES ECTIONAL ANGE PERATION UGGESTIONS FOR OOKING SING A ONVECTION As a guide, set oven temperatures 25 to 50 degrees lower than called for in recipes using conventional (non- convection) ovens. FROZEN ENTREE PRODUCTS: Punch holes in lid before heating. Tent lid if product has a tendency to stick, i.e., lasagna or macaroni and cheese.
  • Page 20 PERATION LATINUM ERIES ECTIONAL ANGE ORRECTING ROBLEMS WHEN OOKING WITH A ONVECTION If… then… Cakes are dark on the sides and not done in the center… lower oven temperature. Cake edges are too brown… reduce number of pans or lower oven temperature. Cakes have light outer color…...
  • Page 21 & M LATINUM ERIES ECTIONAL ANGE LEANING AINTENANCE 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...

  • Page 22: Daily Cleaning And Maintenance

    Southbend appliances are sturdily constructed of the best materials and are designed to provide durable service when treated with ordinary care. To expect the best performance, your equipment must be maintained in good condition and cleaned daily.
  • Page 23 & M LATINUM ERIES ECTIONAL ANGE LEANING AINTENANCE WOOL as any particles left on the surface will rust and further spoil the appearance of the finish. NEVER USE A WIRE BRUSH, STEEL SCOURING PADS (EXCEPT STAINLESS), SCRAPER, FILE OR OTHER STEEL TOOLS. Surfaces which are marred collect dirt more rapidly and become more difficult to clean.

  • Page 24: Installation

    1/2 psi (3.45 kPa). This installation procedure does NOT cover Southbend sectional fryers, fryer filter systems, salamander broilers, upright broilers, cheese melters, or refrigerated bases. Consult the manuals of those appliances when they are being installed as part of a sectional range battery.
  • Page 25 LATINUM ERIES ECTIONAL ANGE NSTALLATION Figure 12 Removal of Shipping Hold-Down Brackets Shipping Hold-Down Brackets TTACH EGS TO THE ANGE A set of four legs is packed with units ordered with legs. (For units ordered with casters, go to Step 2b.) A threaded leg pad is fastened to the base frame at each corner.
  • Page 26 NSTALLATION LATINUM ERIES ECTIONAL ANGE TTACH ASTERS TO THE ANGE NOTICE For an appliance equipped with casters, (1) the installation shall be made with a connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors for Moveable Gas Appliances, CAN/CGA-6.16, and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI Z21.41, or Quick Disconnect Devices for Use with Gas Fuel, CAN1-6.9, (2) adequate means must be provided to limit the movement of the appliance without depending on the connector and the...
  • Page 27 LATINUM ERIES ECTIONAL ANGE NSTALLATION OUNT ANGE ON ASTER RAME NOTICE For an appliance equipped with casters, (1) the installation shall be made with a connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors for Moveable Gas Appliances, CAN/CGA-6.16, and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI Z21.41, or Quick Disconnect Devices for Use with Gas Fuel, CAN1-6.9, (2) adequate means must be provided to limit the movement of the appliance without depending on the connector and the...
  • Page 28 NSTALLATION LATINUM ERIES ECTIONAL ANGE NOTICE Adequate means must be provided to limit the movement of the appliance without depending on the connector and the quick-disconnect device or its associated piping to limit the appliance movement. The restraining means should be attached to a frame member on the back of the unit. Figure 15 Installation of Cable Restraint 4: C...
  • Page 29 LATINUM ERIES ECTIONAL ANGE NSTALLATION 5: A TTACH ISER AND HELF SSEMBLIES Install the flue riser(s) using the following procedure (as shown in Figure 16). 1. Attach any salamander broilers and flue-riser-mounted cheese melters to appropriate sections following the installation procedure in the manuals for those options. 2.

  • Page 30: Step 6: Connect Electricity

    If the sectional range is being installed at over 2,000 feet altitude and that information was not specified when ordered, contact the appropriate authorized Southbend Service Representative or the Southbend Service Department. Failure to install with proper orifice sizing will result in poor performance and may void the warranty.

  • Page 31: Step 8: Connect Water Supply

    LATINUM ERIES ECTIONAL ANGE NSTALLATION 3. The gas connection piping may have been partially installed at the factory. If necessary, attach the gas connection of any appliances mounted on a flue riser. 4. Locate the pressure regulator(s) packed with the sectional range. Install the pressure regulator, taking care that the direction of gas flow corresponds to the arrow on the side of the pressure regulator.
  • Page 32 NSTALLATION LATINUM ERIES ECTIONAL ANGE beef suet, or as a substitute, baking soda, to season it. Never allow water on a hot griddle and never wash it with soap and water. 9. Check that gas supply is adequate by simultaneously turning on all burners of all sections to their highest setting, then again checking that all burner flames have correct appearance and height.
  • Page 33 On models with a cabinet base, the serial plate is located inside the left cabinet door. On modular (countertop) models, the serial plate is located inside the front valve panel. Replacement parts (including parts not listed in this manual) may be ordered either through a Southbend Authorized Parts Distributor or a Southbend Authorized Service Agency.

  • Page 34: Troubleshootingb

    ERVICE LATINUM ERIES ECTIONAL ANGE ROUBLESHOOTING URNERS AND ILOTS The following table lists the possible causes of burner and pilot related problems that may occur. Problem Look for - None of the burners and pilots will turn on – Main gas supply to unit is OFF. All burners produce excessive carbon deposits –...
  • Page 35 LATINUM ERIES ECTIONAL ANGE ERVICE Pilot-flame outage is often due to an unstable flame caused by over-adjustment to the point where the pilot flame is leaving its port, or “blowing off.” Sometimes the pilots are increased too much in an effort to improve ignition, resulting in this unstable condition.
  • Page 36 ERVICE LATINUM ERIES ECTIONAL ANGE Figure 18 Adjustment of Graduated Hot-Top Pilot and Burner The burner valves are not adjustable. The burner orifice is of the fixed type, sized for the type of gas and the operating altitude. To adjust the burner air-gas mixture, loosen the screw that secures the air shutter on the mixer face and rotate the mixer cap to obtain a clear, stable blue flame with a distinct inner cone at each port.
  • Page 37 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 19 Adjustment of 33K and 45K Open-Top Burners and Pilots The burner valves are not adjustable. The burner orifice is of the fixed type, sized for the type of gas and the operating altitude. To adjust the burner air-gas mixture, loosen the screw that secures the air shutter on the mixer face and rotate the mixer cap to obtain a clear, stable blue flame with a distinct inner cone at each port.
  • Page 38 ERVICE LATINUM ERIES ECTIONAL ANGE Figure 20 Adjustment of Thermostatic-Griddle Thermostat Each 16"-wide section of a thermostatic griddle has a control knob that operates a snap-action thermostatic valve. Each valve is adjusted at the factory. If the griddle surface temperature is different from the thermostat dial setting, adjust the thermostatic valve using the following procedure: 1.
  • Page 39 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 21 Adjustment of Thermostatic-Griddle Burners and Pilot The thermostatic burner valve is adjustable (see page 38). The burner orifice is of the fixed type, sized for the type of gas and the operating altitude. To adjust the burner air-gas mixture, loosen the screw that secures the air shutter on the mixer face and rotate the mixer cap to obtain a clear, stable blue flame with a distinct inner cone at each port.

  • Page 40: Troubleshooting

    ERVICE LATINUM ERIES ECTIONAL ANGE ROUBLESHOOTING CAUTION Proper and efficient operation of oven is dependent on correct installation and function of components. Always verify that components are in place and functioning as intended. The following table lists the possible causes of oven-related problems that may occur. Problem Look for -1 Oven will not come on.
  • Page 41 LATINUM ERIES ECTIONAL ANGE ERVICE BLOWER RUNS INTERMITTENTLY Blower Cold starts but shuts off. REMOVE THE MAIN POWER Check that there are no air flow SOURCE. UNPLUG OR obstructions around the range. DISCONNECT CIRCUIT BREAKER. Check that the motor is not against a wall.
  • Page 42 ERVICE LATINUM ERIES ECTIONAL ANGE Figure 22 Adjustment of Oven Thermostat The oven thermostat is carefully calibrated at the factory so that the dial setting matches the actual oven temperature. Field recalibration is seldom necessary, and should not be resorted to unless considerable cooking experience definitely proves that the control is not maintaining the temperatures to which the dial is set.
  • Page 43 ANIFOLD RESSURE There is not an internal pressure regulator. The external pressure regulators supplied by Southbend are factory set at 6" W.C. for natural gas and 10" W.C. for propane gas. To check the manifold pressure, do the following: 1. Turn OFF all thermostats, burner controls, gas shut-off valves, and the external gas supply connection(s).
  • Page 44 ERVICE LATINUM ERIES ECTIONAL ANGE Figure 24 Wiring Diagram for 120 Volt Oven Bases & O 1185836 R 3 (07/06) NSTALL PERATIONS ANUAL...
  • Page 45 LATINUM ERIES ECTIONAL ANGE ERVICE ARTS The following tables and figures list serviceable parts. For parts not listed, contact a Southbend Authorized Parts Distributor or a Southbend Authorized Service Agency. Index of Parts Diagrams Page Number Description Front-Rail Parts 33K-Open-Burner External and Structural Parts...
  • Page 46 ERVICE LATINUM ERIES ECTIONAL ANGE 33K-Open-Burner External and Structural Parts See drawing on following page. Quantity* Part Number Description 12" 32" 48" 1183978 TRAY ASSEMBLY, 12" CRUMB 1183970 TRAY ASSEMBLY, 32" CRUMB 1185401 TRAY W/A, 48 CHARBROILER CRUMB LT 1185486 TRAY W/A, 48 CHARBROILER CRUMB RT 1184689 KNOB...
  • Page 47 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 26 33K-Open-Burner External and Structural Parts See parts list on previous page. Flush 33K-Open-Burner Models Step-Up 33K-Open- Burner Models 32"-Wide Models Shown 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 48 VALVE, HI-OFF, NAT/LP 1179188 EXTENSION, ORIFICE 1008741 ORIFICE, NAT GAS (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1008751 ORIFICE, PROPANE (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1182193...
  • Page 49 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 27 33K-Open-Burner Gas Train Parts See parts list on previous page. Flush 33K-Open-Burner Models Step-Up 33K-Open-Burner Models 32"-Wide Models Shown 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 50 NIPPLE, EXTENSION 1178202 VALVE, HI-OFF, NAT/LP 1008735 ORIFICE, NAT GAS (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1008750 ORIFICE, PROPANE (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1165742...
  • Page 51 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 28 45K-Open-Burner Parts See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 52 ERVICE LATINUM ERIES ECTIONAL ANGE Charbroiler External and Structural Parts for 16" and 32" Models See drawing on following page. Quantity* Part Number Description 16" 32" 1184689 KNOB 1185945 VALVE PANEL, 16C-C, SS 1185767 VALVE PANEL, 16N-C, SS 1185691 VALVE PANEL, 32A/D-CC, SS 1185692 VALVE PANEL, 32C-CC, SS 1185693...
  • Page 53 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 29 Charbroiler External and Structural Parts for 16" and 32" Models See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 54 ERVICE LATINUM ERIES ECTIONAL ANGE Charbroiler External and Structural Parts for 24", 36", and 48" Models See drawing on following page. Quantity* Part Number Description 24" 36" 48" 1184689 KNOB 1184519 VALVE PANEL, 24C-CC, SS 1184521 VALVE PANEL, 24N-CC, SS 1183641 VALVE PANEL, 36A/D-CCC, SS 1183643...
  • Page 55 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 30 Charbroiler External and Structural Parts for 24", 36", and 48" Models See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 56 ERVICE LATINUM ERIES ECTIONAL ANGE Wood Smoker External and Structural Parts for 36", 48”, 60” and 72" Models See drawing on following page. Part Number Description Part Number Description 1188417 Base Assy, 36” Cntrtop Smoker 1187100 Panel, 36”, 60” Smoker Box Rear 1188416 Base Assy, 24”...
  • Page 57 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 31 Wood Smoker External and Structural Parts for 36", 48”, 60” and 72" Models See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 58 MANIFOLD, DUAL BURNER ORIFICE 1185503 MANIFOLD, DUAL BURNER ORIFICE 1008748 ORIFICE, NAT GAS (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1008756 ORIFICE, PROPANE (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1182762...

  • Page 59: Gas Connection Parts

    LATINUM ERIES ECTIONAL ANGE ERVICE Figure 33 Gas Connection Parts Part Number Description 1147005 1" PIPE CAP 1146905 1" 90 DEGREE ELBOW 1163489 REAR GAS STUB 1184777 STRAP, 1-1/4" PIPE 1146808 1" PIPE NIPPLE 1174747 TAIL PIPE 1185827 TAIL PIPE FOR BBB MODELS 1146911 ELBOW, ST., BLK, 1"...
  • Page 60 ERVICE LATINUM ERIES ECTIONAL ANGE Griddle External and Structural Parts See drawing on following page. Quantity* Part Number Description 16" 32" 48" 1073497 KNOB [for thermostatic griddles] 1184689 KNOB [for standard, non-thermostatic griddles] 1182156 KNOB ASM, VALVE 1185952 VALVE PANEL, 16C-G, SS 1185953 VALVE PANEL, 16C-T, SS 1185954...
  • Page 61 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 34 Griddle External and Structural Parts See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 62 TUBE, 3/8" X 9" FLEXIBLE 1185503 MANIFOLD, DUAL BURNER ORIFICE 1008748 ORIFICE, NAT GAS (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1008756 ORIFICE, PROPANE (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1182762...
  • Page 63 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 35 Thermostatic Griddle Gas Train Parts See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 64 1185503 MANIFOLD, 32" DUAL BURNER ORIFICE 1008750 ORIFICE, NAT GAS (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1008756 ORIFICE, PROPANE (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1182762...
  • Page 65 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 36 Uniform Hot-Top Parts See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 66 MANIFOLD W/A, GRADUATED H/TOP 1176016 BURNER VALVE, NAT 1006425 ORIFICE, NAT GAS (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1006443 ORIFICE, PROPANE (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1884...
  • Page 67 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 37 Graduated-Hot-Top Parts See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 68 SOLENOID TO ORIFICE TUBE 1183568 BRACKET, ORIFICE 1008730 ORIFICE, NAT GAS (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1008748 ORIFICE, PROPANE (if appliance will operate above 2000 ft, contact Southbend for appropriate orifice size) 1165733...
  • Page 69 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 38 Oven Base Parts See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...

  • Page 70: Convection Oven Blower Parts

    ERVICE LATINUM ERIES ECTIONAL ANGE Figure 39 Convection Oven Blower Parts Part Number Description 1180834 OVEN BAFFLE CO 1177581 BLOWER WHEEL ASSEMBLY 1177452 MOTOR, 1/3 HP, 115 VOLT 1180821 POCKET W/A, BLOWER, 500 SERIES 1181747 SHIELD, RT BLOWER, 500 SERIES 1181748 SHIELD, LT BLOWER, 500 SERIES 1184703...
  • Page 71 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 40 Modular-Countertop Base Parts Part Number Description 1183863 BASE. 12 COUNTERTOP 1183862 BASE. 16 COUNTERTOP 1183859 BASE. 24 COUNTERTOP 1183576 BASE. 32 COUNTERTOP 1183523 BASE. 36 COUNTERTOP 1185418 BASE. 48 COUNTERTOP 1183861 STIFFENER, 12 BASE 1183860 STIFFENER, 16 BASE 1183858...
  • Page 72 ERVICE LATINUM ERIES ECTIONAL ANGE Cabinet-Base Parts See drawing on following page. Quantity* Part Number Description 12" 16" 24" 32" 36" 48" 1184954 CABINET LINING ASM, 12" LT FT 1185496 CABINET LINING ASM, 16" LT FT 1184952 CABINET LINING ASM, 24" LT FT 1183595 CABINET LINING ASM, 32"...
  • Page 73 LATINUM ERIES ECTIONAL ANGE ERVICE Figure 41 Cabinet-Base Parts See parts list on previous page. 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 74 LATINUM ERIES ECTIONAL ANGE Flue Riser Parts See drawing on following page. For continuous flue risers spanning multiple sections, or sloped enclosures, contact Southbend. Part Number Description 1183617 FLUE BOX ASSEMBLY (for models with an oven base) 1183526 BRACKET, 36 DEEP LT FLUE RISER...
  • Page 75 LATINUM ERIES ECTIONAL ANGE ERVICE Flue Riser Parts (continued) Part Number Description 1183841 SHIELD, 36" X 12" WALL AZ 1184797 SHIELD, 36" X 12" WALL SS 1183842 SHIELD, 36" X 16" WALL AZ 1185864 SHIELD, 36" X 16" WALL SS 1183843 SHIELD, 36"...

  • Page 76: Shelf Parts

    ERVICE LATINUM ERIES ECTIONAL ANGE Shelf Parts Part Number Description 1185870 SINGLE SOLID SHELF ASM, 12" 1185686 SINGLE SOLID SHELF ASM, 16" 1185685 SINGLE SOLID SHELF ASM, 32" 1185687 SINGLE SOLID SHELF ASM, 48" 1185874 SINGLE TRAY SHELF ASM, 12" 1185875 SINGLE TRAY SHELF ASM, 16"...
  • Page 77 LATINUM ERIES ECTIONAL ANGE ERVICE Side Panel and Battery-Assembly Parts Part Number Description 1183547 TRIM, SIDE (if side is not adjacent to another section of a battery) 1183563 TRIM, SIDE (if side is adjacent to an open-burner section of a battery) 1183564 TRIM, SIDE (if side is adjacent to a griddle or charbroiler section of a battery) 1183556...

  • Page 78: Leg And Caster Parts

    ERVICE LATINUM ERIES ECTIONAL ANGE Figure 43 Leg and Caster Parts Part Number Description 1172650 LEG PAD (3/4 X 10 HOLE) 1146500 1/4 LOCK WASHER 1146201 1/4 X 30 X 3/4 HEX HEAD 1174260 LEG PACKAGE (set of four legs, not including bolts, leg pads, or lock washers) 1174262 EARTHQUAKE LEGS SS (set of four) 1174265...
  • Page 79 LATINUM ERIES ECTIONAL ANGE Notes: 1185836 R 3 (07/06) NSTALL AND PERATIONS ANUAL...
  • Page 80 ANGE SECTIONAL RANGE A product with the Southbend name incorporates the best in durability and low maintenance. We all recognize, however, that replacement parts and occasional professional service may be necessary to extend the useful life of this appliance. When service is needed, contact a Southbend Authorized Service Agency, or your dealer. To avoid confusion, always refer to the model number, serial number, and type of your appliance.
