Summary of Contents for Albrecht DR315

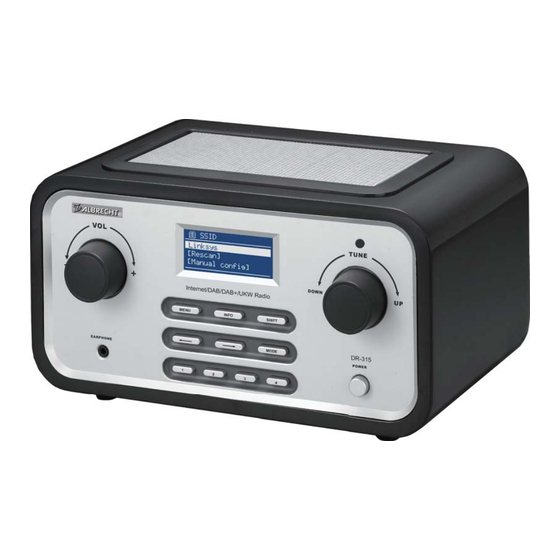

- Page 1 Albrecht DR315 Internet / DAB / DAB+ / FM Radio User Manual - 1 -...
-
Page 2: Important Safety Notes
Important Safety Notes TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead WARNING: TO REDUCE THE The exclamation point within an... -
Page 3: Table Of Contents
Welcome Thank you for purchasing the Albrecht DR 315 radio. Your DR 315is designed to provide you with hours of music enjoyment with simple, convenient access to thousands of Internet radio stations worldwide and furthermore with DAB, the new DAB + as well as FM and music streaming options. - Page 4 10.3.4 PC settings ......................18 10.3.5 SSID ........................18 10.4 IP settings ........................18 10.5 Manual settings......................19 10.5.1 DHCP enable ......................19 10.5.2 DHCP disable ......................20 10.6 Time Setup ........................22 10.7 Factory Reset ......................22 10.8 Software upgrade.......................22 10.9 Info..........................22 10.9.1 Adding favourites and stations................23 11.
-
Page 5: Content Of Package
1. Content of package Please make sure that the following content are included in the package: 1. DR 315 Main unit 2. Power supply 3. User Manual 2. Before you start Before you can use your internet radio, you need the following: A broadband internet connection. -
Page 6: Front Panel
3.1 Front Panel Volume Knob LCD Display (V+ V-) Speaker Tune Knob(push:Enter) ON/OFF button Earphone output Menu button Info button Mode button Shift button Number button VOL = By Turning VOL knob Volume level is set. By Pressing VOL knob MUTE is activated/deactivated. -
Page 7: Back Panel
3.2 Back Panel 4. Turning on DR 315 Preparing DR 315 for operation: 1. Place DR 315 on a flat surface. 2. If you are accessing the internet via wired Ethernet LAN, place DR 315 near Ethernet LAN access and proceed to 6. Setting up the DR 315 (wired access is optional and may not be available in your radio) 3. -
Page 8: Setting Up The Dr 315(Quick Guide)
DR 315 has numerous features which require a small degree of setup before users are able to fully use all the functionalities of the radio. The Main Menu System Setup menu has a series of options that allow system-wide settings to be altered. These settings are: Setting Action... -
Page 9: Manual Config

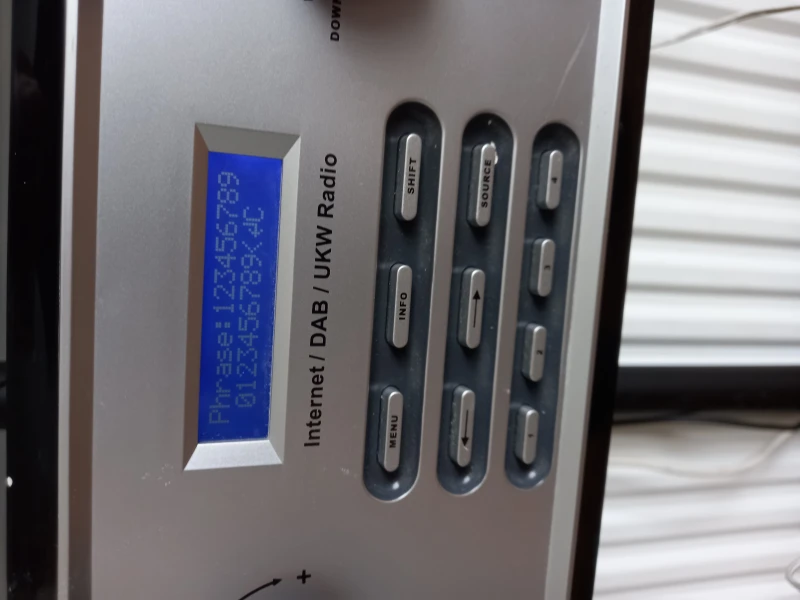

6. Password Entry: Turn the TUNE knob to display different sets of characters and numbers. Use the ARROW buttons to move the flashing cursor to select the desired characters. To enter your key, use the Select control to move the cursor through the characters and select. -
Page 10: Using The Dr 315
IP Settings (Displays current IP Address, Subnet Mask, Gateway Address, Primary DNS or Secondary DNS) 6.4 Using the DR 315 On power up the DR 315 accesses the last mode or service selected. To access another mode: 1. Press Menu button on front panel to display Context menu of the mode you are in. 2. -
Page 11: Set 12/24 Hour
7.5 Set 12/24 Hour Select Set 12/24 Hour. Turn TUNE knob to choose between Set 12 Hour or Set 24 Hour. When selected press TUNE knob to confirm setting. 7.6 Set Sleep Select Sleep. Turn TUNE knob to choose between No Sleep, 15, 30, 45 or 60 minutes. Press TUNE knob to confirm. -
Page 12: Setting Up The Music Player
8. Setting up the music player In order to set up the DR 315 to playback music stored on shared network drives, user name, password and domain settings must be configured to work with the PC share settings. PC: Domain/Workgroup configuration The domain configuration item can be found on a Windows XP machine as follows: From the start menu, select Control Panel System. -
Page 13: Enter The Music Player
8.1 Enter the music player Go to MAIN MENU Music Player With Music Player selected turn TUNE knob to choose between (If available) workgroups. Press TUNE knob to confirm. Turn TUNE knob to choose between (If available) shared folders on the network. Press TUNE knob to confirm. - Page 14 Please wait Connecting··· MP Connecting splash screen <Select>,<Back> or time No Network Is there a No1ghbourhood domain? MP No Domain splash screen >MSHome Second Domain MP Domain List menu <Select>,<Back> or time Select a domain Are there PC No PC on on this Network domain?
- Page 15 1. Ensure that the user name and password (If needed) are configured. 2. Enter the Music Player menu. 3. DR 315searches for all available domains and shows all found domains. >MSHome Down Second Domain MP Domain List menu 4. Once the user selects a domain, a list of PCs on the domain will be displayed: >XP Home Down Second PC...
-
Page 16: The Main Menu
9. The MAIN menu Use navigation key LEFT on remote to go back in the menu. Press several times until “MAIN MENU” is an option in the menu. Choose “MAIN MENU” by pressing “ENTER” on remote or “TUNE” knob on front panel. Display will show: Internet radio Music player System setup... -
Page 17: Wizard
10.1 Wizard Please refer to our instructions on how to use the wizard. 10.2 PC settings This setting is used to input user name and password if your PC requires this for sharing folders in “Music player” Choose “PC setting”. Display will show: >User name Password Choose “User name”... -
Page 18: Active Adapter
10.3.1 Active adapter Choose this to view the active adapter (WLAN or WIRED). 10.3.2 MAC address Choose this to view the MAC address of the DR 315. 10.3.3 DHCP Choose this to view the DHCP setting. (Enabled or disabled). In most home networks DHCP is used to distribute the access data automatically to all connected devices. -
Page 19: Manual Settings
10.4.4 Primary DNS Choose this to view Primary DNS. 10.4.5 Secondary DNS Choose this to view Secondary DNS. 10.5 Manual settings Choose this to manually setup your network. Display will show: >Wired Wireless Note! Wired is an optional feature and may not be available for your BT-H1506. Choose wireless. -
Page 20: Dhcp Disable
Choose your Security. If Open is chosen (No security) radio will connect. However having No security is not recommended. If any other security (WEP, WPA, WPA2) is chosen, display will show: If WEP is chosen: If WPA is chosen: If WPA2 is chosen: >Open >TKIP >TKIP... - Page 21 Enter desired Primary DNS by using the navigation buttons on the remote or turn ”TUNE” knob on front panel. Press “ENTER” or “LEFT” on remote or press “TUNE” knob to go to next number. When fully entered display will show: Secondary DNS 0.0.0.0 Enter desired Secondary DNS by using the navigation buttons on the remote or turn...
-
Page 22: Time Setup
Enter key using navigation keys on remote or >>| <<| buttons on front panel to choose correct number/letter and press “ENTER” on remote or “TUNE” knob on front panel to confirm. When whole key is entered correctly choose to proceed. Choose “<” to clear and “C” to cancel. -
Page 23: Adding Favourites And Stations
10.9.1 Adding favourites and stations Choose “Radio ID” to see the unique ID of your radio. This can be used to create an account on http://www.wifiradio-frontier.com/ When you have created an account you can now add favourites directly to your radio. You can also add your own stations if needed. -
Page 24: Using The Switches On The Back Panel Of The Radio
The Internet Radio playing screen displays information on the currently selected service, and is the default behaviour when a service is selected and playing. The top line always displays a Station name, whilst the information displayed in the bottom line can be scrolled through by pressing the INFO button on the front panel. -
Page 25: Radio Services
Radio services Name <Name string> Status Playing ····· Signal strength Format : 128 kbps/MP3 Format Reliability Reliability : Excellent Info Description Description : <a description string> Genre Genre : Dance Location : Internet Only Location Pressing the Info Example screen Button changes the Display state Podcast services... -
Page 26: Using Dab Radio
12. Using DAB Radio The first time DAB mode is selected a Scanning of available stations is performed. Turn TUNE knob to choose a DAB station. Stations can transmit DAB or DAB + (the radio selects automatically the correct Audio-CODEC). Press TUNE knob to confirm. Main Menu Internet radio DAB context menu... - Page 27 Scroll up/down,menu pressed or No services in list Service could Station Selecting Station list menu not be selected screen Select/ DAB playing Select/ >1Xtra >1Xtra >Station List Forward screen forward Connecting Local Scan 6 Music ··· Manual Tune Enter service Up / Attempt to tune to service.
-
Page 28: Using Fm Radio
13. Using FM Radio Main Menu Internet radio Music player FM context menu Stop on Strong < > < > < / > Search sensitivity Signals only System Settings Stereo output Playing Info <Fwd>/<Back> Stereo or Mono Mono Only Menu The FM context menu allows you to set up the following: Name Description... - Page 29 European laws) about warranty, CE declaration and recycling matters on the last page of our German user manual. © 2010 Alan Electronics GmbH - Daimlerstr.1 k – D- 63303 Dreieich www.albrecht-online.de - www.alan-electronics.de Service Download: www.alan-albrecht.de Service Address (for radios sold in Germany):...
