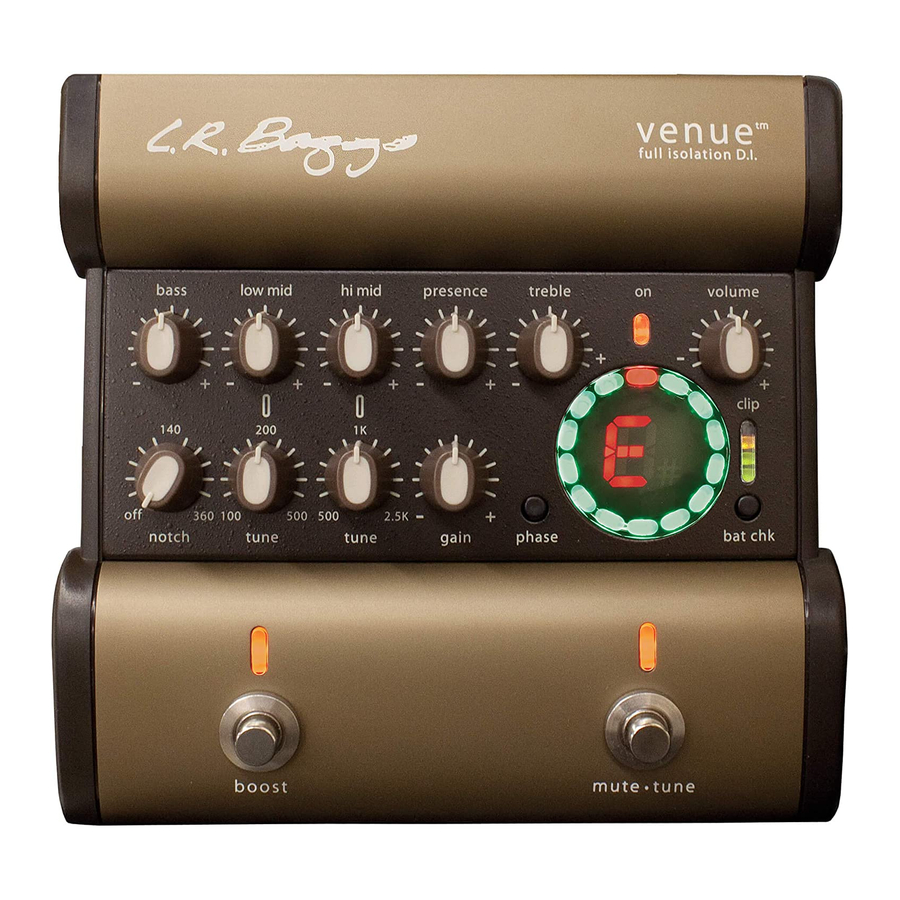

- Page 1 V E N U E F u l l I s o l a t i o n D . I . U S E R ’ S G U I D E w w w . l r b a g g s . c o m...
- Page 2 I N T R O D U C T I O N Thank you for purchasing our Venue D.I. This is the fi rst all-discrete acoustic guitar preamp to combine a transformer-coupled D.I. output for maximum isolation, an EQ specifi cally tuned for acoustic guitars, a variable boost control to compliment your playing styles and a chromatic digital tuner to help you stay in tune.
- Page 4 F R O N T C O N T R O L S A . B a s s Control The bass control is a 12dB boost/cut centered at a frequency of 90Hz. B. Low M idran ge Contro l s This adjustment is split into two knobs: level and frequency.
- Page 5 How to use the Notch Filter First plug your guitar into an amp or PA through the Venue D.I. and turn the volume up to the point where it begins to feed back or where a particular note rings out louder than the others.
- Page 6 I. Phase Press this button to invert the polarity of the signal. Usually one phase will sound best and be least likely to feed back. We recommend trying both phases each time you set up as it will often change from gig to gig. When the button is in the out position, the outputs will be in phase with the input signal.
- Page 7 L. Volume The master volume, located in the upper right of the control panel, will be used to set the level of the sound coming out of the 1/4” output ONLY. It will not eff ect the transformer coupled D.I. Output, which is pre-set at line level. This will allow you to adjust the level to your amplifi er without changing the level to the PA system.
- Page 8 R E A R A N D S I D E P A N E L S A . I n p u t The 1/4” input, located on the upper right side of the unit, is an unbalanced (mono) all discrete input with a 10 megaohm impedance.
- Page 9 D. B o os t Level This allows you to set the level of boost you desire when the boost footswitch is activated. You have a variable range of 0dB to 9dB of boost available. E. D.I . O u t p u t ( Transformer Coupled) The D.I.
- Page 10 S P E C I F I C A T I O N S 1/4” INPUT Input Impedance 10 megohms Preamp Gain -12dB to +26dB Input Level -25dBv to +1.8dBv (.053Vrms to 1.23Vrms) Notch -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave Bass +/- 12dB @ 90Hz Lo Mid...
- Page 11 POWER DC Power Consumption 0.65W Max @ 9V DC Current Draw 12mA (without tuner), 66mA (with tuner) Voltage Range 7.5VDC Min – 12VDC Max Power Supply 9VDC with 100mA (or 1Watt) minimum (Recommended – Not included) * IMPORTANT: polarity Pos (+) on outside, Gnd (-) on center. Avg.
