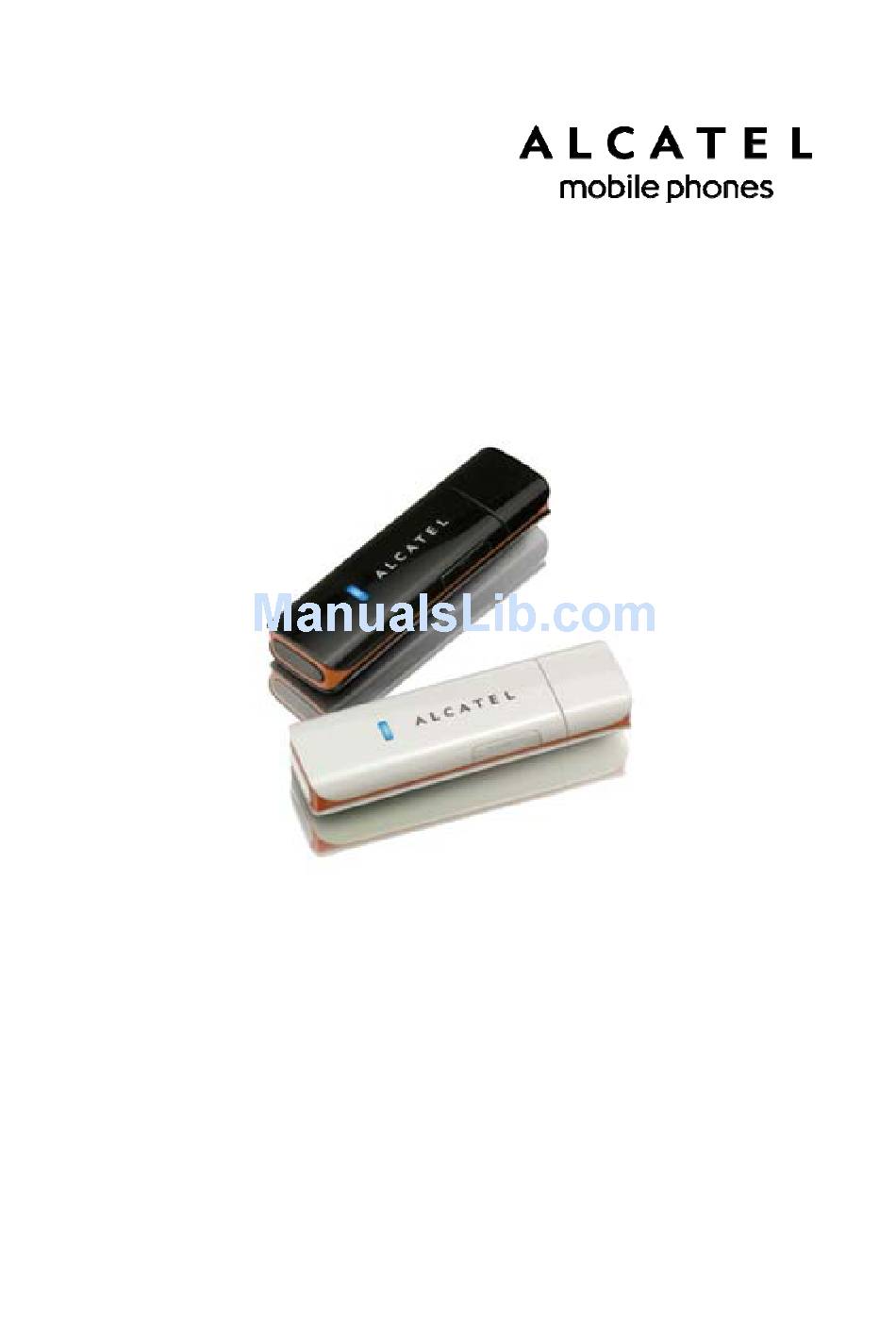

Page 1: User Manual
User Manual – One Touch X200 User Manual One Touch X200 ... -
Page 2: Table Of Contents
User Manual – One Touch X200 Table of Contents Safety and Use........................... 3 General Information........................7 Installation Guide ........................8 Main Interface Overview......................11 Entrance to Main Interface ..................... 12 Connect to Internet ......................... 13 SMS Services (Text Message) ....................14 Contacts........................... 15 Settings ............................ 16 Warranty.......................... -
Page 3: Safety And Use
User Manual – One Touch X200 Safety and Use We recommend that you read this chapter carefully before using your modem. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. Traffic Safety When driving, do not use your modem When switched on, your modem emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti‐lock brakes or airbags. To ensure that there is no problem; do not place your modem on top of the dashboard or within an airbag deployment area. Check with your car dealer or the car manufacturer to make sure that the dashboard is adequately shielded from modem RF energy. ... - Page 4 User Manual – One Touch X200 Do not open, dismantle or attempt to repair your modem yourself. Do not drop, throw or bend your modem. Do not paint it. Collection Point: This symbol on your modem means that these products must be taken to collection points at the end of their life: Municipal waste disposal centers with specific bins for these items of equipment Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. ...
- Page 5 User Manual – One Touch X200 Your modem is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio‐frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. These guidelines include a substantial safety margin ...
- Page 6 User Manual – One Touch X200 While there may be differences between the SAR levels of various modems and at various positions, they all meet the government requirement for RF exposure. The modem meets FCC RF exposure guidelines provided that it is used with this device at least 0.5cm from the body. The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for use of modem. If individuals are concerned, they might choose to limit their own or their children's RF exposure by limiting the length of use to keep data card away from the head and body. (fact sheet n°193).Additional WHO information about electromagnetic fields and public health are available on the following website: ...
-
Page 7: General Information
User Manual – One Touch X200 relevant provisions of Directive 1999/5/EC. The entire copy of the Declaration of Conformity for your modem can be obtained through our Website: www.alcatel‐mobilephones.com. General Information * Internet address: www.alcatel‐mobilephones.com * Customer Support / Hot Line Number: see “TCT Mobile Services” leaflet or go to our Internet site. Your modem is a transceiver that operates on GSM networks with 850, 900, 1800 and 1900 MHz and on WCDMA 850, 1900 and 2100 MHz bands. ... -
Page 8: Installation Guide
User Manual – One Touch X200 Installation Guide This manual describes the operations of the One Touch X200 connect application. This application requires MAC OS X10.4.9 or later. 1. To install the HSPA USB MODEM connect application on MAC OS X. Please double‐click the file HSPA USB MODEM.pkg ... - Page 9 User Manual – One Touch X200 2. Click Continue 3. Select the MAC OS volume to install the application and click “Continue Installation” ...
- Page 10 User Manual – One Touch X200 4. When the installation is finished, you will see the following window, you need to restart your computer to use the modem. 5. Clicking Application>HSPA USB MODEM to start the One Touch X200 connect application. You may install this application in the Dock to access it faster. Micro‐SD card is an optional accessory Please do not remove the USIM/SIM card and or the Micro‐SD card when your modem is in use. ...
-
Page 11: Main Interface Overview
User Manual – One Touch X200 Main Interface Overview Following table are listed Short Cut Icons in PC Suite Interface. Interface Icons Provided Services Home Page (Click on <Connect> icon from the (Home) main window to connect/disconnect from the Internet) (Contacts) Display The Phones Book Interface (SMS) Display The Text Message Interface (File Manager) Open the File Folder of Micro SD Card (Settings) Display the Settings manual ... -
Page 12: Entrance To Main Interface
User Manual – One Touch X200 Following table are listed the Icons of status bar information Connection Statistics Icon Description Network Signal Indicates the signal strength of the network Network Status Indicates the network status. This will display the operator name which the modem can find the network. Or show the modem haven’t ready.< No (U)SIM> or <NO Device> Network Type Display in the status bar, to show you which network you are using (GPRS / EDGE/ UMTS or HSPA) Roaming Roaming Icon “ ”, when the network is under roaming. New Message Display the SMS status including new SMS/SIM card memory is full/Data Card memory is full. . Network Connecting ... -
Page 13: Connect To Internet
User Manual – One Touch X200 click on <OK>. You may try only 3 times to enter the correct PIN code; after three incorrect attempts, the USIM or SIM card will be blocked. A PUK dialog box will then be displayed asking you to enter the right PUK code, PIN Code and Confirmed PIN. Click on <OK> if you fail to input the correct PUK code after 10 attempts, you will need to contact your service provider. If the PUK and PIN code is correct, the application will be launched and all features are enabled Connect to Internet 1. Connecting with the default logon profile If you want to connect to the Internet without setting any user‐defined or predefined ... -
Page 14: Sms Services (Text Message)
User Manual – One Touch X200 SMS Services (Text Message) Click from the main interface of the PC suite to access the SMS service. 1. Displaying the received SMS When a new message is received, a message box appears in the status bar. . Click the content of the chosen message. You may also display the content on the message window. Note: Received SMS will be saved your modem. If the modem Memory is full, the message will saved on USIM/SIM 2. New SMS Click on <New> in the shortcut menu bar. An SMS creation window will pop up; Enter the text. 3. Send (1) You may enter a recipient’s number in 3 ways: Enter the number directly. If there are two or more recipients, use “;” to separate each; ... -
Page 15: Contacts
User Manual – One Touch X200 be restored. 8. Resend Access the Outbox to select a message or several messages (using the ctrl/shift key); Click on <Resend> in the tool bar; The application will resend the unsent/sent message(s). 9. Export Select a message or several messages (using the ctrl/shift key) in the current list; Then right click mouse, to export SMS to the chosen location and saved as a *.txt file. Contacts Click from the main interface of PC suite to access the contacts management. The contacts list column contains: (U) SIM /Modem /Computer. Your can use contacts stored either on the (U) SIM, modem or on Computer in the corresponding window. 1. New Select <New> from the tool bar to access the contacts editor; ... -
Page 16: Settings
User Manual – One Touch X200 Settings Click from the main interface of PC Suite. A menu with various settings will appear. 1. Network select Select <Network selection> in the Settings menu. The default setting is<Auto>; Click on<Manual…> to activate the network list window; A list of networks appears when the search is complete; Click <Search> an available network from the list of available operators and click on <Select>. It will register the selected network. 2. Network mode Select <Network mode> in Settings menu. The default setting is <Auto>; Click<Auto> / <Only UMTS/HSPA>/ <Only GPRS/EDGE>, it will search and register the network mode which was chosen at next time of device connection. 3. Network Band Select <Network band> in Settings menu. The default setting is <Auto>; Click on the band which you prefer, it will search and register the network mode which was chosen at next time of device connection. 4. SMS settings Choose <SMS settings> in the Settings menu to access the SMS settings window. a. Service Center: The default number is found in the (U)SIM card. You may change it. b. Validity period:‐ You can choose between: 6 hours/1 day/1 week. c. - Page 17 User Manual – One Touch X200 choice which Auth Type you are using by manually; Click <OK> Please select you preferred network and click on <Activate> to default your connection setting. <Delete> Select an item in the connection profile list; Click on <Delete> on the keyboard. You will be asked if you Are you sure to delete; Choose <OK> to delete the profile from the list. <Modify> Select an item in the connection profile list; Click on <Modify> to access the profile edit window; Modify the parameters and click on <OK> to save the modification. <Deactivate> Select an item in the connection profile list; Click on <Deactivate> to release default setting 6. System settings Click ...
-
Page 18: Warranty
User Manual – One Touch X200 10. Diagnostics Statistic This menu is used to display the diagnostic information, including: Model Information: Modem Name/Firmware version/IMEI/IMSI Operator Information: PIN code status/Network code/ Signal strength. Network Status: CS network registration/PS network registration/PS network attachment 11. About You can get information on the version in the <About> menu. 12. Help When the application is open, you can read the instructions about One Touch X200 Modem Warranty • Your modem is warranted against any deviation from technical specifications for a period of twelve (12) months from the date specified on your original invoice . • Under the terms of this warranty, you must immediately inform your vendor in case of a conformity defect on your modem, and present the invoice given to you ... -
Page 19: Faqs
User Manual – One Touch X200 recommended by the manufacturer,: 6) any servicing, modification or repair performed by individuals not authorised the manufacture, the vendor or the approved maintenance centre, 7) use of the your HSPA modem for a purpose other than that for which it was designed, 8) normal wear, 9) malfunctions caused by external causes (e.g., radio interference from other equipment, power voltage fluctuations), 10) faulty connections resulting from unsatisfactory radio transmission or caused by the absence of radio relay coverage. • Warranty is also excluded for your modem on which markings or serial numbers have been removed or altered. • Your modem is also warranted against hidden defects (defects inherent in the design, manufacture, etc.). ... - Page 20 10. Q: I cannot receive an SMS A: Please check whether your SIM/USIM card’s memory is full. 11. Q: Why can I only save part of the name when adding a new contact? A: The SIM/USIM card can only hold 12 SBC characters, and 6 DBC characters. 12. Q: Does it support roaming? A: This depends on the local operator. Please check with your local operator or service provider. ALCATEL is a trademarks of Alcatel‐Lucent used under license by TCT Mobile Limited. All rights reserved © 2008 TCT Mobile Limited. TCT Mobile Limited reserves the right, in the customer’s interest, to alter material or technical specification without prior notice. ...
