Specifications; Defiant 1975 Dimensions - Vermont Castings Defiant 1975 Installation And Operating Manual

Defiant 1975 Non-Catalytic / Catalytic Woodburning Stove
®
Defiant, Model 1975
EPA Emissions rating - Noncatalytic ................ 2.3 g/hr*
Range of heat output - Noncatalytic .......8,200 - 33,000
EPA Emissions rating - Catalytic .................... 1.1 g/hr*
Range of heat output -
Catalytic ........................ 10,000 to 30,300 BTU/hr.*
Peak heat output ................................ 75,000 BTU/hr.**
Area heated .........................Up to 2,400 Square feet***
Fuel length ................................................................25"
Fuel capacity .............................. 70 pounds, hardwood
Loading .....................................................Front and top
Chimney Connector:
for 8" flue collar .................... 8" (203 mm) diameter
Chimney Flue Size:
with 8" Chimney Connector ..8" (203 mm) minimum
with 6" Chimney Connector ..6" (152 mm) minimum
Flue exit position......................................... Top or Rear
Primary Air ...... Manually Set, Thermostatically Maintained
Secondary Air ...............................Fixed, self-regulating
Ash handling system ..................... Removable ash pan
Glass panels ........................ High-temperature ceramic
Weight ............................................... 518 lbs. (235 kg.)
Width (leg to leg) .................................. 32C\," (822 mm)
Depth (leg to leg) ..................................... 19" (483 mm)
Height to top of flue collar ..................... 29M\," (759 mm)
Drawing Not to Scale
Rear Venting
(600 mm)
D E F I A N T
28 "
(733 mm)
C L
26"
(660 mm)
(483 mm)

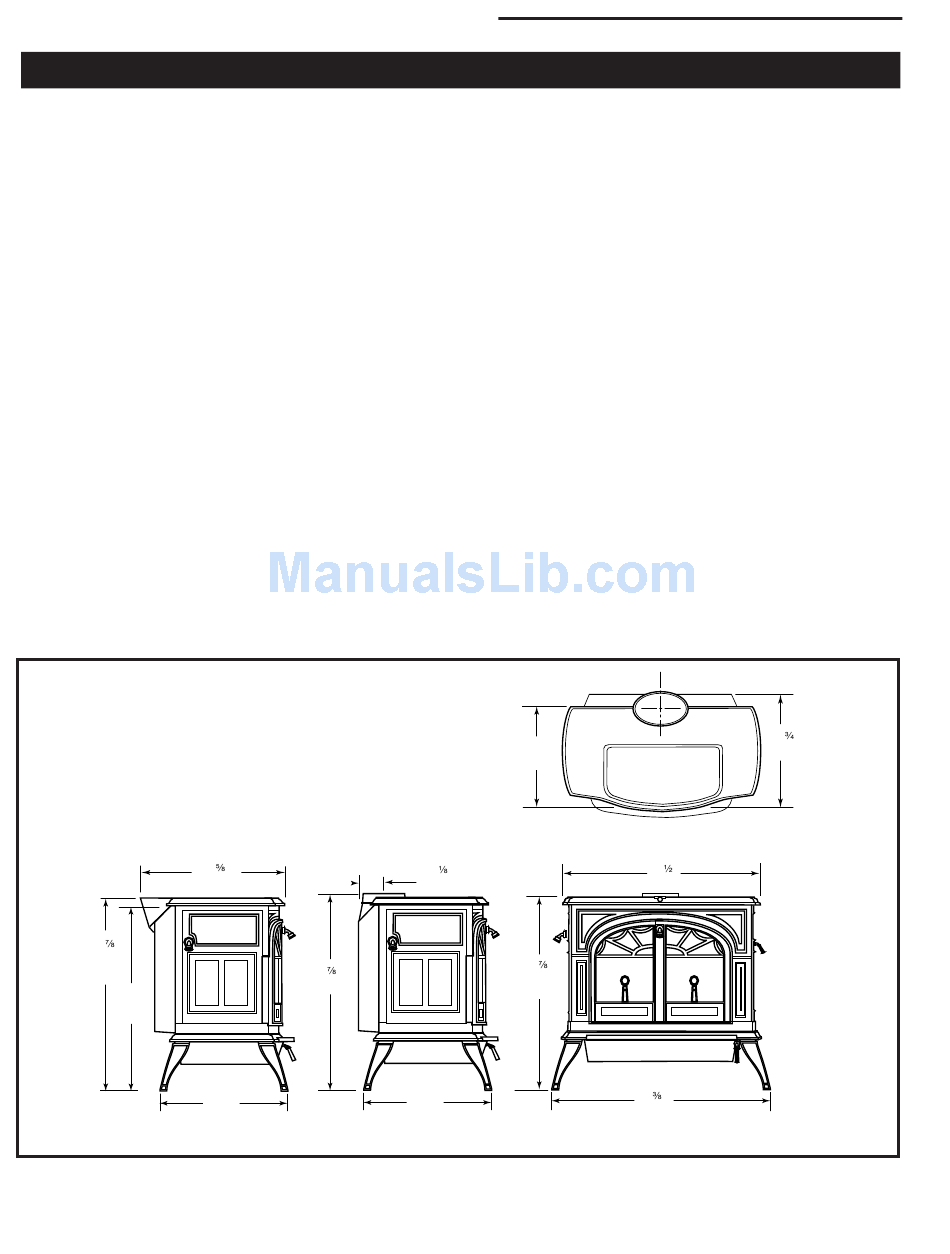

Fig. 1 Defiant 1975 dimensions.
4

Specifications

23 "
29 "
(759 mm)
19"
*Under specific conditions during EPA emissions test-
ing.
** This value can vary depending on how the stove
is operated, the type and moisture content of the fuel
used, as well as the design, construction and climatic
location of your home. Figures shown are based on
maximum fuel consumption rates obtained under labo-
ratory conditions and on average efficiencies.
*** These values are based on operation in building
code-conforming homes under typical winter climate
conditions in New England. If your home is of nonstan-
dard construction (e.g. unusually well insulated, not in-
sulated, built underground, etc.) or if you live in a more
severe or more temperate climate, these figures may
not apply. Since so many variables affect performance
consult your Authorized Dealer to determine realistic
expectations for your home.
18"
(457 mm)
5 "
(130 mm)
D E F I A N T
28 "
(733 mm)
19"
(483 mm)
1693
Defiant dimensions
1/02
23 "
(603 mm)
31 "
(800 mm)
32 "
(822 mm)
30005220
