IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 888-925-2259 for
Hot and Cold Bottled
Water Cooler
Model # 7LIECH-SC-SSF
USER MANUAL
TO REDUCE THE RISK OF INJURY AND
PROPERTY DAMAGE, USER MUST READ
THIS MANUAL BEFORE ASSEMBLING,
INSTALLING & OPERATING DISPENSER.
SAVE FOR FUTURE USE
PN 7LIECH-SC-SSF © 2012 Electrotemp Technologies Inc. BF 5M008973X1 VA
assistance
Advertisement
Table of Contents
Related Manuals for Viva 7LIECH-SC-SSF
Summary of Contents for Viva 7LIECH-SC-SSF
-
Page 1: User Manual
THIS MANUAL BEFORE ASSEMBLING, INSTALLING & OPERATING DISPENSER. SAVE FOR FUTURE USE IMPORTANT: Do NOT Return Dispenser To Store. PN 7LIECH-SC-SSF © 2012 Electrotemp Technologies Inc. BF 5M008973X1 VA If you have a question or problem, please contact 888-925-2259 for assistance... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS To reduce risk of injury and property damage, user must read this entire manual before assembling, installing & operating dispenser. Failure to execute the instructions in this manual can cause personal injury or property damage. This product dispenses water at very high temperatures. Failure to use properly can cause personal injury. -
Page 3: Safety Precautions-Electrical Requirements
SAFETY PRECAUTIONS ---- Electrical Requirements Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. -
Page 4: Table Of Contents
TABLE OF CONTENTS Safety Precautions Safety Precautions-Electrical Requirements Key Information for Future Use Specifications Parts & Features Assembly Cleaning prior to initial use Installation Installing the Correct Bottle Receptacle Operation Proper Care & Cleaning Troubleshooting Limited Warranty KEY INFORMATION FOR FUTURE USE Please register your dispenser immediately at www.electrotemp.com For future support please record your serial number (located on... -
Page 5: Specifications
SPECIFICATIONS Power Supply 4.5 AMP Refrigerant Type R-134A Cold Water Power 100 Watts Cold Capacity / Peak Hour 1.0 Gallon / 3.79 L Cold Temp Range 3°C – 10°C / 37.4°F - 50°F Hot Water Power 425 Watts Hot Capacity / Peak Hour 1.0 Gallon / 3.79 L Hot Temp Range 80°C –... -
Page 6: Assembly
ASSEMBLY To prevent accidental tip hazard, base supplied must be securely fixed to the dispenser as shown. Do NOT operate dispenser without base properly installed. Keep plastic bags away from children. Remove dispenser from packaging. Lay dispenser on its back. Position cooler upright. -
Page 7: Cleaning Prior To Initial Use
CLEANING PRIOR TO INITIAL USE To remove any odors or dust that may collect during shipment, you must clean dispenser prior to first use. DO NOT PLUG THE COOLER INTO AN ELECTRICAL POWER OUTLET Time Required: 40 minutes. Remove bottle receptacle by turning it counter clockwise and pulling up. -
Page 8: Installation
INSTALLATION To prevent accidental tip hazard, dispenser must be securely anchored to wall as shown. Place dispenser upright. Locate dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet. Notice: Do NOT plug in power cord yet. Position dispenser so the back is at least 4 inches from wall and there are at least 4 inches of clearance on both sides. -
Page 9: Installing The Correct Bottle Receptacle
INSTALLING THE CORRECT BOTTLE RECEPTACLE Then Use This If Your Water Bottle Receptacle Bottle Looks Like This model comes set up with a Probe Receptacle (1). No changes are required. The Probe will push the Plug out of the way when you place the bottle into the receptacle. Then Use This If Your Water Bottle Receptacle... -
Page 10: Operation
OPERATION This unit is intended for water dispensing only. Do NOT use other liquids. Do NOT use for other purposes. Warranty is void if used for any other liquids including coffee, tea, juices, beer or wine. This dispenser has been designed to use water bottles with 3 & 5 gallon capacity. -
Page 11: Proper Care & Cleaning
PROPER CARE & CLEANING General Cleaning Perform: As needed Time Required: 5 minutes. Note: Do NOT use abrasive materials or chemical cleaners. Clean cabinet surfaces with a soft cloth and warm soapy water, then rinse. Wipe dust from back of dispenser to improve efficiency. Remove drip tray assembly by pulling it forward. -
Page 12: Troubleshooting
TROUBLESHOOTING Dispenser does not operate. Make sure the power cord is properly connected to a working outlet. • Water is leaking. Call 855-VIVA-111 for assistance. • Push buttons are stuck and/or faucets are leaking. Apply mineral oil (baby oil) to button slides to reduce friction. •... -
Page 13: Limited Warranty
LIMITED WARRANTY Electrotemp Technologies Inc., (“Vendor”) warrants to the original purchaser of this dispenser, and to no other person, that if this dispenser is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in such dispenser shall be free from defects in material and workmanship. - Page 14 名称：7LIECH-SC-SSFManual（VIVA）-English 图号：5M008973X1 技术要求： １、尺寸：143×210mm ２、单色印刷 ３、产品符合Rosh要求 ４、批量生产前一定要样品确认， 不得擅自更改图纸。 设计： 审核： 批准：...
Need help?
Do you have a question about the 7LIECH-SC-SSF and is the answer not in the manual?
Questions and answers

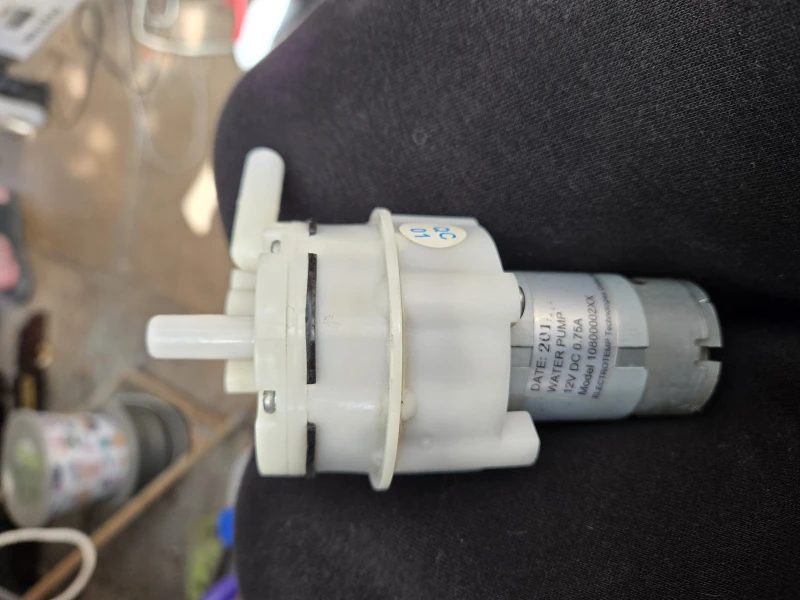

I am looking for VIVA pump model# 10800002XX
