 Remote Control
 Typical Setup

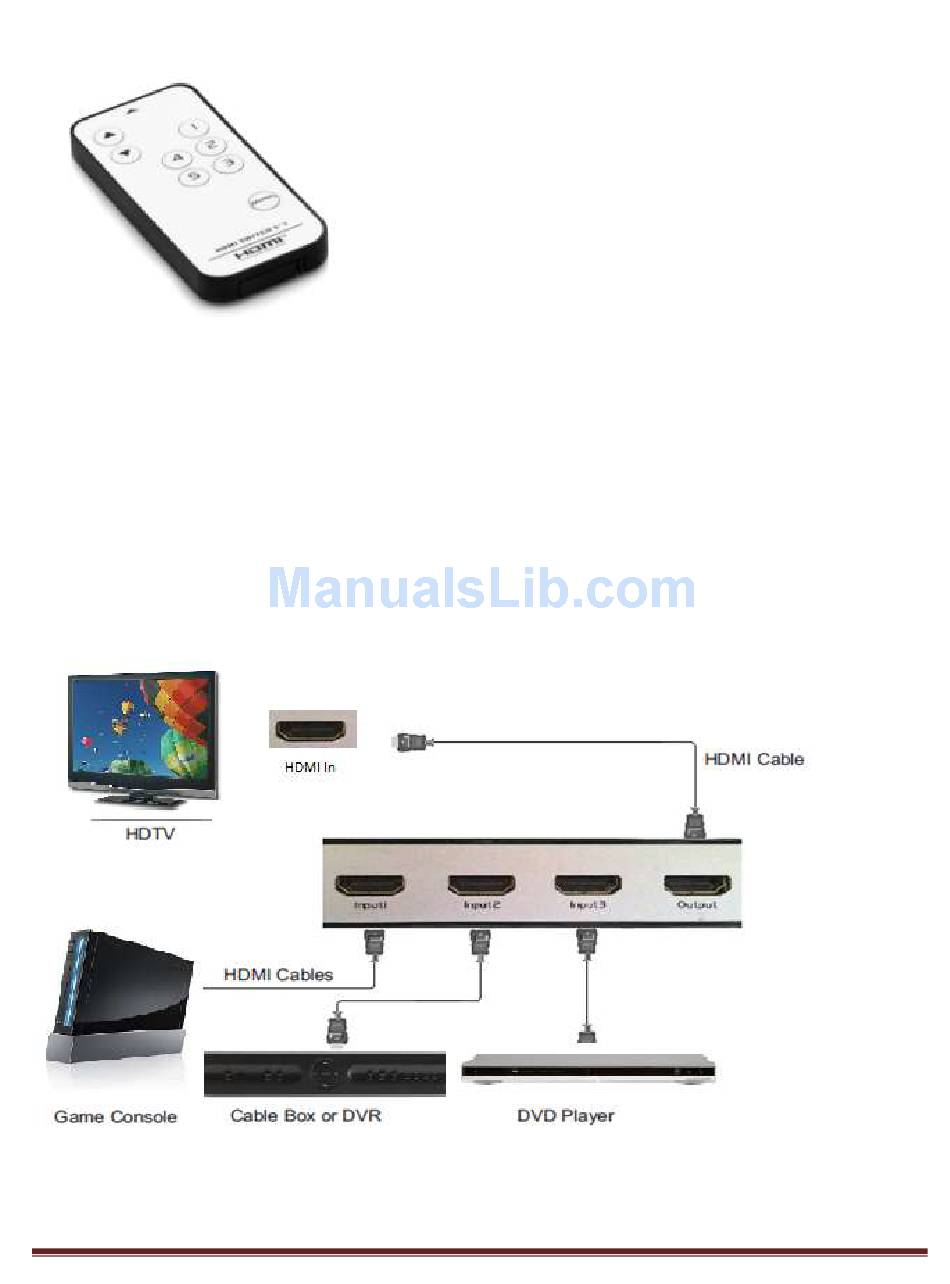

1) Take an HDMI cable and plug one end into the HDMI input port on your HDTV or projector. Plug the
other end to the output port of the HDMI switch
2) Take another HDMI cable and plug one end into the HDMI Output port on your Gaming Console.
Plug the other end into the HDMI Input 1 port of the HDMI Switch.
3) Repeat the above step to connect your Cable Box, Digital Video Recorder (DVR), DVD Player etc.
4) Plug the +DC 5V output plug of the power adapter into the DC IN jack of the HDMI Switch (Shown
under 'Side Panel Connector' on Page 3). Plug the power adapter into an AC power outlet.
Your HDMI switch is now connected and ready for use.
Note: The remote control uses infrared light signal and requires direct line-of-sight to the IR Remote
Sensor. Please make sure that the IR Remote Sensor is not blocked.
Kinivo 501BN HDMI Switch Manual
Functioning:
1) Directly select a specific HDMI Input by
choosing 1, 2, 3, 4 or 5
2) Press 'Up' or 'Down' buttons to select the
previous or next input source.
3) Press the "Memory" button to get the switch
to remember the active input source and
select the input source port automatically
when the switch restarts.
Page 4
