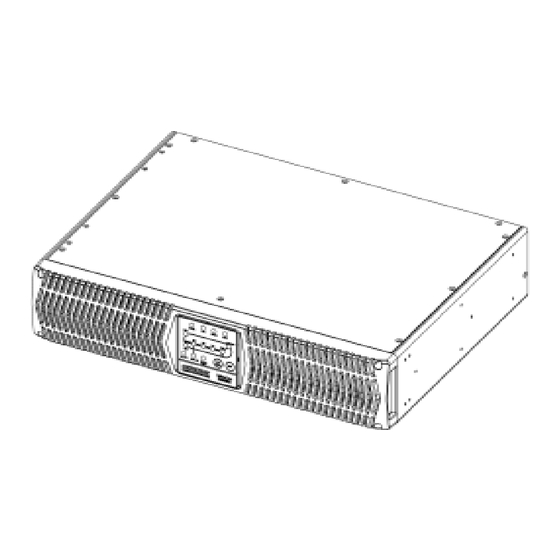

- Page 1 Endeavor Series On-Line UPS User's Manual Para Systems, Inc. 1455 Lemay Dr. Carrollton, TX 75007 Phone: 1-972-446-7363 Fax: 1-972-446-9011 Internet: minutemanups.com UPS Sizing: sizemyups.com PN - 34000274...
- Page 2 Introduction Controls and Indicators Installation Operation Troubleshooting Replacing the Battery Obtaining Service Specifications Configurable Parameters & Settings Limited Product Warranty A1. Declaration of Conformity © Copyright 2006...
- Page 3 UPS equipment and the connected equipment, the user Please read this manual before installing your Endeavor On-Line Series UPS, models ED1000RM2U, ED1000RMT2U, ED1500RM2U, ED1500RMT2U, must ensure that the combined sum of the AC leakage current does ED2000RM2U, ED2000RMT2U, ED3000RM2U, ED3000RMT2U as it provides not exceed 3.5mA.
- Page 4 NOTICE: This equipment has been tested and found to comply with the limits Life Support Policy for a Class A and/or Class B computing device in accordance with the specifi- cations in Subpart J of Part 15 of FCC Rules and the Class A and/or Class B As a general policy, we do not recommend the use of any of our products in life limits for radio noise emissions from digital apparatus set out in the Radio support applications where failure or malfunction of the product can be reason-...
- Page 5 The ON BATT (green) LED illuminates in a steady state when the UPS is oper- ating in the Battery mode. The ON BATT LED will extinguish when operating in the On-Line and the Bypass modes. The BATT LOW (yellow) LED illuminates in a steady state when the UPS reaches a low battery condition.
-
Page 6: Rear Panel
Follow the procedure below to connect the batteries and install Model # Output Power Receptacles (All power cords are 10ft) the UPS into the rack. USE CAUTION: The UPS is heavy. Use the appropri- ED1000RM2U NEMA 5-15P 6-NEMA 5-15R ate number of personnel when installing the UPS. ED1500RM2U... - Page 7 RACKMOUNT CONFIGURATION CONNECTING THE BATTERIES The UPS comes with mounting brackets for the standard 19" (46.5cm) rack. (QUALIFIED SERVICE PERSONNEL ONLY) The mounting brackets to fit a 23" (59.2cm) standard rack are also available. Please read all of the WARNINGS and CAUTIONS before attempting to con- The screws for mounting the UPS to the rack are not included (screw size nect the batteries.
- Page 8 TOWER CONFIGURATION WALLMOUNT CONFIGURATION The tower configuration allows the user to install the UPS in the up-right position next to the The wallmount configuration allows the user to mount the UPS on the wall. There is tower computer. The tower brackets are provided with the UPS. WARNING: Use two or more a wallmount bracket kit available for the UPS.
- Page 9 CONNECTING YOUR EQUIPMENT Plug the equipment into the output receptacles on the rear panel of the UPS. Do not use extension cords, adapter plugs or surge strips on the output of the UPS. Ensure that you do not exceed the maximum output rating of the UPS (refer to the information label on the UPS or the Electrical Specifications in this manual).
- Page 10 RJ11 REPO (Remote Emergency Power Off) PORT OFF Button In the AC or the Battery mode short pin4 to pin5 for approximately 0.5-seconds Press the OFF button for 1-beep (2-seconds) to turn the UPS off. NOTE: The to shutdown the UPS. The UPS must be turned off and then back on again to input circuit breaker MUST be turned to the off position for the 208V models.
- Page 11 REPLACING THE BATTERY What To Do Symptom Possible Cause (QUALIFIED SERVICE PERSONNEL ONLY) Press and release the On/Off/ UPS will not turn on On/Off/Test button not The UPS has an easy to replace hot-swappable batteries. Please read all of pushed Test button to start UPS the WARNINGS and CAUTIONS before attempting to service the batteries.
- Page 12 These UPSs contain sealed non-spillable maintenance-free lead 11. Grasp the battery pull tab and gently pull the battery module out of the UPS acid batteries. and set on the floor. (FIG. 4) Model # ED1000RM2U ED1500RM2U ED2000RM2U ED3000RM2U NOTE: Use Caution, the battery module is heavy.
- Page 13 0 ms 6. Return the UPS by insured, prepaid carrier to: Slew Rate <1Hz / second Crest Factor 3 : 1 Para Systems Inc. >115% - <125% for 60-seconds MINUTEMAN UPS Overload Capacity >125% - <150% for 30-seconds 1455 LeMay Drive >150% for 1-second...
- Page 14 BATTERY SYSTEM Battery Type Sealed, Non-Spillable, Maintenance Free, Value Regulated Lead Acid Typical Recharge Time 8-hours from total discharge Typical Battery Life 3-5 years, depending on discharge cycles and ambient temp System Voltage 24VDC 48VDC 48VDC 72VDC Battery: Quantity/Rating 2-12V8.5Ah 4-12V7.2Ah 4-12V8.5Ah 6-12V8.5Ah...
- Page 15 Para Systems’s prod- ment sites within the United States and Canada, this warranty covers repair or ucts and the only obligation of Para Systems hereunder, shall be the repair or replacement of defective equipment at the discretion of Para Systems. Repair replacement of defective equipment, components, or parts;...
- Page 16 Standard(s) to which Conformity is declared: EN55022, EN55024 EN61000-6-1, EN61000-6-3 EN61000-4-5 Manufacturer’s Name: Para Systems, Inc. (MINUTEMAN UPS) Manufacturer’s Address: 1455 LeMay Drive Carrollton, Texas 75007 USA Type of Equipment: Uninterruptible Power Supplies (UPS) Model No: ED1000RM2U (Y), ED1500RM2U (Y),...
- Page 17 Notes:...
