Sonance Visual Performance Round Installation Manual

I N S T A L L A T I O N M A N U A L
V I S U A L P E R F O R M A N C E
R O U N D
A N D S Q U A R E A D A P T E R S
Introduction
Thank you for purchasing Sonance Visual Performance
Speakers. When properly installed your new speakers will give you
years of entertainment pleasure.

Box Contents

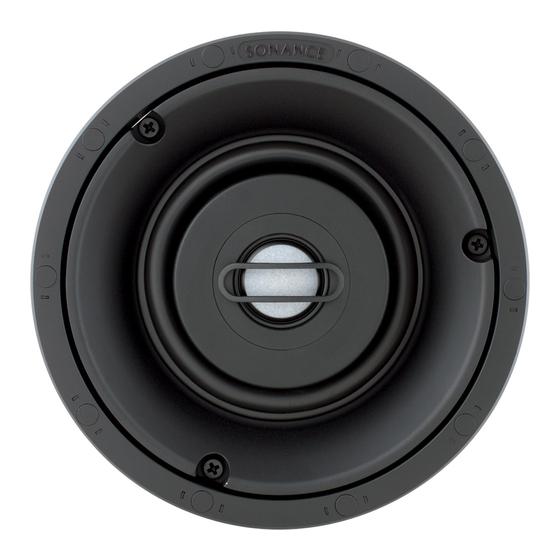

Visual Performance in-ceiling speaker box contains (2) Visual
Performance speakers, (2) paintable grilles and (2) mounting cut-
out templates.
NOTE: SST/SUR speaker box content will contain (1) Visual
Performance speaker, (1) paintable grille and (1) mounting
cut-out template.

Speaker Placement

Stereo Speaker Placement (2-Channel System)
• Place the left and right speakers anywhere from 6 - 10 feet
(1.8m – 3m) apart, with the main listening position as close to
midway between the speakers as possible.
• In most cases pivoting the woofer and/or midrange/tweeter
assembly of each speaker directly towards the main listening
position will help maximize the stereo soundstage.
Use the Left and Right speaker placement in Figures 2 and 3, on the
left side of image, as a guide.
1
S P E A K E R S
®
Home Theater Speaker Placement
Left, Center & Right Speakers
® Round
• Place the left, center and right speakers 1 – 2 feet (0.3m – 0.6m)
in front of the video screen, 6 – 10 feet (1.8m – 3m) apart, with the
center channel speaker as close to midway between the left and
right speakers as possible.
• The main listening position should be 4 – 10 feet (1.2m – 2m) away
from the speakers.
Surround Speakers — 5.1-Channel System
• Locate the left and right surround speakers 2 – 6 feet (0.6m
–1.8m) behind the listening position. The speakers should be 6 –
10 feet (1.8m – 3m) apart.
Surround Speakers — 7.1-Channel System
• Left & Right Surround Speakers: Place the left and right surround
speakers directly to the sides of the listening position, 6 –10 feet
(1.8m – 3m) apart.
• Surround Back Speakers: Place the surround back speakers 2 – 6
feet (0.6m – 1.8m) behind the listening position. The surround
back speakers should be closer together than the left and right
surround speakers, 3 – 6 feet (0.9m – 1.8m) apart.
(see Figure 2)
(see Figure 2)
(see Figure 3)
