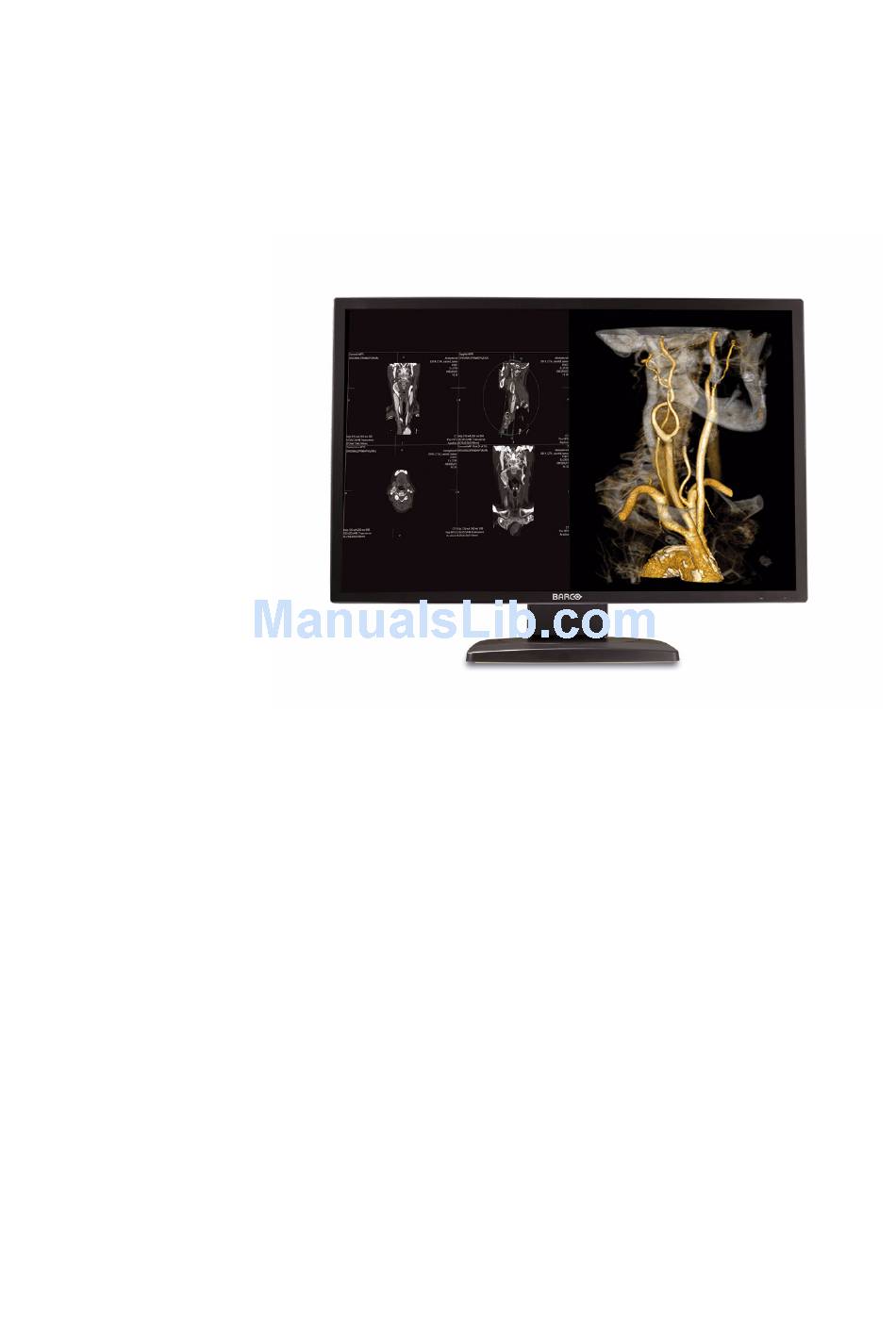

  • Page 1 Nio Fusion Getting Started Guide...
  • Page 2 (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 3: Copyright Notice

    Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.
  • Page 4 Copyright notice Indications for use The Nio Fusion 4MP (MDNC 4130) display is intended to be used in displaying and viewing digital images, for review and analysis by trained medical practitioners. The Nio Fusion 4MP (MDNC 4130) display is not intended for primary diagnostic review of mammography images.

  • Page 5: Table Of Contents

    Recommendations for using your display system ....... 18 Display controller installation ..........21 Display Controller Installation ............22 Which display controller? ............22 Installing a Barco display controller........22 Display installation ..............31 Installation precautions ..............32 Display parts, controls and connectors ......... 33 Front ..................
  • Page 6 Table of Contents Driver and software installation prerequisites...... 50 Installing the B MXRT drivers and software ....50 ARCO Where to get more information..........57 Troubleshooting..............61 General tips ..................62 Configuring Windows..............63 Setting the resolution of your B Display ..

  • Page 7: Preface

    Preface Preface...

  • Page 8: Fcc Compliance Information

    FCC compliance information FCC compliance information FCC Compliance Information (display) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Ce Mark Notice

    CE mark notice CE mark notice Declaration of Conformity in accordance with Article 10 (1) of the CE directive This product has been designed and manufactured in accordance with the essential requirements of the Directives 89/336/EEC and MDD 93/42/EEC (class II b product), and for this product the procedures of Annex II have been applied to mark the product with the CE label.

  • Page 10: Environmental Information

    Environmental information Environmental information Disposal Information This product consists of devices that may contain mercury, which must be recycled or disposed of in accordance with local, state, or country laws. (Within this system, the backlight lamps in the monitor display contain mercury.) This equipment has required the extraction and use of natural resources for its production.
  • Page 11 Environmental information Information for China ROHS compliance Table of toxic and hazardous substances/elements and their content, as required by China’s management methods for controlling pollution by electronic information products Toxic or hazardous Substances and Elements Part Name Cr6+ PBDE Metal parts Plastic parts PCB or PCBA LCD panel...
  • Page 12 Environmental information LCD Monitor 　 　 　 　 　 　 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 　 （Pb） （Hg） （Cd） （Cr6+） （PBB） （PBDE） 金属机构件 塑料机构件 电路板组件 * 液晶面板 电源模块 / 适配器 电源线 外部信号连接线 *： 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路 、连接器等 ○：表示该有毒有害物质在该部件所有均质材料中的含量均在 《电子信息产品中有 毒有害物质的限量要求标准》规定的限量要求以下 ×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 《电子信息产品 中有毒有害物质的限量要求标准》规定的限量要求；...

  • Page 13: Safety Instructions

    Safety Instructions Safety Instructions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operating instructions for future reference. Adhere to all warnings on the display and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Display with external power supply: Class I equipment...
  • Page 14 Safety Instructions • The medical approved DC power supply must be powered by the AC mains voltage. Power cords: • Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 300 V min., provided with a hospital-grade type plug 5-15P configuration for 120V application, or 6-15P for 240V application.
  • Page 15 Safety Instructions This apparatus conforms to: CE0120 (MDD 93/42/EEC class IIb product), IEC 60601-1, UL 60601-1, CAN/CSA C22.2 No. 601.01-M90 (c-UL), CCC GB4943-1995 (IEC 60950-1). National Scandinavian Deviations for Cl. 1.7.2 : Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag"...

  • Page 16: Explanation Of Symbols

    Explanation of symbols Explanation of symbols Symbols on the display and / or power supply On the display or power supply, you may find the following symbols (nonrestrictive list): Indicates compliance to the essential require- ments of the Directive 93/42/EEC Indicates compliance with Part 15 of the FCC rules (Class A or Class B) Indicates the display is approved according to...
  • Page 17 Explanation of symbols Indicates the display serial no. Consult the operating instructions Indicates this apparatus must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Symbols used throughout the manual: Warning: Risk of Caution: Risk of injury to human...

  • Page 18: Recommendations For Using Your Display System

    To do this, go to “Power Options Properties” in the “Control Panel”. Barco recommends setting DPMS activation after 20 minutes of non-usage. 2. Use a screen saver to avoid image retention Prolonged operation of an LCD with the same content on the same screen area may result in a form of image retention.
  • Page 19 Recommendations for using your display system diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white paper available at www.barcomedical.com.
  • Page 20 Recommendations for using your display system (This page intentionally left blank.)

  • Page 21: Display Controller Installation

    Display controller installation Display controller installation...

  • Page 22: Display Controller Installation

    Display Controller Installation Display Controller Installation Which display controller? Your Barco medical display is compatible with a large range of Barco and non-Barco display controller boards. Depending on the customer’s order details, the display can be delivered with or without display controller.
  • Page 23 Display Controller Installation Types of display controllers for Barco Display Systems The following models of Barco display controllers are available for your display system. Please check which of the following models is delivered with your system, and follow the corresponding installation...

  • Page 24: Installation Procedure

    Display Controller Installation Figure 2: Examples of PCI slots Installation Procedure The following instructions will take you step by step through the installation of the display controller(s) for your B ARCO USION Display System. CAUTION – Wear a grounded, protective ESD strap when handling or during installation of the display controller.
  • Page 25 Display Controller Installation If necessary, unscrew or unfasten and remove any existing graphics card(s) from your computer. Note: If you are using a motherboard containing an on-board graphics solution and do not intend to use it as part of a multiple-display setup, disable it either in the computer’s System Set-up utility (BIOS) or the Windows device manager.
  • Page 26 Display Controller Installation 6-pin graphics controller power cable Figure 3: Power connection for the MXRT 5100 and 7100 controllers 6-pin graphic controller power cables - connect 2 cables as shown Figure 4: Power connection for the MXRT 7200 controller Screw in or fasten the display controller securely. Replace and secure the computer cover.
  • Page 27 “Display installation” section of this manual. Figure 5: IO-Panel for the Barco MXRT 1150 and Barco MXRT 2150 S-Video Connection This option is not supported by Barco. DMS-59 connector provides DVI-I / Head 1 & Head 2...
  • Page 28 Display Controller Installation Figure 6: IO-Panel for the Barco MXRT 2100 and Barco MXRT 5200 MXRT 2100 MXRT 5200 Head 2– DVI-I Head 1– DVI-I Connection Connection Head 1– DVI-I Head 2– DVI-I Connection Connection Note: For 6mp, connect Head 1 to left input, and Head 2 to right input.
  • Page 29 Note: Your Barco display(s) will be running in a basic video mode at a default refresh rate. Higher resolutions and refresh rates, such as 1536x2048@60Hz, are not available at this stage of the installation.
  • Page 30 Display Controller Installation (This page intentionally left blank.)

  • Page 31: Display Installation

    Display installation Display installation...

  • Page 32: Installation Precautions

    Installation precautions Installation precautions Caution: The display weighs about 20 kg. To avoid back injury, unpack, install and handle the display with 2 persons. Precautions • Keep your original packaging. It is designed for this display and is the ideal protection during transport. •...

  • Page 33: Display Parts, Controls And Connectors

    Display parts, controls and connectors Display parts, controls and connectors Front The front controls are soft touch keys. When you touch any of them while no on-screen display (OSD) is on the screen, the front illumination is switched on for a few seconds. When you touch a key again while the illumination is on, the function of the key is executed.

  • Page 34: Rear

    Display parts, controls and connectors To display the OSD (on-screen display). In the OSD, this button acts as Enter button to make selections. Standby touch key To put the display in standby mode. Power LED Indicates the display’s power status. Green: Display is on (when enabled in the OSD).
  • Page 35 Display parts, controls and connectors Connector compartment cover. Detach to get access to the signal connectors. Slots for security cable (e.g., Kensington lock). (Not visible on drawing) Push-button to release the panel unit from the display stand. This button is located on the rear of the panel.

  • Page 36: Connectors

    Display parts, controls and connectors Connectors Figure 10: Connectors rear Figure 11: Connectors front...
  • Page 37 USB devices. USB 2.0 devices are supported. Note: The Barco Nio Fusion Display disposes of 2 video inputs. You can connect both video inputs or just one input. • When both inputs are used (DuoView), the signal on the “left”...
  • Page 38 Display parts, controls and connectors doesn’t matter which DVI input you use. The video resolution must not exceed 2560x1600. Note: For plug-and-play graphic boards (e.g., display controller(s) for your B Display System) the output ARCO USION resolution of the graphic board(s) is determined by the setting in the Preferred Input function in the on-screen display (Settings menu).

  • Page 39: Connecting The Signal Cables

    Connecting the signal cables Connecting the signal cables To connect the signal cables to the display: Unpack the display and put it on a solid flat surface. Make sure the computer is turned off. To get access to the connectors, remove the connector compartment cover (1).
  • Page 40 Connecting the signal cables Connect the signal cables: Figure 13: Signal cable connections • For Single View mode, connect one end of a DVI cable to any of the DVI inputs of the display (4) or (5). Connect the other end of the DVI cable to the DVI connector of the graphic board.
  • Page 41 Connecting the signal cables Figure 14: External DC power supply After routing the cables (see further), startup the display by touching the touch key. Note: When after startup you wish to change the screen resolution, try to do so in the display control panel on the computer.
  • Page 42 Connecting the signal cables Figure 15: Control panel...

  • Page 43: Cable Routing

    Cable routing Cable routing To route the cables: Figure 16: Cable routing Put the cables in the connector compartments in the provided clips. Route the cables alongside the neck and in the cable ducts in the tilt & swivel foot. Re-attach the connector compartment cover and neck cover.

  • Page 44: Vesa-Mount Installation

    (3) lift it from the stand. Attach the panel firmly to the arm stand using 4 screws M4 x 10 You can mount the panel in landscape position or portrait position. When mounted in landscape position, the BARCO logo...
  • Page 45 Vesa-mount installation must be positioned at the bottom. When mounted in portrait position, the BARCO logo must be positioned at the left side.

  • Page 46: Cleaning Instructions

    Cleaning instructions Cleaning instructions Precautions Precautions • Before cleaning, switch the display in stand-by position to prevent the control touch keys from being activated inadvertently by sweeping over the front filter. In stand-by position the touch keys cannot be activated by just sweeping over them.

  • Page 47: Cabinet

    Cleaning instructions • Sidolin glass cleaner In case none of the above cleaning products is available, use plain water. Do NOT use: • Alcohol/solvents at higher concentration > 5% • Strong alkalis lye, strong solvents • Acid • Detergents with fluoride •...
  • Page 48 Cleaning instructions (This page intentionally left blank.)

  • Page 49: Software Installation

    Software installation Software installation...

  • Page 50: Driver And Software Installation

    Display System or B Display(s). ARCO USION If you install Barco displays without Barco display controllers, no drivers will be installed. Only the online user manual will be installed on your system. Driver and software installation prerequisites Note: To install or remove the drivers, software, or documentation you must be logged on as a user with administrator privileges.
  • Page 51 CD-ROM into your computer’s CD/DVD drive after the operating system has started. If your CD/DVD drive’s auto-run is not enabled or the Barco Product Installation Wizard does not start automatically, you can run the Barco Product Installation Wizard manually by following these steps:...
  • Page 52 The Barco Product Installation Wizard will now guide you through the installation of the driver. Click Yes to accept the terms of the Barco and ATI license agreements. The Barco setup wizard will continue with the installation only if you accept the terms of both license agreements.

  • Page 53: Reinstalling Drivers

    Software should automatically detect your Barco displays and attach them to the desktop with the correct resolution. If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to attach them to the desktop correctly please refer to the section, Setting the resolution of your Barco Display in the Configuring Windows section of this manual.
  • Page 54 Driver and Software Installation Figure 17: Barco MXRT Driver Removal Wizard (driver version may be different than what is pictured) Note: Vista Only: After uninstalling the driver, shutdown the machine and remove the card. If you leave the card in the system, Vista will automatically reinstall the driver.
  • Page 55 Insert the B Display System Installation CD-ROM ARCO USION into your CD/DVD drive. When the Barco Product Installation Wizard starts click “Cancel”. Click the Start button in the task bar. Click Run. Click Browse and Browse to the root directory of the B...
  • Page 56 Run MXRT driver cleaner.bat by double clicking on it (this will either be installed as an icon on your desktop, or can be found on the Barco Display System installation CD at: drivers\2KXP\ATI). This will remove all the previous installed MXRT driver files.

  • Page 57: Where To Get More Information

    Where to get more information Where to get more information...
  • Page 58 The online user guide is installed on the system PC during the system driver installation. To open the online user guide, select Start>Program Files>Barco>Documentation>Nio online user guide from the Windows Start menu. The online user guide uses Java scripts to create the html pages. In Windows XP, SP2, it is possible that Internet Explorer blocks them for security reasons.
  • Page 59 Where to get more information...
  • Page 60 Where to get more information (This page intentionally left blank.)

  • Page 61: Troubleshooting

    Troubleshooting Troubleshooting...

  • Page 62: General Tips

    General tips General tips • If one display from a multi-head system exhibits problems, try to eliminate the problem by switching video cables or power supplies. In that way you can find out if the problem resides in the display or not.

  • Page 63: Configuring Windows

    Setting”. Click on the Settings tab (the Settings tab is not present in Vista). Select the rectangle that represents the Barco display whose settings you wish to change. Note: If you are using the VGA capabilities of your B MXRT...
  • Page 64 Configuring Windows rectangle for the virtual display representing the two heads controlled by each BarcoMed display controller output. If you installed your B Display System drivers in ARCO USION DualView mode (default for Windows XP) there will be a rectangle representing each head controlled by each output of the display controller.

  • Page 65: Setting The Color And Palette Modes

    Display System you must be logged in using an USION account with administrator privileges. If you are using a color display in conjunction with your Barco grayscale display(s) you should configure your desktop before setting the resolution of the your Barco grayscale display(s).
  • Page 66 Configuring Windows (This page intentionally left blank.)

  • Page 67: Technical Specifications

    Technical specifications Technical specifications...
  • Page 68 Technical specifications MDNC 4130 VISUAL PERFORMANCE LCD panel: 30" color TFT AM LCD Dual domain IPS Light output: 200 cd/m2 Calibrated Contrast ratio (dark room): Typical 600:1 Viewing angle: 170° hor. and vert. Resolution: 2560 x 1600 native Pixel pitch (H x V): 0.2505 x 0.2505 mm GEOMETRY SPECIFICATIONS Aspect ratio:...
  • Page 69 Technical specifications GENERAL Power source: External 24 VDC power supply unit: 90 ~ 264 VAC (45 ~ 65 Hz) Power consumption 130W nominal Weight (unpacked): 25 kg (with foot) Dimensions (HxWxD): 455x695x120 mm...
  • Page 70 Technical specifications (This page intentionally left blank.)

  • Page 71: Warranty Statement

    Warranty Statement Warranty Statement...

  • Page 72: Barco Mid General Warranty Terms And Conditions

    Any claim under the Warranties must be notified to Barco in writing within 8 days from the date the defect or failure has been discovered or noticed the first time. The Customer, upon the occurrence of...
  • Page 73 All software installed on the system, whether they are acquired from Barco nv, MID or third party. An exception is made for software delivered by Barco nv, MID that would prove to be a cause for the mal functioning of the hardware covered under this Agreement.
  • Page 74 LCD luminance uniformity that is in within the product specifications or luminance uniformity performance that is inherent to LCD technology. Barco nv, MID does not warrant a minimum life time nor a performance of any of the consumables. Replacement of moveable parts such as power cords, remote controls, …...
  • Page 75 If there is an indication that the equipment was used – even temporary – outside its specifications, Barco nv, MID is entitled not to perform warranty repairs and terminate the warranty agreement. Any actions that have been taken by Barco nv, MID in this respect, may be invoiced to the Customer at normal pricing.
  • Page 76 Barco nv, MID shall not be responsible for machine failure and/or its failure to render service or maintenance due to causes beyond its reasonable control.
  • Page 77 Warranty Statement...
  • Page 78 Warranty Statement...
  • Page 79 Warranty Statement...
  • Page 80 K5902002-04 October 2009 Barco nv Medical Imaging President Kennedypark 35 B-8500 Kortrijk, Belgium www.barco.com...
