Summary of Contents for Doro 430
- Page 1 Manual...
- Page 3 430...
- Page 4 www.doro.com...

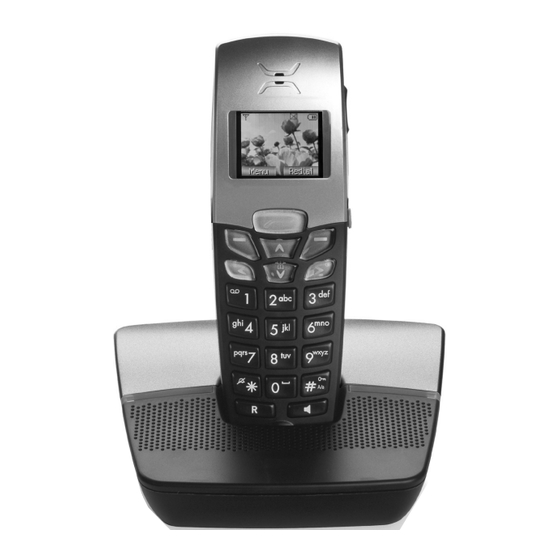

- Page 5 English 1 Dialling indicator and keypad lock 2 Line button 9 DOWN/Phone book 3 Left menu button/OK 10 RIGHT/Redial 4 LEFT/messages 11 Right menu key/Delete/Redial and ringer signal off/on 12 Headset jack 6 R button (Recall) 13 UP/Illuminate 7 Speaker 14 Volume www.doro.com...
- Page 6 www.doro.com...
-
Page 7: Table Of Contents
Caller ID ......16 Settings Handset menu ....18 Ringer ......... 18 Alarm ........18 Contrast ......18 Background ......18 Auto answer ......18 Select base ......18 User name ......18 Language ......18 Handset PIN ....... 18 Country code ...... 18 Baby monitor (wireless) ..19 Abbreviated memory dialling . 20 Register an additional handset ....... 20 www.doro.com... -
Page 8: Installation
The recharging system used in this model may result in the handset and the batteries becoming warm. This is normal and will not damage the equipment. Use original batteries only. The guarantee does not cover any damage caused by use of incorrect batteries. www.doro.com... -
Page 9: Battery
Specified ranges require unobstructed transmission between the handset and base unit. In such ideal conditions the telephones range can be up to 300 metres. In densly populated areas, houses, apartments etc the range will be reduced. Try to get the best range by relocating the base unit, the ideal location is a high and unobstructed place. If the handset is carried to far from the base unit during a call the sound quality will decrease and the call will be terminated. Base unit indicator The indicator flashes when someone calls. Wall mounting The base unit can be wall mounted. Use two screws horizontally mounted 70 mm apart. The screws should fit into the two ‘keyholes’ on the back of the base unit. The base unit can also be attached to the standard Australian wall plate by using the included bracket. Attach the bracket by inserting the locators into the “keyholes” on the back of the base unit and pushing the spring clips into the holes on the underside of the unit. The base unit can then be attached to the wall plate. www.doro.com... -
Page 10: Display
English Installation Display Indicator Function On within reception range. Flashes outside reception range. INT Internal call. Ringer turned off using the key. Handset connected (during a call). Message indication*. Caller ID/ New SMS received*. Alarm activated. Battery charge status. INT 1 Handset number (when using more than one handset). Base 1 The handset is connected to base unit 1. Press 19 Keypad lock activated. Function description for key shown below the text, e.g. OK to confirm. To reduce battery consumption the display remains dark when in ∧ standby mode. Press to reactivate the display. *Only available in certain countries. www.doro.com... -
Page 11: Operation
Before use please change the Recall (R) button timing to setting 3 (600ms) as described on page 21. This will ensure correct operation of additional network services such as ”Call Waiting”. Volume control The earpiece volume may be adjusted during a call by pressing the VOL button on the side of the handset. Redial ∧ ∨ to view the last 10 numbers dialled. Press Press Redial and to dial the displayed number. Temporary Mute To temporarily mute the handset ringer press Silent while the handset is ringing. www.doro.com... -
Page 12: Key Lock
In hands free speaker mode it is only possible for one person at a time to talk. Paging Press on the base unit to activate the paging signal. The signal will stop automatically or when either on the handset or on the base unit are pressed. Menu options 1. Press Menu. ∧ ∨ 2. Scroll through the menu options using - Phonebook - Message - Handset set - Base set - Int call - Net services www.doro.com... -
Page 13: Phone Book
To SIM card You can also add an area code when copying entries to your SIM card. Dialling from the phone book ∨ 1. Press ∧ ∨ 2. Scroll through the phone book using . To quick search press the number button that corresponds to the first letter. 3. Press to dial the displayed number. www.doro.com... -
Page 14: Messages
There is no need to register your telephone with the Telstra® fixed line SMS service as your DORO telephone is supplied pre-configured. When you send your first text message the Telstra® network will automatically accept and deliver it (providing the destination offers a compatible service). Settings for your Telstra® fixed line SMS service can be changed by calling 0198 339 999 and following the prompts. - Page 15 Entering the telephone number to the SMS service centre/provider Check that the correct service provider telephone number (without terminal number) has been entered. Please note that the correct terminal number (normally 0 for Australia / 9 for UK) must be programmed separately. Set First Ring It may be a good idea to turn off the first ringer signal if you are subscribing to an SMS service. www.doro.com...
-
Page 16: Caller Id
If a charge for local calls is unacceptable the NZ CID mode should not be activated. Reading and dialling numbers in the Caller List 1. Press <. ∧ ∨ 2. Scroll to Caller list using . Recent numbers/names will be displayed. Press OK. ∧ ∨ 3. Select New Calls or All Calls using . The number of incoming calls will be displayed. Press OK. ∧ ∨ 4. Scroll through the displayed numbers using 5. Press to dial a displayed number, or press Back to cancel. Caller ID messages The following messages may be shown in addition to the telephone number/name: Date/time not set (see page 8). Unavailable No information was received (e.g. international call). Withheld No Blocked number. Possibly a call from a PBX. www.doro.com... - Page 17 Storing a number in the phone book 1. Press <. ∧ ∨ 2. Scroll to Caller list using . Recent numbers/names will be displayed. Press OK. ∧ ∨ 3. Select New Calls or All Calls using . The number of incoming calls will be displayed. Press OK. ∧ ∨ 4. Press Option and scroll to Copy to Phoneb using . Press OK. 5. Enter the name using the handset keypad. Note! To switch between upper case/lower case (A/a) press To insert a space or special character press www.doro.com...
-
Page 18: Settings
Telephone numbers on a SIM card that have been stored with the international dialling code 00 followed by the country code will also be changed. Country code (domestic): Aus: 61, NZ: 64 , UK:44 International prefix: Aus/UK 00, NZ: 0011 Domestic prefix: 0 www.doro.com... -
Page 19: Baby Monitor (Wireless)
The Baby Monitor is designed to be an aid and is obviously not a replacement for regular baby care. Ensure the equipment is always out of the child’s reach. Never place a handset in the cot. We recommend activating the Call Waiting function on the receiving handset, e.g. a mobile phone, to avoid missing a call. www.doro.com... -
Page 20: Abbreviated Memory Dialling
For further information please refer to the Expanded System chapter. 1. Press and hold on the base unit until you hear repeated beeps. 2. Press Menu. ∧ ∨ 3. Scroll to Handset Set using . Press OK. ∧ ∨ 4. Scroll to Register using . Press OK. ∧ ∨ 5. Select a base unit using previously registered). Press OK. √= 6. Enter the PIN for the base unit (default: 0000). Press OK. 7. After a few seconds (max 90) any unused handset number will be displayed. Select one of these by pressing the corresponding key. www.doro.com... -
Page 21: System Settings
4. Press OK. 5. Follow any on screen prompts. Base PIN The base PIN number at default is 0000 Priority With +1 systems you can select one particular handset to ring first (have priority), and for how long before all remaining handsets ring. Alternatively you can allow all handsets to ring simultaneously on incoming calls. CARE dial Use the CARE memory to store an emergency number (do not store any emergency services number). 1. Press and hold for approximately one second. 2. The stored emergency telephone number will now be dialled. www.doro.com... -
Page 22: Call Barring
∨ 3. Scroll to Call Barring using . Press OK. 4. Enter the current PIN code (default: 0000). ∧ ∨ 5. Select either INT 1 or INT 2 using . Press OK. ∧ ∨ 6. Scroll to Barring Number using . Press OK. 7. Enter the required digits (maximum 8). Press OK to confirm. Important! To activate call barring you must select Barred No or Internal Call as described above. www.doro.com... -
Page 23: Alternate Network Routing
The display will always shows the number entered (not the number actually being dialled). You can have up to four Alternate Routing options simultaneously operating. If you wish all calls to be re-routed enter the alternate network provider details in Number, and leave Code blank. www.doro.com... -
Page 24: Network Services
2. Press Menu. ∧ ∨ 3. Scroll to one of the following options using Insert Pause, Mute, Make 2nd Call (=R), Ringback (= Phonebook, INT Call (+1...), Tone, Notebook, Reject Call (=R End Current (=R ), Switch (=R ), Conference (=R 4. Press OK. 5. Follow any on screen prompts. Via the menu 1. Press Menu. ∧ ∨ 2. Scroll to Net Services using . Press OK. ∧ ∨ 3. Scroll to required service using Withhold No, Call Divert, Call Waiting, Wake Up. 4. Press OK. 5. Follow any on screen prompts. 6. Press to terminate the call. www.doro.com... -
Page 25: Expanded System
This model is also GAP (Generic Access Profile) compatible, which means that the handset and the base unit can both be used with most other GAP-compatible units irrespective of manufacturer. However, the GAP protocol does not guarantee all functions will work. Intercom When using several handsets with the same base unit, calls can be made internally between the handsets referred to as internal calls, or intercom. Intercom calls can only be made between handsets connected to the same base unit. 1. Press Menu. ∧ ∨ 2. Scroll to INT Call using . Press OK. 3. Press All for a general call (to all handsets) or press the keypad button ( relating to the handset you wish to call. Should an external call be received while an intercom call is in progress, a tone will be heard. Press Accept to terminate the intercom and answer the incoming call. Conference/Transferring calls between handsets 1. While an external call is connected. 2. Press Menu. ∧ ∨ 3. Scroll to INT Call using . Press OK. 4. Press All for a general call (to all handsets) or press the keypad button ( relating to the handset you wish to call. 5. Press Conf. to initiate a conference call, alternatively press to transfer the call. www.doro.com... -
Page 26: Miscellaneous
Check that the telephone cord is undamaged and properly plugged in. Disconnect any additional equipment that may be connected. If the problem is resolved, the fault is with the other equipment. Test the equipment on a known working line. If the product works then the fault is with the line. Please inform your local telephone company. Check that charge contacts in handset and base unit are clean. The phone rings, but no number is displayed - This function requires a Caller ID subscription with the service provider. - The call may be an international call (no data received), or from a private or withheld number. - It may not be possible to receive Caller ID if the phone is connected to a PBX system. The telephone doesn’t work - Check that the adapter and the telephone cord are connected to the base unit and to the mains. - Check that you have selected Tone Dial. - Check that the handset batteries are charged. I can’t send or receive SMS messages - You have to subscribe to a service. - Check that the correct phone number has been stored for the service in question. Warning tone during call/Cannot connect - Batteries may be low (charge handset). - Handset may be close to range limit (move closer to base unit). The telephone keeps ringing - Some of the telephone’s ringing signals do not follow the line signal, which means that the signal may continue for up to 10 seconds after answering a call in a different telephone. If the telephone still does not work, contact the shop where it was purchased. Don’t forget the receipt or a copy of the invoice. www.doro.com... -
Page 27: Specific Absorption Rate (Sar)
Specific Absorption Rate (SAR) This equipment meets current international safety requirements for exposure to radio waves. This telephone measures 0.1 W/kg (measured over 10g human tissue). The limit value set by the WHO is 2W/kg (measured over 10g human tissue). Declaration of conformity Doro hereby declares that the Doro 430 product conforms to the essential requirements and other relevant regulations contained in the Directive 1999/5/EC. A copy of the manufacturer’s declaration is available at www.doro.com/dofc. If you cannot resolve the fault using the faultfinder section, technical support is available on the Premium Rate Number: 0906 302 0114. Calls cost 50 pence per minute (prices correct at the time of going to press), and is operational between 9AM - 5PM Monday-Friday excluding Bank Holidays. - Page 28 Should you experience difficulties with the product, please contact us for assistance. If the product is then found to be faulty you will be asked to return it directly to us with a copy of the purchase receipt. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or lightning, excessive or any other voltage fluctuations or faults on the telephone line. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm). This guarantee does not affect your statutory rights. AUSTRALIA NEW ZEALAND DORO Australia Pty Ltd Atlas Gentech (NZ) Limited PO Box 6760 Private Bag 14927 Baulkham Hills BC NSW 2153 Panmure Australia Auckland New Zealand Consumer Support Consumer Support Ph: Ph: 1300 885 023...
- Page 29 English Technical information REN (RN for New Zealand) The REN (Ringer Equivalence Number) or (RN) is of significance only if you wish to connect more than 1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3 devices with a REN of 1 (RN of 1) with no degradation to the product’s performance. Exceeding this limit may cause the volume of the ringer in any phone to decrease or not ring at all. Notes for operation in New Zealand ALL PRODUCTS The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with the minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services. This equipment shall not be set to make automatic calls to the Telecom “111“ Emergency Service. This equipment may not provide for the effective hand-over of a call to another device connected to the same line. This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom Customers. www.doro.com...
- Page 30 Australia Version 1.2...
