Summary of Contents for C-SCOPE CS4PI
- Page 1 operating instructions...

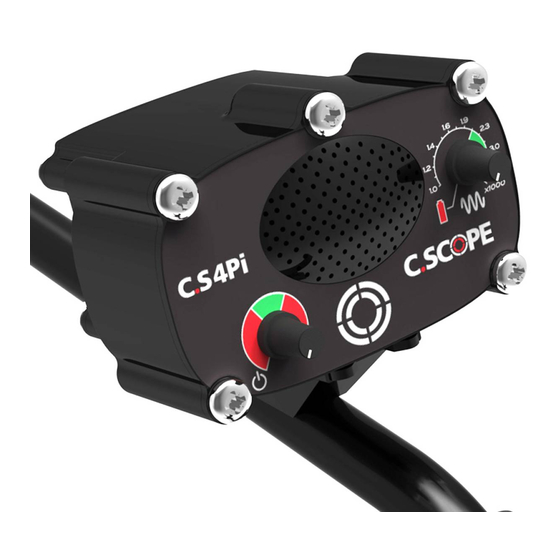

- Page 2 1) Control box mounting clip 2) On/Off/sensitivity control 3) Loudspeaker 4) Signal intensity LED 5) Pulse frequency control 6) Battery compartment 7) 8 x AA battery holder 8) Battery contacts 9) Search-head lead 10) Headphone socket 11) Control box 12) Hand grip 13) Upper stem 14) Arm support 15) Detector rest...
- Page 3 CS4PI! rapid start Follow these simple steps to start using the CS4PI within minutes . . . 1) Assemble the CS4PI by inserting the lower stem into the upper stem.
- Page 4 The area on the scale around the control marked in green is the setting recommended for most ground target characteristics. The CS4PI is at its most sensitive with sensitivity adjusted to the point where a background tone is just starting to become apparent. Some detector users prefer to set sensitivity at a lower level than this so that there is no background tone.
- Page 5 belt mounting Squeeze the control box retaining clips together using your thumbs a shown in the photograph. The control box will now slide towards you free of the control box mounting clip. The control box can be fitted to your belt using the clip provided.
- Page 6 (After the battery check procedure the detector continues to ‘beep’ about every 8 seconds if the switch is left in the battery check position. This is just a reminder to you to switch off). deing with the CS4PI Successful treasure hunting starts with a well researched site.
- Page 7 UK. deor care The CS4PI is a robust design, however the control box should be treated with similar care as any electronic product. Dry off any water splashes immediately. The search-head may be immersed in water.
- Page 8 C.SCOPE INTERNATIONAL LTD KINGSNORTH TECHNOLOGY PARK WOTTON ROAD ASHFORD KENT TN23 6LN UK Telephone: 01233 629181 Fax: 01233 645897 email: info@cscope.co.uk internet: www.cscope.co.uk...
