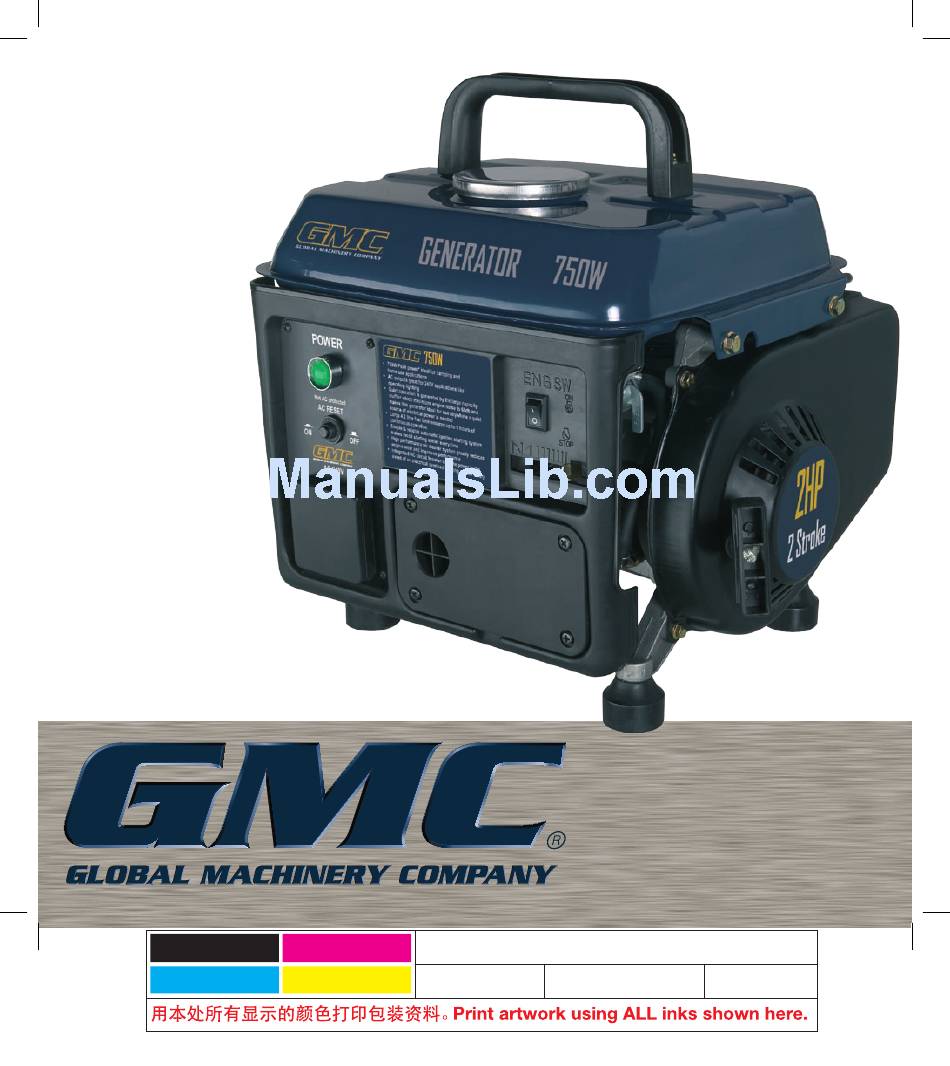

- Page 1 750W GENERATOR FCG001 INSTRUCTION MANUAL Black Magenta Cyan Code: FCG001 Manual Yellow Date: 070718 Edition: 5 Op: DCR...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Scope of product Description of symbols Specifications General safety instructions for power tools Risk of electrocution and fire Risk of fire Risk of injury and property damage when transporting generator Risk of breathing – inhalation hazard Risk of unsafe operation Risk of hot surfaces Risk of moving parts... -
Page 3: Introduction
Scope of product This product is suited for lighting, camping and car battery recharging applications. It is not recommended to be used with any electronic devices. Description of symbols The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use. -
Page 4: General Safety Instructions For Power Tools
General safety instructions for power tools To use this tool properly, you must observe the safety regulations, the assembly instructions and the operating instructions to be found in this Manual. All persons who use and service the machine have to be acquainted with this Manual and must be informed about its potential hazards. -
Page 5: Risk Of Electrocution And Fire
Save these important safety instructions Hazard Improper storage of extension cord. Operation of generator in rain, wet, icy, or flooded conditions. Placing generator on or against highly conductive surface, such as a steel walkway or metal roof. Use of worn, damaged or ungrounded extension cords. -
Page 6: Risk Of Fire
Hazard Attempting to fill the fuel tank while the engine is running. Sparks, fire, hot objects Improper storage of fuel Tampering with factory set engine speed settings. Inadequate ventilation for generator Overfilling the fuel tank – fuel spillage. Risk of fire What could happen Fuel and fuel vapours can become ignited by coming in contact with hot... -
Page 7: Risk Of Injury And Property Damage When Transporting Generator
Risk of injury and property damage when transporting generator Hazard Fire, Inhalation, Damage to Vehicle Surfaces Risk of breathing - inhalation hazard Hazard Gasoline engines produce toxic carbon monoxide exhaust fumes. Hazard Operation of generator in careless manner. What could happen Fuel or oil can leak or spill and could result in fire or breathing hazard, serious injury or death can result. -
Page 8: Risk Of Hot Surfaces
Risk of unsafe operation continued Operating generator while suspended Hazard Contact with hot engine and generator components. Hazard Contact with moving parts can result in serious injury. Hazard Lifting a very heavy object. Generator will not operate properly and will cause damage to the generator and could cause serious injury or death to you or others. -
Page 9: Additional Safety Rules For Generators
Additional safety rules for generators 1. Do not operate in a hazardous location. include where there is a risk of explosion of petrol fumes, leaking gas or explosive dust. 2. Do not operate in a confined area. Exhaust gases, smoke or fumes could reach dangerous concentrations. 3. -
Page 10: Know Your Product
Know your product 1. Handle 2. Fuel cap 3. Fuel tank 4. Fuel tap 5. Recoil starter 6. On/off switch 7. Choke 8. Air filter cover 9. Tap extension fuel filter 10. AC Output 240V 11. AC circuit breaker 12. Power ON light... -
Page 11: Fitting The Handle
Fitting the handle Firstly, place the 2 handle gaskets (supplied with the generator) over the holes on the petrol tank. Then proceed by placing the handle on top of the gaskets ensuring the 2 holes in the handles line up with the holes on the tank. Screw the handle onto the petrol tank using the 2 screws provided with the unit. -
Page 12: Stopping The Engine
6. Once you hear the engine operating, return the choke lever back to the right hand side position. This position will switch the choke ‘off’. Stopping the engine 1. Before stopping, ensure that no electrical apparatus is connected to the generator. 2. -
Page 13: Periodic Maintenance
Periodic maintenance Items Remarks Every 50hrs or every month Spark Plug Remove Carbon Air Filter Cleaning Fuel Filters Clean Decarbon- Clean isation Generator maintenance Your generator should be kept clean and dry at all times. The generator should not be stored or operated in environments that includes excessive moisture, dust or any corrosive vapours. - Page 14 Note: the following procedure should be performed in a well ventilated area, with no naked flames, sparks, or cigarettes. Safety glasses should also be worn and switch (6) set to the OFF position. 1. Completely empty the tank of fuel. Ensure the fuel tap (4) is in the OFF position 2.
-
Page 15: Fuel Tap Bowl Filter
Petrol tank filter 1. Stop the engine. 2. Turn the fuel tap (4) to the ‘off’ position. 3. The petrol tank filter is located directly under the petrol cap. This protects impurities entering the fuel tank during refuelling. 4. Remove the filter & wash thoroughly in a solvent. 5. -
Page 16: Troubleshooting
Troubleshooting Trouble Possible cause 1. Low on fuel/oil content Engine will not start or will not keep running 2. Ignition switch in “Off” position 3. Faulty spark plug 4. Choke in wrong position 5. Fuel tap in closed position 6. Unit loaded during start-up 7.
