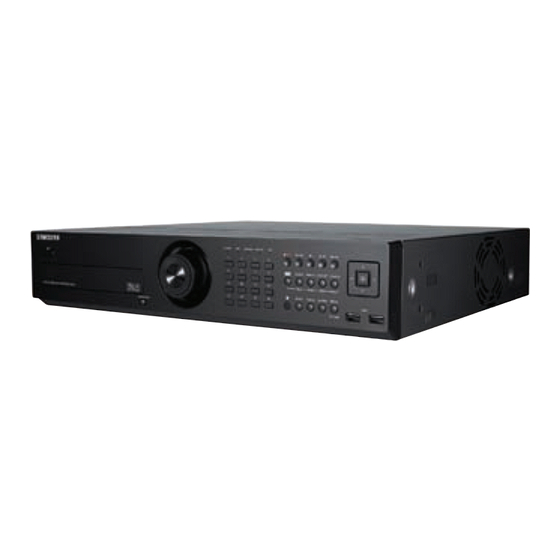

Samsung SRD-1630D Specifications

SRD - 1630D
16CH H.264 Digital Video Recorder
H.264
240fps(N)
16CH
200fps(P)

Key Features

• 16CH DVR
• Up to 240(NTSC) / 200(PAL)fps recording rate
• Max. 5 internal HDD (HDD x 5)
• DVD-RW, Smart phone support
Dimensions
440.0 (17.32")
REVISED 03-2012

Technical Specifications

DISPLAy
Video
Live
PERFORMANCE
Operating System Embedded
Recording
Search &
Playback
Network
Smart Phone
Storage
Security
INTERFACE
Monitors
Audio
Alarm
Unit : mm (inch)
Connections
GENERAL
Electrical
440.0 (17.32")
Environmental Operating Temperature / Humidity +0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH
Mechanical
Language
* The latest product information / specification can be found at www.samsungsecurity.com
440.0 (17.32")
440.0 (17.32")
Inputs 16 Composite video 0.5-1 Vp-p, 75 ohm automatic termination
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Frame Rate NTSC : 480fps / PAL : 400fps
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Multi Screen Display 1 / 4 / 6 / 8 / 9 / 13 / 16 / PIP
Linux
Compression H.264
NTSC : Up to 60fps@704 x 480 / PAL : Up to 50fps@704 x 576
Record Rate NTSC : Up to 120fps@704 x 240 / PAL : Up to 100fps@704 x 288
NTSC : Up to 240fps@352 x 240 / PAL : Up to 200fps@352 x 288
NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30fps)
Mode
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25fps)
Event Video loss, Motion (Level 1 ~ 10), Alarm
Overwrite Modes Continuous
Pre-alarm Up to 30sec (5, 10, 20, 30sec)
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search Mode Date/Time, Event, Back up, Pos, Motion (*All search include preview function)
Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Transmission Speed CIF 480/400fps
Bandwidth Up to 4Mbps, Unlimited (4M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Selectable
Stream H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring NET-i Viewer, SmartViewer, Webviewer
Platform Android, iOS
Protocol Support
RTP, RTSP, HTTP, CGI
Max. Remote Users Live 1
Internal HDD Up to 5 SATA HDDs
DVD Writer (Back up) Yes
USB (Back up)
3 USB ports
File Format (Back up) BU (DVR player), EXE (Include player)
Password Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
VGA 1 VGA (800 x 600, 1024 x 768, 1280 x 1024)
Main Composite 1 BNC (1 Vp-p, 75 ohm)
Spot Composite Digital spot (1 BNC, 1 Vp-p, 75 ohm), support multi screen and camera title
Loop Outputs 16
Inputs / Output 4CH line in / 1CH line out
Compression ADPCM
Sampling Rate 16KHz
Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
Inputs / Output
Rating : 30V DC / 2A, 125V AC / 0.5A
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 for PTZ, Samsung system keyboard
USB USB 2.0, 3 ports
Application Support Mouse, Remote controller
Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
Protocol Support
DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO
Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, Autoranging
Power Consumption Max. 60W (With 1x HDD)
Dimensions (WxHxD) 440.0 x 88.0 x 426.8mm (17.32" x 3.46" x 16.80")
Weight (With hard disks) Approx. 7.5Kg (16.53 lb)
Rack Mount Kit 2ea
Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian,
Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thailandais,
Rumania, Serbia, Croatia, Hungary, Greek, Taiwanese (23 Language)
440.0 (17.32")
SRD-1630D
