Summary of Contents for Zanussi TD 4212 W
-

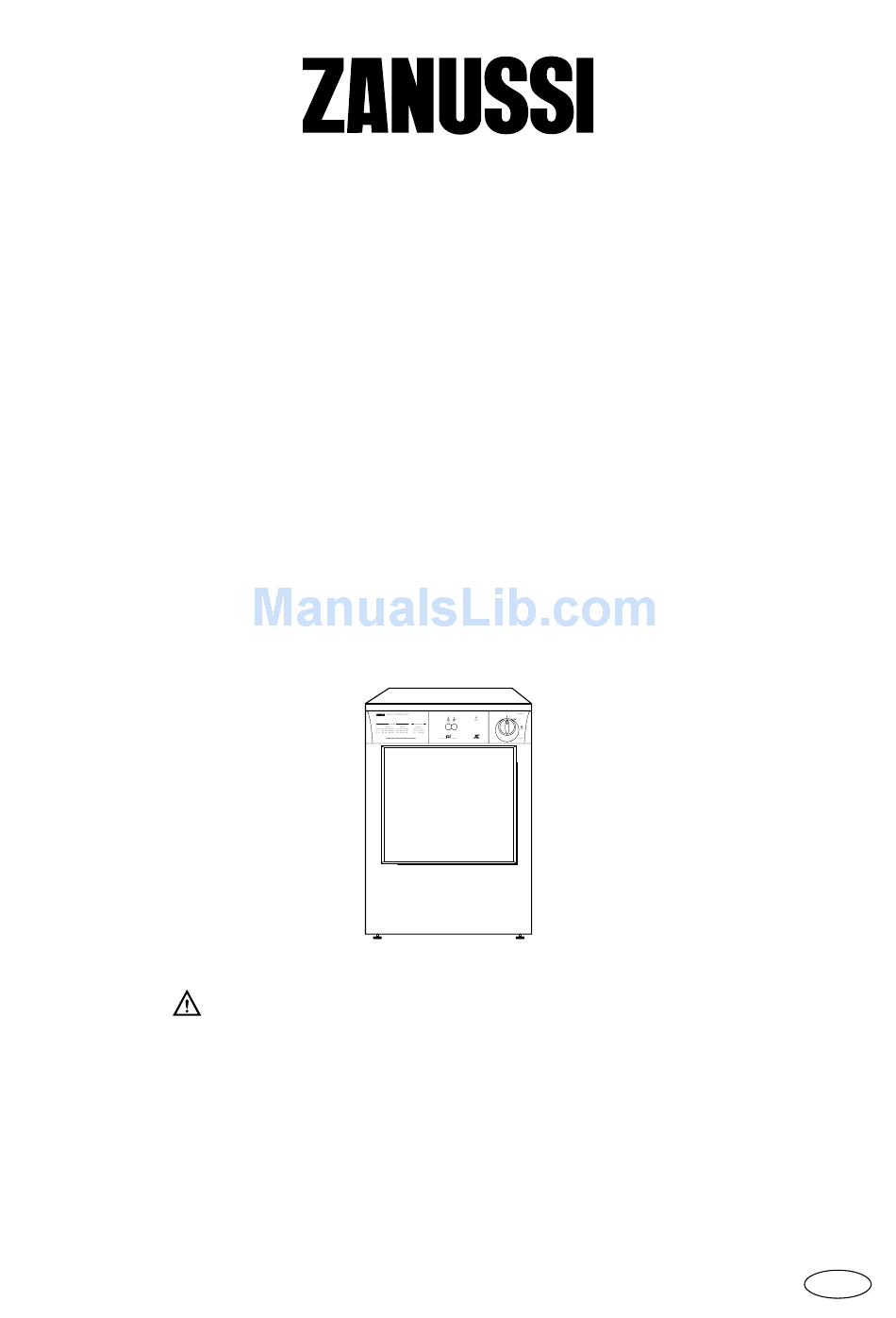

Page 1: Tumble Dryer
TUMBLE DRYER TD 4212 W Unpacking: see page 16 INSTRUCTION BOOKLET 125994620... -
Page 2: Important Safety Information
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Zanussi Service Centre. Always insist on genuine Zanussi spare parts. -
Page 3: Table Of Contents
Cleaning fluff filters Something Not Working Service and Spare Parts Customer Care Guarantee Conditions Zanussi Service Force 13-14 Guide to use the Instruction Book The following symbols will be found in the text to guide you throughout the instructions: Safety instructions... -
Page 4: Your New Tumble Dryer
Your New Tumble Dryer This tumble dryer will give your wash that soft, relaxed feel whatever the weather. Extremely high quality standards both during development and manufacturing guarantee a long service life for your appliance. Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and short drying times. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Worktop 2 Programme chart 3 Low Temperature Button 4 Start Button 5 Mains-On Light 6 Drying Time Selector Dial/ON-OFF Switch 7 Fluff filters 8 Rating Plate 9 Adjustable feet 10 Side vent outlet 11 Ring nut 12 Rear vent outlet... -
Page 6: The Control Panel
The Control Panel 5 5 Drying Time Selector 1 Programme Chart Dial/ON-OFF Switch This will help you to select the correct time for drying. The selector dial incorporates two drying cycles, one of up to 150 minutes at a high temperature for cotton and linen, and one of up to 100 minutes at a low 2 Low Temperature temperature for synthetic fabrics. -
Page 7: Programme Chart
Programme Chart Cotton and linen Selector dial: up to 150 minutes Drying time in minutes for laundry spun at Max. amount Type of laundry: Degree of drying of laundry in kg 800/900 rpm 1000/1200 rpm 100-125 95-115 Cotton Towelling Store dry 80-100 75-95 Shirts... -
Page 8: Operating Sequence
Operating Sequence Before using your tumble dryer for the first time, we 4. Start the machine recommend you place a few damp cloths inside the Depress Start Button , the mains-on light comes appliance and dry for approximately 20 minutes. on and the machine starts operating. -
Page 9: Hints & Tips On Drying
Hints & Tips on Drying Before placing articles of laundry in your tumble Always load well spun laundry. The higher the dryer, check the care labels to ensure they are spin speed the lower the electricity consumption recommended for tumble drying. and the shorter the drying time. -
Page 10: Maintenance And Cleaning
Maintenance and Cleaning You must disconnect the appliance from the electricity If necessary the filters can be cleaned under running supply, before you can carry out any cleaning or water using a brush. In this case, remove the filter in maintenance work. -
Page 11: Something Not Working
If after the above checks, there is still a fault, call your local Zanussi Service Force Centre. For general enquiries concerning your Zanussi appliance or for further information on Zanussi products, please contact our Customer Care Service & Spare Parts... -
Page 12: Guarantee Conditions
Standard guarantee conditions Exclusions This guarantee does not cover: We, Zanussi undertake that if, within 12 months of the date of the purchase, this Zanussi appliance or Damage or calls resulting from transportation, any part thereof is proved to be defective by reason... -
Page 13: Zanussi Service Force
08705 929 929 To contact your local Service Force Centre telephone... - Page 14 08705 929 929 To contact your local Service Force Centre telephone...
-
Page 15: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 16: I Unpacking
Unpacking Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit Warning ! level. If it is not, raise or lower the two adjustable feet at the front of the machine until it is. Slide out the polythene bag containing the polystyrene block(s) before using the appliance. -
Page 17: Door Reversal
2 m, and that it contains no more Please contact the nearest Zanussi Service Centre. than two bends. As to the outlet itself, if you have decided on a fixed wall/window grille, a good local Stacking kit builder’s merchant should be able to supply you with... -
Page 18: Electrical Connection
Electrical connection Permanent connection Any electrical work required to install this appliance In the case of permanent connection it is necessary should be carried out by a qualified electrician or that you install a double pole switch between the competent person. appliance and the electricity supply (mains), with a minimum gap of 3mm between the switch contacts WARNING: THIS APPLIANCE MUST BE... - Page 19 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
