Summary of Contents for Zeiss cinemizer

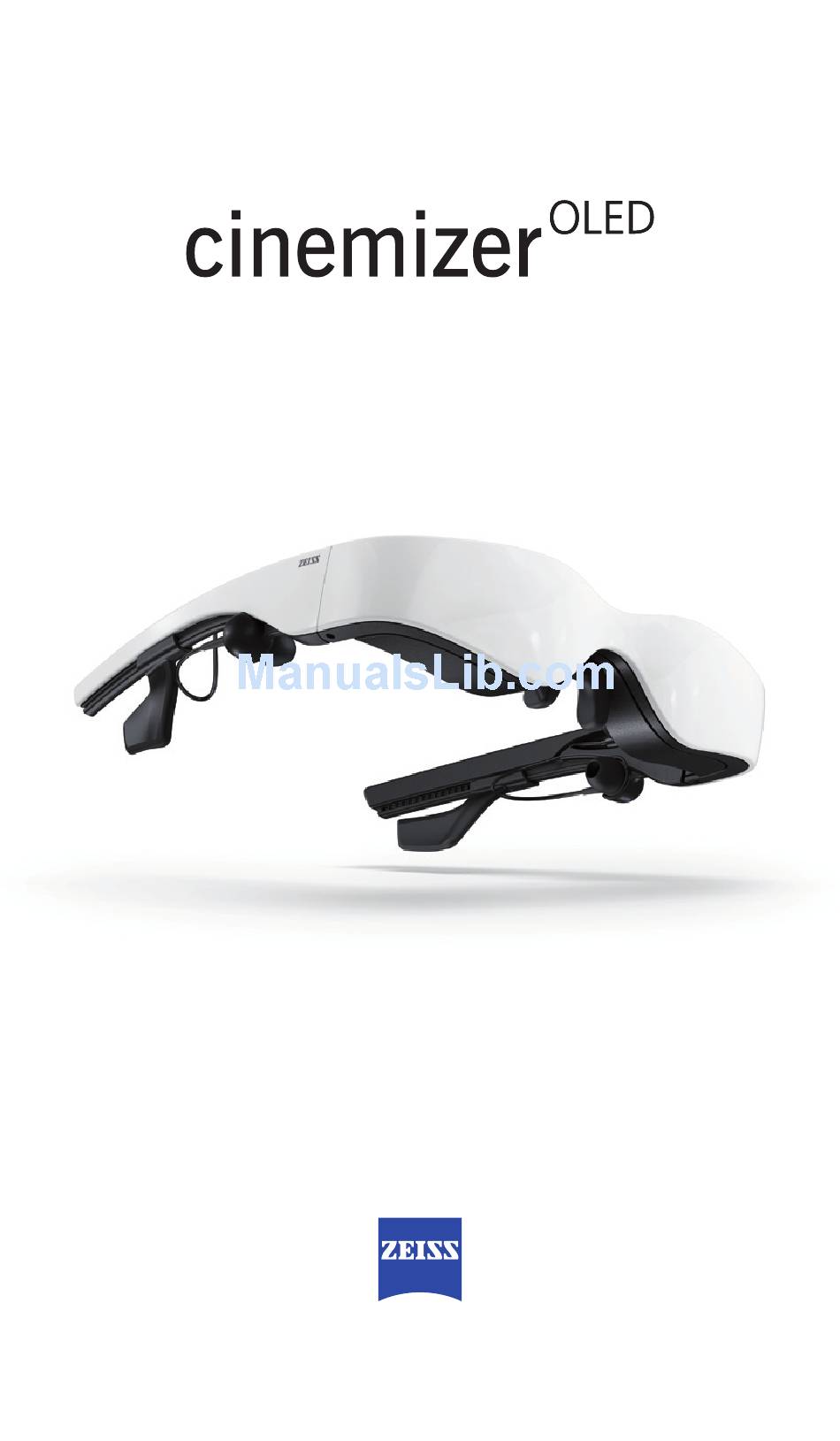

- Page 1 Quick Guide...
-
Page 2: Table Of Contents
Table of Contents / Inhalt Page Brief overview (english) Safety and Operation (english) Kurzübersicht (deutsch) Sicherheit und Handhabung (deutsch) Safety and operation (other countries) Overview of the cinemizer OLED Brief overview Video glasses Battery box HDMI adapter ®... -
Page 3: Overview Of The Cinemizer
Overview of the cinemizer OLED Video glasses Nose pad Ergonomic adjustment of the position of the glasses Viewing window Adjustment wheel Stepless adjustment of the acuity for each eye Ear clips Ergonomic fixing of the glasses Earpiece Removable earpiece Earpiece storage... -
Page 4: Battery Box
Overview of the cinemizer OLED Battery box Cinemizer socket Connector for the HDMI ® or iPhone adapter On/Off switch Video glasses Earpiece jack Stereo earpiece (3.5 mm) Reset button Reset the video glasses Multifunction switch Video mode, on-screen display and volume... -
Page 5: Hdmi
® plugged into the battery box, an HDMI ® device, e.g. gaming console, PC, Blu-ray player, can be connected to the cinemizer OLED. Please use an HDMI -cable with an ® “HDMI mini plug“ to connect the cinemizer. -
Page 6: Powering On
Getting started Powering on Switch on the cinemizer by briefly pressing OLED the On/Off button. The mode and battery LEDs indicate that power is on. Acuity Set the acuity (-5 to +2 diopters) separately for each eye by turning the adjustment wheel until the image is in focus. -
Page 7: Nose Pad
Nose pad The nose pad can be attached in 3 different ways for best possible comfort: 1. Nose pad without adapter 2. Nose pad with adapter A Adapter A 3. Nose pad with adapter B Adapter B Please test and choose the most comfortable position of the nosepad. - Page 8 Getting started Plug-in earpiece Plug-in the in-ear headphones as shown below. Insert plug Press plug Press cable into jack until it stops into cable channel...
- Page 9 Earpiece use Remove the in-ear headphones from the earpiece storage, put the glasses on and then insert the in-ear headphones. The in-ear headphones come with three different size ear caps: small, medium and large. After use, store the head- phones in the parking bay.
-
Page 10: Ear Clips
Getting started Ear clips While wearing the cinemizer OLED video glasses, move the ear clips onto the ears from the back. Volume Adjust the volume with the multifunction switch. -
Page 11: Travel Case
Travel case Please follow the steps below to safely store the cinemizer video glasses in the travel case. 1. Both ear clips need to be dragged out of the glasses. 2. Fold the temple arms and put the glasses in the travel case. -
Page 12: Important Functions
Important functions Charging the battery To charge the battery, connect the USB cable to the mini USB jack on the cinemizer OLED A flashing LED indicates that the battery is charging; a steady green LED indicates a fully-charged battery. - Page 13 Press (~2 seconds) the multifunction switch to alternate between 2D and 3D mode. The two mode LEDs show the current mode. The default video mode is 2D. 3D mode requires specially formatted 3D content.* *More details in the cinemizer manual (www.zeiss.com/cinemizer/documents)
- Page 14 Compatibility The cinemizer OLED multimedia video glasses can be connected to gaming consoles, Blu-ray players and PCs via an HDMI interface. It also ® accommodates other playback devices such as DVD players and smartphones via a 3.5 mm, 4-pin video cable.
-
Page 15: Support
Support Accessories The cinemizer head tracker (motion sensor). light shade and more are available in online shops and specialist stores. Please visit www.zeiss.com/cinemizer/shops. More information on the cinemizer OLED multi media video glasses is avai lable at www.zeiss.com/cinemizer. Comprehensive support information is available online at www.zeiss.com/cinemizer/support. - Page 16 Failure to do so may result in injury or damage. Safety and operation The cinemizer multimedia video glasses simulate a screen with a...
- Page 17 Ensure that the device is not used excessively and that breaks are taken at regular intervals. Keep the cinemizer and its accessories away from children under the age of 5 as they can swallow the nose pad or adapters, or be-...
- Page 18 Before cleaning, switch off the video glasses and disconnect the videocable or adapter from the battery box. Please only clean the video glasses with Carl Zeiss cleaning wipes. Use a clean microfiber cloth for all surfaces (as used for normal glasses). Ensure there are...
- Page 19 Approval regulations Approval regulations for Europe Video glasses leave the factory in perfect condi tion as regards safety. They satisfy electromagnetic compatibility requirements as stipulated in Directive 2004/108/EC and bear the CE label. The device may switch off automatically under the effects of electro- static discharge.
- Page 20 Carl Zeiss AG. The user is responsible for the rectification of malfunctions arising from non-authorized modifica- tions or connections.
- Page 21 The warranty does not cover the weakening of the recharable battery. Please read the online help (www.zeiss.com/cinemizer/support) be- fore claiming under the terms of the warranty. If you then still have a question please contact the cinemizer support team at www.zeiss.com/cinemizer/support ® The HDMI Logo, and High-Definition Multimedia ®...
- Page 22 Carl Zeiss AG Carl-Zeiss-Straße 22 73447 Oberkochen Germany www.zeiss.com/cinemizer...
