Summary of Contents for Chauvet Gobo Zoom LED

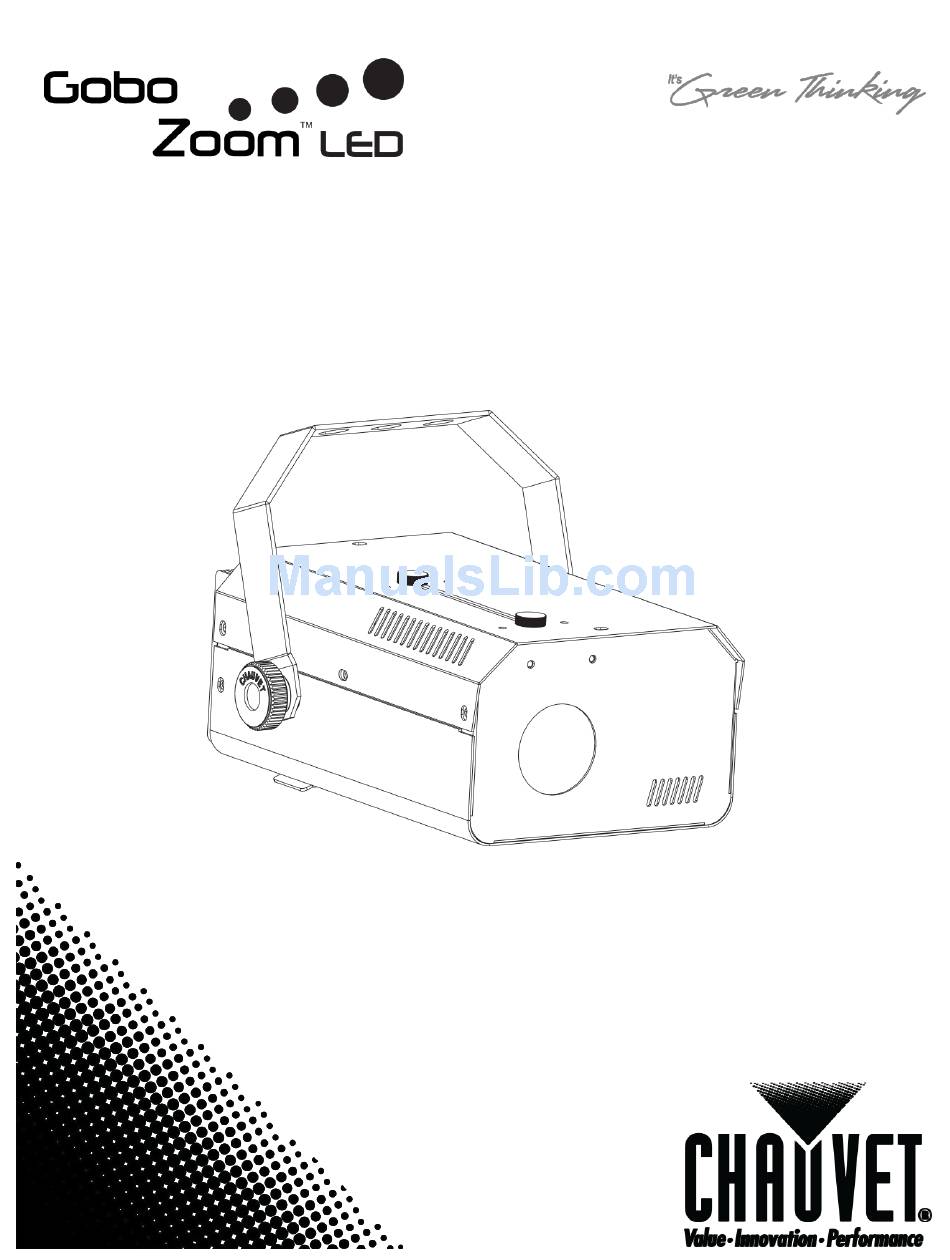

- Page 1 User Manual...
-
Page 2: Table Of Contents
CONTACT US ................................. 15 CHAUVET®, 2010, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Author: Anthony Chiappone... -
Page 3: Before You Begin
In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. EANING... -
Page 4: Safety Instructions
Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product. Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Mounting Bracket DMX Out DIP Switches DMX In Safety Bracket Bracket Adjustment Knob Adjustment Knob Power In Fuseholder Zoom Thumbscrew Adjustment Focus Thumbscrew Adjustment Gobo Holder 2. Introduction 11/24/2010 3:48 PM... -
Page 6: Setup
3. S ETUP AC Power This fixture runs on 100~240 VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages. To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. -
Page 7: Mounting
Mounting Orientation The Gobo Zoom™ LED may be mounted in any position, provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This may be done with a screw, nut and bolt, or a hanging clamp. -
Page 8: Operating Instructions
4. O PERATING NSTRUCTIONS Configuring the Starting Address The Gobo Zoom™ LED fixture uses two DMX channels. The highest channel that the fixture may be set to in order to function properly is 511. Any address higher than this will prevent access to all of the channels. -
Page 9: Appendix
#32. Keep DMX cables separated from Interference from AC wires power cables or black lights. If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. 5. Appendix 11/24/2010 3:48 PM... -
Page 10: Dmx Primer
Maximum recommended number of fixtures on a daisy chain: 32 Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 11: Cable Connectors
Cable Connectors Cabling must have a male XLR connector on one end and a female XLR connector on the other end. DMX connector configuration COMMON DMX + INPUT OUTPUT Terminator To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator. -
Page 12: 3-Pin To 5-Pin Conversion Chart
3-Pin to 5-Pin Conversion Chart If you use a controller with a 5-pin DMX output connector, you will need to use a 5-pin to 3-pin adapter. The chart below details a proper cable conversion: IN TO ONVERSION HART Conductor 3-Pin Female (Output) 5-Pin Male (Input) Ground/Shield Pin 1... -
Page 13: General Maintenance
Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 14: Technical Specifications
ECHNICAL PECIFICATIONS WEIGHT & DIMENSIONS Length......................8.9 in (226 mm) Width ......................6.5 in (165 mm) Height ......................6.3 in (159 mm) Weight ......................4.2 lbs (1.9 kg) POWER Auto-ranging power supply.............. 100~240 VAC, 50/60 Hz Power consumption @ 120 V ..........12 W (0.2 A) max, 0.2 A inrush Power consumption @ 230 V .......... -
Page 15: Contact Us
ONTACT W o r l d W i d e General Information CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 (Press 4) fax: 954.929.5560 (Attention: Service)
