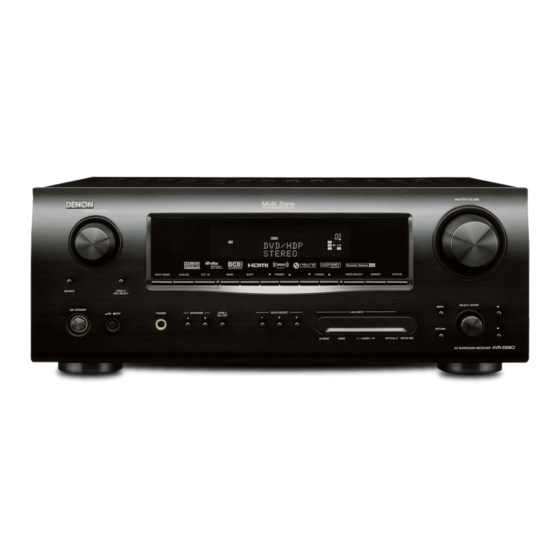

Denon AVR-2308CI Specification Sheet

Partner: Denon
Model: AVR-23/28/38/43/5805CI +
888 + 988
Device Type: AV Surround Receiver
GENERAL INFORMATION
SIMPLWINDOWS NAME:
CATEGORY:
VERSION:
SUMMARY:
GENERAL NOTES:
CRESTRON HARDWARE REQUIRED:
SETUP OF CRESTRON HARDWARE:
VENDOR FIRMWARE:
VENDOR SETUP:
CABLE DIAGRAM:
Denon AVR-2308CI+2808CI+3808CI+4308CI+5805CI+888+988 v1.0
AV Surround Processor
1.0
Controls all of the standard functions and provides true feedback.
This module will control all of the standard functions on a Denon AVR-4308CI AV
Surround Receiver.
It should also control the following models:
AVR-888, 988 AVR-2308CI, 2808CI, 3808CI, 4308CI, 5805CI
The unit provides true feedback. Functions provided include main zone control, zone
2 control, zone 3 and 4 control, surround mode selection, surround speaker level
adjustments, and tuner band/preset selection. It is necessary to pulse the initialize
once to synchronize unit's settings with the controller. This initialization takes
approximately 5 seconds.
Note: For surround mode selection, certain selections are only valid while certain
sources are selected. So choosing a particular surround mode may actually cause a
slightly different mode to be activated on the Denon system. However, since true
feedback is provided, the actual surround mode currently active will be reflected on
the output of this module. The AVR-4308 has an available surround back amplifier
channel. If no surround back speakers are used in the main room, their amplifier
channels can be assigned for multi-zone use or the front speaker's Bi-Amp
connection. IPod and USB control are not available at this time. Manufacturer states
that presets are made through menu structure of unit. Preset memory store
functions controlled from the panel are assigned to slots selected with preset
up/down.
To check vendor firmware, hold status and return buttons and cycle power.
CNXCOM, ST-COM
RS232
Baud: 9600
Parity: n
Data Bits: 8
Stop Bits: 1
Main V. 01.57 Sub V. 00.73
None
CNSP-121
