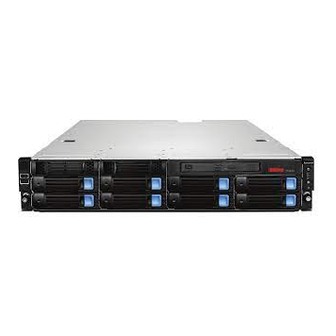

ThinkServer RD240
Installation and User Guide
Machine Types: 1045, 1046, 1047, and 1048

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkServer RD240

Summary of Contents for Lenovo ThinkServer RD240

  • Page 1 ThinkServer RD240 Installation and User Guide Machine Types: 1045, 1046, 1047, and 1048...
  • Page 3 ThinkServer RD240 Installation and User Guide...
  • Page 4 First Edition (June 2010) © Copyright Lenovo 2010. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

  • Page 5: Table Of Contents

    Diagnostic LEDs on the front control panel . . 104 Removing or installing the microprocessor . . 63 Onboard debug digitron. . 104 Completing the parts replacement . . 67 Installing the server cover . 67 © Copyright Lenovo 2010...
  • Page 6 Lenovo product service . . 109 (VCCI) statement . . 119 Lenovo product service information for Taiwan Appendix C. Notices ..111 Taiwan Class A warning statement . . 119 People’s Republic of China Class A warning Trademarks .

  • Page 7: Safety

    Vor der Installation dieses Produkts die Sicherheitshinweise lesen. Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza. Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet. Antes de instalar este produto, leia as Informações sobre Segurança. © Copyright Lenovo 2010...
  • Page 8 Antes de instalar este producto, lea la información de seguridad. Läs säkerhetsinformationen innan du installerar den här produkten. Important: Each caution and danger statement in this document is labeled with a number. This number is used to cross reference an English-language caution or danger statement with translated versions of the caution or danger statement in the Safety Information manual.
  • Page 9 Statement 1: DANGER Electrical current from power, telephone, and communication cables is hazardous. To avoid a shock hazard: v Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm. v Connect all power cords to a properly wired and grounded electrical outlet. v Connect to properly wired outlets any equipment that will be attached to this product.
  • Page 10 Statement 2: CAUTION: When replacing the lithium battery, use only Part Number 33F8354 or an equivalent type battery. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer.
  • Page 11 Statement 3: CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following: v Do not remove the covers. Removing the covers of the laser product could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device.
  • Page 12 Statement 4: ≥ 18 kg (39.7 lb.) ≥ 32 kg (70.5 lb.) ≥ 55 kg (121.2 lb.) CAUTION: Use safe practices when lifting. Statement 5: CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device.
  • Page 13 Statement 8: CAUTION: Never remove the cover on a power supply or any part that has the following label attached. Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components.
  • Page 14 Statement 13: DANGER Overloading a branch circuit is potentially a fire hazard and a shock hazard under certain conditions. To avoid these hazards, ensure that your system electrical requirements do not exceed branch circuit protection requirements. Refer to the information that is provided with your device for electrical specifications.

  • Page 15: Chapter 1. General Information

    The server comes with a limited warranty. For information about the terms of the warranty and getting service and assistance, see the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your server. To obtain the most up-to-date information about the server and other Lenovo products, go to: http://www.lenovo.com/thinkserver Record information about the server in the following table.

  • Page 16: Related Documentation

    Related documentation The Lenovo ThinkServer Documentation DVD, which comes with your server, contains documentation for the server in Portable Document Format (PDF). To view the documentation on the ThinkServer Documentation DVD, you need to have the Adobe Reader 5.0 program or later installed, or the xpdf, which comes with...
  • Page 17 Available on the ThinkServer Support Information warranty statement and Documentation DVD information about how to contact Lenovo Support. Note: You can obtain all the documentation in PDF for your server from the Lenovo Support Web site at http://www.lenovo.com/support. Chapter 1. General information...
  • Page 18 Installation and User Guide...

  • Page 19: Chapter 2. Server Setup Roadmap

    ThinkServer EasyStartup operating system program. Install remote “Installing the ThinkServer EasyManage program” on page 89 management applications Install applications Refer to the documentation that comes with the applications that you want to install. © Copyright Lenovo 2010...
  • Page 20 Installation and User Guide...

  • Page 21: Chapter 3. Features And Technologies

    Chapter 3. Features and technologies What is included with your server The RD240 server package includes the server, a power cord, documentation, the ThinkServer Documentation DVD, and software media. Features The RD240 server offers the following features and technologies: v Microprocessor(s) ®...

  • Page 22: Specifications

    Expansion slot: your server, go to http:// (-104°F to 140°F) v One PCI Express x16 card slot on the www.lenovo.com/thinkserver. On the v Humidity: system board for a riser card (there are ThinkServer systems page, click Products – Server on: up to 80%, three PCI Express x8 card slots on the →...

  • Page 23: Software Programs

    USB keyboard and USB mouse to the server by using the USB connectors. Software programs Lenovo provides software to help get your server up and running. EasyStartup The ThinkServer EasyStartup program simplifies the process of configuring RAID ®...
  • Page 24 v Automatic memory downsizing on error detection v Automatic restart on non-maskable interrupt (NMI) v Availability of microcode level v Built-in, menu-driven setup, system configuration, and RAID configuration v Built-in monitoring for fan, temperature, and voltage v Cooling fans with speed-sensing capability v ECC DDR3 SDRAM with Serial Presence Detect (SPD) v Error codes and messages to help you identify problems v Generating error logs for the power-on self-test (POST) failures...

  • Page 25: Chapter 4. Locating Parts, Controls, Leds, And Connectors

    (blank and covered by a bay bezel) 3 Power cord connector 8 Ethernet connector 1 4 USB connectors (1 and 2) 9 Ethernet connector 2 (share with MGMT) 5 VGA monitor connector 10 PCI expansion slot © Copyright Lenovo 2010...

  • Page 26: Front Control Panel

    Connector Description Power cord connector Used to connect the power cord. Ethernet connector Used to attach an Ethernet cable for a local area network (LAN). Serial port Used to attach a device that uses a 9-pin serial port. USB connector Used to attach a device that uses a USB connector, such as a USB keyboard or a USB mouse.
  • Page 27 1 ID button and LED 4 Ethernet 2 status LED 2 System status LED 5 Power button and LED 3 Ethernet 1 status LED The following table describes the meaning of the LEDs on the front control panel. Table 4. Front control panel LEDs State Color Description...

  • Page 28: Locating Server Components

    Table 6. Ethernet LEDs State Color Description RJ-45 linkage/activity (left) Green 10/100/1000 Mb linked Blinking Green 10/100/1000 Mb activity No LAN connection. RJ-45 speed (right) Amber 1000 Mb linked and active Green 100 Mb linked and active 10 Mb mode or no LAN connection.

  • Page 29: Locating Parts On The System Board

    4 Memory modules 9 3.5-inch hard disk drive 5 Power supply 10 Left handle of the chassis assembly Locating parts on the system board Figure 5 and Figure 6 on page 16 show the locations of the parts on the system board.
  • Page 30 Figure 6. Locating other connectors on the system board 1 System fan 1 connector 7 J35 (for front control cable) 2 System fan 2 connector 8 JP1 (clear CMOS) 3 System fan 3 connector 9 USB 2 connector 4 System fan 4 connector 10 J21 (SGPIO connector for onboard SAS port 5-8) 5 Front USB connector 11 JP7 (set onboard SAS)

  • Page 31: Locating Connectors On The Backplane

    Locating connectors on the backplane Figure 7 shows the connector locations on the backplane. Figure 7. Backplane connector locations 1 Mini-SAS signal connector 2 2 Power connector 3 Mini-SAS signal connector 1 Chapter 4. Locating parts, controls, LEDs, and connectors...
  • Page 32 Installation and User Guide...

  • Page 33: Chapter 5. Installing, Removing, Or Replacing Hardware

    To download firmware updates for your server, do the following: 1. Go to http://www.lenovo.com/support. 2. Click Download & Drivers → ThinkServer and then follow the instructions on the Web page to download firmware updates for your server.

  • Page 34: System Reliability Guidelines

    For a list of supported optional devices for the server, go to http://www.lenovo.com/thinkserver. v When working inside the server, you might find some tasks easier if you lay the server on its side.

  • Page 35: Working Inside The Server With The Power On

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the server cover. Attention: For proper cooling and airflow, install the server cover before turning on the server.

  • Page 36: Installing, Removing, Or Replacing Optional Hardware Devices

    To remove the server cover, do the following: 1. Remove all media from the drives. Then, turn off all attached devices and the server. 2. Disconnect all power cords from electrical outlets. 3. Disconnect the power cord(s), Input/Output (I/O) cables, and all other cables that are connected to the server.
  • Page 37 On the ThinkServer systems page, click Products → Options → ThinkServer Memory. Memory module installation rules Your server has eight memory slots for installing or replacing DDR3 SDRAM DIMMs that provide up to a maximum of 64 GB of system memory.

  • Page 38: Installing A Memory Module

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install a memory module. To install a memory module, do the following: 1.

  • Page 39: Removing A Memory Module

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove a memory module. To remove a memory module, do the following: 1.

  • Page 40: Removing Or Installing Internal Drives

    PCI card slot, or PCI Express card slot in the event that you later remove the device. v For a list of the supported hard disk drives for your server, go to http://www.lenovo.com/thinkserver. On the ThinkServer systems page, click Products → Options → ThinkServer Hard Drives. Installation and User Guide...

  • Page 41: Removing The Optical Drive

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the optical drive. To remove the optical drive, do the following: 1.
  • Page 42 Figure 13. Removing the optical drive cage retaining screw 6. Slide out the optical drive cage with the optical drive. Figure 14. Sliding out the optical drive cage with the optical drive 7. Remove the two retaining screws that secure the optical drive in the cage. Then, slide the optical drive out of the cage.

  • Page 43: Installing The Optical Drive

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the optical drive. To install the optical drive, do the following: 1.
  • Page 44 Note: If you are installing a drive that contains a laser, observe the following safety precautions. Statement 3: CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following: v Do not remove the covers. Removing the covers of the laser product could result in exposure to hazardous laser radiation.
  • Page 45 Figure 16. Removing the drive access panel 5. Remove the retaining screw on the rear bracket of the optical drive. Figure 17. Removing the optical drive cage retaining screw Chapter 5. Installing, removing, or replacing hardware...
  • Page 46 6. Slide out the optical drive cage. Figure 18. Sliding out the optical drive cage 7. Remove the bezel of the optical drive cage. Figure 19. Removing the bezel of the optical drive cage 8. Touch the static-protective package that contains the new optical drive to any unpainted metal surface on the server.
  • Page 47 Figure 20. Sliding the optical drive into the drive cage 11. Install the two retaining screws to secure the optical drive in the cage. Figure 21. Securing the optical drive with screws 12. Slide the cage with the optical drive into place. Chapter 5.
  • Page 48 Figure 22. Sliding the cage with the optical drive into place 13. Install the retaining screw to the rear of the cage to secure the optical drive cage in place. Figure 23. Installing the optical drive cage retaining screw 14. Connect the power cable (P8) and the signal cable (SATA cable) to the rear of the optical drive.
  • Page 49 “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove a hot-swap hard disk drive. This section applies only to server models that have hot-swap hard disk drives installed.

  • Page 50: Installing A Hot-Swap Hard Disk Drive

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install a hot-swap hard disk drive. This section applies only to server models that support hot-swap hard disk drives.
  • Page 51 Figure 26. Installing the hard disk drive into the tray 4. Keep the handle on the hard disk drive tray assembly fully open, slide the tray with the hard disk drive into the corresponding mounting point of the hot-swap hard disk drive bay ( 1 ), and then slightly press the handle to lock the tray into place ( 2 ).

  • Page 52: Removing Or Installing The Riser Card Assembly

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the riser card assembly with PCI card(s) installed.
  • Page 53 “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the riser card assembly. The riser card assembly might have PCI card(s) installed on it.

  • Page 54: Installing Or Removing A Pci Card

    3. Touch the static-protective package that contains the riser card to any unpainted metal surface on the server. Then, remove the riser card from the static-protective package. 4. Position the riser card assembly in place so that you can press the riser card straight down into the PCI card slot on the system board.
  • Page 55 Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install a PCI card. To install a PCI card, do the following: Note: Use any documentation that comes with the PCI card and follow those instructions in addition to the instructions in this section.

  • Page 56: Removing A Pci Card

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove a PCI card. The PCI card is installed on the riser card assembly. To remove a PCI card, do the...

  • Page 57: Installing, Removing, Or Replacing Hardware Devices

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the system board battery. To remove the system board battery, do the following: 1.

  • Page 58: Installing The System Board Battery

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the system board battery. Be sure to consider the following information when you replace the battery in the...

  • Page 59: Removing Or Installing The 8708Elp Raid Controller

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the ThinkServer 8708ELP SAS RAID adapter (hereafter referred to as the RAID controller within this section).
  • Page 60 “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the ThinkServer 8708ELP SAS RAID adapter (hereafter referred to as the RAID controller within this section).
  • Page 61 assembly from the antistatic shipping container until you are ready to install it. When you remove the battery card assembly from your server, place it in its original container. c. Check the appropriate support Web sites for the latest updates for your basic input/output system (BIOS) code, utility programs, device drivers, and other software applications.
  • Page 62 Figure 35. Top view 1 Battery pack harness b. Insert the battery pack harness connector (as shown in Figure 35) into the 5-pin J3 battery pack harness connector (as shown in Figure 34 on page 47) on the backside of the battery card assembly. c.

  • Page 63: Removing Or Installing The Ethernet Card

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the Ethernet card. The Ethernet card is installed on the riser card. To remove the Ethernet card, do...
  • Page 64 “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the Ethernet card and how to install the Ethernet card driver on Windows operating systems.

  • Page 65: Removing Or Installing The Microprocessor Fan Duct

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the microprocessor fan duct. To remove the microprocessor fan duct, do the following: 1.
  • Page 66 “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the microprocessor fan duct. To install the microprocessor fan duct, do the following: 1.

  • Page 67: Removing Or Installing The Power Supply

    “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the power supply. When you remove the power supply, observe the following precautions.

  • Page 68: Installing The Power Supply

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install a power supply. Installation and User Guide...
  • Page 69 When you install a power supply, observe the following precautions. DANGER Hazardous moving parts. Keep fingers and other body parts adway. Statement 8: CAUTION: Never remove the cover on a power supply or any part that has the following label attached. Hazardous voltage, current, and energy levels are present inside any component that has this label attached.

  • Page 70: Removing Or Installing The System Fans

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the system fans. Installation and User Guide...
  • Page 71 DANGER Hazardous moving parts. Keep fingers and other body parts away. To remove the system fans, do the following: 1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the server.

  • Page 72: Installing The System Fans

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the system fans. Installation and User Guide...
  • Page 73 DANGER Hazardous moving parts. Keep fingers and other body parts away. To install the system fans, do the following: 1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the server.

  • Page 74: Removing Or Installing The Heat Sink

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the heat sink. CAUTION: The heat sink might be very hot.

  • Page 75: Installing The Heat Sink

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the heat sink. Chapter 5. Installing, removing, or replacing hardware...
  • Page 76 CAUTION: The heat sink might be very hot. Turn off the server and wait three to five minutes to let the server cool before removing the server cover. To install the heat sink, do the following: Note: Make sure that you have already connected the front fans to the system board before you install the heat sink.

  • Page 77: Removing Or Installing The Microprocessor

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to remove the microprocessor. CAUTION: The heat sink and microprocessor might be very hot.

  • Page 78: Installing The Microprocessor

    Information and the Warranty and Support Information on the ThinkServer Documentation DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support This section provides instructions on how to install the microprocessor. CAUTION: The heat sink and microprocessor might be very hot.
  • Page 79 3. Always install the microprocessor first into the CPU0 socket, and then install another microprocessor into the CPU1 socket if you want to install two microprocessors. To install the microprocessor, do the following: 1. Remove all media from the drives and turn off all attached devices and the server.
  • Page 80 Figure 49. Removing the microprocessor socket cover 8. Remove the new microprocessor from the protective cover that protects the gold contacts on the bottom of the new microprocessor. 9. Hold the new microprocessor by the edges and align the notches 1 on it with the tabs 2 in the microprocessor socket.

  • Page 81: Completing The Parts Replacement

    What to do next: v To work with another piece of hardware, go to the appropriate section. v To complete the installation, go to “Completing the parts replacement.” Completing the parts replacement This section provides instructions to help you complete the parts replacement and turn on your server.

  • Page 82: Updating The Server Configuration

    respond to requests to the service processor, such as a remote request to turn on the server. The power-on LED flashes to indicate that the server is connected to an ac power source but is not turned on. Approximately five seconds after the server is connected to ac power, one or more fans might start running to provide cooling while the server is connected to power and the power-on button LED flashes quickly.

  • Page 83: Connecting External Devices

    DVD that comes with your product, and “Guidelines” on page 19. To obtain a copy of the publications, go to: http://www.lenovo.com/support 2. Turn off the server and all attached devices. 3. Follow the instructions that come with the device to prepare it for installation and to connect it to the server.
  • Page 84 Installation and User Guide...

  • Page 85: Copyright Lenovo

    Chapter 6. Configuring the server Lenovo provides the following programs for you to configure your server: v Setup Utility program The Setup Utility program is part of the server firmware. You can use the Setup Utility program to view your server configuration, change the startup device sequence, set the date and time, and set passwords.

  • Page 86: Starting The Setup Utility Program

    Starting the Setup Utility program To start the Setup Utility program, do the following: 1. Approximately three minutes after the server is connected to a working electrical outlet, the power button becomes active. Turn on the server and the POST runs automatically. You will then see the logo screen. The POST is a set of tests and procedures that are performed each time you turn on your server.
  • Page 87 Table 12. Items under the Main menu Item Option Description AMIBIOS View the BIOS version and creation date information. Processor View microprocessor information. System Memory View memory capacity information. System Time HH:MM:SS Set system time. System Date MM/DD/YYYY Set system date. Table 13.
  • Page 88 Table 14. Submenus under the CPU Configuration (continued) Item Option Description MPS and ACPI MADT Legacy ordering Select the MPS and ACPI ordering [Modern ordering] MADT ordering method. ® Intel Virtualization Tech Disabled Enable or disable the Intel [Enabled] Virtualization Tech. This technology can provide additional capacity for hardware computing.
  • Page 89 Table 14. Submenus under the CPU Configuration (continued) Item Option Description ACPI T State Disabled Enable or disable the [Enabled] microprocessor throttling in ACPI. Notes: 1. The settings in [ ] are the default settings in the Setup Utility program. 2.
  • Page 90 Table 17. Submenus under the USB Configuration (continued) Item Option Description Emulation Type [Auto] Select the type of the USB Floppy device. Forced FDD Hard Disk CDROM Table 18. Submenus under the Hardware Health Configuration Item Option Description Items and options with BMC configuration: Auto Fan Control Disabled If this option is set to...
  • Page 91 Table 19. Submenus under the IPMI 2.0 Configuration Item Sub-item Option Description View BMC System View the system Event Log event log. Clear BMC System Delete the system Event Log event log. Set LAN Set the IP address Configuration source, IP address, subnet mask, and gateway address.
  • Page 92 Table 22. Items under the PCIPnP menu (continued) Item Option Description Boots Graphic Adapter [Auto] If this option is set to Auto, Priority Onboard VGA the external graphics card will be enabled firstly. If no external graphics card, the integrated graphics controller is automatically enabled.
  • Page 93 Table 23. Items under the Boot menu (continued) Item Sub-item Option Description Hard Disk Drives 1st Drive Based on the 2nd Drive installed hard disk drives. CD/DVD Drives 1st Drive... Based on the installed optical drives. Note: The settings in [ ] are the default settings in the Setup Utility program. Table 24.

  • Page 94: Using Passwords

    Exiting the Setup Utility program After you finish viewing or changing settings, press Esc to return to the Setup Utility program main menu. You might have to press Esc several times. Then, you can do one of the following: v If you want to save the new settings and exit the Setup Utility program, press F10.

  • Page 95: Raid Controllers

    Created a RAID response file that can be used to configure RAID controllers on similarly configured Lenovo servers. LSI IR-RAID Utility Onboard 1068E SAS Press Ctrl+C to start “Onboard 1068E SAS RAID adapter RAID controller Configuration Utility program”...

  • Page 96: Using The Thinkserver Easystartup Program

    If you did not receive an ThinkServer EasyStartup DVD with your server, you can download an image from the Lenovo Support Web site at: http://www.lenovo.com/support The EasyStartup program has the following features:...

  • Page 97: Configuring Raid

    You will then see one or more reminders about configuring storage devices, and then you will be presented with the Lenovo License Agreement. Read the license agreement carefully. You must agree with terms in order to continue. After agreeing to the license agreement, you will be given the following choices:...

  • Page 98: Onboard 1068E Sas Raid Controller Configuration Utility Program

    Onboard 1068E SAS RAID controller Configuration Utility program This section provides some basic instructions on how to configure the onboard SAS RAID for your RD240 server using the onboard 1068E SAS RAID controller Configuration Utility program. Installing the SAS SGPIO cables The connectors J51 and J21 on the system board are for the SAS SGPIO cables.

  • Page 99: Accessing The Adapter Properties Window

    Table 27. Items in the Adapter List window (continued) Item Description PCI Bus The PCI bus number assigned for the adapter. Dev/Fnc The PCI Device/Function assigned for the adapter. FW Revision Indicates the current Firmware version. Status Indicates that the adapter in the boot list is enabled or disabled.

  • Page 100: Sas Raid Settings

    Table 29. Items in the Adapter Properties window for SAS1068E (continued) Item Description Boot Support Set the software controlling mode of the controller. The Enabled BIOS & OS means that the adapter is controlled by both the BIOS and the driver in the operating system. The Enabled BIOS Only means that the adapter is controlled only by the BIOS, instead of the driver in the operating...

  • Page 101: Creating Or Deleting The Raid 1 Array

    Creating or deleting the RAID 1 array This section uses RAID 1 as an example to guide you to create or delete SAS RAID using the LSI Configuration Utility program. Creating the RAID 1 array This section provides instructions on how to create RAID 1 using the LSI Configuration Utility program.

  • Page 102: Configuring The Gigabit Ethernet Controller

    The firmware in the server is periodically updated and is available for download on the Lenovo Support Web site. Go to http://www.lenovo.com/support to check for the latest level of firmware, such as the BIOS ROM file, BMC FW and RAID FW files.

  • Page 103: Installing The Thinkserver Easymanage Program

    native user interface kept visible to the user. When the User Interface Application regains control, you will see the results screen. Before distributing the firmware update to other servers, ensure that your server can restart successfully without encountering hardware problems. Installing the ThinkServer EasyManage program To install the ThinkServer EasyManage Agent, you must already have a core server running the ThinkServer EasyManage Core Server program.
  • Page 104 Installation and User Guide...

  • Page 105: Chapter 7. Troubleshooting

    DVD drive b. DVD drive and cables c. (Trained service technician only) System board A DVD is not working correctly. 1. Clean the DVD. 2. Reseat the DVD drive. 3. Replace the DVD drive. © Copyright Lenovo 2010...

  • Page 106: General Problems

    v Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. v See the parts listing in the Hardware Maintenance Manual to determine which components are customer replaceable units (CRUs) and which components are field replaceable units (FRUs). v If an action step is preceded by “(Trained service technician only),”...

  • Page 107: Intermittent Problems

    The server and the monitor are turned on. 2. The keyboard is compatible with the server. Refer to the Web site at http://www.lenovo.com/thinkserver. 3. If you are using a USB keyboard and it is connected to a USB hub, disconnect the keyboard from the hub and connect it directly to the server.
  • Page 108 The mouse or pointing device is compatible with the server. Refer to the Web site at http://www.lenovo.com/thinkserver. v The mouse or pointing-device cable is securely connected to the server. v The mouse or pointing-device device drivers are installed correctly.

  • Page 109: Keyboard, Mouse, Or Pointing-Device Problems 93 Memory Problems

    Memory problems v Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. v See the parts listing in the Hardware Maintenance Manual to determine which components are customer replaceable units (CRUs) and which components are field replaceable units (FRUs).

  • Page 110: Microprocessor Problems

    Microprocessor problems v Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. v See the parts listing in the Hardware Maintenance Manual to determine which components are customer replaceable units (CRUs) and which components are field replaceable units (FRUs).

  • Page 111: Monitor Problems

    Monitor problems Some monitors have their own self-tests. If you suspect a problem with your monitor, see the documentation that comes with the monitor for instructions for testing and adjusting the monitor. v Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved.

  • Page 112: Optional-Device Problems

    The device is designed for the server. For a list of the supported options for work. your server, go to http://www.lenovo.com/thinkserver. On the ThinkServer systems page, click Products → Options. v You followed the installation instructions that came with the device and the device is installed correctly.

  • Page 113: Power Problems

    Power problems v Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. v See the parts listing in the Hardware Maintenance Manual to determine which components are customer replaceable units (CRUs) and which components are field replaceable units (FRUs).

  • Page 114: Serial Port Problems

    Serial port problems v Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. v See the parts listing in the Hardware Maintenance Manual to determine which components are customer replaceable units (CRUs) and which components are field replaceable units (FRUs).

  • Page 115: Universal Serial Bus (Usb) Port Problems

    Universal Serial Bus (USB) port problems v Follow the suggested actions in the order in which they are listed in the Action column until the problem is solved. v See the parts listing in the Hardware Maintenance Manual to determine which components are customer replaceable units (CRUs) and which components are field replaceable units (FRUs).

  • Page 116: Solving Undetermined Problems

    3. Remove or disconnect the following devices, one at a time, until you find the failure. Turn on the server and reconfigure it each time. v Any external devices v Surge-suppressor device (on the server) v Modem, printer, mouse, and non-Lenovo devices v Each adapter v Hard disk drives Installation and User Guide...

  • Page 117: Event Logs

    v Memory modules: the minimum configuration requirement is 1 GB DIMM per microprocessor (2 GB in a two-microprocessor configuration) The following minimum configuration is required for the server to start: v One microprocessor v One 1 GB DIMM v One power supply v Power cord v ServeRAID SAS adapter v System board assembly...

  • Page 118: System Event Log

    Table 30. Methods for viewing event logs Condition Action The server is not hung and is connected to a Use IPMItool to view the system-event log. network. The server is not hung and is not connected Use IPMItool locally to view the to a network.

  • Page 119: Appendix A. Raid Battery Card Assembly

    72 hours for 256 Mbytes, using five Battery (iBBU05) 32Mx16 parts DDR2 (double-data-rate two) (low power) v 72 hours for 256 Mbytes, using three 64Mx16 parts DDR2 (low power) Note: The data retention time varies according to the following: © Copyright Lenovo 2010...
  • Page 120 v Capacity of the battery pack and the battery load v Ambient temperature v Age of the battery v Numbers of discharge cycles the battery has been through v DRAM (dynamic random access memory) size Installation and User Guide...

  • Page 121: Appendix B. Getting Help And Technical Assistance

    Appendix B. Getting help and technical assistance If you need help, service, or technical assistance or just want more information about Lenovo products, you will find a wide variety of sources available from Lenovo to assist you. This section contains information about where to go for...

  • Page 122: Calling For Service

    Hardware and software configuration information Using other services If you travel with a Lenovo notebook computer or relocate your computer to a country where your desktop, notebook, or server machine type is sold, your computer might be eligible for International Warranty Service, which automatically entitles you to obtain warranty service throughout the warranty period.

  • Page 123: Purchasing Additional Services

    Service availability and service name might vary by country or region. For more information about these services, go to the Lenovo Web site at http://www.lenovo.com/. Lenovo product service...
  • Page 124 Installation and User Guide...

  • Page 125: Appendix C. Notices

    Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

  • Page 126: Trademarks

    Trademarks Lenovo, the Lenovo logo, and ThinkServer are trademarks of Lenovo in the United States, other countries, or both. Intel and Intel Xeon are trademarks of Intel Corporation in the United States, other countries, or both.

  • Page 127: Product Recycling And Disposal

    Lenovo recomienda a los propietarios de equipos de tecnología de la información (TI) que reciclen responsablemente sus equipos cuando éstos ya no les sean útiles. Lenovo dispone de una serie de programas y servicios de devolución de productos, a fin de ayudar a los propietarios de equipos a reciclar sus productos de TI.

  • Page 128: Particulate Contamination

    If Lenovo determines that the levels of particulates or gases in your environment have caused damage to the server, Lenovo may condition provision of repair or replacement of servers or parts on implementation of appropriate remedial measures to mitigate such environmental contamination.

  • Page 129: Compliance With Republic Of Turkey Directive On The Restriction Of Hazardous Substances

    The battery must be recycled or disposed of properly. Recycling facilities may not be available in your area. For information on disposal or batteries outside the United States, go to http://www.lenovo.com/lenovo/environment or contact your local waste disposal facility. US & Canada Only For Taiwan: Please recycle batteries.

  • Page 130: German Ordinance For Work Gloss Statement

    For proper collection and treatment, go to http://www.lenovo.com/lenovo/environment. For California: Perchlorate material - special handling may apply. See http://www.dtsc.ca.gov/ hazardouswaste/perchlorate/.

  • Page 131: Electronic Emission Notices

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Lenovo is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment.

  • Page 132: Germany Class A Compliance Statement

    Grenzwerte der EN 55022 Klasse A ein. Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der Lenovo empfohlene Kabel angeschlossen werden. Lenovo übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung der Lenovo verändert bzw.

  • Page 133: Japan Voluntary Control Council For Interference (Vcci) Statement

    Anmerkung: Um die Einhaltung des EMVG sicherzustellen sind die Geräte, wie in den Handbüchern angegeben, zu installieren und zu betreiben. Japan Voluntary Control Council for Interference (VCCI) statement Lenovo product service information for Taiwan Taiwan Class A warning statement People’s Republic of China Class A warning statement Appendix C. Notices...

  • Page 134: Korea Class A Warning Statement

    Korea Class A warning statement Installation and User Guide...

  • Page 135: Index

    107 display problems 97 rear of the server 11 gigabit Ethernet controller, drive bays, internal 26 LEDs and controls configuring 88 drives on the front of the server 11 gloss statement (Germany) 116 hot-swap, removing 35 © Copyright Lenovo 2010...
  • Page 136 locating connectors power supply server (continued) backplane 17 installing 54 turn on 67 logs removing 53 server components 14 system-event message 104 problems server configuration, updating 71 CD-ROM, DVD-ROM drive 91 server cover DIMM 95 installing 67 Ethernet controller 101 removing 21 general 92 server cover, reinstalling 67...
  • Page 137 VGA monitor connector 12 video problems 97 video controller, integrated specifications 8 viewing event logs 103 Web site compatible options 23 Lenovo support 19 publication ordering 107 support 107 weight 8 working inside the server with the power on 21 Index...
  • Page 138 Installation and User Guide...
  • Page 140 Printed in USA...

This manual is also suitable for:

Thinkserver 1045Thinkserver 1046Thinkserver 1047Thinkserver 1048

Table of Contents
