F485

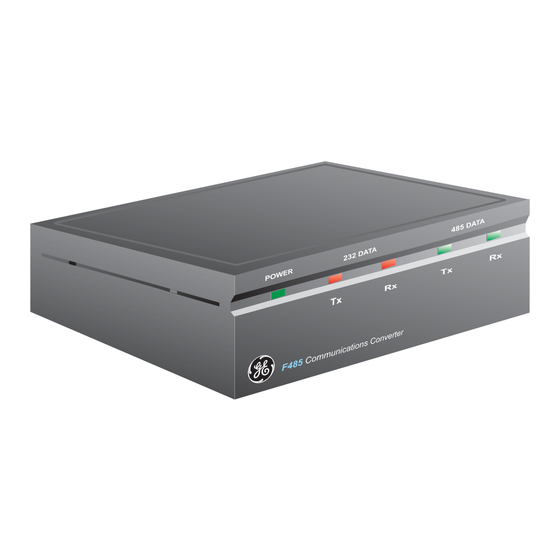

COMMUNICATIONS CONVERTER
Instruction Manual
Manual P/N: 1601-0073-A3
Copyright © 2003 GE Multilin
805701A1.CDR
E83849
LISTED
g
IND.CONT. EQ.
52TL
GE Multilin
215 Anderson Avenue, Markham, Ontario L6E 1B3
Tel: (905) 294-6222
Fax: (905) 201-2098
Toll Free: 1-800-547-8629 (North America)
Web Site: www.GEindustrial.com/multilin
