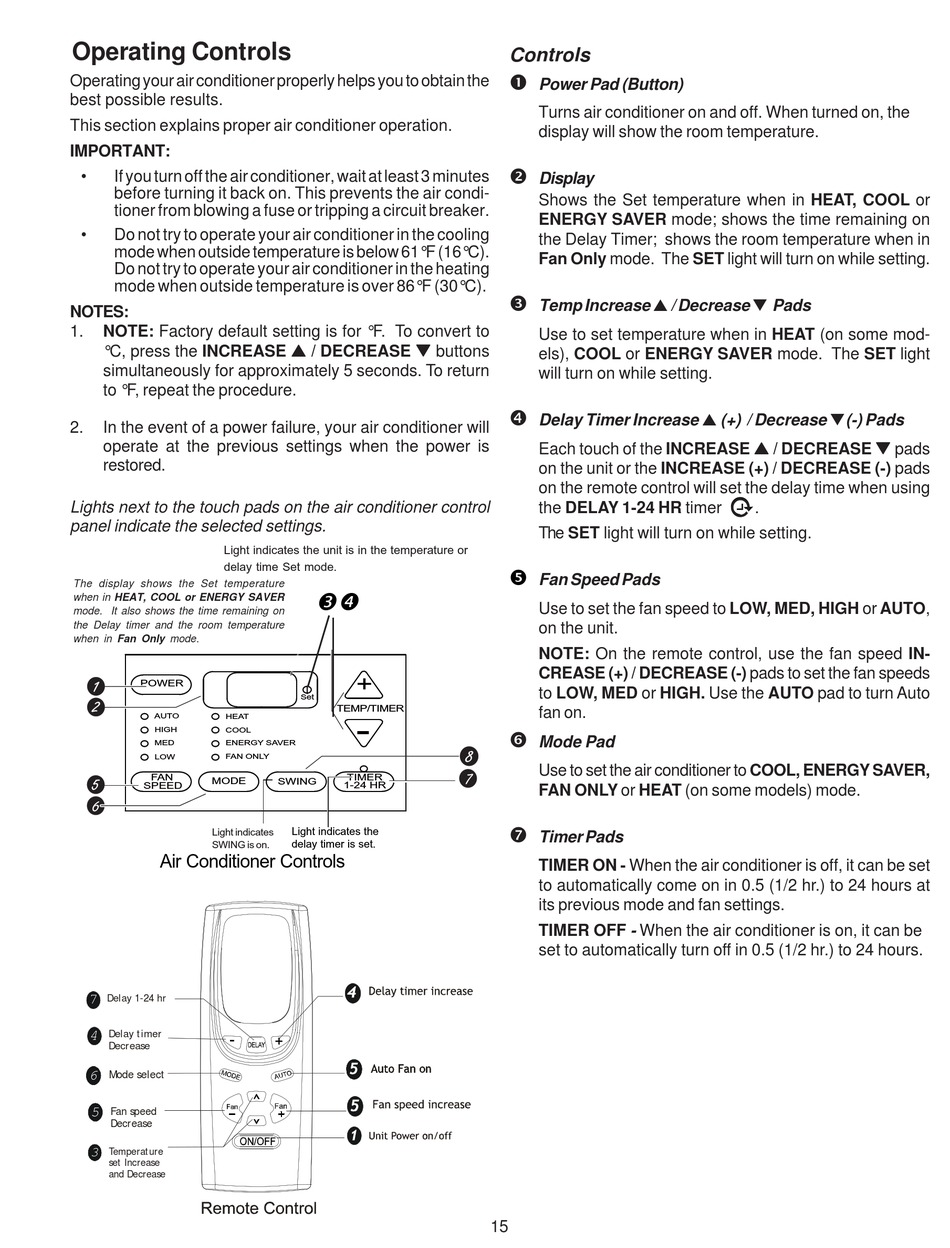

Operating Controls

Operating your air conditioner properly helps you to obtain the
best possible results.
This section explains proper air conditioner operation.
IMPORTANT:
• If you turn off the air conditioner, wait at least 3 minutes
before turning it back on. This prevents the air condi-
tioner from blowing a fuse or tripping a circuit breaker.
• Do not try to operate your air conditioner in the cooling
mode when outside temperature is below 61°F (16°C).
Do not try to operate your air conditioner in the heating
mode when outside temperature is over 86°F (30°C).
NOTES:
1. NOTE: Factory default setting is for °F. To convert to
°C, press the INCREASE
simultaneously for approximately 5 seconds. To return
to °F, repeat the procedure.
2. In the event of a power failure, your air conditioner will
operate at the previous settings when the power is
restored.
Lights next to the touch pads on the air conditioner control
panel indicate the selected settings.
Light indicates the unit is in the temperature or
control panel indicate the selected settings.
delay time Set mode.
The display shows the Set temperature
when in HEAT, COOL or ENERGY SAVER
The display always shows the room
mode. It also shows the time remaining on The display always shows the room
temperature except when setting the
the Delay timer and the room temperature temperature except when setting the
Set temperature or the Delay timer.
when in Fan Only mode. Set temperature or the Delay timer.
POWER
AUTO HEAT
HIGH
COOL
MED ENERGY SAVER
LOW FAN ONLY
FAN
MODE
SPEED
Light indicates
Light indicates
SWING is on.
SWING is on.
Air Conditioner Controls
7
Delay 1-24 hr
4
Delay timer
Decrease
6 5
Mode select
5 5
Fan speed
Decrease
5 3
Temperature
set Increase
and Decrease
/ DECREASE buttons
Light indicates the unit
is in the temperature or
delay time Set mode.
+
Set
TEMP/TIMER
-
TIMER
SWING
1-24 HR
Light indicates the
delay timer is set.
Controls
Power Pad (Button)
Turns air conditioner on and off. When turned on, the
display will show the room temperature.
Display
Shows the Set temperature when in HEAT, COOL or
ENERGY SAVER mode; shows the time remaining on
the Delay Timer; shows the room temperature when in
Fan Only mode. The SET light will turn on while setting.
Temp Increase
Use to set temperature when in HEAT (on some mod-
els), COOL or ENERGY SAVER mode. The SET light
will turn on while setting.
Delay Timer Increase
Each touch of the INCREASE
on the unit or the INCREASE (+) / DECREASE (-) pads
on the remote control will set the delay time when using
the DELAY 1-24 HR timer
The SET light will turn on while setting.
Fan Speed Pads
Use to set the fan speed to LOW, MED, HIGH or AUTO,
on the unit.
NOTE: On the remote control, use the fan speed IN-
CREASE (+) / DECREASE (-) pads to set the fan speeds
to LOW, MED or HIGH. Use the AUTO pad to turn Auto
fan on.
Mode Pad
Use to set the air conditioner to COOL, ENERGY SAVER,
FAN ONLY or HEAT (on some models) mode.
Timer Pads
TIMER ON - When the air conditioner is off, it can be set
to automatically come on in 0.5 (1/2 hr.) to 24 hours at
its previous mode and fan settings.
TIMER OFF - When the air conditioner is on, it can be
set to automatically turn off in 0.5 (1/2 hr.) to 24 hours.
15
/ Decrease Pads
(+) / Decrease (-) Pads
/ DECREASE
.
pads
