GE Profile Performance CustomStyle TPX24SPBBS Specification Sheet

TPX24SPBBS - GE Profile Performance
Case Dimensions (in inches/cm.)
28-7/16 C
26-3/8
D
23-7/8 E
A
69-3/4
69-3/4 F
Side View
Revised 2/99
™ 23.5 Cu. Ft. CustomStyle
(2.54 cm.)
B
68-3/4

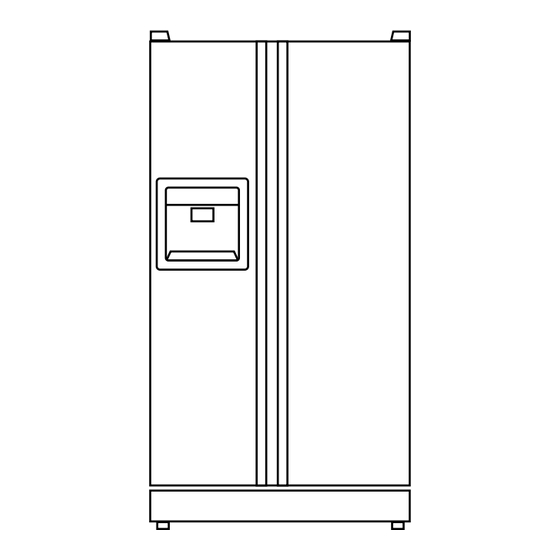

Front View
™
1''
35-3/4
G
40-3/8
H
Top View
For answers to your Monogram,
GE Profile Performance Series, ™
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
Total volume and shelf
VOLUME and
area are calculated by the
SHELF AREA
Association of Home
Manufacturer Certified to Appliance Manufacturers'
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
standards.
Side-By-Side Refrigerator
Installation of Water and Electrical Outlets
Recommended single loop
of 1/4" copper water line
Allow 48" minimum water
line to enable refrigerator
to be pulled forward.
Recommended water line
location using recess
in rear wall
45-5/8
I
®
Listed by
Underwriters R
Laboratories
R
Water hook-up
on the refrigerator
24"
18"
Rear Wall View
