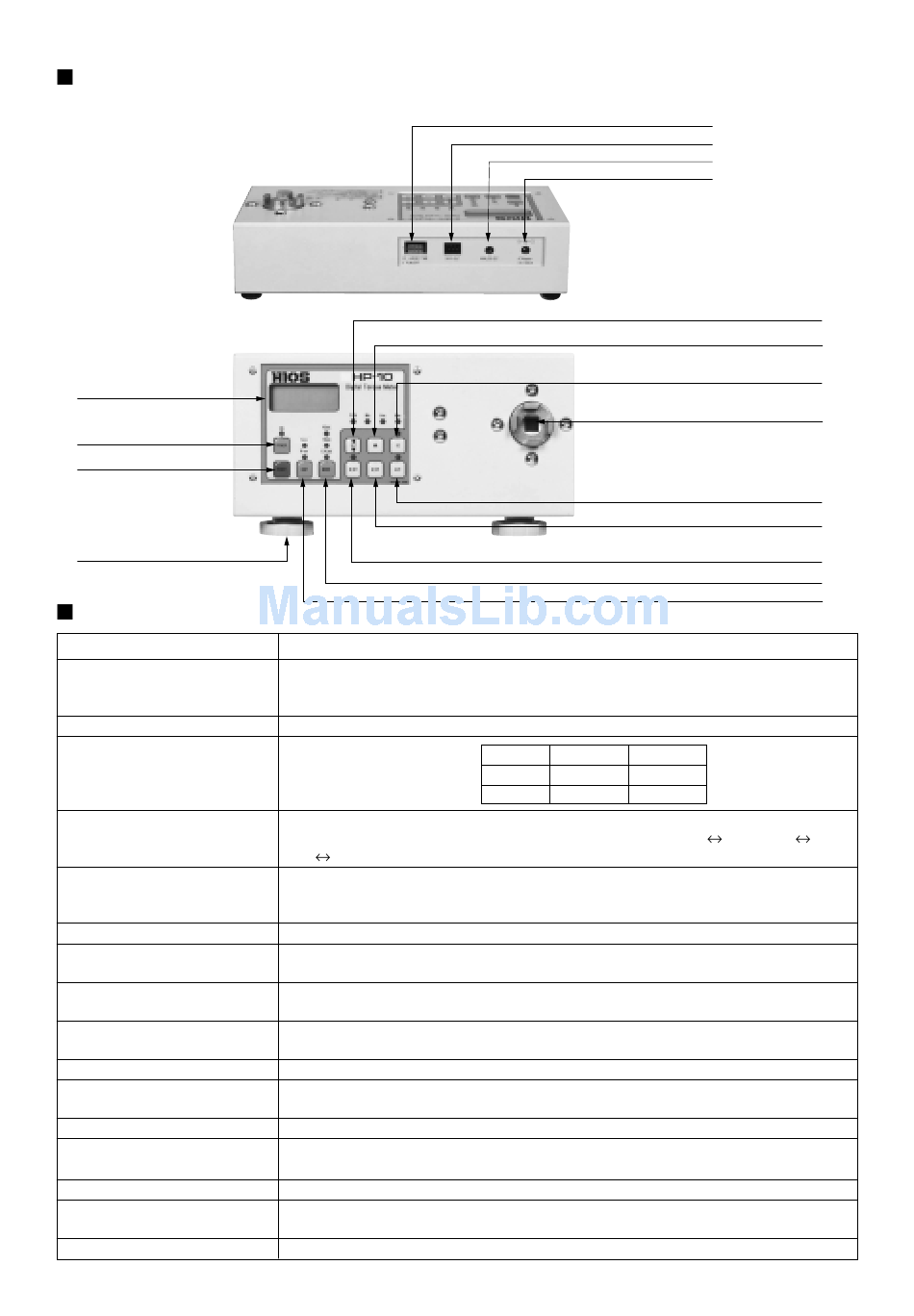

Hios Digital Torque Meter controls

Display
Power switch POWER
Reset switch RESET
Fixture clamp
Functions
Control
Power switch POWER
Reset switch RESET
Display
Unit selector UNIT
Measuring mode selector
MODE
AC connector
Analog data output
ANALOG OUT
Digital data output
DATA OUT
DIP switch
Torque set switch A SET
Memory function toggle switch
M_SET
Torque set switch B
Max load warning tone
on/off switch BZ
Memory clear switch M_CR
Average measurement
mode switch AVE
Adapter socket
* Statistical Process Control (SPC) uses statistical techniques to monitor variations in manufacturing processes for use in quality control.
DIP switch
Digital data output DATA OUT
Button switch. The LED lights when the power is on.
The power is automatically turned off when the instrument is not operated (or torque
load is less than 10) for a period of 10 minutes.
Used to return the display to zero or print out data.
Measuring unit display
Switches between one of the following combinations of torque measurement units,
depending on which combination the purchaser ordered: N•m
N•m kgf•cm
PEAK: Freezes display at peak torque value. (Press reset to cancel)
TRACK: Displays current torque value.
F.PEAK: Freezes display at first peak torque value.
For battery charger.
Port for analog voltage data output.
Press reset to output measurement data. This functions makes it possible to use the
instrument in statistical process control systems.*
For setting auto reset timer and turning data output on ("P.ON" LED indicates "on"
setting).
Sets maximum torque load at which warning tone will sound
The LED lights when the memory function is on.
Sets the torque level at which the warning tone sounds.
The LED lights when this function is on.
Deletes data in memory.
When average measurement mode is on, the LED lights and the torque measure-
ment average values are displayed.
For connecting of torque tool, using a Hios Fidaptor or other type of adapter.
- 3 -
Analog data output ANALOG OUT
AC connector
Torque set switch A SET
Torque set switch B
Max load warning tone on/off
switch BZ
Adapter socket
Average measurement mode switch
AVE
Memory clear switch M_CR
Memory function toggle switch
M_SET
Measurement mode selector MODE
Unit selector UNIT
Function
Model N•m N•cm
HP-10 0.000 0.0
HP-100 0.00 0
lbf•in, N•m N•cm,
