GE Profile PDWT480P Dimensions And Installation Information

PDWT400/480P
GE Profile Dishwasher
™

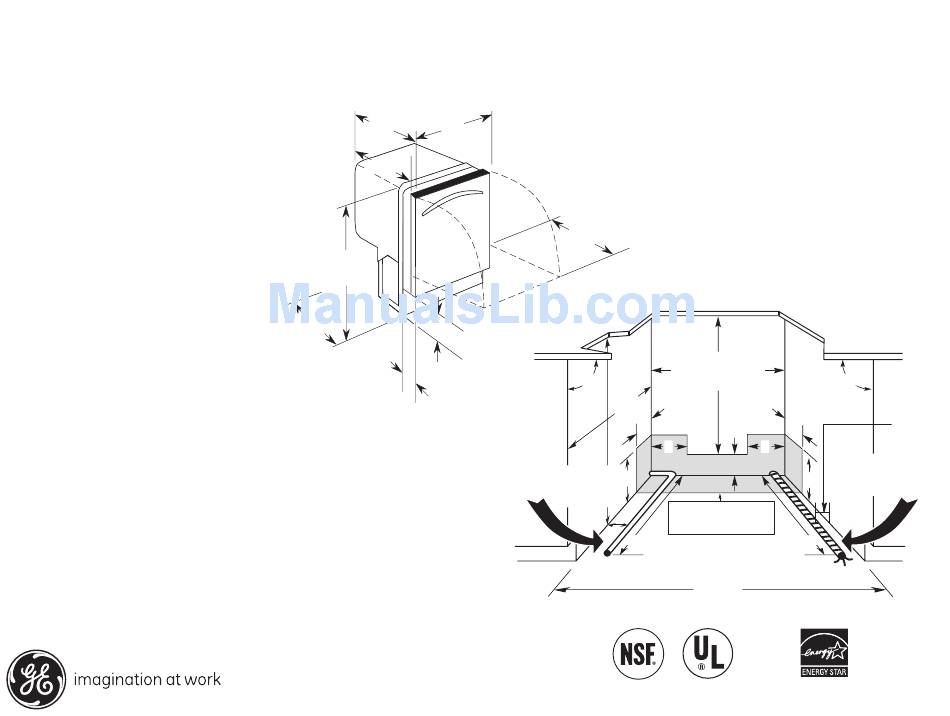

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod heater watts max........................ 875
®
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2" for the handle on
PDWT500/PDWT400/PDWT200 Series
models.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
with SmartDispense
33-13/16" MIN.
adj. to 35"
21-1/4
Add 1/2" for deepest part of contour door.
††
Allow and additional 2" for the handle on
PDW9900/9200 Series models.
or
™
service,
Technology
™
24-3/4
††
24
22-1/2
4" (Adjustable)
3-1/2
Hot
water
line on
left
27-1/2
This wall area
must be free of
90°
pipes or wires
24"
4
MIN.
4
5
34" to 34-3/4"
6
Underside
of countertop
to floor
Plumbing and electrical
2
service must enter
inside shaded area
19" MIN. from wall
24" MIN.
Listed by
Underwriters
Laboratories
Specification Created 8/08
Countertop
90°
Electrical
4
wiring is
3" from
cabinet
5
Electrical
wiring on
6
right
24" From wall
As an EnErgy StAr ®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
250223
