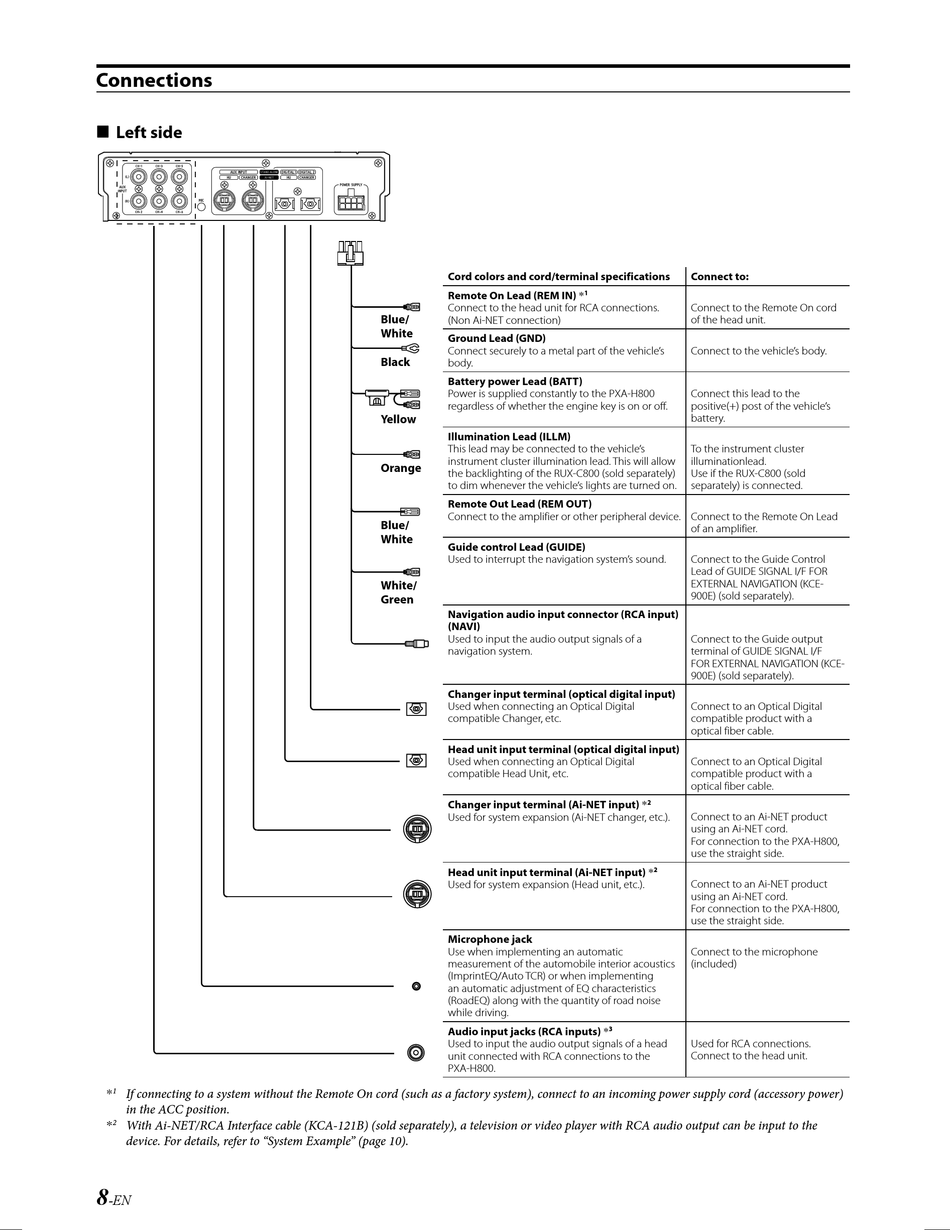

Connections

e
Left side
1 If connecting to a system without the Remote On cord (such as a factory system), connect to an incoming power supply cord (accessory power)
*
in the ACC position.
* 2 With Ai-NET/RCA Interface cable (KCA-121B) (sold separately), a television or video player with RCA audio output can be input to the
device. For details, refer to "System Example" (page 10).
8
-EN
Cord colors and cord/terminal specifications
Remote On Lead (REM IN) *
Connect to the head unit for RCA connections.
Blue/
(Non Ai-NET connection)
White
Ground Lead (GND)
Connect securely to a metal part of the vehicle's
Black
body.
Battery power Lead (BATT)
Power is supplied constantly to the PXA-H800
regardless of whether the engine key is on or off.
Yellow
Illumination Lead (ILLM)
This lead may be connected to the vehicle's
instrument cluster illumination lead. This will allow
Orange
the backlighting of the RUX-C800 (sold separately)
to dim whenever the vehicle's lights are turned on.
Remote Out Lead (REM OUT)
Connect to the amplifier or other peripheral device. Connect to the Remote On Lead
Blue/
White
Guide control Lead (GUIDE)
Used to interrupt the navigation system's sound.
White/
Green
Navigation audio input connector (RCA input)
(NAVI)
Used to input the audio output signals of a
navigation system.
Changer input terminal (optical digital input)
Used when connecting an Optical Digital
compatible Changer, etc.
Head unit input terminal (optical digital input)
Used when connecting an Optical Digital
compatible Head Unit, etc.
Changer input terminal (Ai-NET input) *
Used for system expansion (Ai-NET changer, etc.).
Head unit input terminal (Ai-NET input) *
Used for system expansion (Head unit, etc.).
Microphone jack
Use when implementing an automatic
measurement of the automobile interior acoustics
(ImprintEQ/Auto TCR) or when implementing
an automatic adjustment of EQ characteristics
(RoadEQ) along with the quantity of road noise
while driving.
Audio input jacks (RCA inputs) *
Used to input the audio output signals of a head
unit connected with RCA connections to the
PXA-H800.
Connect to:
1
Connect to the Remote On cord
of the head unit.
Connect to the vehicle's body.
Connect this lead to the
positive(+) post of the vehicle's
battery.
To the instrument cluster
illuminationlead.
Use if the RUX-C800 (sold
separately) is connected.
of an amplifier.
Connect to the Guide Control
Lead of GUIDE SIGNAL I/F FOR
EXTERNAL NAVIGATION (KCE-
900E) (sold separately).
Connect to the Guide output
terminal of GUIDE SIGNAL I/F
FOR EXTERNAL NAVIGATION (KCE-
900E) (sold separately).
Connect to an Optical Digital
compatible product with a
optical fiber cable.
Connect to an Optical Digital
compatible product with a
optical fiber cable.
2
Connect to an Ai-NET product
using an Ai-NET cord.
For connection to the PXA-H800,
use the straight side.
2
Connect to an Ai-NET product
using an Ai-NET cord.
For connection to the PXA-H800,
use the straight side.
Connect to the microphone
(included)
3
Used for RCA connections.
Connect to the head unit.
