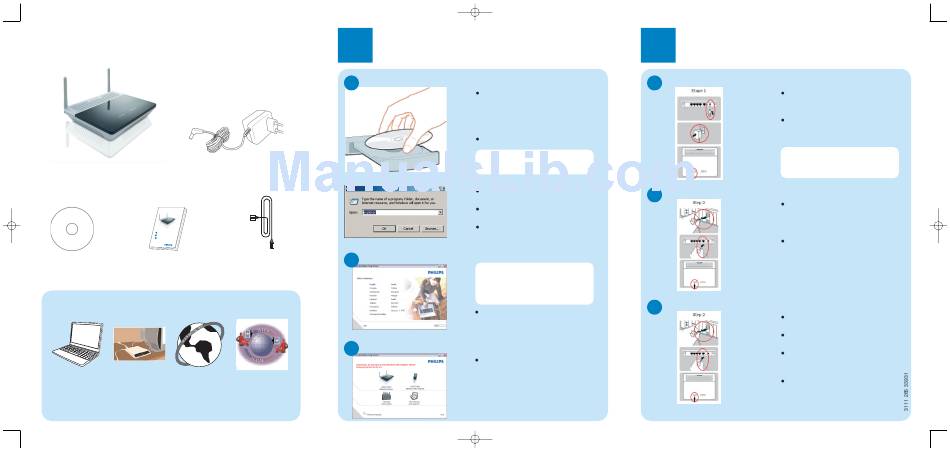

What's in the box
Wireless router
CAW7740N
Quick start guide
1
Connect
2
Install
Enjoy
Installation CDROM
Quick start guide
What else will you need
A desktop or a
A modem
A web browser
laptop with free
USB port
Install
1
Insert installation CD
A
Power adapter
Choose your language
B
Ethernet cable
Choose your product
C
An Internet
connection
2
A
Insert the installation CD into the
PC's CD ROM (or DVDROM)
drive
> The installation program will start
automatically
Follow instructions on the screen
If for some reason the installation
does not start automatically:
Click on Windows START and
B
then RUN
Type explorer and navigate to the
CD ROM (or DVDROM) drive
Double-click on Setup.exe
By default, the language of your
operating system will be choosen,
but you have 10 seconds if you
want to select another one.
C
Click on the required language
> The next screen will be displayed
automatically
Click on the picture of the
CAW7740N Wireless Router
> The next screen will be displayed
automatically
Connect
Follow instructions on the screen
Connect power adapter
Connect the supplied power
adapter to the 12V=== 1A port on
the router
Connect the power plug to
the electricity supply socket
> Power light will turn on
Move your mouse over the red
circles on your screen to enlarge
pictures
Connect the modem to the router
If your computer is already
connected via Ethernet, then
disconnect this cable from your
computer
Connect this Ethernet cable to
the WAN port of the CAW7740N
> WAN light will turn on
Connect the router to the PC
Take the Ethernet cable supplied
in the box
Connect this Ethernet cable to
LAN 1 port on the CAW7740N
Connect the other side of the
Ethernet cable to your computer
> LAN 1 light will turn on
Then click on Continue
> A progress bar screen will be
displayed
