GE GDT740SIFII Dimensions And Installation Information

GDT740SIFII
GE Stainless Steel Interior Dishwasher with Hidden Controls
®

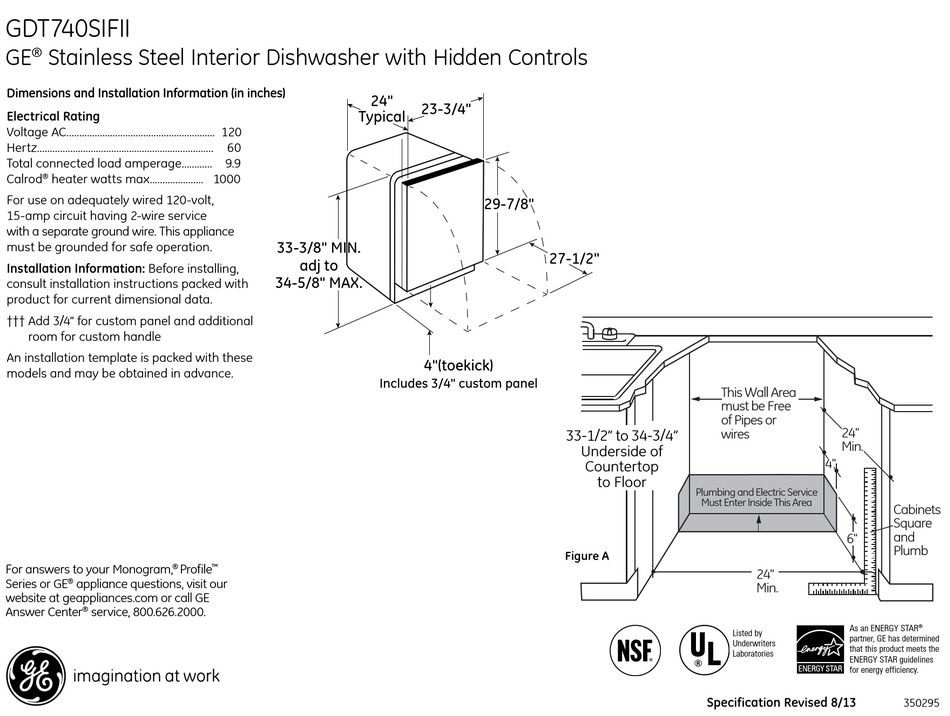

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............ 9.9
Calrod heater watts max..................... 1000
®
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
††† Add 3/4" for custom panel and additional
room for custom handle
An installation template is packed with these
models and may be obtained in advance.
For answers to your Monogram, Profile
®
Series or GE ® appliance questions, visit our
website at geappliances.com or call GE
Answer Center service, 800.626.2000.
®
24"
Typical
60
33-3/8" MIN.
adj to
34-5/8" MAX.
Includes 3/4" custom panel
™
23-3/4"
29-7/8"
27-1/2"
P
4"(toekick)
33-1/2" to 34-3/4"
Underside of
Countertop
to Floor
Figure A
• The rough cabinet opening must be at least 24" deep, 24"
wide and approximately 34-1/2" high from floor to underside
of the countertop.
R E P A R E D S I H W A S H
This Wall Area
must be Free
of Pipes or
+ wires
34-1/2" 1/4"
Underside of
Countertop
to Floor
Plumbing and Electric Service
Must Enter Inside This Area
24"
Min.
Listed by
Underwriters
Laboratories
Specification Revised 8/13
E R E N C L O S U R E
24"
Min.
4"
Cabinets
Square
and
6"
Plumb
