Summary of Contents for Johnson Amplification Marquis JM60

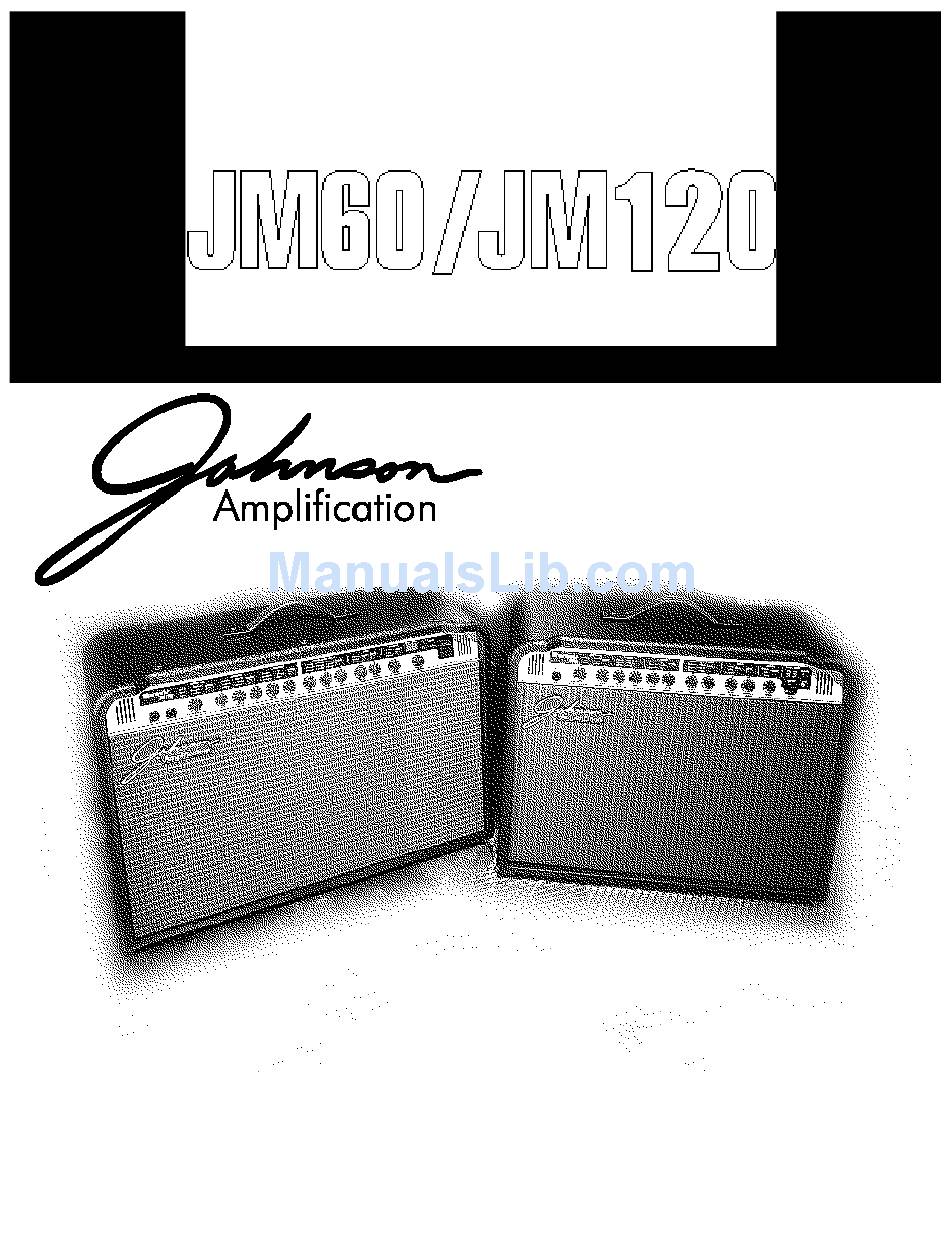

- Page 1 User’s Guide please visit Johnson Amplification on the World Wide Web at http//www.johnson-amp.com...
- Page 2 WARNING FOR YOUR PR OTECTION, PLEASE READ THE FOLLO WING: WA TER AND MOISTURE: Appliance should not be used near water (e.g.near a bathtub, washbowl,kitchen sink,laundry tub, in a wet basement,or near a swimming pool,etc). Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
-
Page 3: Declaration Of Conformity
8760 S. Sandy Parkway Sandy, Utah 84070, USA Tel: 801-566-8800 Fax: 801-566-7005 Effective November 16, 1998 European Contact: Your local Johnson Amplification Sales and Service Office or International Sales Office 8760 S. Sandy Parkway Sandy, Utah 84070, USA Tel: 801-568-7642... - Page 4 AUTHORIZATION, where all parts and labor will be covered up to a period of one year. A Return Authorization number may be obtained from Johnson Amplification by telephone. The company shall not be liable for any consequential damage as a result of the products use in any circuit or assembly .
-
Page 5: Table Of Contents
Table of Contents Safety information.............I Declaration of Conformity.........II Warranty..............III Table of Contents............IV Section 3 - Guided Example Section 1 - Introduction Creating a Preset ............17 Congratulations............1 Included Items............1 Section 4 - Other Functions Product Features............1 Quick Start..............2 Manual Mode............19 Hidden Button Accessible Parameters.......2 Foot Controller Options..........20 A Guided Tour of the JM60/JM120......3 J3 ................20... -
Page 6: Section-1 Introduction Congratulations
Johnson Marquis JM60/JM120! Thank you for choosing Johnson Amplification. The Johnson Marquis JM60 and JM120 are two of the most flexible amplifiers in the world. With 18 high quality amp models, a host of modulation, pitch shifting, delay, and reverb effects all at your command, the JM60/JM120 are truly in a class by themselves. This user’s guide is your key to understanding how to get the most out of the JM60/JM120. -
Page 7: Quick Start
Quick Start The JM60/JM120 come with 27 pre-programmed factory presets, and 27 user presets. From the factory, the user presets are exact duplicates of the factory presets. This allows you to experiment without running the risk of losing any of the original sounds contained in the JM60/JM120. -
Page 8: A Guided Tour Of The Jm60/Jm120
Class A Clean, Class A Dirty, High Wattage, Master Volume, Modern Gain, and Hot Rod. 3c. Johnson - This button will select one of the 6 Johnson Amplifier models. The Johnson Amp models include: Clean Tube (a clean combo setting), Crunch Tube (a smoothly overdriven combo), Saturated Tube (an extra gain and sustain combo), Fuzz (a high gain fuzz distortion), Overdrive (a smooth crunch distortion), and Metal (a high gain solid state distortion). - Page 9 bypass the effect. If no LED is lit, the effect is bypassed. To access the Mod/Pitch Level on the JM60, press and hold the Select button. While still holding the button, begin turning the Select knob. Release the Select button and now you can adjust the currently selected Mod/Pitch effect level to your liking.
-
Page 10: The Rear Panel
* * Note: The effect loop of the Marquis JM60/JM120 is designed for use with rack mount effects only. The output level may not be suitable for pedal type effects and may overdrive their input stage. -
Page 11: About The Jm60/Jm120
About the Marquis JM60/JM120 The Johnson Marquis JM60 and JM120 are truly two of the most flexible amplifiers in the world. They put 18 different amp models at your finger tips eliminating the need for several different amps in order to get different tones. In addition to all of this tonal versatility, the JM60/JM120 include an effects section offering up to three effects at once. -
Page 12: Section 2 - Using The Jm60/Jm120
Section 2 - Using the Marquis JM60/JM120 Getting Started Making Connections The JM60 and JM120 include the necessary options to adapt to a variety of different set up applications. The following diagrams outline a few of these set up options. -
Page 13: Direct Output
Footswitch Connections The Marquis JM60/JM120 provide two foot control options, the J3 and/or the J8. On the rear panel you will find a single TRS jack for connecting the optional J3 footswitch. You will also find a single 5 pin DIN jack for use with the optional J8 foot controller. To use either, simply use the cable provided with each and connect from the single output of the footswitch to the corresponding controller jack on the JM60/JM120. -
Page 14: Powering
Selecting a Preset When you first turn your Marquis JM60/JM120 on, you will be in performance mode, and will default to the last preset that had been used. This preset number will be indicated in the numeric display. The JM60/JM120 comes with 27 pre-programmed factory presets, and 27 user presets. -
Page 15: Editing An Amp Model
Hot Rod based on a modified Marshall Master Volume. Johnson - The Johnson Amp models include Clean Tube (a clean combo setting), Crunch Tube (a smoothly overdriven combo), Saturated Tube (an extra gain and sustain combo), Fuzz (a high gain fuzz distortion), Overdrive (a smooth crunch distortion), and Metal (a high gain solid state distortion). -
Page 16: Editing Effects
Editing Effects The Marquis JM60/JM120 offer several effects to help complete your sound. There are three different groups of effects in the Marquis. You can use one modulation/pitch shifting effect, one delay effect, and one reverb effect at the same time. You have the choice of 6 different modulation or pitch shifting effects on the JM60 and 9 on the JM120, 3 different delays, and 3 different reverbs. - Page 17 Speed - The speed knob adjusts the interval of the pitch shifter. It will determine how far above or below the input note the shifted pitch will be. Depth - The depth knob adjusts the amount of detune. Section 2 - Using the Marquis JM60/JM120...
-
Page 18: Jm120 Mod/Pitch Effects
As the "Level" control is turned up, the phase difference of the vibrato signal sent to the two speakers is changed so that a full stereo image is obtained at "10". Section 2 - Using the Marquis JM60/JM120... -
Page 19: Delay Effects Group
Delay Effects Group The Marquis JM60/JM120 include three different delay types to choose from. Each successive press of the Delay Select button will access the next type of delay. The delay choices include Analog, Delay (full band width digital), and Ping Pong. Two parameters associated with the delay can be edited with the delay knobs, and the delay time can be set by using the Tap It button. -
Page 20: Reverb Effects Group
Reverb Effects Group The Marquis JM60/JM120 have three different reverb types to choose from. Each successive press of the Reverb Select button will advance to the next type of reverb. The reverb effect may be bypassed by pressing and holding the Reverb Select button down. The only adjustable parameter for the reverb effect group is the level. -
Page 21: Storing Copying A Preset
3. When you have the desired preset location flashing in the display, press the Store button again. Your sound will then be recalled every time that you select that preset number. To abort the store function, press the Manual button once. The JM60/JM120 will return to the performance mode with your edits still intact. Section 2 - Using the Marquis JM60/JM120... -
Page 22: Section 3 - Guided Example Creating A Preset
Creating a Preset Creating a preset on the Marquis JM60/JM120 is very simple. All that you need to do is select an amp model, and then fine tune the basic amp sound with the amp controls. Then choose the effects to add to that sound, and fine tune those effects to your taste. The final step is to store the new sound to a user preset of your choice. - Page 23 2. Use the Depth knob to set the intensity of the phaser. Since we want a medium phaser setting, this should be set to 3 or 4. 3. Use the speed knob to adjust how fast the phaser will sweep back and forth. Try setting this to 3. 4.
-
Page 24: Section 4 - Other Functions Manual Mode
Manual Mode While in performance mode, the presets of the Marquis JM60/JM120 will relate to the values of the knobs at the time the presets were stored. The current position of the knobs will not reflect the value that you are hearing. The knobs must be turned at least one whole number before the JM60/JM120 will update to the position of the knob. -
Page 25: Foot Controller Options
Foot Controller Options The Marquis has two different optional foot controllers, the J3 and the J8. These foot controllers offer you the ability of changing presets on the fly, or bypassing effects within a preset. The JM60/JM120 include individual jacks on the rear panel for each of these foot controllers. The J3 is a three button footswitch. -
Page 26: External Speaker
External Speaker The Marquis JM60 is capable of stereo operation via its 60 watt external speaker output jack. The external speaker must be a minimum 8 Ohm load or higher. Running any load lower than 8 s, could cause permanent damage to the Marquis JM60. -
Page 27: Speaker On/Off
Note: The Marquis JM60/JM120 is designed for use of rack mount type effects only. Use of effect pedals in the FX loop is not recommended as they are not generally designed to handle the line level output produced at the FX send jack. -
Page 28: Resetting The Jm60/Jm120
Resetting the Marquis JM60/JM120 This is a hard reset procedure, which will restore the JM60/JM120 to its original factory sounds. WARNING: THIS PROCEDURE WILL RESET ALL USER PRESETS IN THE MARQUIS TO FACTORY DEFAULT PRESETS. BE SURE THAT YOU WANT TO ERASE THE MEMORY AND START FRESH BEFORE CONTINUING WITH THIS PROCEDURE. -
Page 29: Specifications
Specifications Inputs Input: 1/4” unbalanced Input Impedance: 470 k Ohm FX Return: 1/4” Stereo TRS Return Impedance: 15 k Ohm Maximum Return Level: +18 dBu Outputs External Speaker: (JM60 only) 1/4” unbalanced - 60 Watts output FX Send: 1/4” Stereo TRS FX Send Impedance: 680 Ohm Maximum Send Level: +18 dBu Headphone: 1/4”... - Page 30 Appendix...
- Page 31 Johnson Amplification and Marquis are trademarks of the Harman Music Group Incorporated Copyright 1999 the Harman Music Group Incorporated Printed in USA 03/99 Manufactured in the USA Marquis JM60/JM120 Manual 18-2269-B Please Visit Johnson Amplification on the World Wide Web at: http//www.johnson-amp.com...
