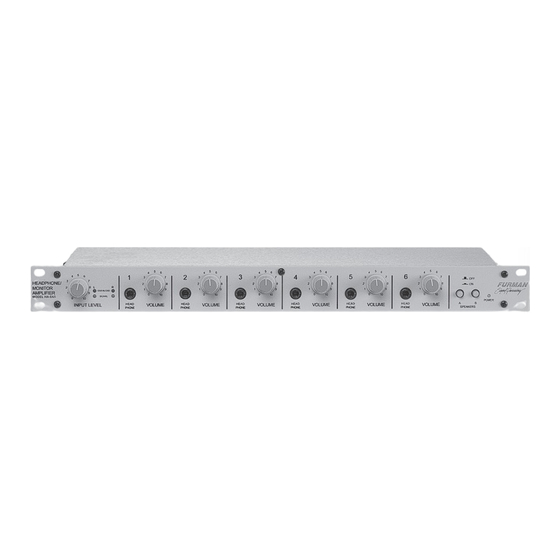

- Page 1 H A - 6 A B / H A - 6 A B E M a n u a l...
-
Page 2: Features
Important Note: To obtain best results from this Furman Sound electronic product, please be sure to read this manual carefully before using it. Please fi ll out and return the Warranty Registration Card immediately to obtain full protection under the terms of the Limited Warranty, in case your ownership documents are lost. -
Page 3: Recording
USES OF HA-6AB The HA-6AB may be used as a power ampli- fi er to drive up to two pairs of speakers, or as a headphone amplifi er for one to six pairs of head- phones, or both. - Page 4 In a small studio, if no more than six sets of head- phones are needed, it may be most convenient to locate the HA-6AB on the studio fl oor, and plug all headphone sets directly into its front panel. You...
-
Page 5: Rehearsal
H A - 6 A B / H A - 6 A B E M a n u a l One or two sets of studio speakers may be con- nected to the HA-6AB. If two sets are needed, the “B” pair must be connected to the XLR output using a custom made cable. -
Page 6: Description Of Controls
125 mil- livolts RMS (40 dB below full power) is present at the HA-6AB’s input jack. They will increase in brightness as the signal strength increases. This feature is very useful and can provide a clue to where the fault may lie if the expected program is not heard at the listening stations. -
Page 7: Rear Panel
If you do use a switchable outlet box, leave the HA-6AB’s on-off switch in the ON position at all times. GROUND LIFT SWITCH: In many installations,... -
Page 8: Circuit Description
If using a mono sig- nal plug into the left ¼” jack the HA-6AB will send signal to both left and right channels. The HA-6AB is also equipped with left and right balanced female XLR connectors in addition to the standard 1/4”... -
Page 9: Three-Year Limited Warranty
H A - 6 A B / H A - 6 A B E M a n u a l For best results, the input cables plugged into the HA-6AB should be shielded. Balanced connections should use shielded, twisted-pair cable. Headphone cables and speaker cables... - Page 10 H A - 6 A B / H A - 6 A B E M a n u a l obligation with respect to the Products or any part thereof, whether based on contract, tort, strict liability or otherwise. Under no circum- stances, whether based on this Limited Warranty or otherwise, shall Manufacturer be liable for incidental, special, or consequential damages.
-
Page 11: Specifications
Input Impedance: 20K ohms. Sensitivity: -4 dBV (635 mv) required for full output. Connectors: HA-6AB, both stereo phone (balanced) and XLR (balanced). GENERAL: Distortion: .01 % THD at full rated power at 1 KHz; .05% THD 20Hz to 20 KHz. - Page 12 H A - 6 A B / H A - 6 A B E M a n u a l Furman Sound, Inc. 1997 South McDowell Blvd. Petaluma, California 94954-6919 USA Phone: 707-763-1010 Fax: 707-763-1310 Web: www.furmansound.com E-mail: info@furmansound.com 081403-B...
