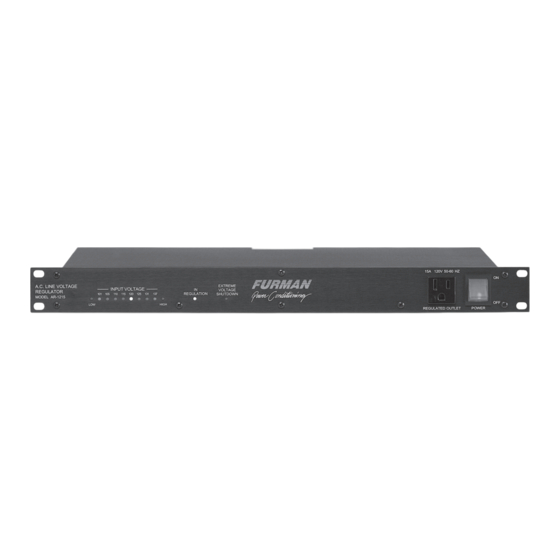

AR-121 5
AC LINE VOLTAGE REGULATOR
MODELS AR-1215, AR-1215J, AR-2306
VOLTAGE
REGULATORS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR-1215 and is the answer not in the manual?

Questions and answers

Related Manuals for Furman AR-1215

Summary of Contents for Furman AR-1215

  • Page 1 AR-121 5 AC LINE VOLTAGE REGULATOR MODELS AR-1215, AR-1215J, AR-2306 VOLTAGE REGULATORS...

  • Page 2: Safety Information

    ● only 12 lbs. (5.5 kg) SAFETY INFORMATION To obtain best results from your Furman AR-1215 or AR-2306, please be sure to read this manual carefully. WARNING: To reduce the risk of electrical shock, do not expose this equipment to rain or moisture. Dan- gerous high voltages are present inside the enclo- sure.
  • Page 3 2306. To prevent risk of fi re or injury, damaged cords and cables should be replaced immedi- ately. 5. Clean the AR-1215 or AR-2306 with a damp cloth only. Do not use solvents or abrasive cleaners. Never pour any liquid on or into the unit.
  • Page 4 OUTPUT VOLTAGE BREAKER AR-2306 rear view. NOTE: The three models in the AR-Series differ in their nominal AC output voltages. Model AR-1215 produces 120 VAC: AR-1215J produces either 100 or 120 VAC; and AR-2306 produces either 220, 230, or 240 VAC.

  • Page 5: Fuses And Circuit Breakers

    A R - 1 2 1 5 A C L I N E V O LTA G E R E G U L AT O R drawing 40 to 50 watts total. DEFINITIONS VOLTAGE REGULATION: The AC line voltage is a number indicating the nominal electrical potential that has been adopted in a region for powering electrical equipment of all kinds.

  • Page 6: Input Voltage Monitoring

    If you wish to monitor your AR-1215’s output volt- age more precisely, you may want to use a Furman PL-PLUS Power Conditioner and Light Module in conjunction with it [use model PL-PLUS-E with model AR-2306].
  • Page 7 ONE LIMITED WARRANTY Furman Sound, Inc., having its principal place of business at 1997 South McDowell Blvd., Petaluma, CA 94954 (“Manufacturer”) warrants its AR-1215 / AR-2306 (the “Product”) as follows:...

  • Page 8: Specifications

    Transverse and common modes: 20 dB at 200 kHz, rising to >40 dB, 1 to 100 MHz. Dimensions: 1.75” H x 19” W x 8.5” D. Weight: 12 lbs. (5.5 kg) Furman Sound, Inc. • 1997 South McDowell Blvd. • Petaluma, CA 94954-6919 USA Made in China...
