HP/Compaq TC4400 Tablet PC Advanced Docking Station

The HP/Compaq TC4400 tablet ships with an Advanced Docking Station that enhances the
capabilities of the Tablet PC by providing MultiBay II and Express Card expandability. It also
provides full port replication, allowing you to connect an external monitor, keyboard, mouse and
other external devices.
2.7.1

Docking Station Top

4
Item Description
1 Power button
2 Docking Guide
3 Release latch
4 Docking connector
Final
1

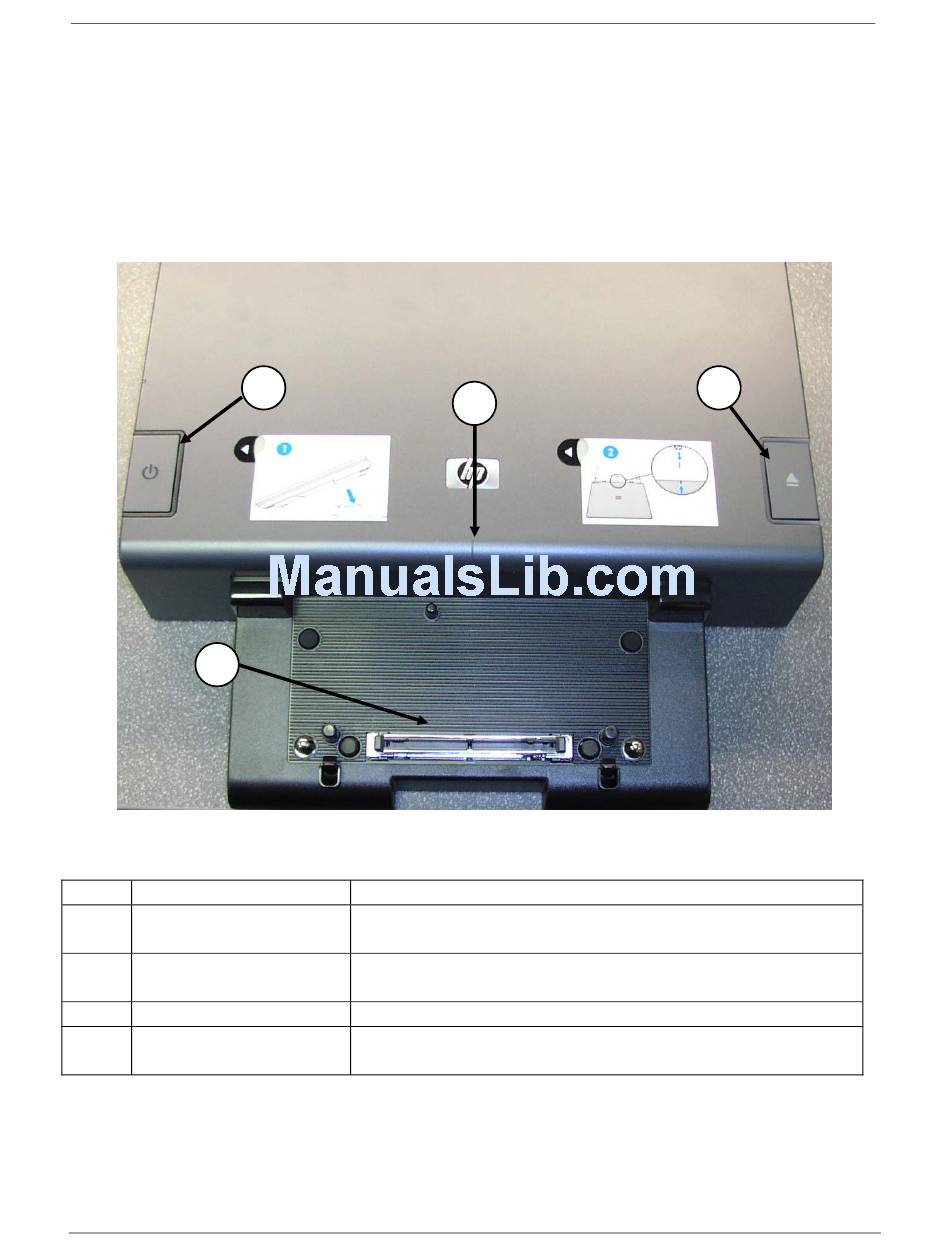

Figure 2.7.1.a – Docking Station Components
Notes
Applies power to docking station and tablet PC when tablet
is docked
Lines up with same symbol on tablet PC to align the
docking connector correctly when docking tablet.
Releases docked tablet PC from docking station.
Aligns with same connector on bottom of tablet PC when
docking.
