Installation Instructions

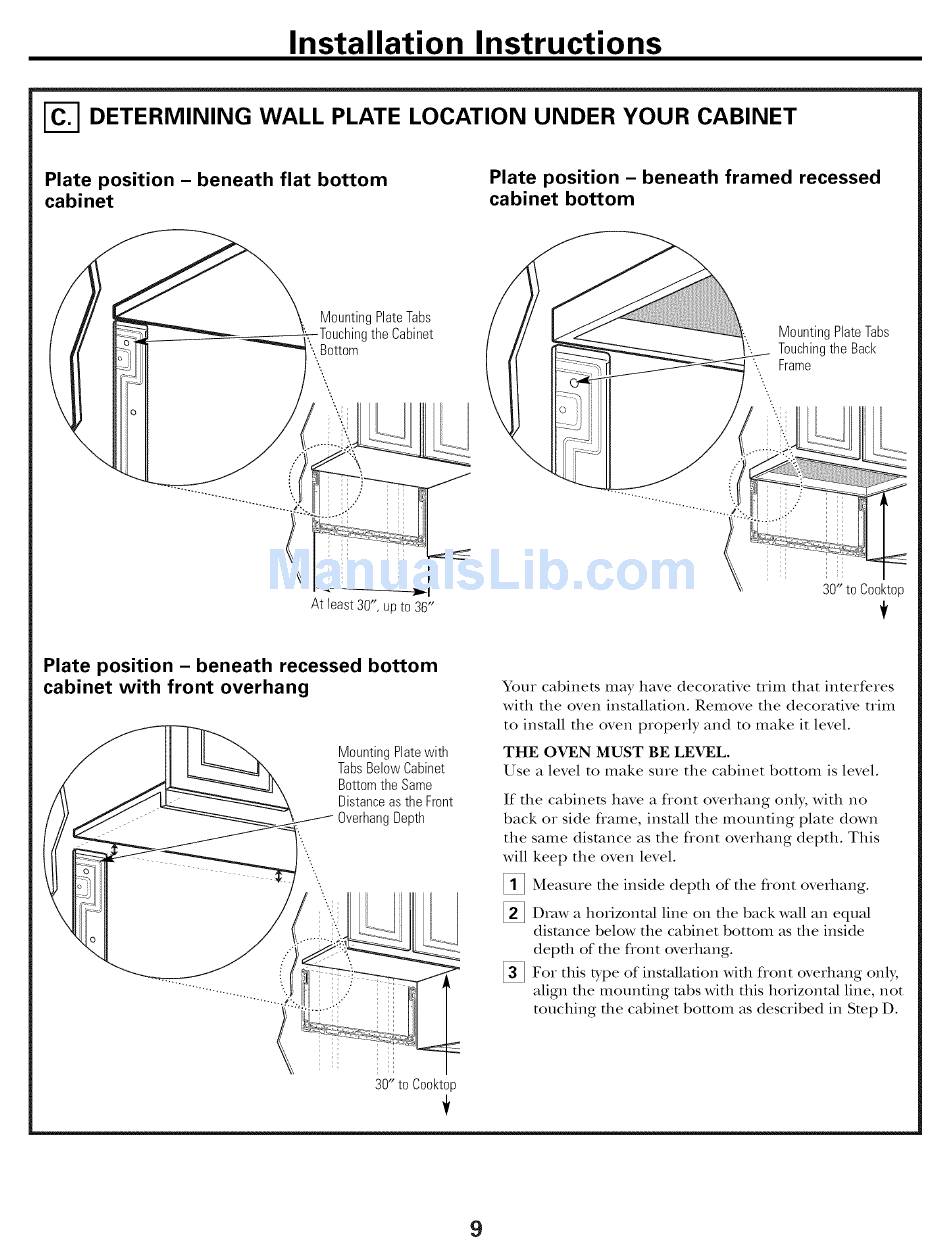

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet
Plate position - beneath framed recessed
cabinet bottom
Mounting Plate Tabs
theCabinet
Bottom
Mounting Plate Tabs
Touching the Back
'-. Frame
...
At least 30", up to 36"
30" to Cooktop
Plate position - beneath recessed bottom
cabinet with front overhang
Mounting Platewith
TabsBelow Cabinet
Bottomthe Same
Distanceasthe Front
OverhangDepth
\
30" to Cooktop
÷
Your cabinets may have decorative uim that interferes
with the oven installation. Remove the decorative uim
to install the oven properly and to make it level.
THE OVEN MUST BE LEVEL.
Use a level to make sure tim cabinet bottom is level.
If tim cabinets have a flont overhang only, with no
back or side flame, install the mounting plate down
the same distance as the flont overhang depth. This
will
[]
%
%
keep the oven level.
Measure the inside depth of the flont overhang.
Draw a horizontal line on the back wall an equM
distance below the cabinet bottom as the inside
depth of the front overhang.
For this type of installation wkh front overhang only,
align the mounting robs with this horizontal line, not
touching the c_fl)inet bottom as described in Stop D.
9
