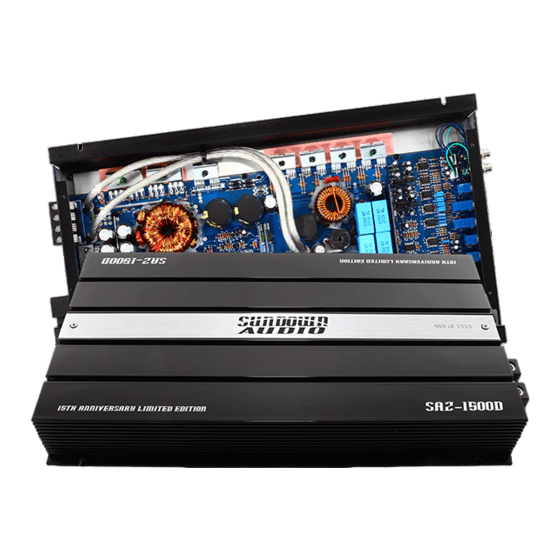

Sundown Audio SAZ-1500D Owner's Manual
High performance car audio amplifier
Hide thumbs
Also See for SAZ-1500D:
- Owner's manual (12 pages) ,
- Owner's manual (12 pages) ,
- Owner's manual (12 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Sundown Audio SAZ-1500D
Summary of Contents for Sundown Audio SAZ-1500D
- Page 1 Owner's manual SAX-100.2 SAZ-1500D...
- Page 2 Visit us online at http://www.sundownaudio.com WARRANTY: Your new Sundown Audio amplifier is covered by a 2 year limited warranty if purchased from an authorized Sundown Audio dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Sundown Audio.
- Page 3 (Thermal/Over Current/Speaker Short/Speaker DC protection) RCA Line Input and Output THD: Less than 0.05% THD Operating Voltage : DC10V~16V Wired Remote Controller SAZ-1500D Digital Class-D Linkable Mono Block Amplifier Double Sided Through Hole Epoxy PCB 1 Ohm Stability Daisy-Chain Through Output RCA...
-
Page 4: Specifications
Fuse Rating ------------------------------------------------- 20A x 3 Input Sensitivity ------------------------------------------- 200mV~6V (+/- 5%) Dimensions -------------------------------------------------- 252(W) x 53(H) x 340(L)mm SAZ-1500D Rated power output 3000W x 1CH -RMS power, 2 ohm linkable/dual mono ------ 1500W x 1CH -RMS power, 1 ohm mono ------------------------... -
Page 5: Rca Connection
RCA Connection SAX-100.2 INPUT OUTPUT BASS REMOTE SENSITIVITY BOOST FULL Protection 18dB 35Hz 300Hz 75Hz 2KHz Power to INPUT of ADDITIONAL to OUTPUT of HEAD UNIT AMPLIFIERS Wired Remote Controller This amplifier utilizes RCA type low-level input terminals. Input level is set by adjusting the "sensitivity"... -
Page 6: Speaker Connection
Speaker Connection SAX-100.2 1 Channel Bridged FUSE SPEAKER CH1-MONO SUBWOOFER Right Left BRIDGE Speaker Impedance 4~8 ohms 2 Channel Stereo FUSE SPEAKER Speaker Impedance 2~8 ohms Right Left BRIDGE 3 Channel Tri-Mode CH3-MONO SUBWOOFER Speaker Impedance 4~8 ohms FUSE SPEAKER Right Left BRIDGE... - Page 7 RCA Connection SAZ-1500D Single Amp Input Connection IN PUT BR OUT GAIN SUBSONIC BASS BOOST PHASE POWER 10Hz 60Hz 35Hz 300Hz 18dB PROTECTION REMOTE CLASS-D LINKABLE MONO BLOCK amplifier IN PUT BR IN HEAD UNIT Wired Remote Controller Dual Amp Input Connection (MASTER &...
- Page 8 Power Connection SAZ-1500D FUSE SPEAKER OUTPUT POWER To +12V DC GROUND to REMOTE Turn-on from HEAD UNIT BATTERY +12V Power Connect the +12V terminal of the amplifier to the + terminal of the battery using a large gauge power wire (preferably 1/0 gauge). It is critical to utilize an in-line fuse within 8 inches of the battery to ensure safe operation of the amplifier.
- Page 9 Single Amp Speaker Connection SAZ-1500D FUSE SPEAKER OUTPUT POWER ohms To +12V DC GROUND to REMOTE Turn-on from HEAD UNIT BATTERY ohms FUSE SPEAKER OUTPUT POWER To +12V DC ohms GROUND to REMOTE Turn-on from HEAD UNIT BATTERY...
- Page 10 Dual Amp Power and Speaker Connection SAZ-1500D "MASTER UNIT" FUSE SPEAKER OUTPUT POWER To +12V DC GROUND to REMOTE Turn-on from HEAD UNIT ohms BATTERY Use 8 Gauge(AWG) wire cable "SLAVE UNIT" FUSE SPEAKER OUTPUT POWER To +12V DC GROUND...
-
Page 11: Trouble Shooting
Trouble Shooting This power amplifier has protection features to prevent any damages from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, the protection indicators will light, and the system will be turned off. In order to check the occurred problem, you should turn all levels down and all power off and carefully check the installation for wiring mistakes or short.
