Appendices

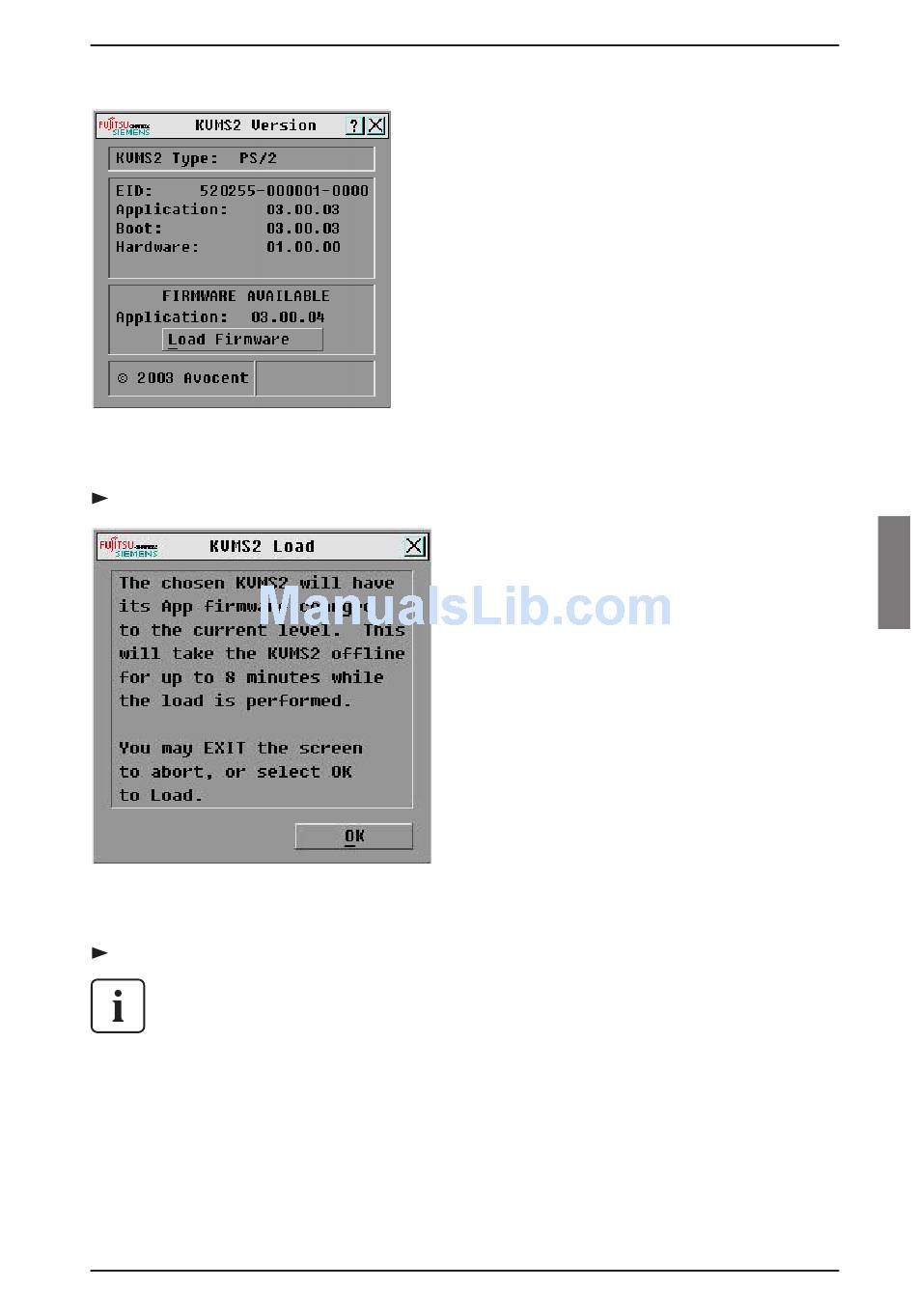

Figure 29: KVM s2-Adapter Version Dialog Box
Click the Load Firmware button. The Load dialog box appears.
Figure 30: KVM s2-Adapter Load Dialog Box
Click OK to initiate the upgrade and return to the Status dialog box.
During an upgrade, the KVM s2-Adapter status indicator in the Main dialog
box will be yellow. The KVM s2-Adapter is unavailable while an upgrade
is in progress. When an upgrade is initiated, any current connection to the
server via the KVM s2-Adapter will be terminated.
5.2

Sun Advanced Key Emulation

Certain keys on a standard Type 5 (US) Sun keyboard may be emulated by key
press sequences on a PS/2 keyboard. To enable Advanced Sun Key Emulation
mode and use they keys, press and hold Ctrl+Shift+Alt and then press the Scroll
590-332-501E
Upgrading firmware individually
43
