3. USB device wake-up (USBPWF)
This jumper allows you to enable or disable the USB device wake-up feature. When
you set this jumper to pins 2-3 (+5VSB), you can wake up the computer by pressing a
key on the USB keyboard or by clicking on the USB mouse. This feature requires an
ATX power supply that can supply at least 1A on the +5VSB lead, and a corresponding
setting in the BIOS.

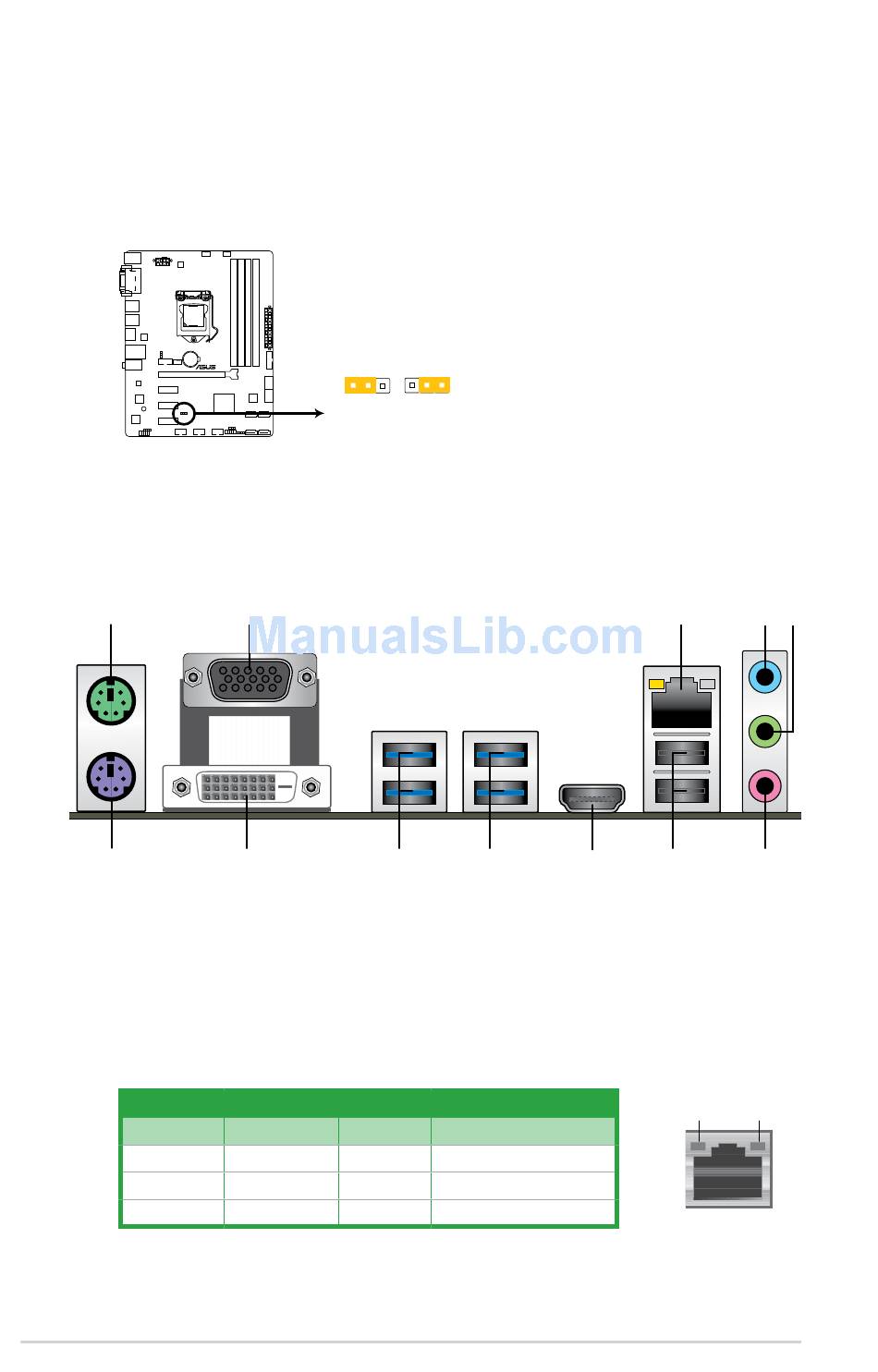

H87M-E USB device wake up
1.7

Connectors

1.7.1 Rear panel connectors
1
12
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.

LAN port LED indications

Activity/Link LED
Status
OFF
ORANGE
BLINKING
1-12
USBPWF
1
H87M-E
+5V
(Default)
2
11
Description Status
No link OFF
Linked ORANGE 100Mbps connection
Data activity GREEN
2 2 3
+5VSB
10 9
Speed LED
Description
10Mbps connection
1Gbps connection
3
8 7
Activity Link
LED
LAN port
Chapter 1: Product introduction
4 5
6
Speed
LED
