connections

HDMI FUNCTION

Resolution Selection
This function allows the user to select the screen resolution for
HDMI output.
In Stop mode, press and hold the SD/HD (Standard Defi nition/High
Defi nition) button on the remote control for longer than 5 seconds.
•
Resolutions available for the HDMI output are 576p(480p),
720p, 1080i/1080p.
•
SD(Standard Defi nition) resolution is 576P(480p) and HD
(High Defi nition) resolution is 720p, 1080i/1080p.
The default value of HDMI output is 576P(480P).
M

If the TV does not support the confi gured resolution, you will
not be able to see the picture.

When an HDMI cable is connected, composite and component
video signals are not output.

See your TV owner's manual for more information on how to select the TV's Video Input source.
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other
Samsung Devices with your Samsung TV's remote control.
Anynet + can be used by connecting this Home Cinema to a
SAMSUNG TV using an HDMI Cable. This is only available with
SAMSUNG TVs that support Anynet+.
1. Connect the main unit of the Home Cinema to a Samsung
TV with an HDMI cable. (See page 22)
2. Set the Anynet+ function on your TV.
(See the TV instructions manual for more information.)
•
You can operate the Home Cinema by using the TV remote
control. (Available TV buttons : ,
buttons, ~ button)
If you select the TV
Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+ button on your TV.
•
Receiver : On : You can listen to audio through the Home Cinema.
•
Receiver : Off : You can listen to audio through the TV.
If you select the Theater
Select THEATER to connect and set the option of each item below.
•
View TV : If Anynet+(HDMI-CEC) is set to on and you select View TV, the
Home Cinema will automatically switch to DIGITAL IN mode.
•
THEATER Menu : You can access and control the Home Cinema menu.
•
THEATER Operation : The Home Cinema disc playback information will be displayed.
You can control the Disc operation of the Home Cinema such as title, chapter
and subtitle change.
•
Receiver : On : You can listen to audio through the Home Cinema.
•
Receiver : Off : You can listen to audio through the TV.
M

The Cinema function is available only when you listen to the audio through the Home Cinema with the digital
optical cable connected.
24
Why use HDMI (High Defi nition
Multimedia Interface)?
This device transmits a DVD video
signal digitally without the process
of converting to analog. You will get
sharper digital pictures when using
an HDMI connection.
With Anynet+
You can operate this unit, power on
your TV, or watch a movie by pressing
the Play button on your Samsung TV's
remote control.
, ▲, ▼ and ◄, ►
, ,
MOVE MOVE ENTER ENTER EXIT EXIT
MOVE ENTER EXIT

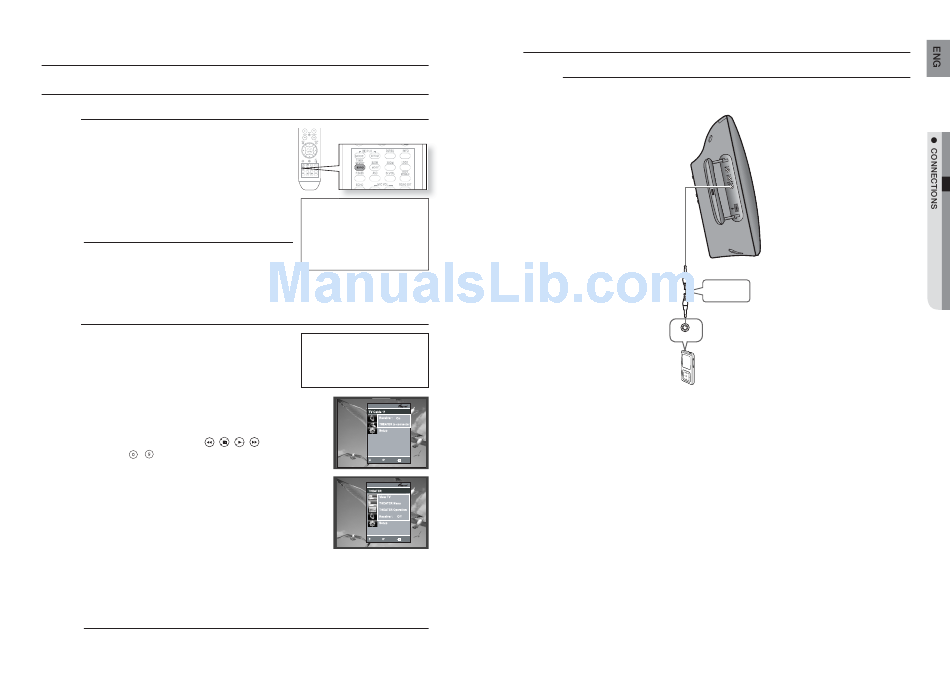

CONNECTING AUDIO FROM EXTERNAL COMPONENTS

AUX1 : Connecting an External Component/MP3 player
Components such as an MP3 Player
Audio OUT
1. Connect AUX IN 1 (Audio) on the Home Cinema to the Audio Out of the external component/MP3
player.
2. Press the AUX button on the remote control to select AUX1 input.
•
You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ¨ DIGITAL IN ¨ AUX 1 ¨ AUX 2 ¨ USB ¨ BT AUDIO ¨ TUNER.
Audio Cable
(not supplied)
