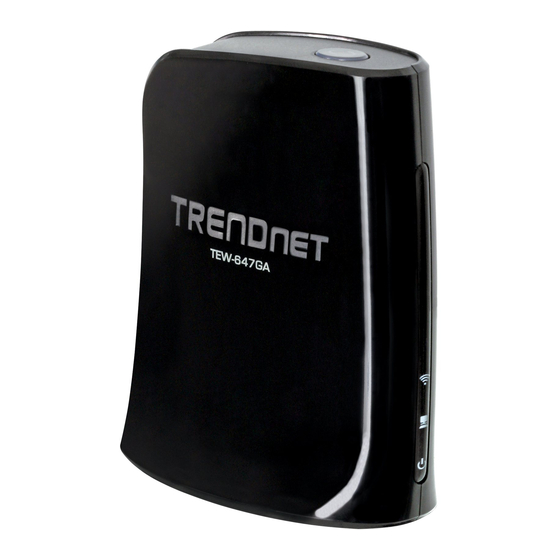

TRENDnet TEW-647GA Quick Installation Manual

Network adapter
Hide thumbs Also See for TEW-647GA:

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Installation Manual
Quick Installation Guide
TEW-647GA
2.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEW-647GA and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TEW-647GA

Summary of Contents for TRENDnet TEW-647GA

  • Page 1 Quick Installation Guide TEW-647GA 2.01...
  • Page 2 Table of Contents Table of Contents English ...................... 1 1. Before You Start ................. 2. Hardware Installation ................Troubleshooting ..................10 Version 06.16.2009...

  • Page 3: English

    1. Before You Start Package Contents TEW-647GA User's Guide CD-ROM Multi-Language Quick Installation Guide 1 x Cat. 5 Ethernet Cable (60cm/ 2ft) Power Adapter (12V, 0.5A) Installation Requirements A computer with a network adapter installed. Wireless router (e.g. TEW-639GR). An available DHCP Server –wireless routers usually have a built-in DHCP server.

  • Page 4: Hardware Installation

    Protected Setup (WPS) Push Button Setup. 2.1. Wi-Fi Protected Setup (WPS) Push Button Setup 1. Plug the power adapter into the TEW-647GA and then into an available power outlet. 2. Press the WPS button on your wireless router. The example shows a TEW-639GR.
  • Page 5 5. Connect an Ethernet cable from the LAN port on the TEW-647GA to an Ethernet port on your game console. 6. Congratulations, the installation is now complete. 2.2. Manual Setup (For Windows Users) Note: Manual Setup requires a Windows PC.
  • Page 6 5. Connect the provided RJ-45 cable from the Ethernet port on your computer to the Ethernet port on the TEW-647GA. Then click Next. 6. Connect the AC Power Adapter to the Access Point and then to a power outlet and then click Next.
  • Page 7 7. Select the TEW-647GA from the list and then click Configure. 8. Enter your password and then click Login. By default, there is no password. 9. Enter a new password, retype the new password and then click Change. 10. Select Manual Setup and then click Next.
  • Page 8 11. Select 'Dynamic IP Address' Configuration and then click Next. 12. Click Site Survey. 13. Select the SSID for your wireless router and then click Select. 14. Click Next. English...
  • Page 9 15. If encryption is enabled on your wireless network, the correct Wireless Mode, Security Mode, WPA Mode and Cipher Type will be selected. Enter your Pre-Shared key and then click Next. This example shows WPA-PSK. 16. Click Save (Optional). 17. Give the file a name, then click Save (optional).
  • Page 10 19. Connect the RJ-45 cable from the Ethernet port on the TEW-647GA to the Ethernet port on your game console. Then Click Next. 20. Click Exit. 21. Click Yes to exit. English...
  • Page 11 For detailed information regarding the TEW-647GA's configuration and advanced settings, please refer the Troubleshooting section, User's Guide CD-ROM or TRENDnet's website at www.trendnet.com Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...

  • Page 12: Troubleshooting

    TEW-647GA back in. Then go through the wizard again. Third, factory reset the TEW-647GA and go through the wizard again. To reset the TEW-647GA, take a pin or paper clip and press the reset button for 15 seconds, then let go.
  • Page 13 I connect the TEW-647GA to my game console, but I am unable to play games online. What should I do? First, verify that a computer can get online through the router wirelessly. Second, verify that the network setting on your game console is set to obtain an IP address automatically (dynamic IP).
  • Page 14 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
  • Page 15 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
  • Page 16 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
