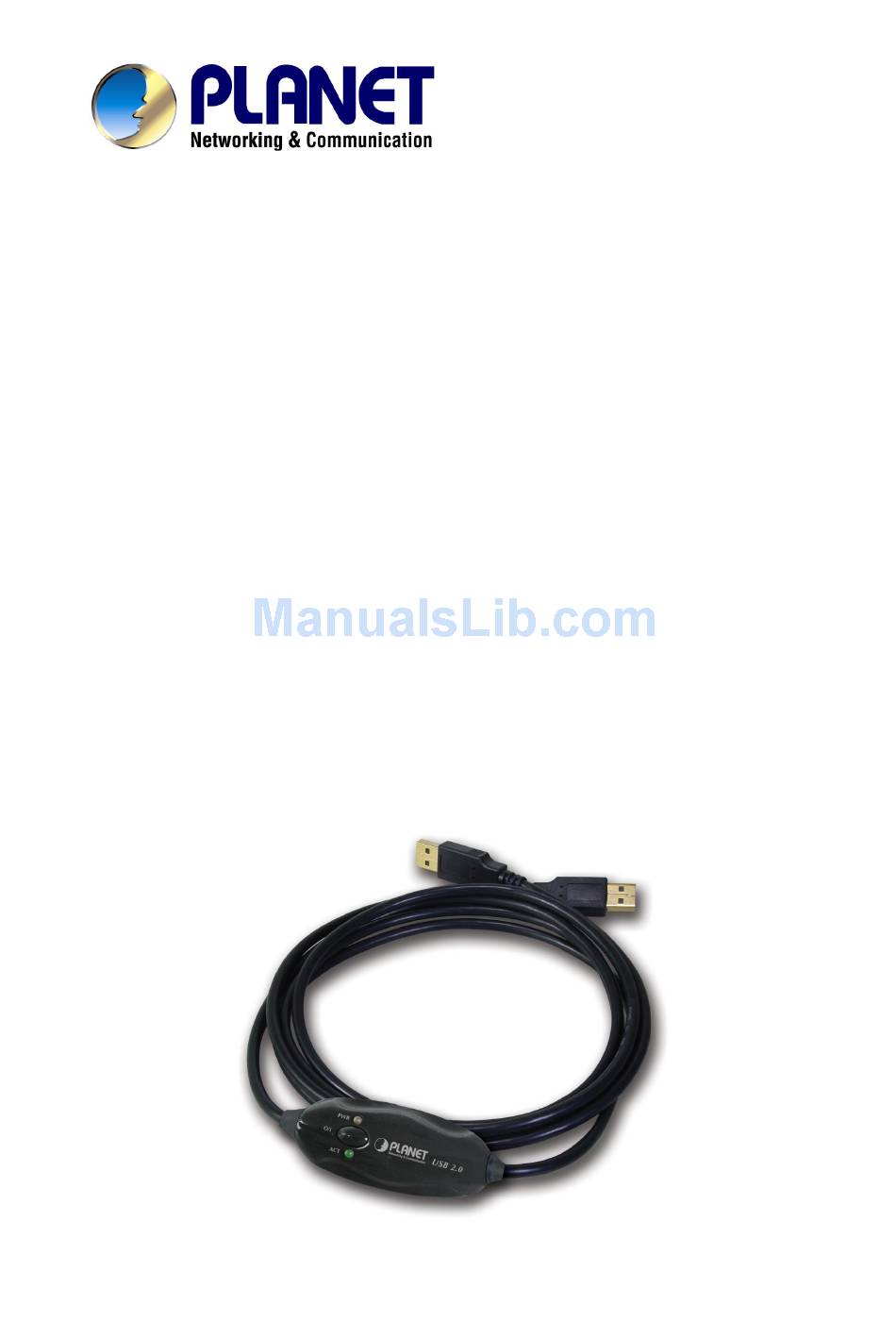

- Page 1 USB 2.0 Data Link Cable UL-201 User’s Manual Version 1.0...
- Page 2 Copyright Copyright 2003 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ..................... 1 1.1 F ............................1 EATURES 1.2 P .......................... 1 ACKAGE ONTENT 1.3 V ..................1 ERIFYING YSTEM EQUIREMENTS CHAPTER 2 INSTALLATION ....................... 3 2.1 S ........................3 OFTWARE NSTALLATION 2.2 H ........................4 ARDWARE NSTALLATION CHAPTER 3 UTILITY OPERATING .................... -
Page 4: Chapter 1 Introduction
Chapter 1 Introduction PLANET UL-201 is a Hi-Speed USB 2.0 solution to peer-to-peer network file sharing via the USB port. The UL-201 provides true Plug&Play capability while transferring files at greater speed than traditional USB or other legacy port file transfer products. USB 2.0 solutions offer up to 40 times the speed compared to normal full-speed USB 1.1 products. - Page 5 Software ü Microsoft Windows 98 ü Microsoft Windows Me ü Microsoft Windows 2000 ü Microsoft Windows XP ü Microsoft Windows Server 2003...
-
Page 6: Chapter 2 Installation
Chapter 2 Installation 2.1 Software Installation Before you plug-in and use the UL-201 for the first time in your computer, you should run the SETUP InstallShield program to preload the driver and utility into your computer. This step is necessary in order for you to use the USB 2.0 Data Link Cable properly under Windows operating system. -
Page 7: Hardware Installation
When installation prompts you that installation is complete, please click “Finish”. 2.2 Hardware Installation After software installation is complete, the driver will also install to your PC. Locate the USB port of your computer and plug in the UL-201. The USB port usually has the imprinted symbol. - Page 8 (Hi-Speed USB Bridge Cable) has not yet passed Windows XP Logo testing. Please click “Continue Anyway” to continue. Windows will then start to install the driver for UL-201. Once installation is complete, Windows will prompt you that it has finished. Click “Finish” to complete the driver installation.
-
Page 10: Chapter 3 Utility Operating
Please check to our web site for the new language package. The UL-201 allows you to easily link two computers by plugging each end of the cable into the USB port of both computers. Before you can start using the utility - PCLinq2, you need first to run Setup program on both computers and install the bridge cable as mentioned in the previous section. - Page 11 Move files/folders Change file/folder names Multiple Cable Select – if there are three computers linked together using two UL-201 (see Figure below). PCLinq2 can allow you to control two computers (A-to-B or B-to-C) at a time. It will ask you to...
-
Page 12: Chapter 4 Specification
Chapter 4 Specification Product USB 2.0 Data Link Cable Model UL-201 Attach Interface Two USB Type A downstream port (Male) Power Mode Bus-Power 82 mm x 31mm x 20mm (L x W x H) Dimension Total Length: 226 cm (Including USB cable)
