Central Electronic Module (Cem) F17-F28 - Volvo S80 Wiring Diagram

Fuses

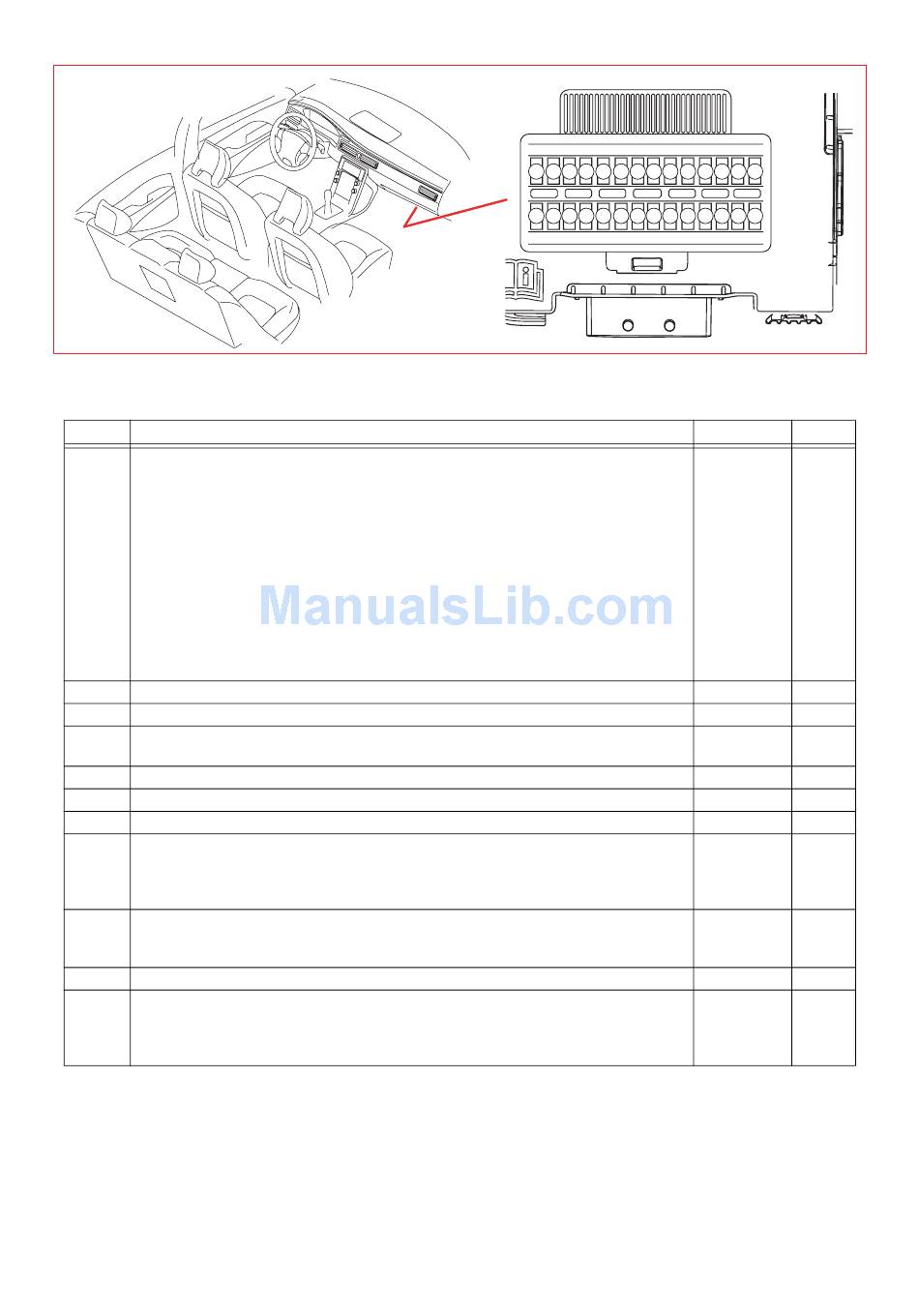

Central Electronic Module (CEM) F17-F28

4/56 Central Electronic Module (CEM)
No. Fuse function
F17 3/27 Switch unit, power passenger seat
3/176 Switch, driver's door power window
4/76 Remote control module garage opening
10/114 Left-hand vanity mirror lighting
10/115 Right-hand vanity mirror lighting
10/125 Left-hand front courtesy lighting
10/126 Right-hand front courtesy lighting
10/127 Lighting, cargo compartment, left-hand side
10/128 Lighting, cargo compartment, right-hand side
10/129 Front left running/parking light
10/150 Rear reading light
26/6 Converter/control module, sill moldings, driver's side
26/7 Converter/control module, sill moldings, passenger side
F18 5/1 Driver Information Module (DIM)
F19 4/52 Power Seat Module (PSM)
F20 8/59 Rear left head restraint solenoid
8/60 Rear right head restraint solenoid
F21 7/214 Heartbeat sensor
F22 6/33 Fuel pump
F23 4/102 Steering Column Lock module (SCL)
F25 K6-B Relay, soldered
K12 Relay, soldered
6/8 Central locking motor, trunk lid
6/37 Lock motor, fuel filler cover
F26 4/6 Climate Control Module (CCM)
16/35 Siren Control Module (SCM)
17/13 Data link connector
F27 3/132 Start Control Unit (SCU)
F28 4/93 Keyless Vehicle Module (KVM)
10/19 Auxiliary brake light
10/43 Right brake light
10/50 Left brake light
TP39119202 S80(07-) 2007 Supplement
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15 16 17 18 19 20 21 22 23 24 25 26 27 28
via A
- 7.5
-
-
-
-
-
-
-
-
-
-
-
-
- 5
- 5
2/75 15
2/75
- 5
K8, 4/83 20
K9 20
- 10
-
K6-B
K12
- 5
-
-
- 5
3/9 5
3/9, 4/56
3/9, 4/56
3/9, 4/56
16
