Control Modules; Overview Of Locations - Volvo XC90 Wiring Diagram

Control modules

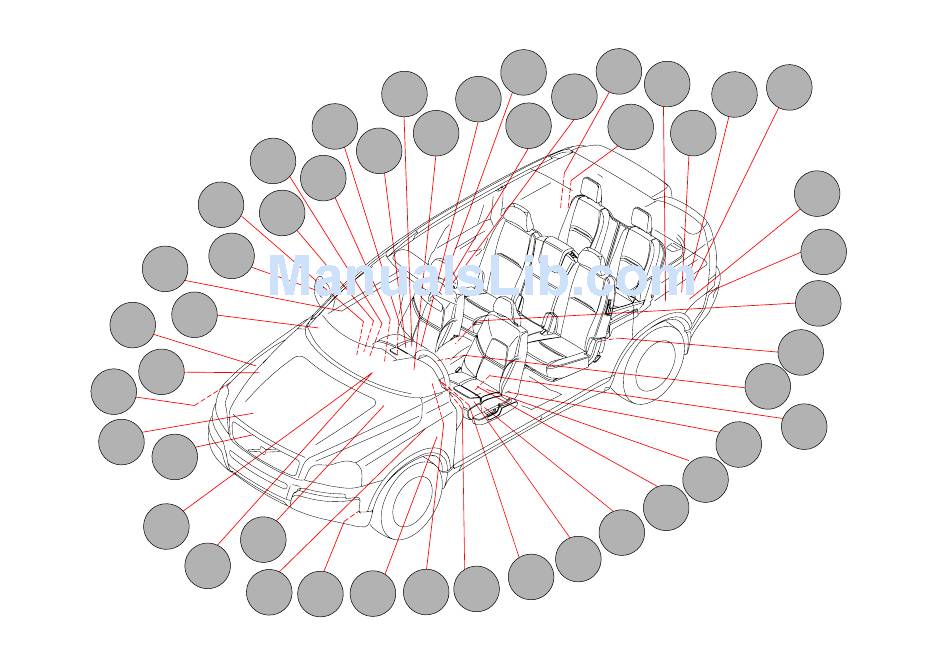

Overview of locations

CCM
PDM/
DDM
4/31
ECM
TCM
SCM
ACM
4/71
DMM
AQS
SHM
AUD
OWS
PHM
IAM
ICM
RCM
BCM
17/13
CPM CEM
TP 39131202 XC90 2009
RSM
SRM
BSC
UEM
DIM
PSM
SWM
SAS
LSM
RDAR
PAC
GPS
PAM
AEM
4/110
GSM
DDM/
PDM
SHM
MMM
LCM
REM
ISM
SRS
DEM
HCM
39
