Hardware Installation - Moog Videolarm PB24BB-RS Installation And Operation Instructions Manual

1. Locate your camera in the Camera Compatibility Chart (Appendix A). If your camera is not listed, please contact Moog Videolarm at (800)-554-1124.
2. Connect the striped I/O Detect wire to the I/O terminal specified for your device.
3. Connect the plain (no stripe) I/O Detect wire to the I/O terminal specified for your device.
4. Connect the power output pin from the IP Reset to the Power input on your device.
5. Connect the power from the transformer to the power input in the IP Reset.
6. Add your device's configuration to the IP Reset Manager Software or Network video recording (NVR) software.
Note 1: Connection polarity MUST be observed for all devices.
Note 2: If the input connections need to be modified, the striped wire is plus VDC and the solid wire is ground (0 VDC).

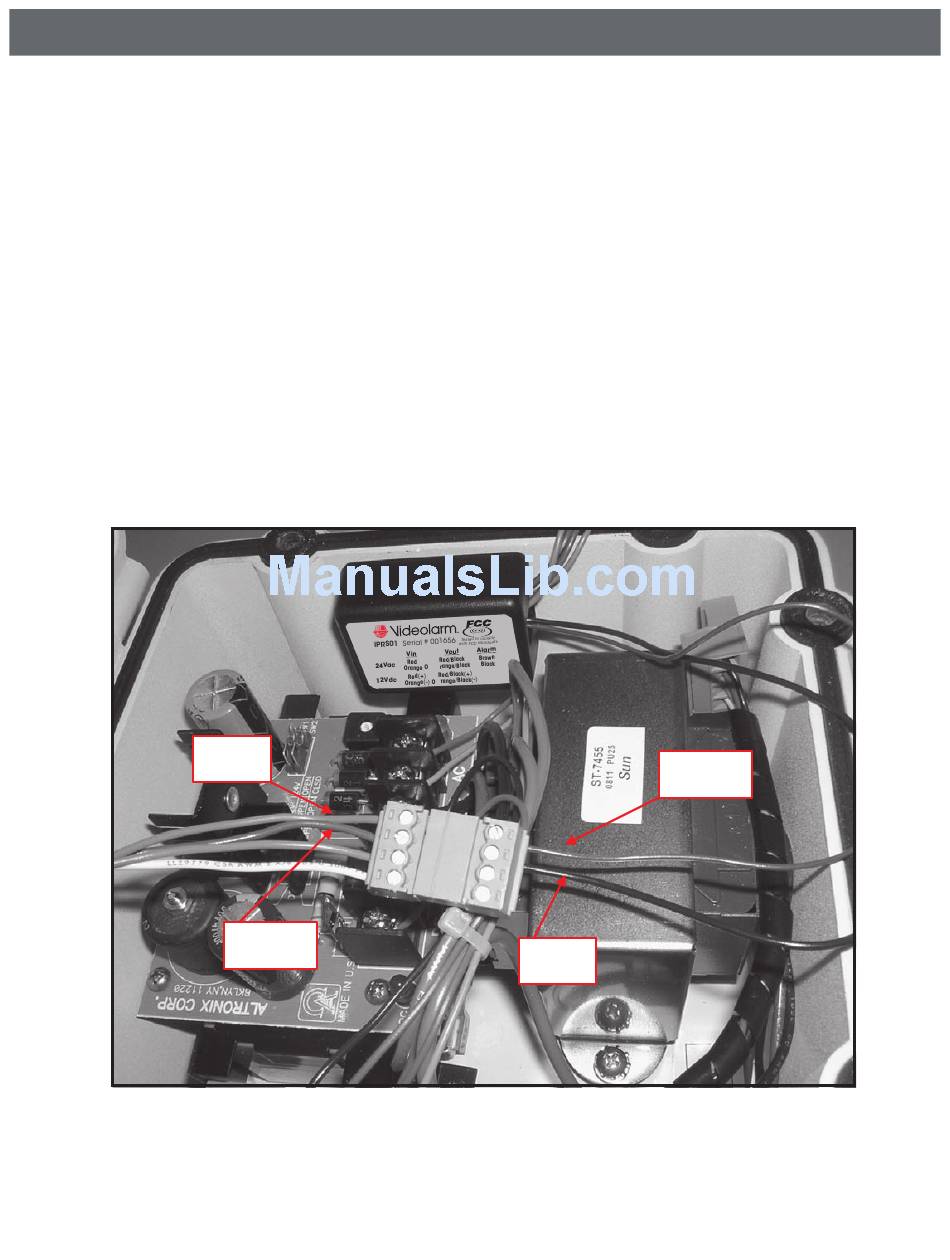

IP Reset power box PB24BBRS
Attach the brown and black wire to the blue and purple wire of the dome. Inside the dome, attach the purple and blue wire to the alarm output of the camera.
Hardware Installation
Blue
Purple
Brown
Black
