Pub. 988-0154-65C
LGC-4000 & LGC-Baja
GPS Modules
Installation Instructions
This document covers the installation of the LGC-4000 or LGC-Baja GPS
modules and how to connect them to a NMEA 2000 network.
CAUTION: You should read all of the installation
!
instructions before proceeding. Decide where to install all
components before drilling holes in your vessel or vehicle.
All Lowrance NMEA 2000 capable devices are either NMEA 2000 certified
or certification is pending. See our web site for the latest product status
information.

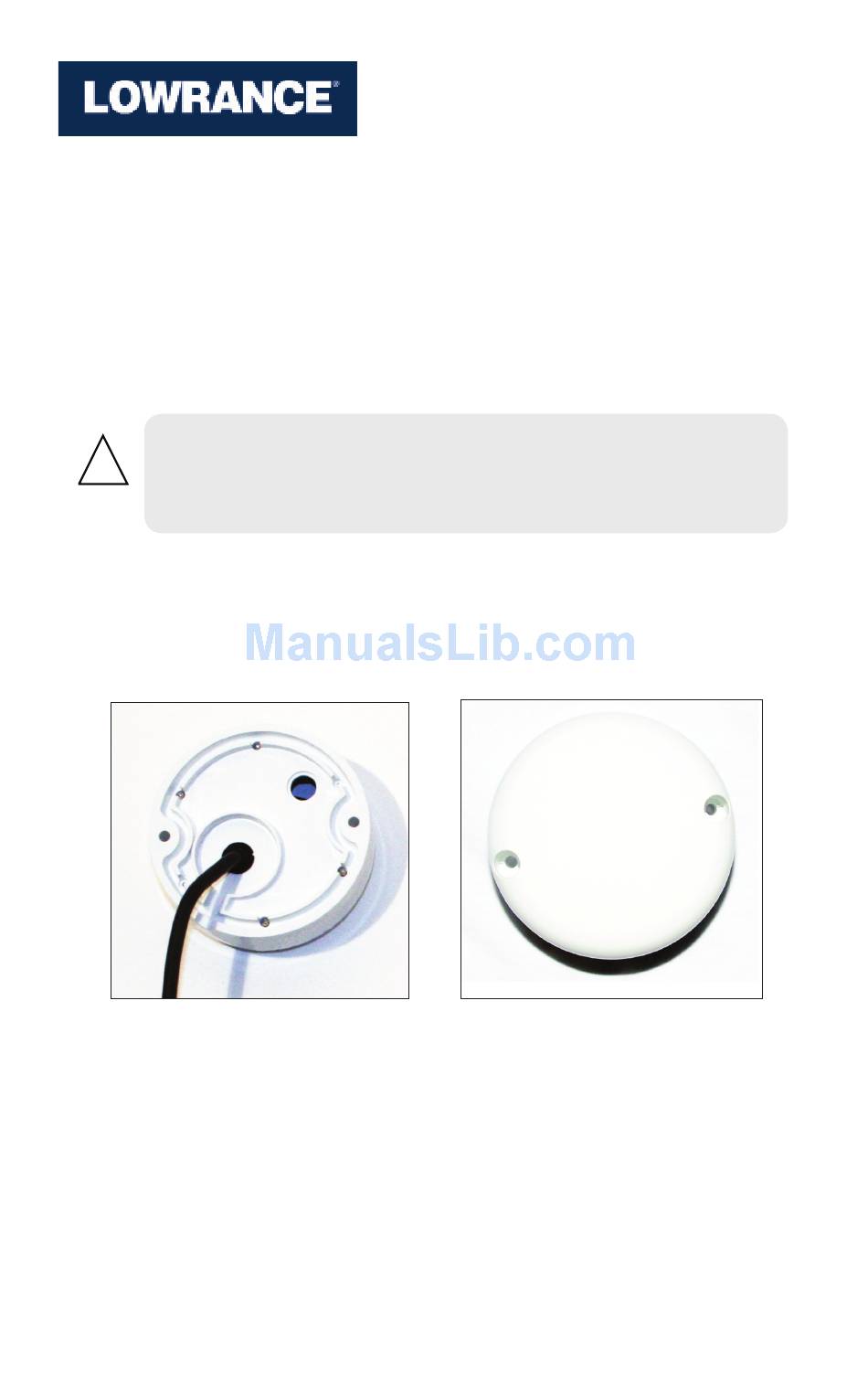

LGC- 4000 Module, bottom view (left) and top view (right).
The LGC module consists of a male threaded cable connector and the GPS
module. The GPS module contains a 16-parallel channel GPS+WAAS receiver.
The cable length from the connector to the GPS module is 18 inches (45.7 cm.
The module packs with a 15' extention cable, a T connector and parts needed to
mount the module on a flat surface or on a pole.
1
Advertisement
Table of Contents
Related Manuals for Lowrance LGC-4000
Summary of Contents for Lowrance LGC-4000
-
Page 1: Installation Instructions
LGC-4000 & LGC-Baja GPS Modules Installation Instructions This document covers the installation of the LGC-4000 or LGC-Baja GPS modules and how to connect them to a NMEA 2000 network. CAUTION: You should read all of the installation instructions before proceeding. Decide where to install all components before drilling holes in your vessel or vehicle. -
Page 2: Surface Mount
Tools and Supplies Recommended tools include pliers and a flathead screwdriver. If you need to route the module connector through a bulkhead, you will need a drill and a 7/8” (22 mm) drill bit. If you are mounting the module directly to flat, horizontal surface, you will need a #31 (3 mm) drill bit for the screw holes. - Page 3 Expanding a NMEA 2000 network If you want to expand your NMEA 2000 network by adding more devices, purchase a Lowrance Expansion Kit. Refer to the NMEA 2000 General Information document, part number 988- 0154-17D for more information about NMEA 2000 networks.
- Page 4 Notes...
- Page 5 Notes...
- Page 6 Notes...
- Page 7 LEI EXTRAS LIMITED ONE-YEAR WARRANTY “We,” “our,” or “us” refers to LEI EXTRAS, INC., the manufacturer of this product. “You” or “your” refers to the first person who purchases this product as a consumer item for personal, family, or household use. We warrant this product against defects or malfunctions in materials and workmanship, and against failure to conform to this product’s written specifications, all for one (1) year from the date of original purchase by you.
-
Page 8: Accessory Ordering Information
Eagle accessories, please contact: Your local marine dealer or consumer electronics store. To locate a Lowrance dealer, visit the web site, www.lowrance.com, and look for the Dealer Locator. To locate an Eagle dealer, visit the web site, www.eaglesonar.com, and look for the Dealer Locator.
