Summary of Contents for Holman RSR

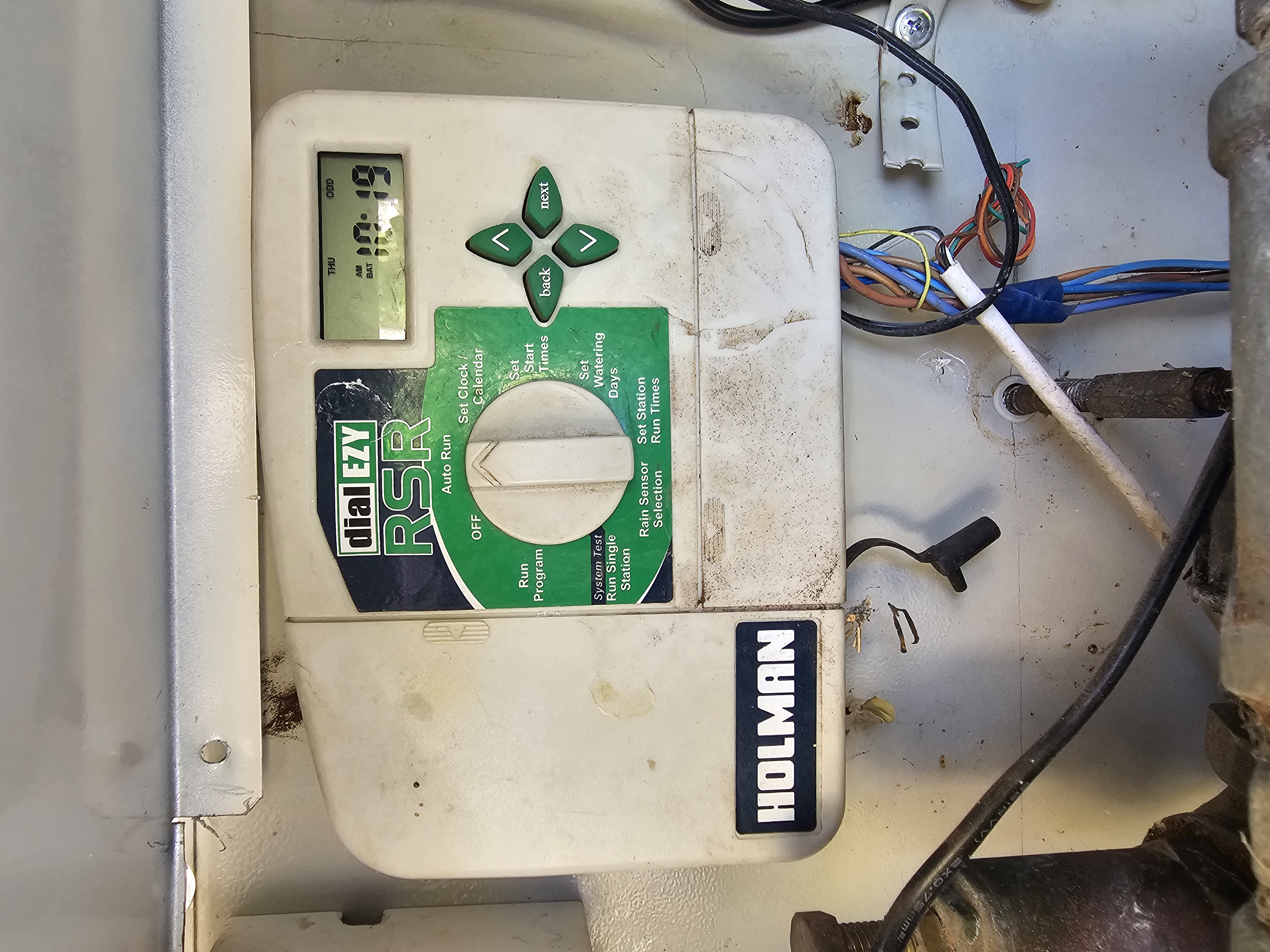

- Page 1 IRRIGATION CONTROLLER 6 Station Model INSTRUCTION MANUAL SUITABLE FOR INDOOR USE ONLY OTHERWISE WARRANTY IS VOID...
-
Page 2: Table Of Contents
Terminal Block Layout Power Supply Connections An innovative feature of this controller is the Rain Sensor Connection Of Valves Ready (RSR) technology. This allows individual stations Pump Hook-Up Connections to be controlled by a rain sensor. In this way, garden Electrical Characteristics... -
Page 3: Glossary
This sets the time of the day when the watering programmed program will commence. Socket & Rubber Plug (RSR) information. 2. Set Watering Days. Rain Sensor Cable Socket. These are the nominated days when the Simple push in, pull out, plug automatic system will be active. -
Page 4: Programming Example
Programming Instructions Programming Instructions Programming Example Other Functions In this example, the lawn areas , Program 1 ( ), are This controller can also manually run a selected program Group 1 using pop-up sprinklers & require less frequent watering. once, or an individual station can be set to run once from 1 minute up to 12 hours and 59 minutes. -
Page 5: Programming
Programming Programming Set Current Time & Correct Day Before proceeding, ensure your watering planner has been completed. From this, you should be aware of Turn the dial to Set Clock/Calendar position. which stations are allocated to each program. Note: Set one program at a time -This will ensure that The hour will be flashing. -
Page 6: Step 2. Set Watering Days
Programming Programming Step 2. Set Watering Days Odd / Even Day Selection (Optional) This unit has interval watering or individual day selection In some regions, users are only allowed to water their from everyday to every 15th day or a 365 day calendar gardens on, ODD dates if their house number is ODD, or with odd/even day selection in areas where water on EVEN dates when their number is EVEN . -
Page 7: Manual Operations
Programming Manual Operations Step 3. Set Station Run Times. System Test Facility (Continued) Turn the dial to System Test or Run Single Station. To adjust the Run time in minutes press , and use next (This is a dual function position) . -
Page 8: Run A Program
The controller comes pre-fitted with a the Run Program position. “Prog 1” will be shown in the socket, ready to take the “HOLMAN” Rain Sensor (P/N display. To run program 1, leave or advance to program 2 CRS1000BC, not included) which has also been pre- fitted with a plug. - Page 9 Other Features Other Features Rain Sensor Ready (cont.) Rain Sensor Ready (cont.) DELAY FEATURE - When using the Rain Sensor Ready DELAY FEATURE - SETTING RAIN SENSOR DELAY. feature, in conjunction with the rain sensor. It is possible Turn the dial to Rain Sensor Selection. to set a delay in the controller to stop the automatic Press the button.
-
Page 10: Rain Off Mode
(If the controller needs to be outdoors, you can purchase come on, but the programmed information is still a HOLMAN outdoor weatherproof box, P/N COBOX, to retained in the memory. To reactivate the automatic mount the controller inside.This box is available from schedule, turn the dial back to the Auto Run position. -
Page 11: Field Wiring Connections
Installation Instructions Installation Instructions Field Wiring Connections Power Supply Connections PREPARATION The controller itself can run off a 240V AC to 24V AC external transformer.. 1 Prepare wires for hook-up by cutting the wires to the correct length and stripping approximately 6.0mm It is recommended that the transformer is not connected (¼... -
Page 12: Pump Hook-Up Connections
Installation Instructions Electrical Characteristics Pump Hook-Up Connections Power Supply Do not attempt to drive a pump starter directly from the MAINS SUPPLY controller. Pump start is provided by connecting one side This unit can run off a 50Hz external transformer, of the coil of a suitable relay to the Master Valve/Pump (plugpack), with an output of 24VAC 50Hz @ 1 Amp. -
Page 13: Servicing The Controller
Servicing The Controller Fault Finding Guide The controller should always be serviced by an Possible Cause Suggestion Symptom authorized agent. Faulty transformer. Check fuse. Check field wiring. No display. Fuse blown. Check transformer. Follow these steps: Faulty solenoid coil. Swap faulty station wire on Single Station 1. -
Page 14: Spare Watering Planners
Spare Watering Planner Spare Watering Planner PAGE 24 PAGE 25... - Page 15 Your Guarantee The manufacturer Guarantee to the original purchaser that any product supplied by the manufacturer will be free from defects in materials and workmanship for a period of three years from the date of purchase. Any product found to have defects in material or workmanship within the period of this Guarantee shall be repaired or replaced by the manufacturer FREE OF CHARGE.
