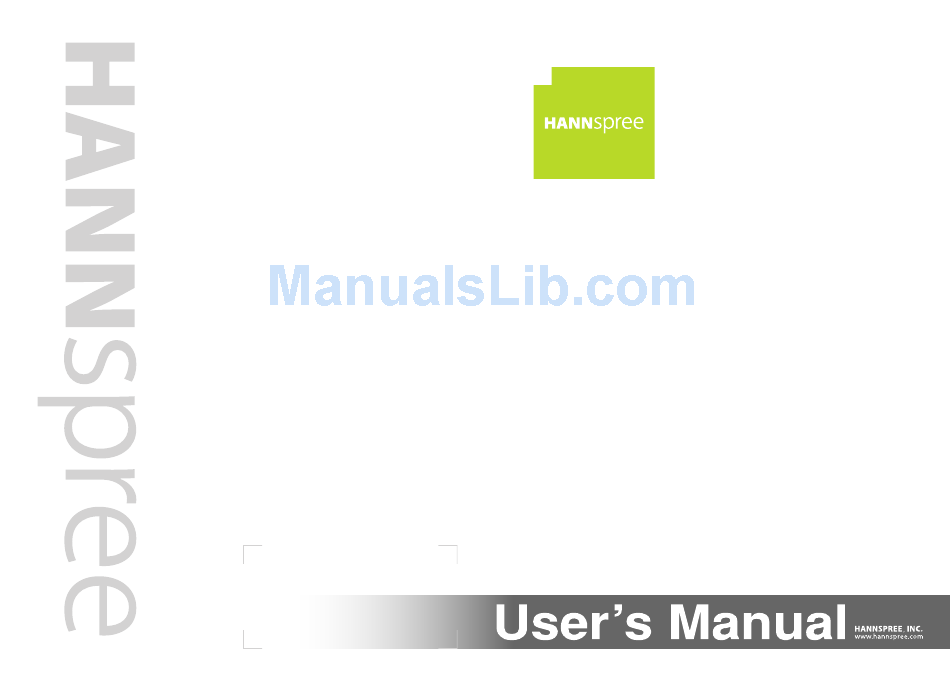

- Page 1 9.6”/15” Liquid Crystal Display Television MAK-000076...
-
Page 2: Remote Control
Remote Control Remote control buttons may vary according to the package you purchase. The "Type 1" buttons are used for instructions through this manual. See the following table for the complete information of remote control buttons.) TV Remote Control Buttons Function Type 1 Type 2... -
Page 3: Table Of Contents
Table of Contents Regulatory Information ..............2 Description of Warning Symbols ..........2 Safety Notices ................3 Preface ..................6 Warranty and Service ..............6 1. Getting Started ................ 8 1.1 Package Contents ............8 1.2 Control Panel ..............9 1.3 Input and Output Jacks .......... -
Page 4: Regulatory Information
Regulatory Information CE Conformity Statement This device complies with the requirements set out in the Council Directive on the approximation of the laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC) and the Amendment Directive (92/31/EEC), Low-Voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC). Description of Warning Symbols CAUTION RISK OF ELECTRIC SHOCK... -
Page 5: Safety Notices
Safety Notices Installation Safety Notes These servicing instructions are for use by qualified service personnel only.To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Location Avoid allowing the TV to get prolonged exposure to sunlight or other strong sources of heat. - Page 6 CAUTION • If the remote control is not used for a long period, remove the batteries and store them properly. • Handle damaged or leaking batteries carefully, and wash hands with soap if they come in contact with leaked chemical fluids. •...
- Page 7 Personal Safety 1. To avoid overloading the power supply, never plug too many electrical devices into an outlet, power strip, or extension cable. 2. Dangerous high-voltage electric power components are located inside the TV. To avoid electric shock, do not disassemble the casing. 3.
-
Page 8: Preface
The information in this manual is subject to change without notice. To the extent allowed by applicable law, Hannspree, Inc. (“Hannspree”) shall not be liable for direct, indirect, special, exemplary, incidental or consequential damages arising from any defect or omission in this manual, even if advised of the possibility of such damages in advance. - Page 9 No part of this manual may be reproduced in any form by any means without the prior written authorization of Hannspree. The TV described in this manual may include copyrighted software of Hannspree (or other third parties). Hannspree (or other third parties) preserves the exclusive rights for copyrighted software, such as the right to distribute or reproduce the copyrighted software.
-
Page 10: Getting Started
Getting Started Package Contents Make sure the following components are included in the box. Please contact Hannspree Customer Service immediately if anything is missing or damaged. • • User's manual • Quick start guide • Warranty and service manual •... -
Page 11: Control Panel
Control Panel Description Button Function Power Turn the TV on or off. - Power Source - Source Select the input source to be displayed. Menu - Menu Press to open the OSD menu. Channel UP increases the channel number or CH UP moves upward to the previous item on the Channel... -
Page 12: Input And Output Jacks
Input and Output Jacks Description Connector Function - DC-IN Power Connect to the included power adapter. connector - DC 12V Use the AV1 input to connect an external Video & Audio device, such as a VCR, VCD, or DVD player. connector R/L/Video Audio Input: AV connector audio (white and... -
Page 13: Remote Control
Remote Control Description Icon Function Turn the on-screen display (OSD) menu on Menu Menu and off/ confirm your selection or setting. Press up, down, left or right to scroll through Arrow the on-screen display menus. Use to select a channel directly. Press 0-9 to Number enter the channel number (press 1 and 0 for channel 10). - Page 14 Description Icon Function VOL UP increases the volume. Volume adjust VOL DOWN decreases the volume. Channel CH UP increases the channel number. select CH DOWN decreases the channel number. Select the input source to be displayed. The Source SOURCE source is displayed on the top right corner of the screen.
-
Page 15: Setting Up Your Tv
Setting up your TV Basic Connections 2.1.1 Power Connection 1 Connect one end of the power cord to the power adapter and the other end to the wall power outlet as illustrated. 2 Plug the power adapter connector into the DC-IN input jack on the rear panel of the TV. -
Page 16: Connecting An Antenna Or Cable Tv
2.1.2 Connecting an Antenna or Cable TV Connect the VHF/UHF (Antenna) or CATV cable to ANT Jack on the back of the TV as illustrated. Antenna ANT jack (VHF/UHF IN jack) Antenna/CATV socket Ground Clam coaxial cable Ground Note: If you cannot receive channels after connecting to an antenna or cable TV line, try scanning for channels. -
Page 17: Connecting External Devices
Connecting External Devices Connect external devices such as VCRs, STBs, DVD players, video game consoles, earphones, or a PC to the TV using the appropriate ports on the back, side, or front of the TV as shown below. 2.2.1 Connecting External Earphones Headphones HEADPHONES Headphone/... -
Page 18: Connecting To An Amplifier/Powered Speaker
2.2.2 Connecting to an Amplifier/Powered Speaker Amplifier LINE OUT Speakers (Built-in amplifier Note: • Only one external device for sound can be connected at a time. • For selected models only. -
Page 19: Connecting To Av Devices
2.2.3 Connecting to AV Devices S-Video connector Video Game Console 4-IN-1 AV cable AV connectors SCART (Selected Area) Use the scart provided to connect a TV, VCR, VCD, DVD player or video game console. Move the AV switch on the right side of the scart to switch the TV between CVBS and Y/C (S-Video) mode. -
Page 20: Connecting To A Pc (For Selected Models Only)
2.2.4 Connecting to a PC (for selected models only) For VGA Jack LINE-IN VGA Cable LINE-OUT For PC-IN Jack PC-IN LINE-OUT PC Link Cable The illustrations demonstrate how to connect to a PC. For VGA jack, please refer to the first picture. For PC-IN jack, please refer to the second picture. -
Page 21: Using The Tv
Using the TV 2.3.1 Turning the TV On and Off 1 Press on the remote control or POWER on the control panel. The power LED indicator on the front of the TV changes from red to green, indicating that the power is on. 2 Press or POWER again. -
Page 22: Adjusting On-Screen Display (Osd) Settings
Adjusting On-Screen Display (OSD) Settings The On-Screen Display (OSD) menu system provides a quick and simple method to adjust the TV settings. The OSD menu can be accessed through the buttons either on the front control panel or the remote control. Control Panel Remote Control MENU... -
Page 23: Osd Setting Menus
OSD Setting Menus Before going to details of each OSD item, you may get acquainted with the placement of the OSD system: CURRENT MENU: ADJUSTABLE ITEMS: Displays the title of the Displays the setting/value currently chosen menu. of the adjustable items.. MAIN MENU: Video Displays a list... -
Page 24: Adjusting Video Settings
Adjusting Video Settings Menu Press to enter the OSD Main Menu Video screen. V i d e o M o d e S t a n d a r d B r i g h t n e s s C o n t r a s t Press to select VIDEO. -
Page 25: Adjusting Pc Settings (For Selected Models Only)
Adjusting PC Settings (for selected models only) If a PC is connected, the PC mode menu items become available. Menu Press to enter the OSD Main Menu H - P o s i t i o n 1 0 0 screen. -
Page 26: Adjusting Tv Settings
Adjusting TV Settings Menu Press to enter the OSD Main Menu screen. C o u n t r y G E R M A N Y M a n u a l P r o g r a m P r o g r a m Press to select TV. -
Page 27: Troubleshooting
Troubleshooting Situation Solution • Connect the power cord properly. • Check if the power LED is on or not. • Press power on the control panel or remote control. No picture and sound. • Press source to cycle through connected video sources. •... -
Page 28: Specifications
Specifications LCD Panel Size 9.6 inch TFT 15 inch TFT Aspect Ratio Panel Resolution 800 (H) x 600 (V) 1024 (H) x 768 (V) PAL-B/G D/K I TV System SECAM-L AV1: CVBS-in (RCA jacks, for selected models only) AV2: S-Video/ CVBS-in (4-in-1 jack) Video System VGA/PC IN (D-SUB jack or Mini-DIN jack) -
Page 29: Pc Mode Support Timing
PC Mode Support Timing (15inch models only) Pixel Format Scan type Standard 640x480@72Hz Progressive VESA standard 640x480@75Hz Progressive VESA standard 640x480@60Hz Progressive Industry standard 720x400@70Hz Progressive IBM standard 800x600@56Hz Progressive VESA guidelines 800x600@72Hz Progressive VESA standard 800x600@75Hz Progressive VESA standard 800x600@60Hz Progressive VESA standard... - Page 31 MEMO...
- Page 32 MEMO...
- Page 33 MEMO...
- Page 34 MEMO...
