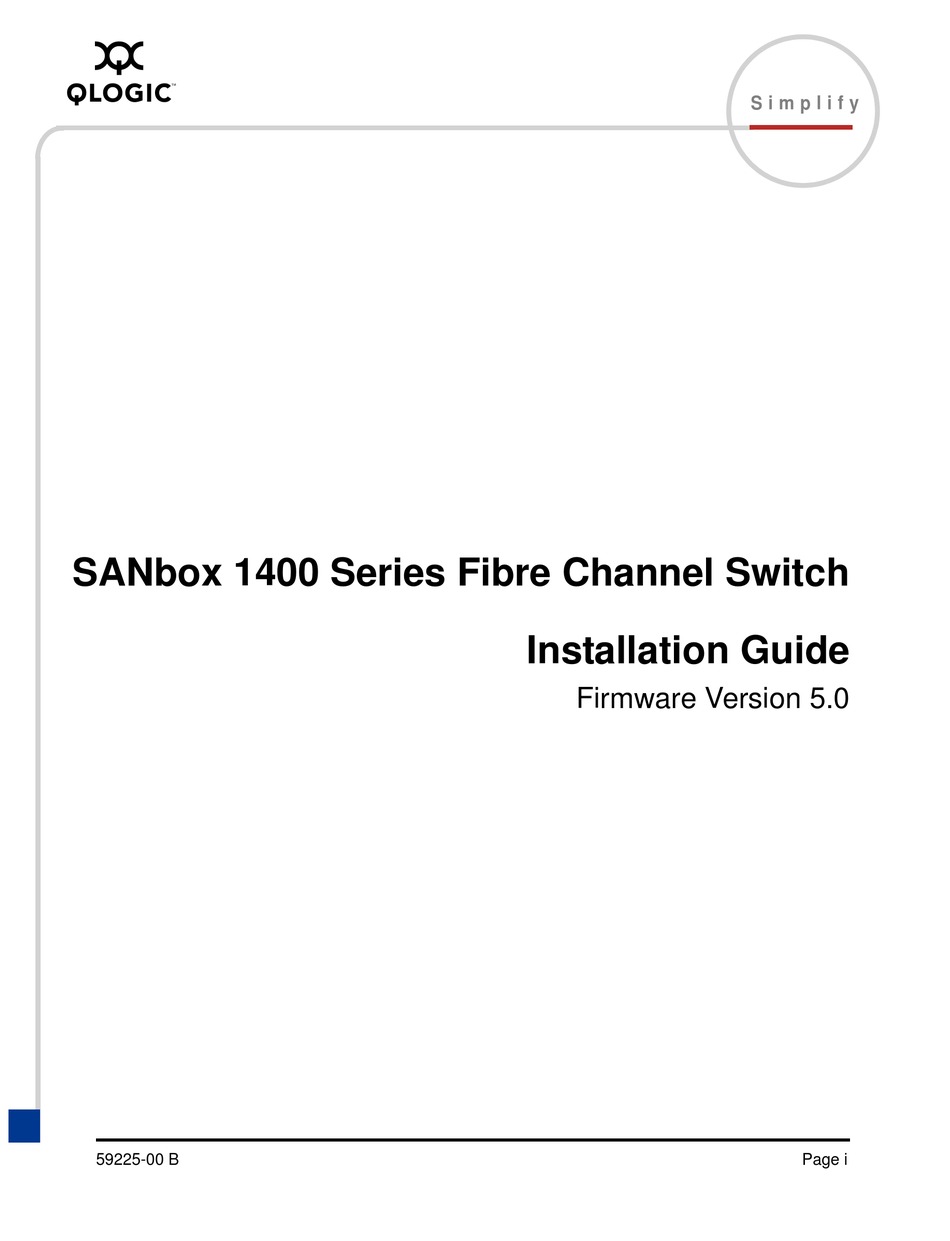

SANbox 1400 Series Fibre Channel Switch

Installation Guide

Firmware Version 5.0
59225-00 B
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANbox 1400 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Qlogic SANbox 1400 Series

Summary of Contents for Qlogic SANbox 1400 Series

  • Page 1: Installation Guide

    S i m p l i f y SANbox 1400 Series Fibre Channel Switch Installation Guide Firmware Version 5.0 59225-00 B Page i...

  • Page 2: Document Revision History

    QLogic Corporation reserves the right to change product specifications at any time without notice. Applications described in this document for any of these products are for illustrative purposes only. QLogic Corporation makes no representation nor warranty that such applications are suitable for the specified use without further testing or modification.

  • Page 3: Table Of Contents

    Table of Contents Section 1 Introduction Intended Audience ..........Related Materials .
  • Page 4 SANbox 1400 Series Fibre Channel Switch Installation Guide 2.1.2 Chassis LEDs ......... . . 2.1.2.1 Input Power LED (Green) .
  • Page 5 SANbox 1400 Series Fibre Channel Switch Installation Guide 4.1.2 Switch Power Requirements ....... . 4.1.3 Environmental Conditions .
  • Page 6 SANbox 1400 Series Fibre Channel Switch Installation Guide 5.3.9 Maintenance – Update Boot Loader ......5-14 Appendix A Specifications Fabric Specifications .
  • Page 7 SANbox 1400 Series Fibre Channel Switch Installation Guide Set Setup Command ........B-57 Show Command .
  • Page 8 SANbox 1400 Series Fibre Channel Switch Installation Guide List of Tables Table Page Zoning Database Limits ..........Port-to-Port Latency .

  • Page 9: Introduction

    Section 1 Introduction This manual describes the features and installation of the SANbox® 1400 Fibre Channel switch, firmware version 5.0. This manual is organized as follows: Section 1 describes the intended audience, related materials, safety notices, communications statements, laser safety information, electrostatic discharge sensitivity precautions, accessible parts, general program license, and technical support.

  • Page 10: Related Materials

    The following manuals and materials are referenced in the text and/or provide additional information. SANbox 1400 Series Switch Management User’s Guide, publication number 59226-00. QLogic Switch Interoperability Guide v3.0. This PDF document can be downloaded at http://www.qlogic.com/interopguide/info.asp#inter. Fibre Channel-Arbitrated Loop (FC-AL-2) Rev. 6.8. Fibre Channel-10-bit Interface Rev. 2.3.

  • Page 11: Safety Notices

    1 – Introduction Safety Notices Safety Notices A Warning notice indicates the presence of a hazard that has the potential of causing personal injury. 4-3, 4-16 A Caution notice indicates the presence of a hazard that has the potential of causing damage to the equipment.

  • Page 12: Communications Statements

    1 – Introduction Communications Statements Communications Statements The following statements apply to this product. The statements for other products intended for use with this product appear in their accompanying manuals. 1.6.1 Federal Communications Commission (FCC) Class A Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 13: Avis De Conformité Aux Normes Du Ministère Des Communications Du Canada

    1 – Introduction Communications Statements 1.6.3 Avis de conformité aux normes du ministère des Communications du Canada Cet équipement ne dépasse pas les limites de Classe A d'émission de bruits radioélectriques por les appareils numériques, telles que prescrites par le Réglement sur le brouillage radioélectrique établi par le ministère des Communications du Canada.

  • Page 14: Vcci Class A Statement

    1 – Introduction Laser Safety Information 1.6.5 VCCI Class A Statement This is a Class A product based on the standard of the Voluntary Control Council For Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.

  • Page 15: Accessible Parts

    1 – Introduction Accessible Parts Accessible Parts The Field Replaceable Units (FRUs) for the SANbox 1400 Series switch are the following: Power supply Small Form-Factor Pluggable (SFP) optical transceivers 1.10 Pièces Accessibles Les pièces remplaçables, Field Replaceable Units (FRU), du commutateur SANbox 1400 Series Fibre Channel Switch sont les suivantes: Alimentation de courant Interfaces aux media d’interconnexion appelés SFP transceivers.

  • Page 16: General Public License

    1.12 General Public License QLogic® Fibre Channel switches are powered by the Linux operating system. A machine-readable copy of the Linux source code is available upon written request to the following address. A nominal fee will be charged for reproduction, shipping, and handling costs in accordance with the General Public License.

  • Page 17: Terms And Conditions For Copying, Distribution And Modification

    1 – Introduction General Public License For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
  • Page 18 1 – Introduction General Public License You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:...
  • Page 19 1 – Introduction General Public License and 2 above on a medium customarily used for software interchange; Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software...
  • Page 20 1 – Introduction General Public License Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.
  • Page 21 1 – Introduction General Public License Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.

  • Page 22: How To Apply These Terms To Your New Programs

    1 – Introduction General Public License 1.12.3 How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.
  • Page 23 1 – Introduction General Public License You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker.

  • Page 24: Technical Support

    Technical Certification courses include installation, maintenance and troubleshooting QLogic SAN products. Upon demonstrating knowledge using live equipment, QLogic awards a certificate identifying the student as a Certified Professional. The training professionals at QLogic may be reached by email at tech.training@qlogic.com. 1-16...

  • Page 25: Contact Information

    1 – Introduction Technical Support 1.13.3 Contact Information Support Headquarters QLogic Corporation 12984 Valley View Road Eden Prairie, MN 55344-3657 QLogic Web Site www.qlogic.com Technical Support Web Site support@qlogic.com Technical Support Email support@qlogic.com Technical Training Email tech.training@qlogic.com North American Region Email support@qlogic.com...
  • Page 26 1 – Introduction Technical Support Notes 1-18 59225-00 B...
  • Page 27 Section 2 General Description This section describes the features and capabilities of the SANbox 1400 Series Fibre Channel switch. The following topics are described: Chassis Controls and LEDs Fibre Channel Ports Ethernet Port Power Supply and Fan Switch Management Fabrics are managed with the SANsurfer Switch Manager™ switch management application (version 5.00) and the Command Line Interface (CLI).

  • Page 28: General Description Chassis Controls And Leds

    2 – General Description Chassis Controls and LEDs Chassis Controls and LEDs The Maintenance button shown in Figure 2-2 is the only chassis control and is used to reset a switch or to recover a disabled switch. The chassis LEDs provide information about the switch’s operational status.

  • Page 29: Placing The Switch In Maintenance Mode

    2 – General Description Chassis Controls and LEDs 2.1.1.2 Placing the Switch in Maintenance Mode To place the switch in maintenance mode, do the following: Isolate the switch from the fabric. Press and hold the Maintenance button with a pointed tool. When the Heartbeat LED alone is illuminated, release the button.

  • Page 30: Heartbeat Led (Green)

    2 – General Description Fibre Channel Ports 2.1.2.2 Heartbeat LED (Green) The Heartbeat LED indicates the status of the internal switch processor and the results of the POST. Following a normal power-up, the Heartbeat LED blinks about once per second to indicate that the switch passed the POST and that the internal switch processor is running.

  • Page 31: Port Leds

    2 – General Description Fibre Channel Ports 2.2.1 Port LEDs Each port has its own Logged-In LED (L) and Activity LED (A) as shown in Figure 2-5. Logged-In Activity LED LED (Green) (Green) Figure 2-5. Port LEDs 2.2.1.1 Port Logged-In LED (Green) The Logged-in LED indicates the logged-in or initialization status of the connected devices.

  • Page 32: Transceivers

    2 – General Description Fibre Channel Ports 2.2.2 Transceivers The SANbox 1400 Series switch supports SFP optical transceivers for the Fibre Channel ports. A transceiver converts electrical signals to and from optical laser signals to transmit and receive data. Duplex fiber optic cables plug into the transceivers which then connect to the devices.

  • Page 33: Ethernet Port

    2 – General Description Ethernet Port Ethernet Port The Ethernet port shown in Figure 2-6 is an RJ-45 connector that provides a connection to a management workstation through a 10/100 Base-T Ethernet cable. A management workstation can be a Windows®, Solaris™, Linux®, or MacOS®...

  • Page 34: Power Supply And Fan

    2 – General Description Power Supply and Fan Power Supply and Fan The external power supply converts standard 110 or 230 VAC to DC voltages for the various switch circuits. One internal fan provides cooling. The switch monitors internal air temperature, and therefore does not monitor or report fan operational status.

  • Page 35: Switch Management

    2 – General Description Switch Management Switch Management The switch supports the following management tools: SANsurfer Switch Manager SANsurfer Switch Manager Web Applet Command Line Interface SANsurfer Switch Manager Application Programming Interface Simple Network Management Protocol File Transfer Protocol 2.5.1 SANsurfer Switch Manager SANsurfer Switch Manager is a workstation-based Java®...

  • Page 36: Command Line Interface

    SANsurfer Switch Manager Application Programming Interface The SANsurfer Switch Manager API enables an application provider to build a management application for QLogic switches. The library is implemented in ANSI standard C, relying only on standard POSIX run-time libraries (except for the Windows NT build).

  • Page 37: Planning

    Section 3 Planning Consider the following when planning a fabric: Devices Device Access Performance Fabric Security Fabric Management Devices When planning a fabric, consider the number of public devices and the anticipated demand. This will determine the number of ports that are needed and in turn the number of switches.

  • Page 38: Device Access

    3 – Planning Device Access Device Access Consider device access needs within the fabric. Access is controlled by the use of zones and zone sets. Some zoning strategies include the following: Group devices by operating system. Separate devices that have no need to communicate with other devices in the fabric or have classified data.

  • Page 39: Soft Zones

    3 – Planning Device Access 3.2.1 Soft Zones Soft zoning divides the fabric for purposes of controlling device discovery. Devices in the same soft zone automatically discover and communicate freely with all other members of the same zone. The soft zone boundary is not secure; traffic across soft zones can occur if addressed correctly.

  • Page 40: Performance

    3 – Planning Performance Performance The SANbox 1400 Series switch supports class 2 and class 3 Fibre Channel service with a maximum frame size of 2148 bytes at transmission rates of 1-Gbps, 2-Gbps, or 4-Gbps. A switch port adapts its transmission speed to match that of the device to which it is connected prior to login when the connected device powers up.

  • Page 41: Bandwidth

    3 – Planning Performance 3.3.2 Bandwidth Bandwidth is a measure of the volume of data that can be transmitted at a given transmission rate. A Fibre Channel port can transmit or receive at nominal rates of 1-Gbps, 2-Gbps, or 4-Gbps depending on the device to which it is connected. This corresponds to actual bandwidth values of 103 MB, 206 MB, and 412 MB respectively.

  • Page 42: Multiple Chassis Fabrics

    3 – Planning Multiple Chassis Fabrics Multiple Chassis Fabrics By connecting switches together you can expand the number of available ports for devices. Each switch in the fabric is identified by a unique domain ID, and the fabric can automatically resolve domain ID conflicts. Because the Fibre Channel ports are self-configuring, you can connect SANbox 1400 Series switches together in a wide variety of topologies.

  • Page 43: Domain Id, Principal Priority, And Domain Id Lock

    3 – Planning Multiple Chassis Fabrics 3.4.2 Domain ID, Principal Priority, and Domain ID Lock The following switch configuration settings affect multiple chassis fabrics: Domain ID Principal priority Domain ID lock The domain ID is a unique number from 1–239 that identifies each switch in a fabric.

  • Page 44: Fabric Security

    3 – Planning Fabric Security Fabric Security Fabric security consists of the following: User Account Security Fabric Services 3.5.1 User Account Security User account security consists of the administration of account names, passwords, expiration date, and authority level. If an account has Admin authority, all management tasks can be performed by that account in both SANsurfer Switch Manager™...

  • Page 45: Fabric Management

    3 – Planning Fabric Management Fabric Management The SANsurfer Switch Manager application and CLI execute on a management workstation that provides for the configuration, control, and maintenance of multiple fabrics. Supported platforms include Windows, Solaris, Linux, and MacOS X. The application can be installed and executed on the workstation, or you can run the SANsurfer Switch Manager web applet that is resident on the switch.
  • Page 46 3 – Planning Fabric Management Notes 3-10 59225-00 B...

  • Page 47: Installation

    Section 4 Installation This section describes how to install and configure the SANbox 1400 Series switch. It also describes how to load new firmware and how to recover a disabled switch. Site Requirements Consider the following items when installing a SANbox 1400 Series switch: Fabric Management Workstation Switch Power Requirements Environmental Conditions...

  • Page 48: Switch Power Requirements

    4 – Installation Installing a Switch 4.1.2 Switch Power Requirements Power requirements are 0.25 Amp at 120 VAC or 0.125 A at 240 VAC. 4.1.3 Environmental Conditions Consider the factors that affect the climate in your facility such as equipment heat dissipation and ventilation.

  • Page 49: Mount The Switch

    Adhesive rubber feet are provided for surface mounts. Without the rubber feet, the switch occupies 1U of space in an EIA rack. Rack mounting requires the use of a rail kit which is available from QLogic. WARNING!! Mount switches in the rack so that the weight is distributed evenly.

  • Page 50: Install Transceivers

    4 – Installation Installing a Switch 4.2.2 Install Transceivers The switch supports a variety of SFP transceivers. To install a transceiver, insert the transceiver into the port and gently press until it snaps in place. To remove a transceiver, gently press the transceiver into the port to release the tension, then pull on the release tab or lever and remove the transceiver.

  • Page 51: Connect The Workstation To The Switch

    4 – Installation Installing a Switch 4.2.3 Connect the Workstation to the Switch You can manage the switch using SANsurfer Switch Manager or the command line interface through an Ethernet connection to the switch. Choose a switch management method, then connect the management workstation to the switch in one of the following ways: Indirect Ethernet connection from the management workstation to the switch RJ-45 Ethernet connector through an Ethernet switch or a hub.

  • Page 52: Configure The Workstation

    4 – Installation Installing a Switch 4.2.4 Configure the Workstation If you plan to use the command line interface to configure and manage the switch, you must configure the workstation. This involves setting the workstation IP address for Ethernet connections. If you plan to use SANsurfer Switch Manager to manage the switch, the Configuration Wizard manages the workstation IP address for you –...

  • Page 53: Install The Management Application

    You can manage the switch using SANsurfer Switch Manager as a standalone application or as a part of SANsurfer Management Suite™. SANsurfer Management Suite is QLogic’s integrated fabric management application, managing both HBAs and switches. If your switch was shipped with a SANsurfer Switch Manager Disk, refer to “SANsurfer Switch Manager”...
  • Page 54 4 – Installation Installing a Switch For a Linux platform: Open the CD and run the installation program with the following path: Switch_Manager/Linux_5.00.xx.bin If there is no CD-ROM icon, do the following: Open an xterm or other terminal window. Mount the CD-ROM. From a shell prompt, enter the following command: mount /mnt/cdrom Change directory to location of the install program: cd /mnt/cdrom/Switch_Manager/Linux...

  • Page 55: Sansurfer Management Suite

    4 – Installation Installing a Switch 4.2.5.2 SANsurfer Management Suite The following instructions describe how to install SANsurfer Management Suite and upgrade SANsurfer Switch Manager. You can install SANsurfer Management Suite (SMS) on a Windows, Linux, or Solaris workstation. Choose the instructions for your workstation: SMS Installation for Windows SMS Installation for Linux...
  • Page 56 When prompted for the location in which to create the program icons, click the In an Existing Group radio button, then specify the same group that was used for the SMS installation. The default SMS group is "QLogic Management Suite". Click the Next button.

  • Page 57: Sms Installation For Linux

    4 – Installation Installing a Switch 4.2.5.2.2 SMS Installation for Linux Close all programs currently running, and insert the SANsurfer Management Suite Installation Disk into the management workstation CD-ROM drive. If a file browser dialog opens showing icons for the contents of the CD-ROM, double-click the Start_Here.htm file to open the SANsurfer Management Suite start page.
  • Page 58 About ... and make note of the release version number. Close SANsurfer Management Suite. To ensure that you are using the most recent version of SANsurfer Switch Manager, visit the QLogic support web page and go to Drivers, Software and Manuals.

  • Page 59: Sms Installation For Solaris

    4 – Installation Installing a Switch 4.2.5.2.3 SMS Installation for Solaris To install the SANsurfer Switch Manager application on Solaris from the SANsurfer Management Suite CD-ROM, do the following: Insert the SANsurfer Management Suite Disk into the management workstation CD-ROM drive. If the SANsurfer Management Suite start page does not open in your default browser, do the following: Right-click the Workspace Menu.
  • Page 60 4 – Installation Installing a Switch To ensure that you are using the most recent version of SANsurfer Switch Manager, visit the QLogic support web page and go to Drivers, Software and Manuals. Select your switch model from the pull-down menu. Locate the description for SANsurfer Switch Manager for Linux under "Management Software".

  • Page 61: Start Sansurfer Switch Manager

    4 – Installation Installing a Switch 4.2.6 Start SANsurfer Switch Manager You can start SANsurfer Switch Manager as a standalone application or from SANsurfer Management Suite. NOTE: After the switch is operational, you can also open the SANsurfer Switch Manager web applet, by entering the switch IP address in an internet browser.

  • Page 62: Connect The Switch To Ac Power

    4 – Installation Installing a Switch 4.2.7 Connect the Switch to AC Power WARNING!! This product is supplied with a 3-wire power cable and plug for the user’s safety. Use this power cable in conjunction with a properly grounded outlet to avoid electrical shock. An electrical outlet that is not correctly wired could place hazardous voltage on metal parts of the switch chassis.
  • Page 63 4 – Installation Installing a Switch WARNUNG!! Dieses Produkt wird mit einem 3-adrigen Netzkabel mit Stecker geliefert. Dieses Kabel erfüllt die Sicherheitsanforderungen und sollte an einer vorschriftsmäßigen Schukosteckdose angeschlossen werden, um die Gefahr eines elektrischen Schlages zu vermeiden.Elektrosteckdosen, die nicht richtig verdrahtet sind, können gefährliche Hochspannung an den Metallteilen des switch-Gehäuses verursachen.

  • Page 64: Configure The Switch

    4 – Installation Installing a Switch 4.2.8 Configure the Switch You can configure the switch using the SANsurfer Switch Manager application or the command line interface. To configure the switch using SANsurfer Switch Manager, click the Open Configuration Wizard radio button in the Initial Start dialog, then click the Proceed button.

  • Page 65: Cable Devices To The Switch

    4 – Installation Installing a Switch To configure the switch using the command line interface, do the following: Open a Telnet session with the default switch IP address and log in to the switch with default account name and password (admin/password). telnet 10.0.0.1 Switch Login: admin Password:...

  • Page 66: Install Firmware

    4 – Installation Install Firmware Install Firmware The switch comes with current firmware installed. You can upgrade the firmware from the management workstation as new firmware becomes available. You can use the SANsurfer Switch Manager application or the CLI to install new firmware. NOTE: You can load and activate version 5.0 firmware on an operating switch without disrupting data traffic or having to re-initialize attached devices.

  • Page 67: Using Sansurfer Switch Manager To Install Firmware

    4 – Installation Install Firmware 4.3.1 Using SANsurfer Switch Manager to Install Firmware To install firmware using SANsurfer Switch Manager, do the following: Select a switch in the topology display and double-click to open the Faceplate display. Open the Switch menu and select Load Firmware. In the Firmware Upload window, click the Select button to browse and select the firmware file to be uploaded.

  • Page 68: Using The Cli To Install Firmware

    4 – Installation Install Firmware 4.3.2 Using the CLI to Install Firmware To install firmware using the CLI when a File Transfer Protocol (FTP) server is present on the management workstation, use the Firmware Install command. This command downloads the firmware from a remote host, installs the firmware, and performs a disruptive firmware activation.

  • Page 69: Diagnostics/Troubleshooting

    Section 5 Diagnostics/Troubleshooting Diagnostic information about the switch is available through the chassis LEDs and the port LEDs. Diagnostic information is also available through the SANsurfer Switch Manager and CLI event logs and error displays. This section describes the following types of diagnostics: Chassis Diagnostics describes the Input Power LED and System Fault LED indications.

  • Page 70: Input Power Led Is Extinguished

    5 – Diagnostics/Troubleshooting Chassis Diagnostics 5.1.1 Input Power LED Is Extinguished The Input Power LED illuminates to indicate that the switch logic circuitry is receiving proper voltages. If the Input Power LED is extinguished, do the following: Inspect the power cords and connectors. Is the cord unplugged? Is the cord or connector damaged? Yes - Make necessary corrections or repairs.

  • Page 71: Power-On Self Test Diagnostics

    5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics Power-On Self Test Diagnostics The switch performs a series of tests as part of its power-up procedure. The POST diagnostic program performs the following tests: Checksum tests on the boot firmware in PROM and the switch firmware in flash memory Internal data loopback test on all ports Access and integrity test on the ASIC...

  • Page 72: Internal Firmware Failure Blink Pattern

    5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics 5.2.1.1 Internal Firmware Failure Blink Pattern An internal firmware failure blink pattern is 2 blinks followed by a two second pause. The 2-blink error pattern indicates that the firmware has failed, and that the switch must be reset.
  • Page 73 5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics To recreate the configuration file, do the following: CAUTION! Recreating the configuration file will delete all switch configuration settings. Place the switch in maintenance mode. Press and hold the Maintenance button until the Heartbeat LED alone is illuminated, then release the button. Establish a Telnet session using the default IP address 10.0.0.1.
  • Page 74 5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics Activate binary mode and copy the configuration file from the workstation to the switch. The configuration file must be named "configdata". ftp>bin ftp>put configdata Close the FTP session. ftp>quit Establish communications with the switch using Telnet. Enter one of the following on the command line: telnet xxx.xxx.xxx.xxx telnet switchname...

  • Page 75: Over Temperature Blink Pattern

    5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics 5.2.1.4 Over Temperature Blink Pattern An over temperature blink pattern is 5 blinks followed by a two second pause. The 5-blink error pattern indicates that the air temperature inside the switch has exceeded the failure temperature threshold. The failure temperature threshold is 70°...

  • Page 76: Logged-In Led Indications

    5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics 5.2.2 Logged-In LED Indications Port diagnostics are indicated by the Logged-In LED for each port as shown in Figure 5-2. Logged-In LED Figure 5-2. Logged-In LED The Logged-In LED has three indications: Continuous illumination: A device is logged in to the port. Flashing once per second: A device is logging in to the port.
  • Page 77 5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics Review the event browser and do the following to diagnose and correct an isolated E_Port: Does the event browser show a repeating alarm about an unsupported E_Port command on the affected port? Yes - The port is configured as an FL_Port and connected to another switch.

  • Page 78: Excessive Port Errors

    5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics 5.2.2.2 Excessive Port Errors The switch can monitor a set of port errors and generates alarms based on user-defined sample windows and thresholds. These port errors include the following: CRC errors Decode errors ISL connection count Login errors Logout errors...

  • Page 79: Recovering A Switch

    5 – Diagnostics/Troubleshooting Recovering a Switch Reset the port, then perform an external port loopback test to validate the port and the SFP. Refer to the “Test Command” on page B-91 or the SANbox 1400 Series Switch Management User’s Guide for information about testing ports.

  • Page 80: Maintenance - Exit

    5 – Diagnostics/Troubleshooting Recovering a Switch To recover a switch, do the following: Place the switch in maintenance mode. Press and hold the Maintenance button with a pointed tool. When the Heartbeat LED alone is illuminated, release the button. Establish a Telnet session with the switch using the maintenance mode IP address 10.0.0.1.

  • Page 81: Maintenance - Image Unpack

    5 – Diagnostics/Troubleshooting Recovering a Switch 5.3.2 Maintenance – Image Unpack This option unpacks and installs new firmware when the current firmware has become corrupt. Before using this option, you must load the new firmware image file onto the switch. The steps to install new firmware using this option are as follows: Place the switch in maintenance mode.

  • Page 82: Maintenance - Copy Log Files

    5 – Diagnostics/Troubleshooting Recovering a Switch 5.3.5 Maintenance – Copy Log Files This option copies all log file buffers to a file on the switch named logfile. You can use FTP to download this file to the management workstation. You must download the logfile before resetting the switch.

  • Page 83: Fabric Specifications

    Appendix A Specifications This appendix contains the specifications for the SANbox 1400 Series Fibre Channel switch. Refer to Section 2 General Description for the location of all connections, switches, controls, and components. Fabric Specifications Fibre Channel Protocols ....FC-PH Rev. 4.3 FC-PH-2 FC-PH-3 FC-AL Rev 4.6...

  • Page 84: Maintainability

    A – Specifications Maintainability Scalability........Up to 239 switches depending on configuration Maximum User Ports ...... Over 475,000 ports depending on configuration Buffer Credits........8 buffer credits per port, ASIC embedded memory Media Type ........SFP optical transceiver, hot-pluggable Fabric Port Speed ......1.03, 2.06, or 4.12-Gbps Maximum Frame Size.....

  • Page 85: Fabric Management

    A – Specifications Fabric Management Fabric Management Management Methods ....SANsurfer Switch Manager Application Programming Interface Command Line Interface GS-3 Management Server SNMP Ethernet Connection ....... RJ-45 connector; 10/100 BASE-T cable Switch Agent........Allows a network management station to obtain configuration values, traffic information, and failure data pertaining to the Fibre Channels using SNMP through the Ethernet interface.

  • Page 86: Environmental

    A – Specifications Environmental Environmental Temperature Operating ........5 to 40°C (41 to 104°F) Non-operating ......-40 to 70°C (-40 to 158°F) Humidity Operating ........15% to 80%, non-condensing Non-operating ......25% to 90%, non-condensing Altitude Operating ........0 to 3048m (0 to 10,000 feet) Non-operating ......

  • Page 87: Regulatory Certifications

    A – Specifications Regulatory Certifications Regulatory Certifications Safety Standards ......UL60950:2000 CSA 22.2 No. 60950-00 (Canada) EN60950:2000 (EC) CB Scheme-IEC 60950:1999 Emissions Standards ...... FCC Part 15B Class A ICES-03 Issue 3 VCCI Class A ITE CISPR 22, Class A EN 55022, Class A Voltage Fluctuations .......
  • Page 88 A – Specifications Regulatory Certifications Notes 59225-00 B...

  • Page 89: Appendix B Command Line Interface

    Appendix B Command Line Interface The command line interface (CLI) enables you to perform a variety of fabric and switch management tasks through an Ethernet connection. This section describes the following: Logging On to a Switch User Accounts Working with Switch Configurations Commands Logging On to a Switch To log on to a switch using Telnet, open a command line window on the...

  • Page 90: B.2 User Accounts

    B – Command Line Interface User Accounts User Accounts Switches come from the factory with the following user account already defined: Account name: admin Password: password Authority: Admin This user account provides full access to the switch and its configuration. After planning your fabric management needs and creating your own user accounts, consider changing the password for this account.

  • Page 91: Modifying A Configuration

    B – Command Line Interface Working with Switch Configurations B.3.1 Modifying a Configuration A switch supports up to 10 configurations including the default configuration. Each switch configuration contains switch, port, port threshold alarm, and zoning configuration components. The Show Switch command displays the name of the active configuration. A configuration name can have up to 31 characters excluding the pound symbol (#), semicolon (;), and comma (,).

  • Page 92: Backing Up And Restoring Switch Configurations

    B – Command Line Interface Working with Switch Configurations The Config Save command saves the changes you made during the Config Edit session. In this case, changes to the configuration named Default are being saved to a new configuration named config_10132003. However, the new configuration does not take effect until you activate it with the Config Activate command as shown: SANbox (admin-config)#>...
  • Page 93 B – Command Line Interface Working with Switch Configurations You use FTP to download the configdata file to your workstation for safe keeping and to upload the file back to the switch for the restore function. To download the configdata file, open an FTP session on the switch and login with the account name images and password images.

  • Page 94: Commands

    B – Command Line Interface Commands Commands The command syntax is as follows: command keyword keyword [value] keyword [value1] [value2] The Command is followed by one or more keywords. Consider the following rules and conventions: Commands and keywords are case insensitive. Required keyword values appear in standard font: [value].

  • Page 95: Commands Listed By Authority Level

    B – Command Line Interface Commands The command set performs monitoring and configuration tasks. Commands related to monitoring tasks are available to all account names. Commands related to configuration tasks are available only within an admin session. An account must have Admin authority to enter the Admin Start command, which opens an admin session.

  • Page 96: Admin Command

    B – Command Line Interface Admin Command Admin Command Opens and closes an Admin session. The Admin session provides commands that change the fabric and switch configurations. Only one Admin session can be open on the switch at any time. An inactive Admin session will time out after a period of time which can be changed using the Set Setup System command.

  • Page 97: Alias Command

    B – Command Line Interface Alias Command Alias Command Creates a named set of ports/devices. Aliases make it easier to assign a set of ports/devices to many zones. An alias can not have a zone or another alias as a member.
  • Page 98 B – Command Line Interface Alias Command delete [alias] Deletes the specified alias given by [alias] from the zoning database. If the alias is a member of the active zone set, the alias will not be removed from the active zone set until the active zone set is deactivated.

  • Page 99: Config Command

    B – Command Line Interface Config Command Config Command Manages the Fibre Channel configurations on a switch. For information about setting the port and switch configurations, refer to the “Set Config Command” on page B-40. Authority Admin session for all keywords except List Syntax config activate [config_name]...
  • Page 100 B – Command Line Interface Config Command edit [config_name] Opens an edit session for the configuration given by [config_name]. If you omit [config_name], the currently active configuration is used. list Displays a list of all available configurations on the switch. This keyword does not require an admin session.
  • Page 101 B – Command Line Interface Config Command The following is an example of how to create a backup file (configdata) and download the file to the workstation. SANbox #> admin start SANbox (admin) #> config backup SANbox (admin) #> admin end SANbox #>...

  • Page 102: Create Support Command

    B – Command Line Interface Create Support Command Create Support Command Assembles all log files and switch memory data into a core dump file (dump_support.tgz zip) and prompts you to send it to a remote host. This file is useful to technical support personnel for troubleshooting switch problems. Use this command when directed by your authorized maintenance provider.
  • Page 103 B – Command Line Interface Create Support Command Examples The following is an example of the Create Support command: SANbox (admin) #> create support Log Msg: [day month date time UTC 2004][C][8400.003B][Switch][Creating the support file - this will take several seconds] FTP the dump support file to another machine? (y/n): y Enter IP Address of remote computer: 10.20.33.130 Login name: johndoe...

  • Page 104: Date Command

    B – Command Line Interface Date Command Date Command This command displays or sets the system date and time. To set the date and time the information string must be provided in this format: MMDDhhmmCCYY. The new date and time takes effect immediately. Network Time Protocol (NTP) must be disabled to set the time with the Date command.

  • Page 105: Feature Command

    B – Command Line Interface Feature Command Feature Command Displays the license key feature log. Authority None Syntax feature add [license_key] Keywords add [license_key] This keyword does not apply to this switch because there are no licensable features. Displays a list of installed license key features. 59225-00 B B-17...

  • Page 106: Firmware Install Command

    B – Command Line Interface Firmware Install Command Firmware Install Command Downloads firmware from a remote host to the switch, installs the firmware, then resets the switch to activate the firmware. This is disruptive to I/O traffic. To perform a non-disruptive firmware installation, refer to the “Image Command”...

  • Page 107: Hardreset Command

    B – Command Line Interface Hardreset Command Hardreset Command Resets the switch and performs a power-on self test. This reset disrupts traffic, activates the pending firmware, and clears the alarm log. To save the alarm log before resetting, refer to the “Set Log Command”...

  • Page 108: Help Command

    B – Command Line Interface Help Command Help Command Displays a brief description of the specified command, its keywords, and usage. Authority None Syntax help [command] [keyword] Keywords [command] Displays a summary of the command given by [command] and its keywords. If you omit [command], the system displays all available commands.

  • Page 109: History Command

    B – Command Line Interface History Command History Command Displays a numbered list of the previously entered commands from which you can re-execute selected commands. Authority None Syntax history Notes Use the History command to provide context for the ! command: Enter ![command_string] to re-execute the most recent command that matches [command_string].

  • Page 110: Hotreset Command

    B – Command Line Interface Hotreset Command Hotreset Command Resets the switch for the purpose of activating the pending firmware without disrupting traffic. This command terminates all management sessions, saves all configuration information, and clears the event log. After the pending firmware is activated, the configuration is recovered.

  • Page 111: Image Command

    B – Command Line Interface Image Command Image Command Manages and installs switch firmware. Authority Admin session Syntax image cleanup fetch [account_name] [ip_address] [file_source] [file_destination] install list unpack [file] Keywords cleanup Removes all firmware image files from the switch. All firmware image files are removed automatically each time the switch is reset.
  • Page 112 B – Command Line Interface Image Command To install firmware when the management workstation does not have an FTP server, do the following: Connect to the switch through the Ethernet port. Move to the folder or directory on the workstation that contains the new firmware image file.
  • Page 113 B – Command Line Interface Image Command Wait for the unpack to complete. image unpack command result: Passed A message will prompt you to reset the switch to activate the firmware. Resetting the switch is disruptive. Use the Hotreset command to attempt a non-disruptive activation.

  • Page 114: Lip Command

    B – Command Line Interface Lip Command Lip Command Reinitializes the specified loop port. Authority Admin session Syntax lip [port_number] Keywords [port_number] The number of the port to be reinitialized. Ports are numbered beginning with 0. Examples The following is an example of the Lip command: SANbox (admin) #>...

  • Page 115: Passwd Command

    B – Command Line Interface Passwd Command Passwd Command Changes a user account’s password. Authority Admin account name and an admin session to change another account’s password; You can change you own password without an Admin session. Syntax passwd [account_name] Keywords [account_name] The user account name.

  • Page 116: Ping Command

    B – Command Line Interface Ping Command Ping Command Initiates an attempt to communicate with another switch over an Ethernet network and reports the result. Authority None Syntax ping ip_address Keywords ip_address The IP address of the switch to query. Examples The following is an example of a successful Ping command: SANbox #>...

  • Page 117: Ps Command

    B – Command Line Interface Ps Command Ps Command Displays current system process information. Authority None Syntax Examples The following is an example of the Ps command: SANbox #> ps PPID %CPU TIME ELAPSED COMMAND 0.0 00:00:00 3-01:18:35 cns 0.0 00:00:01 3-01:18:35 ens 0.0 00:00:21 3-01:18:35 dlog...

  • Page 118: Quit Command

    B – Command Line Interface Quit Command Quit Command Closes the Telnet session. Authority None Syntax quit, exit, or logout Notes You can also enter Control-D to close the Telnet session. B-30 59225-00 B...

  • Page 119: Reset Command

    B – Command Line Interface Reset Command Reset Command Resets the switch configuration parameters. If you omit the keyword, the default is Reset Switch. Authority Admin session Syntax reset config [config_name] factory port [port_number] snmp switch (default) system zoning Keywords config [config_name] Resets the configuration given by [config_name] to the factory default values for switch, port, port threshold alarm, and zoning configuration.

  • Page 120: Switch Configuration Defaults

    B – Command Line Interface Reset Command switch Resets the switch without a power-on self test. This is the default. This reset disrupts traffic and does the following: Activates the pending firmware. Closes all management sessions. Clears the event log. To save the event log before resetting, refer to the “Set Log Command”...

  • Page 121: Port Configuration Defaults

    B – Command Line Interface Reset Command Table B-3. Switch Configuration Defaults Parameter Default Principal Priority Configuration Description Default Config InteropMode Standard LegacyAddressFormat False Table B-4. Port Configuration Defaults Parameter Default Admin State Online Link Speed Auto Port Type Symbolic Name Port n, where n is the port number ALFairness False...

  • Page 122: Port Threshold Alarm Configuration Defaults

    B – Command Line Interface Reset Command Table B-5. Port Threshold Alarm Configuration Defaults Parameter Default ThresholdMonitoringEnabled False CRCErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow DecodeErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow ISLMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LoginMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow LogoutMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow...

  • Page 123: Zoning Configuration Defaults

    B – Command Line Interface Reset Command Table B-6. Zoning Configuration Defaults Parameter Default InteropAutoSave True DefaultVisibility DiscardInactive False Table B-7. SNMP Configuration Defaults Parameter Default SNMPEnabled True Contact <syscontact undefined> Location <sysLocation undefined> Description SANbox 1400 FC Switch Trap [1-5] Address Trap 1: 10.0.0.254;...

  • Page 124: System Configuration Defaults

    B – Command Line Interface Reset Command Table B-8. System Configuration Defaults Parameter Default Ethernet Network Discovery Static Ethernet Network IP Address 10.0.0.1 Ethernet Network IP Mask 255.0.0.0 Ethernet Gateway Address 10.0.0.254 Admin Timeout 30 minutes InactivityTimeout LocalLogEnabled True RemotelogEnabled False RemoteLogHostAddress 10.0.0.254...

  • Page 125: Set Command

    B – Command Line Interface Set Command Set Command Sets a variety of switch parameters. Authority Admin session for all keywords except Alarm, Beacon, and Pagebreak which are available without an Admin session. Syntax alarm [option] beacon [state] config [option] log [option] pagebreak [state] port [option]...
  • Page 126 B – Command Line Interface Set Command log [option] Specifies the type of entries to be entered in the event log. Refer to the “Set Log Command” on page B-51. pagebreak [state] Specifies how much information is displayed on the screen at a time according to the value given by [state].
  • Page 127 B – Command Line Interface Set Command timezone Specifies the time zone for the switch and the workstation. The default is Universal Time (UTC) also known as Greenwich Mean Time (GMT). This keyword prompts you to choose a region, then a subregion to specify the time zone. Examples The following examples enables and disables the beacon: SANbox #>...

  • Page 128: B-9 Set Config Port Parameters

    B – Command Line Interface Set Config Command Set Config Command Sets switch, port, port threshold alarm, and zoning configuration parameters. The changes you make with this command are not retained when you reset or power cycle the switch unless you save them using the Config Save command. Refer to “Config Command”...

  • Page 129: Set Config Port Parameters

    B – Command Line Interface Set Config Command Table B-9. Set Config Port Parameters (Continued) Parameter Description LinkSpeed Transmission speed: 1-Gbps, 2-Gbps, 4-Gbps, or Auto. The default is Auto. PortType Port type: GL, G, F, FL, Donor. The default is GL. SymbolicPortName Descriptive name for the port.
  • Page 130 B – Command Line Interface Set Config Command Table B-9. Set Config Port Parameters (Continued) Parameter Description AutoPerfTuning Automatic performance tuning for FL_Ports only. The default is True. If AutoPerfTuning is enabled (True) and the port is an FL_Port, MFSEnable is automatically enabled. LCFEnable and VIEnable are overridden to False.

  • Page 131: Set Config Switch Parameters

    Disable – Allows free transmission and reception of RSCN messages. Auto – Suppresses the reception of RSCN mes- sages under the following conditions: 1) The port is connected to an initiator device with a QLogic HBA, 2) The DeviceScanEnable parameter is enabled. Auto is the default. PDISCPingEnable...
  • Page 132 B – Command Line Interface Set Config Command Table B-10. Set Config Switch Parameters (Continued) Parameter Description FDMIEntries The number of device entries to maintain in the FDMI database. Enter a number from 0–1000. The default is 1000. DefaultDomainID Default domain ID. The default is 1. DomainIDLock Prevents (True) or allows (False) dynamic reassign- ment of the domain ID.

  • Page 133: Set Config Threshold Parameters

    B – Command Line Interface Set Config Command threshold Initiates a configuration session by which to generate and log alarms for selected events. The system displays each event, its triggers, and sampling window one line at a time and prompts you for a value. For each parameter, enter a new value or press the Enter key to accept the current value shown in brackets.

  • Page 134: Set Config Zoning Parameters

    B – Command Line Interface Set Config Command zoning Initiates an editing session in which to change switch zoning attributes. The system displays each parameter one line at a time and prompts you for a value. For each parameter, enter a new value or press the Enter key to accept the current value shown in brackets.
  • Page 135 B – Command Line Interface Set Config Command Examples The following is an example of the Set Config Port command: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config port 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 136 B – Command Line Interface Set Config Command The following is an example of the Set Config Switch command: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config switch A list of attributes with formatting and default values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 137 B – Command Line Interface Set Config Command The following is an example of the Set Config Threshold command: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config threshold A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 138 B – Command Line Interface Set Config Command The following is an example of the Set Config Zoning command. SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config zoning A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.

  • Page 139: Set Log Command

    B – Command Line Interface Set Log Command Set Log Command Specifies the events to record in the event log and display on the screen. You determine what events to record in the switch event log using the Component, Level, and Port keywords. You determine what events are automatically displayed on the screen using the Display keyword.
  • Page 140 B – Command Line Interface Set Log Command Eport Monitors all E_Ports. Mgmtserver Monitors management server status. Nameserver Monitors name server status. None Monitor none of the component events. Other Monitors other miscellaneous events. Port Monitors all port events. SNMP Monitors all SNMP events.
  • Page 141 B – Command Line Interface Set Log Command None Specifies no severity levels for display on the screen. level [filter] Specifies the severity level given by [filter] to use in monitoring and logging events for the specified components or ports. [filter] can be one of the following values: Critical Monitors critical events.
  • Page 142 B – Command Line Interface Set Log Command save Saves the log settings for the component, severity level, port, and display level. These settings remain in effect after a switch reset. The log settings can be viewed using the Show Log Settings command. To export log entries to a file, use the Set Log Archive command.

  • Page 143: Set Port Command

    B – Command Line Interface Set Port Command Set Port Command Sets port state and speed for the specified port temporarily until the next switch reset or new configuration activation. This command also clears port counters. Authority Admin session except for the Clear keyword. Syntax set port [port_number] bypass [alpa]...
  • Page 144 B – Command Line Interface Set Port Command state [state] Specifies one of the following administrative states for the specified port: Online Places the port online. This activates and prepares the port to send data. Offline Places the port offline. This prevents the port from receiving signal and accepting a device login.

  • Page 145: Set Setup Command

    B – Command Line Interface Set Setup Command Set Setup Command Changes SNMP and system configuration settings. The switch maintains one SNMP configuration and one system configuration. Authority Admin session Syntax set setup snmp system Keywords snmp Prompts you in a line-by-line fashion to change SNMP configuration settings. Table B-13 describes the SNMP fields.

  • Page 146: System Configuration Settings

    B – Command Line Interface Set Setup Command Table B-13. SNMP Configuration Settings (Continued) Entry Description ReadCommunity Read community password that authorizes an SNMP agent to read information from the switch. This is a write-only field. The value on the switch and the SNMP management server must be the same.
  • Page 147 B – Command Line Interface Set Setup Command Table B-14. System Configuration Settings (Continued) Entry Description Eth0NetworkMask Ethernet subnet mask address. Eth0GatewayAddress Ethernet IP address gateway. AdminTimeout Amount of time in minutes the switch waits before ter- minating an idle Admin session. Zero (0) disables the time out threshold.
  • Page 148 B – Command Line Interface Set Setup Command Examples The following is an example of the Set Setup SNMP command: SANbox #> admin start SANbox (admin) #> set setup snmp A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
  • Page 149 B – Command Line Interface Set Setup Command The following is an example of the Set Setup System command: SANbox (admin) #> set setup system A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.

  • Page 150: Show Command

    B – Command Line Interface Show Command Show Command Displays fabric, switch, and port operational information. Authority None Syntax show about alarm [option] broadcast chassis config [option] domains donor fabric fdmi [port_wwn] interface log [option] lsdb mem [count] ns [option] pagebreak perf [option] port [port_number]...
  • Page 151 B – Command Line Interface Show Command alarm [option] Displays the alarm log and session display setting. If you omit [option], the command displays the last 200 alarm entries. The alarm log is cleared when the switch is reset or power cycled. [option] has the following value: setting Displays the status of the parameter that controls the display of alarms in the session output stream.
  • Page 152 B – Command Line Interface Show Command lsdb Displays Link State database information mem [count] Displays information about memory activity for the number of seconds given by [count]. If you omit [count], the value 1 is used. Displayed memory values are in 1K block units.

  • Page 153: Show Port Parameters

    B – Command Line Interface Show Command port [port_number] Displays operational information for the port given by [port_number]. Ports are numbered beginning with 0. If [port number] is omitted, information is displayed for all ports. Table B-15 describes the port parameters. Table B-15.
  • Page 154 B – Command Line Interface Show Command Table B-15. Show Port Parameters (Continued) Entry Description LIP_F8_AL_PS This LIP denotes a loop failure detected by the L_Port identi- fied by AL_PS. LIP_F7_F7 A loop initialization primitive frame used to acquire a valid AL_PA.
  • Page 155 B – Command Line Interface Show Command Table B-15. Show Port Parameters (Continued) Entry Description TotalTxFrames Total number of frames issued by this port. TotalTxWords Total number of words issued by this port. TxLinkResets Number of Link Resets issued by this port. TxOfflineSeq Total number of Offline Sequences issued by this port.

  • Page 156: Switch Operational Parameters

    B – Command Line Interface Show Command support Executes a series of commands that display a complete description of the switch, its configuration, and operation. The display can be captured from the screen and used for diagnosing problems. This keyword is intended for use at the request of your authorized maintenance provider.
  • Page 157 B – Command Line Interface Show Command Table B-16. Switch Operational Parameters (Continued) Parameter Description LogLevel Event severity level used to record events in the event log MaxPorts Number of ports available on the switch NumberOfResets Number of times the switch has been reset over its service life ReasonForLastReset Action that caused the last reset...
  • Page 158 0.0.0.0 sw12 The following is an example of the Show FDMI command: SANbox #> show fdmi HBA ID PortID Manufacturer Model Ports -------- ------ --------------- ------- ----- 21:01:00:e0:8b:27:aa:bc 610000 QLogic Corporation QLA2342 21:00:00:00:ca:25:9b:96 180100 QLogic Corporation QL2330 B-70 59225-00 B...
  • Page 159 The following is an example of the Show FDMI WWN command: SANbox #> show fdmi 21:00:00:e0:8b:09:3b:17 FDMI Information ---------------- Manufacturer QLogic Corporation SerialNumber [04202 Model QLA2342 ModelDescription QLogic QLA2342 PCI Fibre Channel Adapter PortID 610000 NodeWWN 20:00:00:e0:8b:07:aa:bc HardwareVersion FC5010409-10 DriverVersion 8.2.3.10 Beta 2 (W2K VI) OptionRomVersion 1.21 FirmwareVersion 03.02.13.
  • Page 160 B – Command Line Interface Show Command The following is an example of the Show NS [domain_ID] command: SANbox #> show ns 18 Seq Domain Port Port Type COS PortWWN NodeWWN --- ------ ------ ---- --- ------- ------- 18 (0x12) 120700 N 21:00:00:e0:8b:07:a7:bc 20:00:00:e0:8b:07:a7:bc The following is an example of the Show NS [port_ID] command: SANbox #>...
  • Page 161 B – Command Line Interface Show Command The following is an example of the Show Port command: SANbox #> show port 1 Port Number: 1 ------------ AdminState Online OperationalState Online AsicNumber PerfTuningMode Normal AsicPort PortID 0e0800 ConfigType PortWWN 20:08:00:c0:dd:03:d5:94 DiagStatus Passed RunningType EpConnState...
  • Page 162 B – Command Line Interface Show Command The following is an example of the Show Switch command: SANbox #> show switch Switch Information ------------------ SymbolicName sw .108 SwitchWWN 100000c0dd00bc56 SwitchType SANbox 1400 BootVersion Vx.x.x.x-0 (day month date time year) CreditPool DomainID 19 (0x13) FirstPortAddress...
  • Page 163 B – Command Line Interface Show Command The following is an example of the Show Topology command for port 1: SANbox #> show topology 1 Local Link Information ---------------------- PortNumber 1 PortID 650100 PortWWN 20:01:00:c0:dd:00:91:11 PortType Remote Link Information ----------------------- Device 0 NodeWWN 50:80:02:00:00:06:d5:38 PortType NL...
  • Page 164 B – Command Line Interface Show Command The following is an example of the Show Version command: SANbox #> show version ***************************************************** Command Line Interface SHell (CLISH) ***************************************************** SystemDescription SANbox 1400 FC Switch Eth0NetworkAddress 10.20.116.37 (use 'set setup system' to update) MACAddress 00:c0:dd:07:02:17 WorldWideName...

  • Page 165: Show Config Command

    B – Command Line Interface Show Config Command Show Config Command Displays switch, port, alarm threshold, and zoning for the current configuration. Authority None Syntax show config port [port_number] switch threshold zoning Keywords port [port_number] Displays configuration parameters for the port number given by [port_number]. Ports are numbered beginning with 0.
  • Page 166 B – Command Line Interface Show Config Command Examples The following is an example of the Show Config Port command: SANbox #> show config port 3 Port Number: 3 ------------ AdminState Offline LinkSpeed Auto PortType SymbolicName Port3 ALFairness False DeviceScanEnabled True ForceOfflineRSCN False...
  • Page 167 B – Command Line Interface Show Config Command The following is an example of the Show Config Threshold command: SANbox #> show config threshold Configuration Name: default ------------ Threshold Configuration Information ----------------------------------- ThresholdMonitoringEnabled False CRCErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow DecodeErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow...
  • Page 168 B – Command Line Interface Show Config Command The following is an example of the Show Config Zoning command: SANbox #> show config zoning Configuration Name: default ------------------- Zoning Configuration Information -------------------------------- InteropAutoSave True DefaultVisibility DiscardInactive False B-80 59225-00 B...

  • Page 169: Show Log Command

    B – Command Line Interface Show Log Command Show Log Command Displays the contents of the log or the parameters used to create and display entries in the log. The log contains a maximum of 1200 entries. When the log reaches its entry capacity, subsequent entries overwrite the existing entries, beginning with the oldest.
  • Page 170 B – Command Line Interface Show Log Command Other Monitors other miscellaneous events. Port Monitors all port events SNMP SNMP events. Switch Monitors switch management events. Zoning Monitors zoning conflict events. display [filter] Displays log events on the screen according to the component or severity level filter given by [filter].
  • Page 171 B – Command Line Interface Show Log Command Switch Displays all events related to switch management. Zoning Displays all events related to zoning. level Displays the event severity level logging setting and the display level setting. options Displays the options that are available for configuring event logging and automatic display to the screen.
  • Page 172 B – Command Line Interface Show Log Command The following is an example of the Show Log command: SANbox #> show log [327][day month date time year][I][Eport Port:0/8][Eport State= E_A0_GET_DOMAIN_ID] [328][day month date time year][I][Eport Port: 0/8][FSPF PortUp state=0] [329][day month date time year][I][Eport Port: 0/8][Sending init hello] [330][day month date time year][I][Eport Port: 0/8][Processing EFP, oxid= 0x8] [331][day month date time year][I][Eport Port: 0/8][Eport State = E_A2_IDLE] [332][day month date time year][I][Eport Port: 0/8][EFP,WWN= 0x100000c0dd00b845,...

  • Page 173: Show Perf Command

    B – Command Line Interface Show Perf Command Show Perf Command Displays port performance in frames/second and bytes/second. If you omit the keyword, the command displays data transmitted (out), data received (in), and total data transmitted and received in frames/second and bytes per second. Authority None Syntax...
  • Page 174 B – Command Line Interface Show Perf Command Examples The following is an example of the Show Perf command: SANbox #> show perf Port Bytes/s Bytes/s Bytes/s Frames/s Frames/s Frames/s Number (in) (out) (total) (in) (out) (total) ------ ------- ------- ------- -------- --------...

  • Page 175: Show Setup Command

    Displays the current SNMP settings. system Displays the current system settings. Examples The following is an example of the Show Setup Mfg command: SANbox #> show setup mfg Manufacturing Information ------------------------- BrandName QLogic Corporation BuildDate Unknown PartNumber SANbox 1400 SerialNumber FAM0331000011 LicensedPorts MACAddress...
  • Page 176 B – Command Line Interface Show Setup Command The following is an example of the Show Setup Snmp command: SANbox #> show setup snmp SNMP Information ---------------- SNMPEnabled True Contact <sysContact undefined> Location N_107 System Test Lab Description SANbox 1400 FC Switch Trap1Address 10.0.0.254 Trap1Port...
  • Page 177 B – Command Line Interface Show Setup Command The following is an example of the Show Setup System command: SANbox #> show setup system System Information ------------------ Eth0NetworkDiscovery Static Eth0NetworkAddress 10.20.11.32 Eth0NetworkMask 255.255.252.0 Eth0GatewayAddress 10.20.8.254 AdminTimeout InactivityTimeout LocalLogEnabled True RemoteLogEnabled False RemoteLogHostAddress 10.0.0.254...

  • Page 178: Shutdown Command

    B – Command Line Interface Shutdown Command Shutdown Command Terminates all data transfers on the switch at convenient points and closes the Telnet session. Always power cycle the switch after entering this command. Authority Admin session Syntax shutdown Notes Always use this command to perform an orderly shut down before removing power from the switch.

  • Page 179: Test Command

    B – Command Line Interface Test Command Test Command Tests ports using internal (SerDes level), external (transceiver), and online loopback tests. Internal and external tests require that the port be placed in diagnostic mode. Refer to the “Set Command” on page B-37 for information about changing the port administrative state.
  • Page 180 B – Command Line Interface Test Command Examples To run an internal or external port test, do the following: To start an admin session, enter the following command and press the Enter key. admin start Place the port in Diagnostics mode, enter the following command (x = port number) and press the Enter key.
  • Page 181 B – Command Line Interface Test Command A series of test parameters are displayed on the screen. Press the Enter key to accept each default parameter value, or type a new value for each parameter and press the Enter key. The TestLength parameter is the number of frames sent, the FrameSize (256 byte maximum in some cases) parameter is the number of bytes in each frame, and the DataPattern parameter is the pattern in the payload.

  • Page 182: Uptime Command

    B – Command Line Interface Uptime Command Uptime Command Displays the elapsed up time since the switch was last reset and reset method. A hot reset or non-disruptive firmware activation does not reset the elapsed up time reported by this command. Authority None Syntax...

  • Page 183: User Command

    B – Command Line Interface User Command User Command Administers and displays user accounts. Authority Admin account name and an Admin session. The Accounts and List keywords are available to all account names without an Admin session. Syntax user accounts delete [account_name] edit list...
  • Page 184 B – Command Line Interface User Command Notes Authority level or password changes that you make to an account that is currently logged in do not take effect until that account logs in again. Examples The following is an example of the User Accounts command: SANbox (admin) #>...
  • Page 185 B – Command Line Interface User Command The following is an example of the User Delete command: SANbox (admin) #> user del user3 The user account will be deleted. Please confirm (y/n): [n] y The following is an example of the User List command: SANbox (admin) #>...

  • Page 186: Whoami Command

    B – Command Line Interface Whoami Command Whoami Command Displays the account name, session number, and switch domain ID for the Telnet session. Authority None Syntax whoami Examples The following is an example of the Whoami command: SANbox #> whoami User name : admin@session2 Switch name...

  • Page 187: Zone Command

    B – Command Line Interface Zone Command Zone Command Manages zones and zone membership on a switch. Authority Admin session and a Zoning Edit session. Refer to the “Zoning Command” on page B-106 for information about starting a Zoning Edit session. The List, Members, and Zonesets keywords are available without an Admin session.
  • Page 188 B – Command Line Interface Zone Command delete [zone] Deletes the specified zone given by [zone] from the zoning database. If the zone is a component of the active zone set, the zone will not be removed from the active zone set until the active zone set is deactivated. list Displays a list of all zones and the zone sets of which they are components.
  • Page 189 B – Command Line Interface Zone Command Examples The following is an example of the Zone List command: SANbox #> zone list Zone ZoneSet ------------------- wwn_b0241f zone_set_1 wwn_23bd31 zone_set_1 wwn_221416 zone_set_1 wwn_2215c3 zone_set_1 wwn_0160ed zone_set_1 wwn_c001b0 zone_set_1 wwn_401248 zone_set_1 wwn_02402f zone_set_1 wwn_22412f zone_set_1...
  • Page 190 B – Command Line Interface Zone Command The following is an example of the Zone Zonesets command: SANbox #> zone zonesets zone1 Current List of ZoneSets for Zone: zone1 ---------------------------------- zone_set_1 B-102 59225-00 B...

  • Page 191: Zoneset Command

    B – Command Line Interface Zoneset Command Zoneset Command Manages zone sets and component zones across the fabric. Authority Admin session and a Zoning Edit session. Refer to the “Zoning Command” on page B-106 for information about starting a Zoning Edit session. The Active, List, and Zones keywords are available without an Admin session.

  • Page 192: Zoneset Command

    B – Command Line Interface Zoneset Command deactivate Deactivates the active zone set. Close the Zoning Edit session before using this keyword. delete [zone_set] Deletes the zone set given by [zone_set]. If the specified zone set is active, the command is suspended until the zone set is deactivated. list Displays a list of all zone sets.
  • Page 193 B – Command Line Interface Zoneset Command The following is an example of the Zoneset Zones command: SANbox #> zoneset zones ssss Current List of Zones for ZoneSet: ssss ---------------------------------- zone1 zone2 zone3 59225-00 B B-105...

  • Page 194: Zoning Command

    B – Command Line Interface Zoning Command Zoning Command Opens a Zoning Edit session in which to create and manage zone sets and zones. Refer to the “Zone Command” on page B-99 and the “Zoneset Command” on page B-103. Authority Admin session except for the Active, History, Limits, and List keywords.

  • Page 195: Zoning Database Limits

    B – Command Line Interface Zoning Command history Displays a history of zoning modifications. This keyword does not require an Admin session. History information includes the following: Time of the most recent zone set activation or deactivation and the user who performed it Time of the most recent modifications to the zoning database and the user who made them.
  • Page 196 B – Command Line Interface Zoning Command save Saves changes made during the current Zoning Edit session. The system will inform you that the zone set must be activated to implement any changes. This does not apply if you entered the Zoning Clear command during the Zoning Edit session.
  • Page 197 B – Command Line Interface Zoning Command The following is an example of the Zoning Limits command: SANbox #> zoning limits Zoning Attribute Maximum Current [Zoning Name] ---------------- ------- ------- ------------- MaxZoneSets MaxZones 2000 MaxAliases 2500 MaxTotalMembers 10000 MaxZonesInZoneSets 2000 MaxMembersPerZone 2000 D_1_JBOD_1...
  • Page 198 B – Command Line Interface Zoning Command The following is an example of the Zoning List command: SANbox #> zoning list Active ZoneSet Information ZoneSet Zone ZoneMember -------------------------------- wwn_b0241f 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 21:00:00:e0:8b:02:41:2f wwn_23bd31 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 10:00:00:00:c9:23:bd:31 wwn_221416 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 10:00:00:00:c9:22:14:16 wwn_2215c3 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2...
  • Page 199 B – Command Line Interface Zoning Command 50:06:04:82:bf:d2:18:d2 10:00:00:00:c9:22:14:16 wwn_2215c3 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 10:00:00:00:c9:22:15:16 59225-00 B B-111...
  • Page 200 B – Command Line Interface Zoning Command Notes B-112 59225-00 B...
  • Page 201 Glossary Access Control List Zone Arbitrated Loop Access Control List zoning divides the A Fibre Channel topology where ports use fabric for purposes of controlling discovery arbitration to establish a point-to-point and inbound traffic. circuit. Active Zone Set Arbitrated Loop Physical Address (AL_PA) The zone set that defines the current A unique one-byte value assigned during zoning for the fabric.
  • Page 202 SANbox 1400 Series Fibre Channel Switch Installation Guide Class 2 Service Fabric Database A service which multiplexes frames at The set of fabrics that have been opened frame boundaries to or from one or more during a SANsurfer Switch Manager N_Ports wit h acknowledgment provided.
  • Page 203 SANbox 1400 Series Fibre Channel Switch Installation Guide Frame Data unit consisting of a start-of-frame Loop Initialization Primitive sequence (SOF) delimiter, header, data payload, CRC, and an end-of-frame (EOF) Logged-In LED delimiter. A port LED that indicates device login or loop initialization status.
  • Page 204 SANbox 1400 Series Fibre Channel Switch Installation Guide NL_Port SNMP Node Loop Port. A Fibre Channel device Simple Network Management Protocol port that supports arbitrated loop protocol. Soft Zone N_Port Soft zoning divides the fabric for purposes Node Port. A Fibre Channel device port in of controlling discovery.
  • Page 205 SANbox 1400 Series Fibre Channel Switch Installation Guide Zone A set of ports or devices grouped together to control the exchange of information. Zone Set A set of zones grouped together. The active zone set defines the zoning for a fabric.
  • Page 206 SANbox 1400 Series Fibre Channel Switch Installation Guide Notes Glossary-6 59225-00 B...
  • Page 207 Index Numerics 10/100 Base-T straight cable 4-5 bandwidth 3-5, A-2 beacon B-37 boot loader 5-14 broadcast B-63 browser 4-1 access 3-2 buffer credit 3-4, A-2 Access Control List zone 3-3 account name display B-98 factory B-2 FTP 5-5 cable maintenance mode 5-12 10/100 Base-T 4-5 Activity LED 2-5, 2-7 10/100 Base-T crossover 4-5...
  • Page 208 SANbox 1400 Series Fibre Channel Switch Installation Guide configuration environmental activate B-11 conditions 4-2 backup B-11 specifications A-4 copy B-11 Ethernet delete B-11 direct connection 4-5 edit B-12 indirect connection 4-5 file 5-5 port 2-7 file system error 2-2, 5-4, 5-7 event logging list B-12 by component B-51, B-81...
  • Page 209 SANbox 1400 Series Fibre Channel Switch Installation Guide firmware immunity A-5 failure 5-4 inactivity timeout B-59 image file B-23 inband management 3-8 install with CLI 4-22, B-18 Input Power LED 5-2 install with SANsurfer Switch Manager 4-21 installation 4-2 list image files B-23 internal non-disruptive activation 4-20, B-22 firmware failure 5-4...
  • Page 210 SANbox 1400 Series Fibre Channel Switch Installation Guide maintenance Passwd command B-27 exit 5-12 password menu 5-12 change B-27 mode 2-2, 2-3, 5-3, 5-11 factory B-2 Maintenance button 2-2, 2-3, 5-12 file reset 5-13 management maintenance mode 5-12 application 4-7 restore default 5-13 workstation 2-7, 4-5 switch B-27...
  • Page 211 SANbox 1400 Series Fibre Channel Switch Installation Guide power on self test security description 4-17, 5-3 fabric 3-8 log B-67 fabric services 3-8 principal user account 3-8 priority 3-7 Set command B-37 switch 3-7 Set Config command B-40 processor 4-1 Set Log command B-51 Ps command B-29 Set Port command B-55...
  • Page 212 SANbox 1400 Series Fibre Channel Switch Installation Guide system error 5-4 web applet processor A-2 description 2-9 system configuration enable B-59 change B-58 Whoami command B-98 display B-87 workstation System Fault LED 2-4, 5-2 configuration 4-6 connect 4-5 IP address 4-6 requirements 4-1 table mount 4-3 worldwide name 3-2...
  • Page 213 SANbox 1400 Series Fibre Channel Switch Installation Guide zone set activate B-103 active B-106 add member zone B-103 copy B-103 create B-103 deactivate B-32, B-104 delete B-104 delete member zone B-104 display B-104 display active B-103 display members B-104 display zones B-100 rename B-104 zone set definition 3-2 Zoneset command B-103...
  • Page 214 SANbox 1400 Series Fibre Channel Switch Installation Guide Notes Index-8 59225-00 B...

Table of Contents
