Page 1: Channel Digital Video Recorder

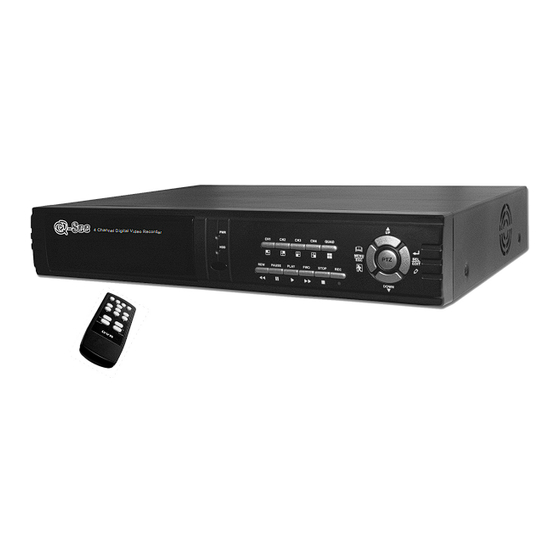

4 Channel Digital Video Recorder User Manual MODEL Q4DVR4RCM 4 Chann el Digital Video Record Protect Your Investments. www.Q-See.com cameras and accessories are compatible with Q4DVR4RCM... -
Page 2: Table Of Contents
6.2 Stop Recording-------------------------------------------------------------------------------------------------------11 6.3 Recording Length----------------------------------------------------------------------------------------------------11 7.Playback-----------------------------------------------------------------------------------------------------------------12 8.USB Programming-----------------------------------------------------------------------------------------------------12 8.1 Install------------------------------------------------------------------------------------------------------------------12 8.2 Program Interface----------------------------------------------------------------------------------------------------13 9.Specification------------------------------------------------------------------------------------------------------------14 Appendix------------------------------------------------------------------------ -------------------------- --------------15 10.1 System Connect Sketch Map --------------------------------------------------------- ------------------ ----------15 10.2 Fittings Come Along With DVR------------------------------------------------------- ----------------- -----------15 Q-SEE Product Warranty ---------------------------------------------------- ---------------------------------- ---------16... -
Page 3: Dvr Features
DVR Features 1.DVR Features 4 Channels - BNC Camera Inputs 2 Channels - BNC Monitor/VCR Outputs NTSC / PAL Video Loss Alarm Motion Detection With Area Setting PTZ Control With RS485 Port. Connect PC With USB 2.0 Port 4 Sets NO/NC Sensor Input 1 Alarm Output (2A 28VDC / 2A 125 VAC) One ATA-100 Hard Disk Interface, Support Over 200G Byte Time Schedule record / Sensor Triggered Record / Motion Triggered Record... -
Page 4: Rear Panel
2.2 Rear Panel POWER CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK. DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.......... WARING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR OUTDOOR USE TO RAIN OR MOISTURE. -
Page 5: Connect Cameras And Monitor
Fig1 CAUTION ..DON'T take out HDD Slide the carrier body out of the cartridge frame (Fig1) when DVR running! Connect the HDD data cable and the power cable to the HDD (Fig2) Fig2 Push the tray into the cartridge frame until fully inserted and handle pushed downward (Fig3). -
Page 6: Dvr System Boot
DVR System Boot 4.DVR System Boot 4.1 Detecting Installed Hard Disk After connecting the power, system will boot-up and detect installed hard disk. On Monitor it will show Master Checking MASTER ExcelStor.Technolo and Slave hard-disk information.Please make reference to SLAVE NONE hard disk manual to configure hard disk sequence. -
Page 7: Dvr Setup
DVR Setup 5.DVR Setup 5.1 Main Menu Press[ MENU] to enter MAIN MENU, use [ UP] and DOWN] to select item, press [ SEL/EDIT] to modify setting and [ MENU] to confirm and exit...... Monitor Digital video Recoder Monitor DATA+ POWRE MENU Dual... -
Page 8: Record Frame Rate
and again, DVR will not change its state until user press any key..Quad Mode Compress and record all 4 channel video into one file, therefore user can not enlarge single channel to full screen. User can't use the each mode record in this mode. -
Page 9: Sub Menu-Picture Setup
All keys can be used as password key except [ MENU] key, which is used for confirming and exit......Monitor Digital video Recoder Monitor DATA+ POWRE MENU Dual PAL NTSC DOWN DATA 5.11 Sub Menu-Picture Setup HUE : 0-99 SATURATION 0-99 >... -
Page 10: Hard Disk Setup
5.14Hard Disk Setup OVERWRITE ENABLED: If you choose YES, recording continues and overwrite previous recording when hard disk drive space is full............If you choose NO, the recording session stops when all hard disk drive is full for recording........ -
Page 11: Ntsc/Pal Output Select
Installation example diagram: POWER CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK. DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.......... WARING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR OUTDOOR USE TO RAIN OR MOISTURE. -
Page 12: Restore To Factory Default
5.17 Restore Factory Default Press [ EDIT] Button to make the system load ALL SETTING DAT A IS INITIAL IZED factory default. Monitor Digital video Recoder Monitor DATA+ POWRE MENU Dual PAL NTSC DOWN DATA Record 6.Record 6.1 Start Recording Press [ REW] to start recording. -
Page 13: Playback
User can calculate and estimate record hours by below formula120G Byte @ 7 frames per second @ Normal quality 120 (G byte) x 1024 (M byte) x 1024 (K byte) 15 (Kbyte/frame) x 7 (frame/sec) x 60 (sec) x 60 (min) Estimate hours is 332 Hours Playback 7.Playback... -
Page 14: Program Interface
8.2 Program Interface To run the program( Double click icon on your desktop)....... System will detect the HDD automatically when you connect the USB cable to your ........................Note: If the HDD is not detected, please perform the followings steps:(1) Close the USB program window, and remove the USB cable, (2) Press PLAY] twice to enter the DVR into the Playback mode,(3)Connect the USB cable to PC again. -
Page 15: Specification
Press to configue the DVR play/record system. Press to play video . Specification 9. Specification ITEM DESCRIPTION NOTE Video Format NTSC / PAL Operation System STAND ALONE Camera Input Channel 4 channel Composite BNC STAND-ALONE 2 channel Composite BNC Video Output Channel USB 2.0 Port NTSC 120 frames... -
Page 16: Appendix
4 Channel Digital Video Recorder User Manual MODEL Q4DVR4RCM MENU 4 Channel Digital Video Recorder CMPACT CMPACT SEL/EDIT DOWN 23min 215MB Protect Your Investments. www.Q-See.com cameras and accessories are compatible with Q4DVR4RCM User Manual USB Driver CD USB Cable Power Adapter Remote Control... -
Page 17: Q-See Product Warranty
8015 E. Crystal Drive Anaheim, CA 92807 Q-SEE PRODUCT LINE WARRANTY E X C E P T A S E X P R E S S L Y P R O V I D E D PURCHASER'S SALE REMEDY UNDER... - Page 18 Register Your Q-SEE Product Online Now YOU MUST REGISTER YOUR Q-SEE PRODUCT TO RECEIVE TECHNICAL SUPPORT! Just fill out this card and fax to 714-998-3509, mail to us or register online at www.q-see.com. Name: Title: Company: Street A ddress: Suite or A pt. #:...
- Page 19 Digital Peripheral Solutions Inc Q-SEE Tech Support 8015 E Crystal Drive IN USA Anaheim, CA 92807 MONITOR:9am-5pm PST 877-998-3440 Email: ts@dpsi-usa.com Website: www.q-see.com...
