Intelli
1000
™
Model 3024
®
®
Includes INTELLICODE
2 Remote Control. Safe-T-Beam
System must be installed to close door.
For use only with residential sectional or one piece overhead garage doors.
®
®
Homelink
and Car2U
compatible.
For Answers and Assistance:
1.800.354.3643
or visit www.geniepro.com
SAVE THIS MANUAL FOR FUTURE REFERENCE.
INSTALLER:
LEAVE THIS MANUAL WITH HOMEOWNER.
Homelink
®
is a registered trademark of Johnson Controls Technology Company. Car2U
®
is a registered trademark of Lear Corporation. © 2010 The Genie Company PN# 37066500118, 01/27/2010
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Genie IntelliG 1000 3024
Summary of Contents for Genie IntelliG 1000 3024
- Page 1 SAVE THIS MANUAL FOR FUTURE REFERENCE. INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. Homelink ® is a registered trademark of Johnson Controls Technology Company. Car2U ® is a registered trademark of Lear Corporation. © 2010 The Genie Company PN# 37066500118, 01/27/2010...
-
Page 2: Safety Information
Could result in Death or Serious Installations, repairs and adjustments must be done by a Injury trained door system technician using proper tools and instruc- tions. ©2010 The Genie Company 01/27/2010... -
Page 3: Opener Features & Safety Features
Manually releases door from door opener. Used during a power failure or other emergency to allow manual opening and closing of door. Ener-Genie™ Battery Back Up Easily adjust the programming to reduce opening speed to a desired rate, optionally adjust limits and force, and program new remotes. -
Page 4: Table Of Contents
.......................14 ..................15 ................1 ..........16 6 Maintenance & Troubleshooting ............17-25 ................17 ..............17 ..............17 ................17 ..................18 ................18 ..............18 ................18 ..................19 ...................19 ..........19 ..............20 ................20 ....................21 ....................22 ....................23 ............. 24-25 ..........25 Warranty ........................26 PATENT STATEMENT Patents Pending ©2010 The Genie Company 01/27/2010... -
Page 5: Important Installation Instructions
Power head is plugged into an approved power outlet Begin programming by setting Limits on the next page. A PDF VERSION INSTALLATION POSTER IS AVAILABLE AT WWW.GENIECOMPANY.COM OR CALL 1.800.354.3643 TO OBTAIN AN EMAIL PDF FILE ©2010 The Genie Company 01/27/2010... -
Page 6: Programming Limits & Force
©2010 The Genie Company 01/27/2010... - Page 7 ©2010 The Genie Company 01/27/2010...
-
Page 8: Program Intellicode® 2 Remote To Power Head
©2010 The Genie Company 01/27/2010... - Page 9 ©2010 The Genie Company 01/27/2010...
-
Page 10: Typical Installed Illustrations
à un plus grand angle. NOTA: DOOR ARM BRAS DE LA PORTE SAFE-T-BEAM® SENSORS PALPEURS de SAFE-T-BEAM® FIG. 3-1 MAX. 6" - MIN. 5" 6 po (15 cm) MAX. - 5 po (12,7 cm) MIN. ©2010 The Genie Company 01/27/2010... -
Page 11: Typical One Piece Door Installation
Use this opener only with a one piece or sectional door. AVERTISSEMENT Pour diminuer le risque de blessures corporelles ou d’endommagement matériel - Utiliser cet l’ouvreur uniquement avec les portes à section. ADVERTENCIA ONE PIECE DOOR SECTIONAL DOOR PORTE D’UNE PIÈCE PORTE SECTIONELLE ©2010 The Genie Company 01/27/2010... - Page 12 NOTE: Use wall console and safety sensors provided with this unit. Do NOT substitute wall console or safety sensors. REMARQUE: Utilisez la console sur le mur et les capteurs de sécurité fournis avec cet appareil. NE PAS substituer la console du mur ou les capteurs de sécurité. ©2010 The Genie Company 01/27/2010...
-
Page 13: Overview Of Power Head Controls
Programming function will time out after 30 seconds if there is no key stroke activity. Open Travel button multi-function; moves door, advances through menus LED Colors Round Red Long Red Round Purple Long Purple Round Blue Long Blue ©2010 The Genie Company 01/27/2010... -
Page 14: Overview Of Remotes And Options
The Panic Button is located on the remote as shown below. Alarm will sound from power head. Panic Button Panic Button OPERATION 1. Press Panic Button. Alarm will sound from power head. 2. Press Panic Button again. Alarm will stop. ©2010 The Genie Company 01/27/2010... - Page 15 IntelliCode® 2 2. Press and hold that button for 10 seconds. signals or a Genie® brand IntelliCode® 1 remote that Both Red and Green has been programmed to the opener using a new LEDs come ON and stay IntelliCode®...
- Page 16 Ländern. Sollen Sendegeräte in anderen Ländern eingesetzt werden, so muss der Importeur vor dem Gebrauch sicherstellen, dass die Sendegeräte auch solchen lokalen Bestimmungen entsprechen, welche von den Bestimmungen der USA und Kanadas abweichen. ©2010 The Genie Company 01/27/2010...
-
Page 17: Maintenance & Troubleshooting
• Pull emergency release handle DOWN and let go One-Piece Door Sectional Door to engage carriage assembly to drive system. – Operate door using remote or wall console. – Door will re-attach itself to carriage assembly. FIG. 6-1 Door balance ©2010 The Genie Company 01/27/2010... - Page 18 UNLOCKED • Lighting turned ON at the wall console will remain ON until wall console turns lighting OFF or opener FIG. 6-4 Carriage is used. (Standing below rail looking up at carriage) Motion Detector Sensor ©2010 The Genie Company 01/27/2010...
- Page 19 Use only the Series III wall console provided with this Vacation Lock Button unit. Wall consoles from other manufacturers will not – LOCK disables controls work with this power head. Earlier Genie® Series II wall consoles will not work with this power head . after door is completely closed Wall console has three buttons and one indicator light.
- Page 20 Replace remote battery with a CR 2032 coin cell battery. 1. Open the remote case using a washer or coin that fits into the slot at the top of the remote. 2. Replace battery. 3. Align components and snap case closed. ©2010 The Genie Company 01/27/2010...
- Page 21 12 VDC 55 VDC GREEN ROUGE VERT ROJO VERDE ELECTRICAL SHOCK *SOME MODELS DO NOT COME WITH THIS FEATURE CHOC ÉLECTRIQUE QUELQUES MODÈLES NE VIENNENT PAS AVEC CETTE CONFIGURATION ALGUNOS MODELOS NO VIENEN CON ESTA CARACTERÍSTICA ©2010 The Genie Company 01/27/2010...
-
Page 22: Adjustment Guide
Power Head LEDs Speed Level Round LED Long LED Default LED display is the current Speed setting LED Speed indicator colors Purple Purple Blue Blue Speed Level LED indicator colors MAXIMUM Purple Purple Blue Blue SLOW ©2010 The Genie Company 01/27/2010... - Page 23 Blue Force Level 1 Blue Force Level 2 Blue Blue Force Level 3 Purple Force Level 4 Purple Force Level 5 Purple Purple Force Level 6 Force Level 7 Force Level 8 Force Level 9 ©2010 The Genie Company 01/27/2010...
-
Page 24: Troubleshooting
Safe-T-Beam® System completely closed. malfunction. • Check for interference from adjacent Safe-T-Beam® units. • Contact The Genie Company at 1.800.354.3643. Door starts down, • Check Safe-T-Beam® wire connections at power head. See page 17. then STOPS before it • Check Limits are properly set. See pages 6-7. -
Page 25: Troubleshooting Guide
Door contact in up or down Remove obstruction travel ON/RED/ FLASHING Door component failure Check door spring, track, rollers, hinges detected and fixtures ON/RED/ DO NOT unplug unit Thermal cutout STEADY Wait until LED clears before operating ©2010 The Genie Company 01/27/2010... -
Page 26: Warranty
Limited Warranty P900-787...
Need help?
Do you have a question about the IntelliG 1000 3024 and is the answer not in the manual?
Questions and answers

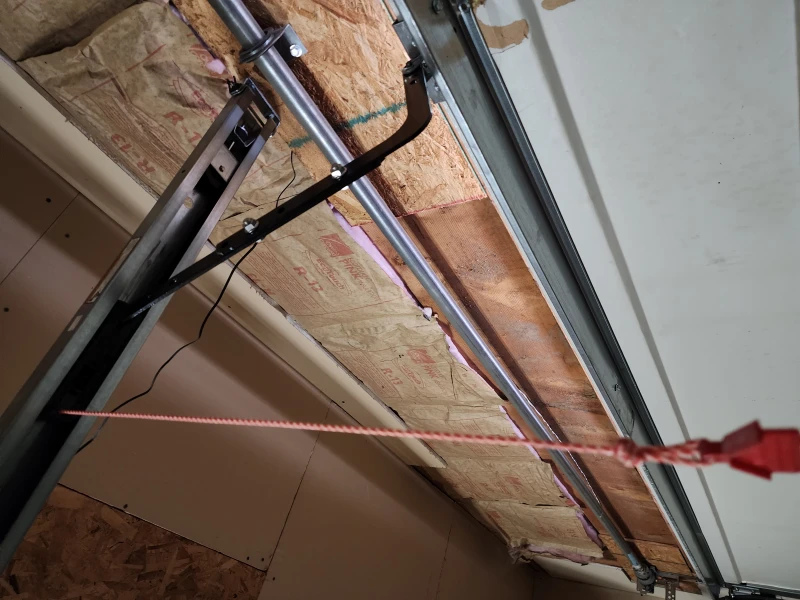

While setting the up on the door the rope release for the door went to far and cut all power off to the Genie 1000. I pulled the rope and the safety carrier released. I still have no power. How do I reset the safety switch so the unit has power.
The document does not provide specific instructions on resetting the safety switch to restore power on a Genie IntelliG 1000 3024. However, you may try turning off Sure-Lock™ by pressing and releasing the Sure-Lock™ button on the wall console. If that does not restore power, consider checking the power source and safety beam sensors.
This answer is automatically generated
I just purchased a home with the IntelliG 3024 door opener. They ony left one remote. Is it possible to change the remote frequency on the on the remote? Thank you.
