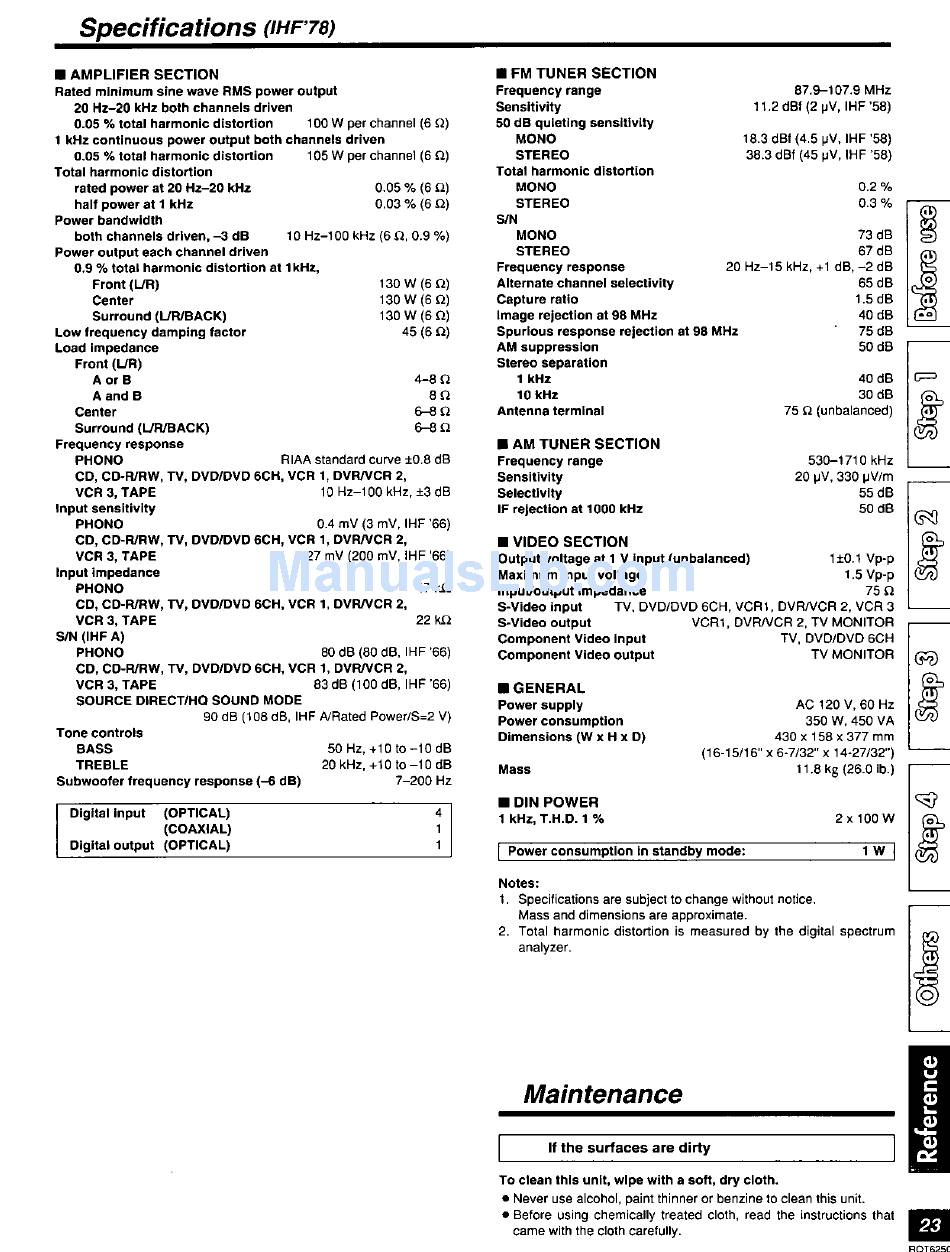

Specifications (IHF'78)
• AMPLIFIER SECTION
Rated minimum sine wave RMS power output
20 Hz-20 kHz both channels driven
0.05 % total harmonic distortion 100 W per channel (6 Q)
I kHz continuous power output both channels driven
0.05 % total harmonic distortion 105 W per channel (6 Q)
Total harmonic distortion
rated power at 20 Hz-20 kHz 0.05 % (6 Q)
half power at 1 kHz 0.03 % (6 _)
Power bandwidth
both channels driven, -3 dB 10 Hz-100 kHz (6 _, 0.9 %)
Power output each channel driven
0.9 % total harmonic distortion at I kHz,
Front (L/R) 130 W (6 Q)
Center 130 W (6 Q)
Surround (UR/BACK) 130 W (6 Q)
Low frequency damping factor 45 (6 _)
Load impedance
Front (L/R)
AorB 4-8_
AandB 8_
Center 6_8
Surround (L/R/BACK) 6-8
Frequency response
PHONO RIAA standard curve ±0.8 dR
CD, CD-R/RW, TV, DVD/DVD 6CH, VCR 1, DVR/VCR 2,
VCR 3, TAPE 10 Hz-100 kHz, +-3dB
Input sensitivity
PHONO 0.4 mV (3 mV, IHF '66)
CD, CD-R/RW, TV, DVD/DVD 6CH, VCR 1, DVR/VCR 2,
VCR 3, TAPE 27 mV (200 mV, IHF '66)
Input impedance
PHONO 47 k_
CD, CD-R/RW, TV, DVD/DVD 6CH, VCR 1, DVR/VCR 2,
VCR 3, TAPE 22 k_
S/N (IHF A)
PHONO 80 dB (80 dB, IHF '66)
CD, CD-PJRW, TV, DVD/DVD 6CH, VCR 1, DVPJVCR 2,
VCR 3, TAPE 83 dB (100 dB, IHF '66)
SOURCE DIRECT/HQ SOUND MODE
90 dB (108 dB, IHF A/Rated Power/S=2 V)
Tone controls
BASS 50 Hz, +10 to -10 dB
TREBLE 20 kHz, +10 to -10 dB
Subwoofer frequency response (-6 dB) 7-200 Hz
Digital input (OPTICAL) 4
(COAXIAL) 1
Digital output (OPTICAL) 1
• FM TUNER SECTION
Frequency range 87.9-107.9 MHz
Sensitivity 11.2 dBf (2 pV, IHF '55)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5 pV, IHF '58)
STEREO 38.3 dBf (45 pV, IHF '58)
Total harmonic distortion
MONO 0.2 %
STEREO 0.3 %
S/N
MONO 73 dB
STEREO 67 dB
Frequency response 20 Hz-15 kHz, +1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 1.5 dB
Image rejection at 98 MHz 40 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dS
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Antenna terminal 75 _ (unbalanced)
• AM TUNER SECTION
Frequency range 530-1710 kHz
Sensitivity 20 pV, 330 pV/m
SelecUvlty 55 dB
IF rejection at 1000 kHz 50 dB
• VIDEO SECTION
Output voltage at I V input (unbalanced) 1+-0.1 Vp-p
Maximum input voltage 1.5 Vp-p
Input/output impedance 75
S-Video input TV, DVD/DVD 6CH, VCR1, DVRNCR 2, VCR 3
S_Video output VCRt, DVR/VCR 2, TV MONITOR
Component Video input TV, DVD/DVD 6CH
Component Video output TV MONITOR
• GENERAL
Power supply
Power consumption
Dimensions (W x H x D)
Mass
AC 120 V, 60 Hz
350 W, 450 VA
430 x 158 x 377 mm
(16-15/16" x 6o7/32" x 14-27/32")
11.8 kg (26.0 lb.)
• DIN POWER
1 kHz, T.H.D. 1% 2 x 100 W
Power consumption in standby mode: I W I
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Maintenance
I If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
