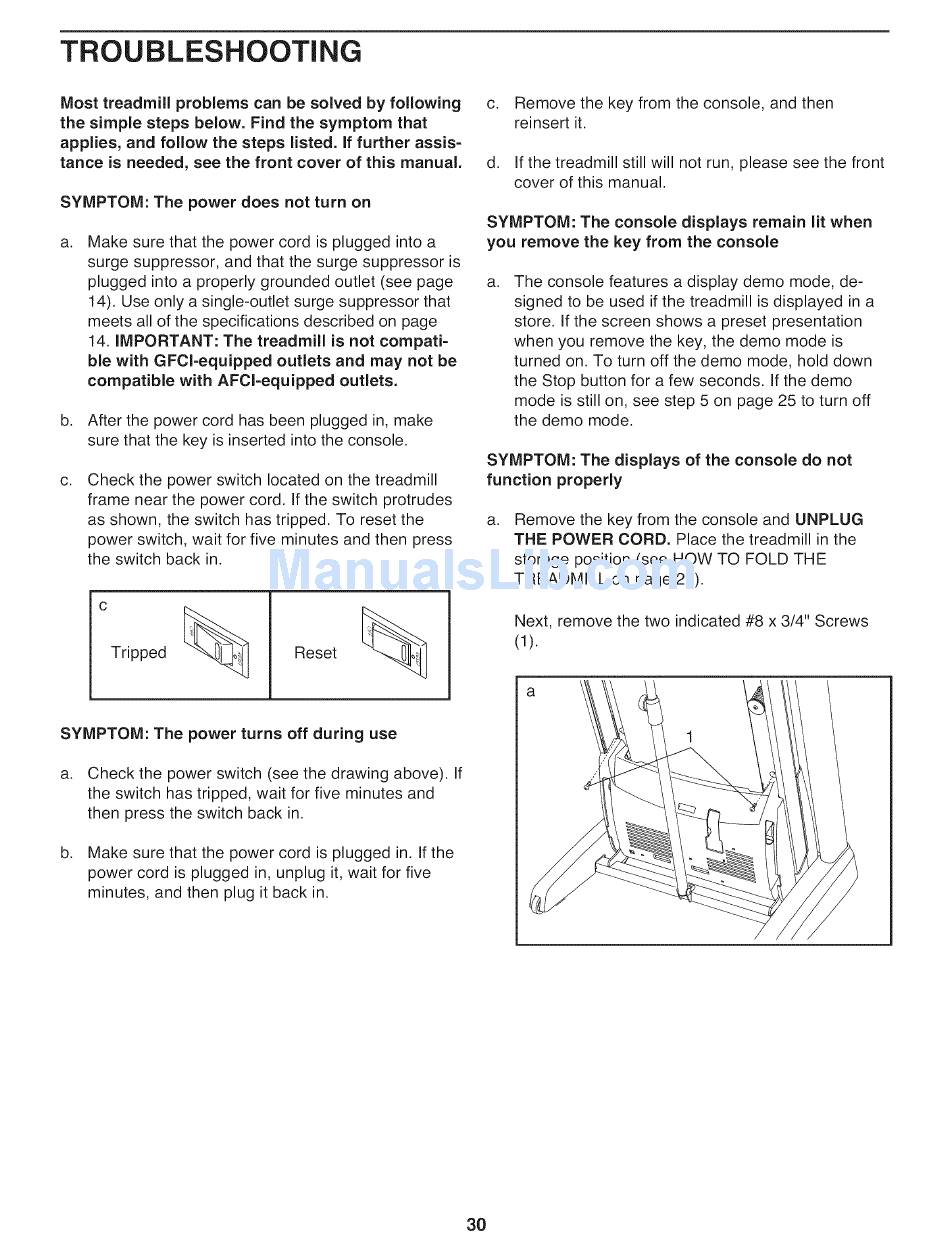

TROUBLESHOOTING
Most treadmill
problems
can be solved by following
the simple steps below. Find the symptom
that
applies, and follow the steps listed, if further assis-
tance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a.
Make sure that the power cord is plugged into a
surge suppressor, and that the surge suppressor is
plugged into a properly grounded outlet (see page
14). Use only a single-outlet surge suppressor that
meets all of the specifications described on page
14. iMPORTANT: The treadmill
is not compati-
ble with GFCl-equipped
outlets and may not be
compatible
with AFCl-equipped
outlets.
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
C.
Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in.
Tripped
Reset
SYMPTOM: The power turns off during use
a.
Check the power switch (see the drawing above). If
the switch has tripped, wait for five minutes and
then press the switch back in.
b.
Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c.
Remove the key from the console, and then
reinsert it.
d.
If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The console
displays remain lit when
you remove the key from the console
a.
The console features a display demo mode, de-
signed to be used if the treadmill is displayed in a
store. If the screen shows a preset presentation
when you remove the key, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the demo
mode is still on, see step 5 on page 25 to turn off
the demo mode.
SYMPTOM: The displays
of the console do not
function
properly
a.
Remove the key from the console and UNPLUG
THE POWER CORD. Place the treadmill in the
storage position (see HOW TO FOLD THE
TREADMILL on page 29).
Next, remove the two indicated #8 x 3/4" Screws
(1).
a
30
