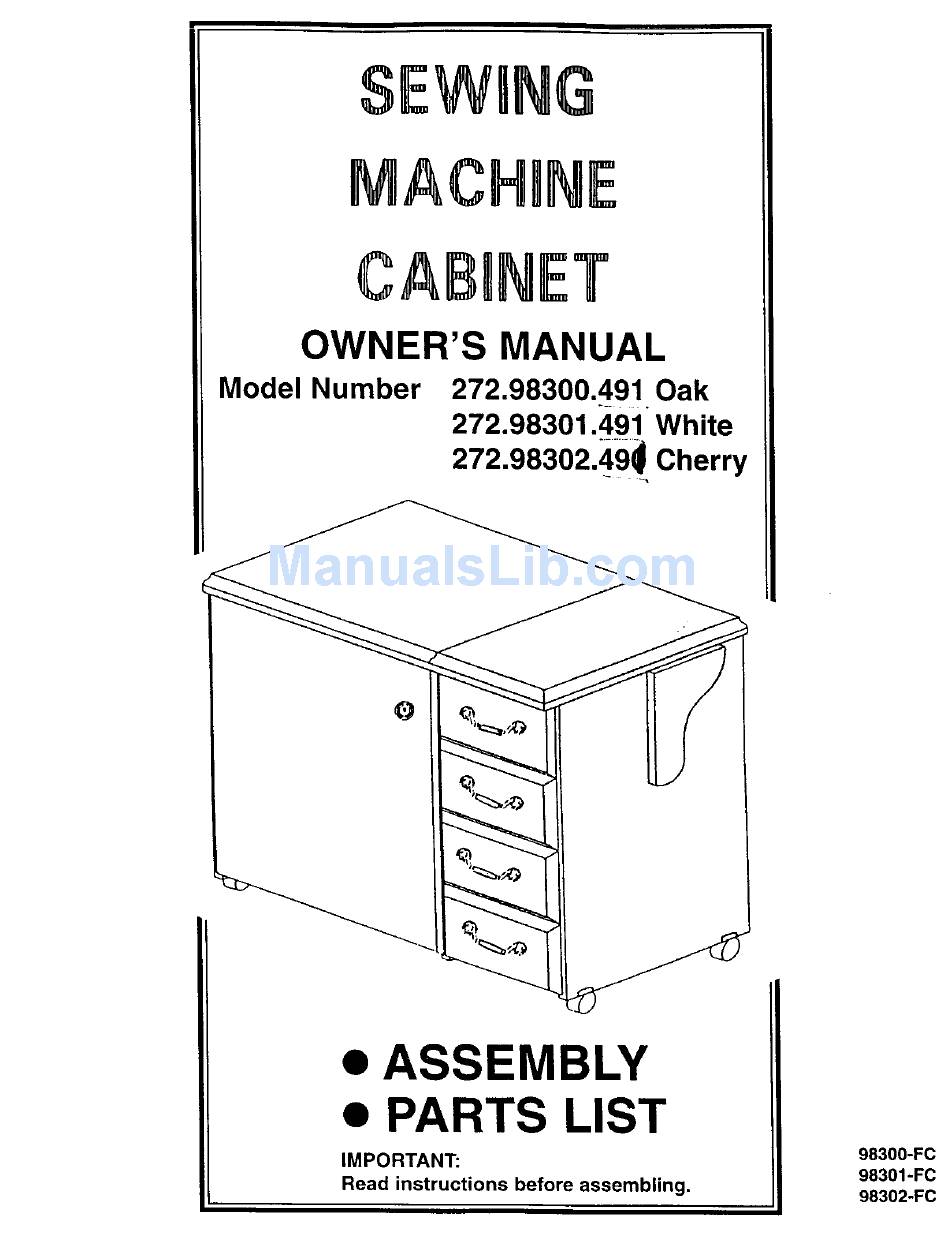

- Page 1 SEWRNG MACHINE CABINET OWNER'S MANUAL Model Number 272.98300.491 272.98301.491 White 272.98302.49_ Cherry ASSEMBLY PARTS LIST 98300-FC IMPORTANT: 98301-FC Read instructions before assembling. 98302-FC...
-
Page 2: Hardware Included
Hardware Included Right Wing Left Wing (20) #8xl/2" Panhead Screws #5x5/8" Flathead #6x5/8" Panhead Screws (25) Cams_ _j-_Screws (1) 2 pc, Knob 5ram Hex Bolt Rubber Tab 3-Small 1-Large Mounting Bolts ('r(/("f Wing Nuts (2) Bronze Strike Washers Allen Key Drawer Backs Zinc Flat Washers "_... -
Page 3: Cabinet Assembly
Understanding Howthe "ARR0W-LOC" CamFastener Works. ARROW TOWARDS HOLEIN EDGE 4. To lock, rotate cam 1. Position bolt in 2. Press cam into 3. Insert bolt through pre-drilled hole and pre-drilled hole until pre-drilled hole in until tight, using turn until tight, flush with surface, edge of panel. - Page 4 CabinetAssemblyContinued: Step2• InstallCams(25total) into the holesprovidedin the cabinetparts shown below,pushinga caminto eachhole untilflush with the surface• Thearrowon the Camsshould be turned(using a regularscrewdriveror Allen KeyProvided)to facethe hole in eachedgewherethe Connecting Boltswill enter• Step2A•Weare providing(1)whiteplastic hookto be used,to store your custom fit sewingheadinsert, (Sears #9801) to be mounted on the inside left side panel in Hole (A) or (B).
- Page 5 Step 3. Attach the Magnet to the Partition by using (2) #6x5/8" Screws. Be sure to keep the magnet Strikes (metal) lacing towards the front edge ot the Partition (as shown in FiG. 2.) (_ /_] (2) #6x5/8" Screws /uo ! Partition (viewed from left) Next, attach the plastic Drawer Runners by using (32) #6x1"...
- Page 6 Step 5. Attach the Left and Right Wings to the Platform using (4) #8xl/2" Panhead Screws (as shown in FIG. 5). The long flanges facing outward and toward edge of Platform. FIG. 5 #8x1/2" Panhead Screws Platform Step 6. Attach the Wings (with Platform) to the Carriage of the Lift Mechanism by laying the Back (with Lift attached) in a flat position and aligning the top and bottom holes in Wing flanges with the holes in the Lift Carriage.
- Page 7 Step 7. Attach the (4) plastic Trays to the Door by inserting the (16) #8xl/2" Panhead Screws into the Door. The (3) smaller trays are mounted in the three top rows of predrilled holes, with larger tray mounted in bottom row. Attach Magnet Strike Plate with (1) #5xl/2" Flathead Screw.
- Page 8 Step 9. Place or tap Caster Clips, Inserts, (1) Locking Caster, and (1) Non-Locking Caster into Left Side (as shown in FIG. 9 below). Attach the back to Left Side by guiding Back onto Connecting Bolts in Left Side (as shown in FIG. 9), turn Cams to the Locked Position. Attach the Shelf and Front by guiding each piece onto the appropriate Bolts in the side, and turn the Cams to the Locked Position.
- Page 9 Place or tap Caster Clip, Insert and Non-Locking Caster into the Partition (as shown in Fig. 10. below Step 10. Align the Connecting Bolts in Partition with corresponding holes in Front, Shelf and Back. Now, making sure the Partition is completely on the Connecting Bolts, turn Cams to Locked Position.
- Page 10 Step11. AttachCompartment B ottomand Compartment B ackto Partitionby guidingeachpieceonto ConnectingBolts in the Partition(as shownin FIG.11).Turn Camsto LockedPosition. FIG.11 Compartment Bottom Taped 98300-1( 98301-10 98302-10 Page lO...
- Page 11 Step 12. Place or tap Caster Clips, Inserts, (1) Locking Caster, and (1) Non-Locking Caster into Right Side (as shown in FiG. 12A below). Attach Right Side by Aligning the Connecting Bolts in the Right Side to the holes in the Compartment Back and the Compartment Bottom (as shown in FIG.12).
- Page 12 Step 13. Attach the (2) Leaf Support Wings to outside of Right and Left Sides, on right and one Left with (8) #8 x 5/8" Flathead Screws. Now, attach the (2) Bronze Strike Washers for the Round Magnet to each side with (2) #5 x 1/2" Flathead Screws (as shown in FIG. 13). FIG.
- Page 13 Step 15. The Door may be hung using (6) #5 x 5/8" Flathead Screws (as shown in FIG. 15). Next attach the Door Knob using (1) 7/8" Bolt for Ceramic Knob or (1) 8/32 x 1" Bolt For Metal Knob, this is a 2 pc.
- Page 14 PLEASE NOTE: BESURETO KEEPGROVES INDRAWER PARTS (FORDRAWER BOTTOM) ALIGNED WHEN ASSEMBLING THEDRAWER. Assembling the Drawer Begin Drawer assembly by inserting Drawer Connectors into the ends of the (4) Drawer Backs, (as shown in FIG. A), Push Connectors all the way into the Drawer Backs until the tabs lock into place.
- Page 15 Installing Sewing Machine into Your new Cabinet. It may be helpful to read the directions for operating the mechanism before proceeding with the following FIG. 16 steps. See page 16, and FIG. 19 on next page. Step 1. Swing out the Leaf Support Wings and open leaves. To prevent damage to Cabinet surface, place cushioning material just to the left of cut-out.
- Page 16 To assist in selecting the platform holes best suited to properly position your sewing machine, refer to FIG. 18B below. Fit Insert (Sears #9801) FIG. 18B Cabinet top Opening Sewing Machine Determine measurement A & B on your custom-fit plastic insert and select platform holes which will properly place your machine...
- Page 17 HOW TO MOVE YOUR MACHINE To move machine from flatbed to storage (see Photos FROM ONE POSITION TO ANOTHER C,D& E. GENTLY push down on sewing machine until you hear a "click," To move machine from free arm to flatbed (see Photos A, B&...
- Page 18 Wood Parts and Part Numbers A-Right Leaf B-Left Leaf D-Left Sidel_anel E-Right Side Panel G-Back H-Compartment I-Shelf J-Compartment F-Partition Back Bottom (Left View) ../ P-Drawer M-Platform • Front L-Right K-Left Leaf Supports • Bottom Q-Drawer O-Door Ref. No. Description Part No.
- Page 19 }o ))o I (JJ) (cc) (o) D_ (KK) (DD) (uu)_ (E)_u__u_, (LL) (F) _\m_l (EE) (MM) (V' ,FFI (X) _ (GG) (oo) (HH) (L) _\-_'_-_-_-_ (PP) (ss) ,.,© @ (11) (vv) (AA),@ (AA) (RR) (BB) _- 98300-1! 98301-19 98302-19 Page 19...
-
Page 20: Part Numbers
Part Numbers :lef. No. Part No. Ref. No. Description Description PaN No. #5xl/2" Flathead Screws 000916 003165 Knob White Ceramic (#98301 only) #6x5/8" Panhead Screws 000083 003170 Knob Gold (#98300-98302 only) _8xl/2" Panhead Screws 002614 001135 Locking Caster #8x5/8" Flathead Screws Bronze 002570 001136 Non-Locking... - Page 21 API Specialty Furniture (A Division of ARROW PRODUCTS, Inc.) P.O. Box 410, Elkhorn, Wl 53121 1-800-533-7347 98300-BC 09-99 98301-BC 98302-BC...
